1 Product introduction

1.1 Brief introduction

The flap /slide barrier and swing gate is a kind of 2-way speed access control equipment

designed for places with high class security requirements. It is easy to combine IC access control,

ID access control, code reader, fingerprint, face recognition and other identification devices，It

realizes the intelligent and efficient management of passage.

1.2 Product structure and principle

The structure of the product is mainly composed of mechanical system and electric control

system.

The mechanical system is composed of cabinet and core mechanism. The cabinet is equipped

with indicator, infrared sensor and other device.

The core mechanism is composed of motor, position sensor, transmission, shaft.

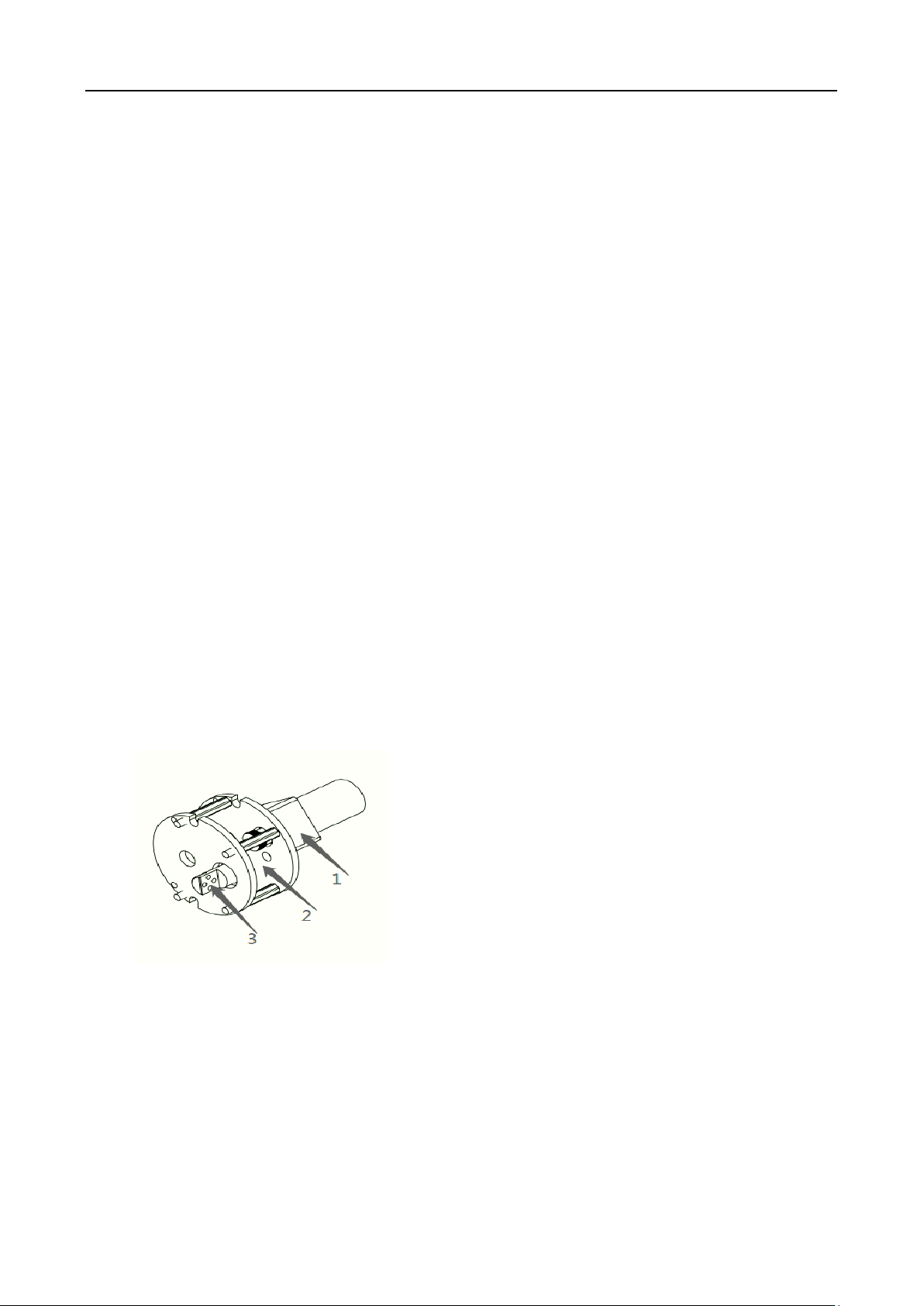

Swing core

The electric control system consists of access control system, control board, infrared sensor,

direction indicator, position sensor, motor, power supply, battery and so on.

1. Motor

2. Core

3. Roting shaft

Swing Barrier • User Manual

Name

Function

Access control

device

IC/ID card access control, fingerprint, face recognition, code

reader, access control device send delay signal to the

turnstile board door signal. Remote control or button to

open the door(select the configuration)

Main board

(control)

The control center of the system, when receiving the access

control device delay signal, it control motor running so that

the gate opened, the direction indicator light turns green,

while receiving core position sensor, infrared sensor, and

judging and processing logic of these signals, keep the gate

components of intelligent coordination work

Infrared sensor

Detect the passage of people in the lane, Anti pinch

Indicator

Display the current channel status

Position sensor

Detects and controls the opening and closing position of the

gate

Motor

Drive the barrier moving

Power Supply

power supply to control board

12V battery

The gate will keep open the door automatically when

power failure

System Operation Principle

1) Turn on the power, wait for the end of the self-examination ; the system enters into work

mode;

2) After swipe legal card or QR code and fingerprint, Access control device send opening

signal to main board.

3) The main board receives open signal, control indicator to green, motor acts to open the

barrier.

4) After the passenger passing through the passage in accordance with the direction indicator

Swing Barrier • User Manual

mark, the infrared sensor detects the complete process of the passenger passing through the

passage, and issues signal continuously to the main controller board, until the passenger passes

through the passage completely.

5) After the passenger passes through the passage completely, the main controller board

delivers a signal to the counter, which will increase 1 automatically, ending the passing process.

6) If the passenger forgets to swipe card when go into the passage, sound/light alarm signal

will be given from main board. The alarm signal will not be cancelled until the passenger retreats

from the passage and the passing is only allowed after reading again the effective card

1.3 Function Features

Varied pass mode can be chosen flexibly;

Standard signal input port, can be connected with most of the access control board,

fingerprint device and scanner other equipment;

The turnstile has automatic reset function, if people swipe the authorized card, but don’t

pass through within the settled time, it need to swipe card again for entry;

Card-reading Recording function: single-directional or bi-directional access can be set by the

users

Automatic opening after emergency fire signal input

Pinch protection;

Anti-tailgating control technology

Automatic detection, diagnosis and alarm, sound and light alarm, including trespassing

alarm, anti-pinch alarm and anti-tailgating alarm.

High light LED indicator , displaying passing status.

Self diagnostic and alarm function for convenient maintenance and use

Gate will automatically open when power failure(connect 12V battery)

1.4 Technical parameter

Swing Barrier • User Manual

Housing Material

304 stainless steel

Power

AC220±10% V、50HZ

Working voltage

DC 24V

Motor

Brush DC motor 30W

Working temperature

-20 ℃- 60 ℃

Work environment

≦90%, no condensation

Open signal

Passive signals (relay signals, dry contact signals,)

Communication

RS485

Pass rate

≦35 person/min

Passage width

Swing gate 600--900mm

2 Equipment Installations

2.1 Installation notes

Please read this manual carefully before install it;

The gates must be correctly arranged in order, and the left and right gates of each lane should

be aligned;

If the equipment is used outdoors, equipment should be installed at the establishment of

100-200mm high cement platform, so as to prevent moisture, and install ceilings and other

sunscreen, rain protection facilities;

Protective earth wire must be connected;

Please confirm each RJ45 cable straight through;

Please check all wires has been properly connected before power on;

Please test all function before using.

2.2 Equipment Installation

1) Tool preparations

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HIK VISION Matériel réseau

HIK VISION

HIK VISION DS-7608NI-K2/8P/4G Manuel utilisateur

HIK VISION

HIK VISION DS-7104NI-SL Manuel utilisateur

HIK VISION

HIK VISION DS-7100NI-E1 Series Manuel utilisateur

HIK VISION

HIK VISION iDS-96000NXI-I16/24 Manuel utilisateur

HIK VISION

HIK VISION DS-96128NI-E16 Manuel utilisateur

HIK VISION

HIK VISION DeepinMind iDS-6700NXI Series Manuel utilisateur

HIK VISION

HIK VISION Network Video Recorder Manuel utilisateur

HIK VISION

HIK VISION BCS-V-NVRXX02-4K Series Manuel utilisateur

HIK VISION

HIK VISION DS-9600NI-I8 Series Manuel utilisateur

HIK VISION

HIK VISION DS-7600NI-SE/P Series Manuel utilisateur

HIK VISION

HIK VISION DS-7764NI-M4 Manuel utilisateur

HIK VISION

HIK VISION DS-7600NI-12 Series Manuel utilisateur

HIK VISION

HIK VISION DS-7604NI-Q1 Manuel utilisateur

HIK VISION

HIK VISION UD.6L0202B1194A01 Guide de l'utilisateur

HIK VISION

HIK VISION DS-E04NI-Q1 Manuel utilisateur

HIK VISION

HIK VISION DS-MP3516-RS Manuel utilisateur

HIK VISION

HIK VISION LTN07128/256 Manuel utilisateur

HIK VISION

HIK VISION 7604NI-K1B Manuel utilisateur

HIK VISION

HIK VISION iVMS-4200 Manuel utilisateur

HIK VISION

HIK VISION DS-7116HQHI-K1 Manuel utilisateur

HIK VISION

HIK VISION iDS-9600NXI-I8/8FB Series Manuel utilisateur

HIK VISION

HIK VISION DS-96064NI-I16 Manuel utilisateur

HIK VISION

HIK VISION DS-7600NI-KI/W Series Manuel utilisateur

HIK VISION

HIK VISION DS-9608NI-I8 Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
