HIK VISION DS-D42AM2 Manuel utilisateur

Multi-Functional Card User Manual

Multi-Functional Card

User Manual

Multi-Functional Card User Manual

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and

all other information hereinafter are for description and explanation only. The information

contained in the Manual is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in

various jurisdictions. Other trademarks and logos mentioned below are the properties of their

respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE

USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY

AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL

OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER

ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL

PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS

THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS

USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

Multi-Functional Card User Manual

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at

his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and

comply therefore with the applicable harmonized European standards listed under the

EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of

as unsorted municipal waste in the European Union. For proper recycling, return this

product to your local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed

of as unsorted municipal waste in the European Union. See the product documentation

for specific battery information. The battery is marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return

the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Multi-Functional Card User Manual

iii

Applicable Models

This manual is applicable to the multi-functional card 2.0.

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol

Description

Provides additional information to emphasize or supplement

important points of the main text.

Indicates a potentially hazardous situation, which if not avoided,

could result in equipment damage, data loss, performance

degradation, or unexpected results.

Indicates a hazard with a high level of risk, which if not avoided, will

result in death or serious injury.

Multi-Functional Card User Manual

Chapter 1 Introduction

1.1 Overview

As an accessory of the LED sending card, the second generation multi-functional card is designed

to implement functions such as remote screen adjustment, 3D display, voltage detection,

temperature detection, and light sensing.

You need to upgrade both the receiving card and the sending card first, to enable 3D function of

the multifunctional card. Refer to the user manual of LED display for details.

1.2 Physical Interface

1.2.1 Front Panel

The appearance and description of the front panel are shown as below.

Figure 1-1 Front Panel

Table 1-1 Front Panel Description

Name

Description

Name

Description

12V GND

Sensor interface

RS232

Serial interface for

remote

telecommunication

3.3V GND（SCL SDA）

Sensor interface

POWER

Power indicator

AI/DI GND

Sensor interface

ACTIVE

Indicator for normal

working status

RS485

Serial interface for

telecommunication

—

Multi-Functional Card User Manual

1.2.2 Rear Panel

The appearance and description of the rear panel are shown as below.

Figure 1-2 Rear Panel

Table 1-2 Rear Panel Description

Name

Description

Name

Description

IR IN

Infrared input interface,

requiring to connect with

an IR extension cable

DATA

Interface for connecting

with the receiving card

IR OUT

Infrared out interface

WLAN

Ethernet interface

3D OUT

3D interface

DC IN 12V

Power interface

Multi-Functional Card User Manual

Chapter 2 Hardware Connection

The multi-functional card can work properly after being serially connected with the sending card

and the receiving cards.

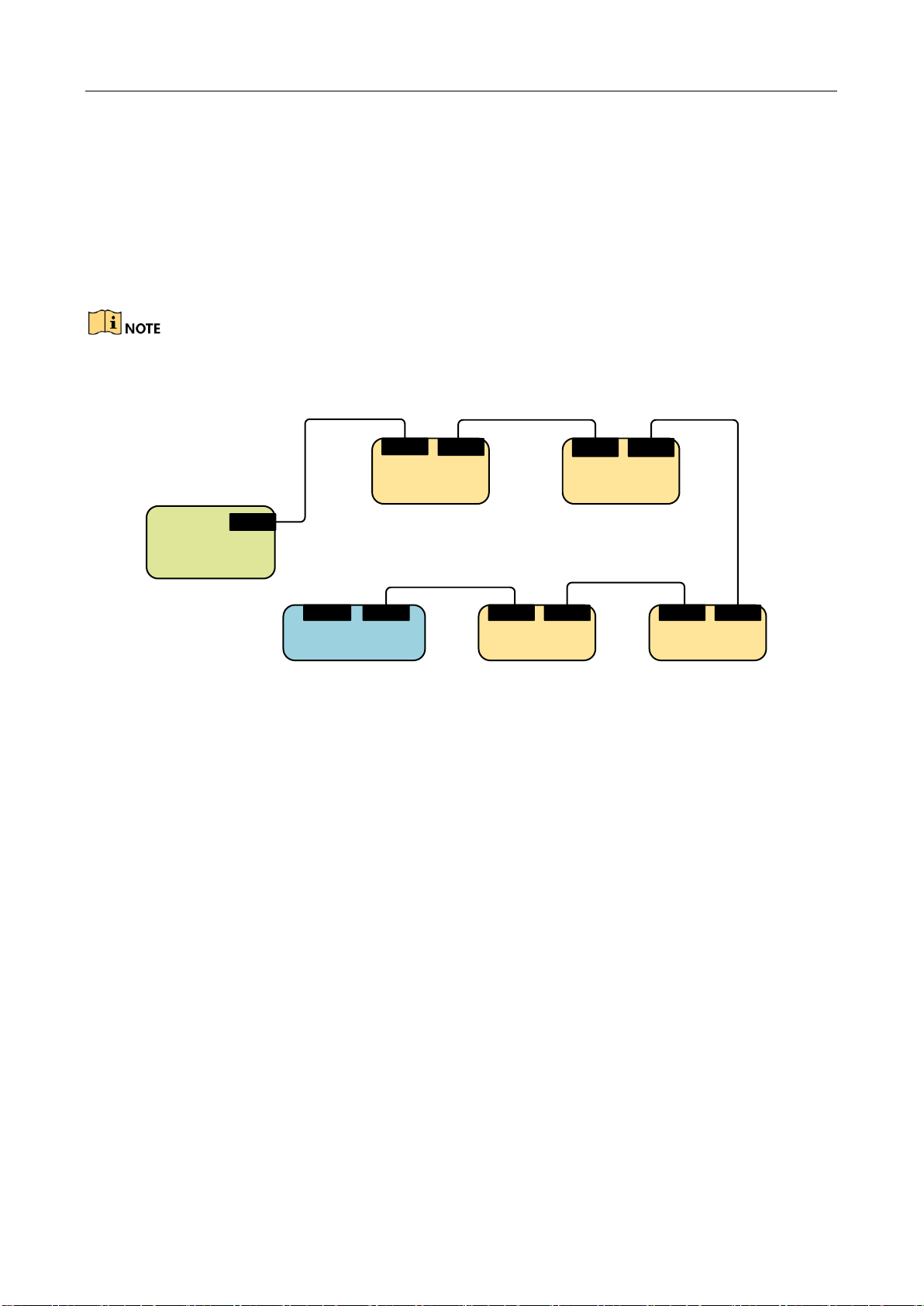

In order to power the multi-functional card, you are recommended to connect it to the last

receiving card, as shown in the following figure.

Receiving

Card

WLAN WLAN

Sending Card

WLAN

Receiving

Card

WLAN WLAN

Receiving

Card

WLAN WLAN

Receiving

Card

WLAN WLAN

Multi-

Functional Card

WLAN WLAN

Figure 2-1 Hardware Connection

If the multi-functional card is connected directly to the sending card, extra configuration on

the client is needed. Refer to the user manual of LED display for details.

Multi-Functional Card User Manual

Chapter 3 Common Operations

3.1 3D Display (Optional)

The multi-functional card supports 3D function, which is used to implement the display of 3D

videos.

When the 3D function enabled, the loading capacity will decline by half. You need to connect to

half of the original devices to prevent screen flickering.

Prerequisites

The multi-functional card is connected correctly. See Chapter 2 Hardware Connection for details.

Steps

Step 1 Connect the 3D accessory, such as glasses, to 3D OUT on the multi-functional card.

Step 2 Input signal source.

Step 3 Log in to the client.

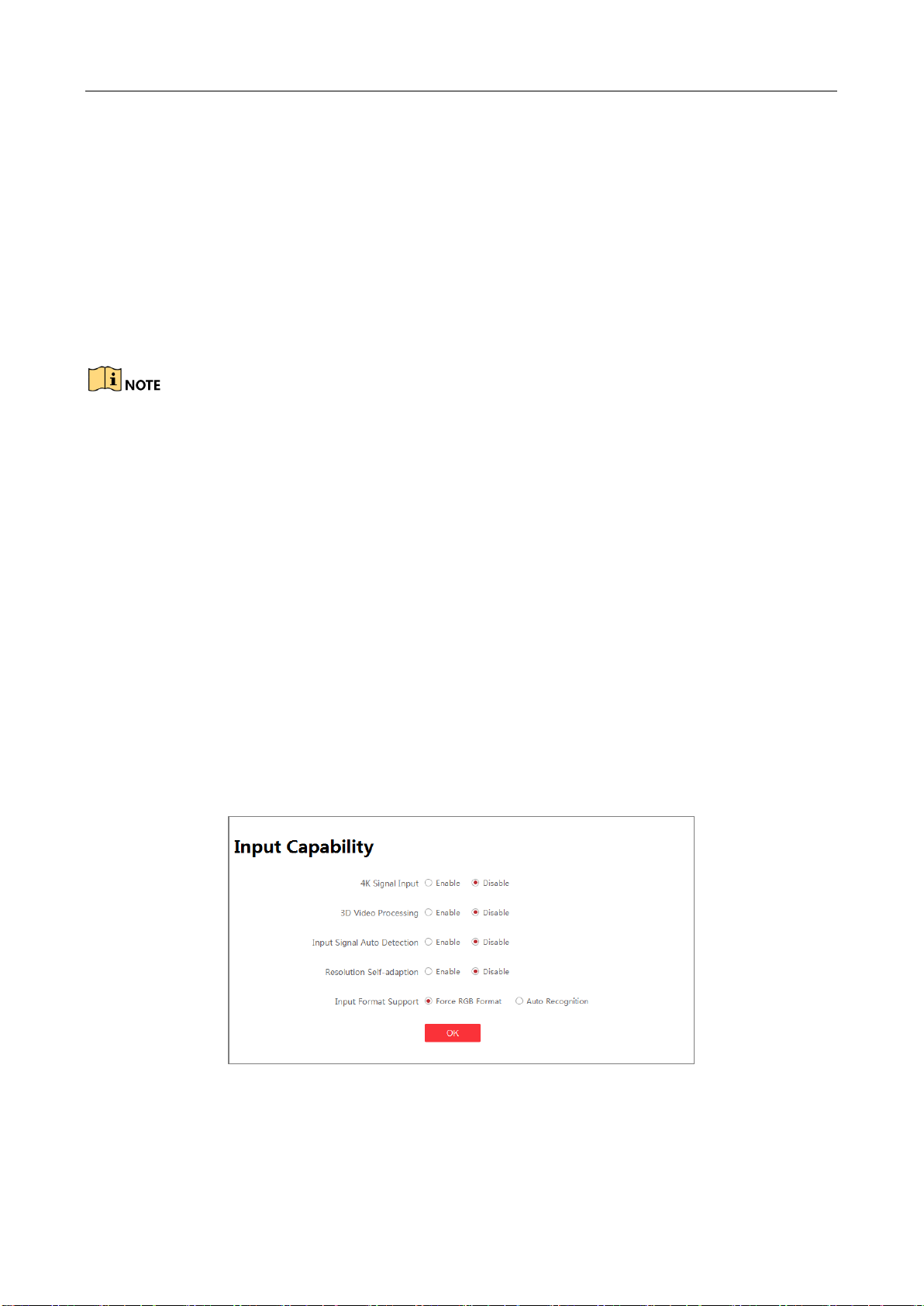

Step 4 Select Screen Management > Advanced Operation > Input Capability.

Step 5 Enable 3D Video Processing.

Step 6 Click OK.

Figure 3-1 Enable 3D Display

Multi-Functional Card User Manual

3.2 Infrared Remote Control

The multi-functional card can work with a remote control to remotely control LED screens.

You can use the remote control by importing a configuration file.

The remote control implements functions such as signal source switching, brightness adjustment,

display on/off detection, scene switching, etc.

The remote control is available within 10 m and 45oangle away from the multi-functional card.

3.3 Extended Functions

The multi-functional card has 5 extended interfaces to implement functions such as voltage

detection, temperature detection, and smoke or light sensing.

Multi-Functional Card User Manual

Appendix A Description of the Remote Control

Power Signal Source

Brightness

Scene

Volume

Directional

Button

Return

Shortcut

Help ID

 System Information

 3D

 Dehumidification

 Auto Resolution
