HIK VISION DS-K1T501SF Manuel utilisateur

DS-K1T501SF call 2nd indoor station and Hik connect

List of devices and version :

Model

Firmware

DS-K8301WT

V1.5.0 build 181121

DS-KH8350-WTE1

V2.1.2 build 191014

DS-K1T501SF

V1.1.0 build 191010

IVMS-4200

V3.2.0.10 build 20191216

Functions:

1. DS-K1T501SF can support 1st and 2nd generation indoor

station with this version.

2. After adding the indoor station to Hik Connect , press the call

button on the DS-K1T501SF, both the indoor station and Hik

Connect will get the call.

3. Hik Connect can add the DS-K1T501SF directly without

indoor station.

4. DS-K1T501SF can support extensions at most 8 extensions.

Operations:

1. Download the firmware and upgrade the device, after

upgrading the device, please default all devices. Then

activate the device and change the IP address to which you

want.

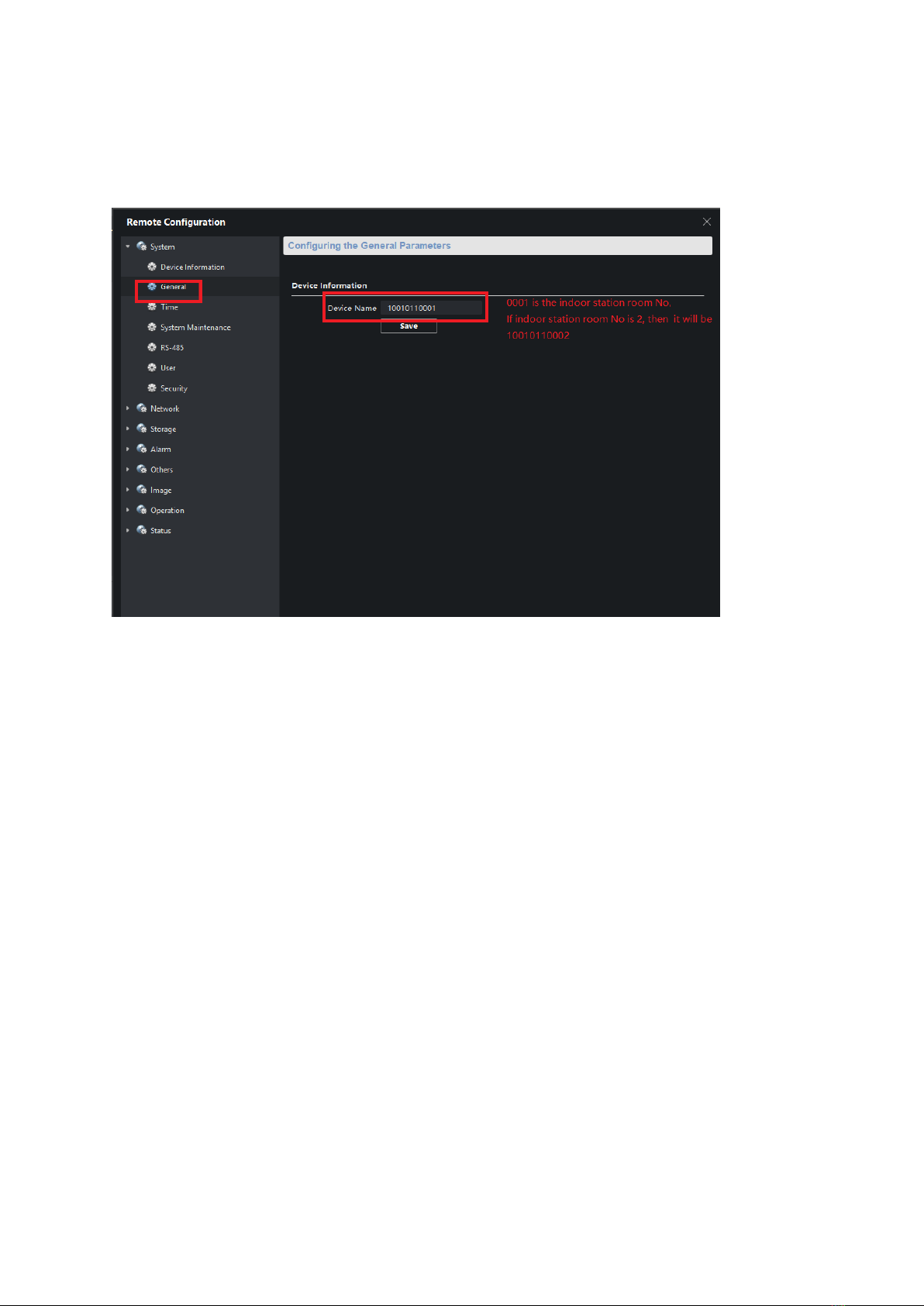

2. Remote configuration on DS-K1T501SF , select General

and then change the Device Name to 10010110001.

DS-K1T501SF call 2nd indoor station and Hik connect

(0001 is the indoor station room No, if room No is 2, then we

should fill 10010110002)

3. Remote configuration on indoor station, select ID

configuration and change the Call No to 1.

DS-K1T501SF call 2nd indoor station and Hik connect

And then select Linked Network Configuration and input the DS-

K1T501SF IP address.

DS-K1T501SF call 2nd indoor station and Hik connect

4. For the extension indoor station. Remote configuration on

extension indoor station.

Select ID Configuration and change the Device type to Indoor

Extension and also input indoor station No, it can support up

to 5 extension indoors.

DS-K1T501SF call 2nd indoor station and Hik connect

Select Linked Network Configuration and input Main indoor station

IP address.

5. For the extension outdoor station ,select Advanced Settings.

DS-K1T501SF call 2nd indoor station and Hik connect

The Security control platform is for the IP address of the

Main DS-K1T501SF. The No is the extension No.

After all settings, please reboot all the devices.

DS-K1T501SF call 2nd indoor station and Hik connect

Trouble shooting

Q1: Customer feedbacks he can’t live view the image on the indoor

station.

A:Check the resolution of the DS-K1T501SF,make sure the

resolution is 720P

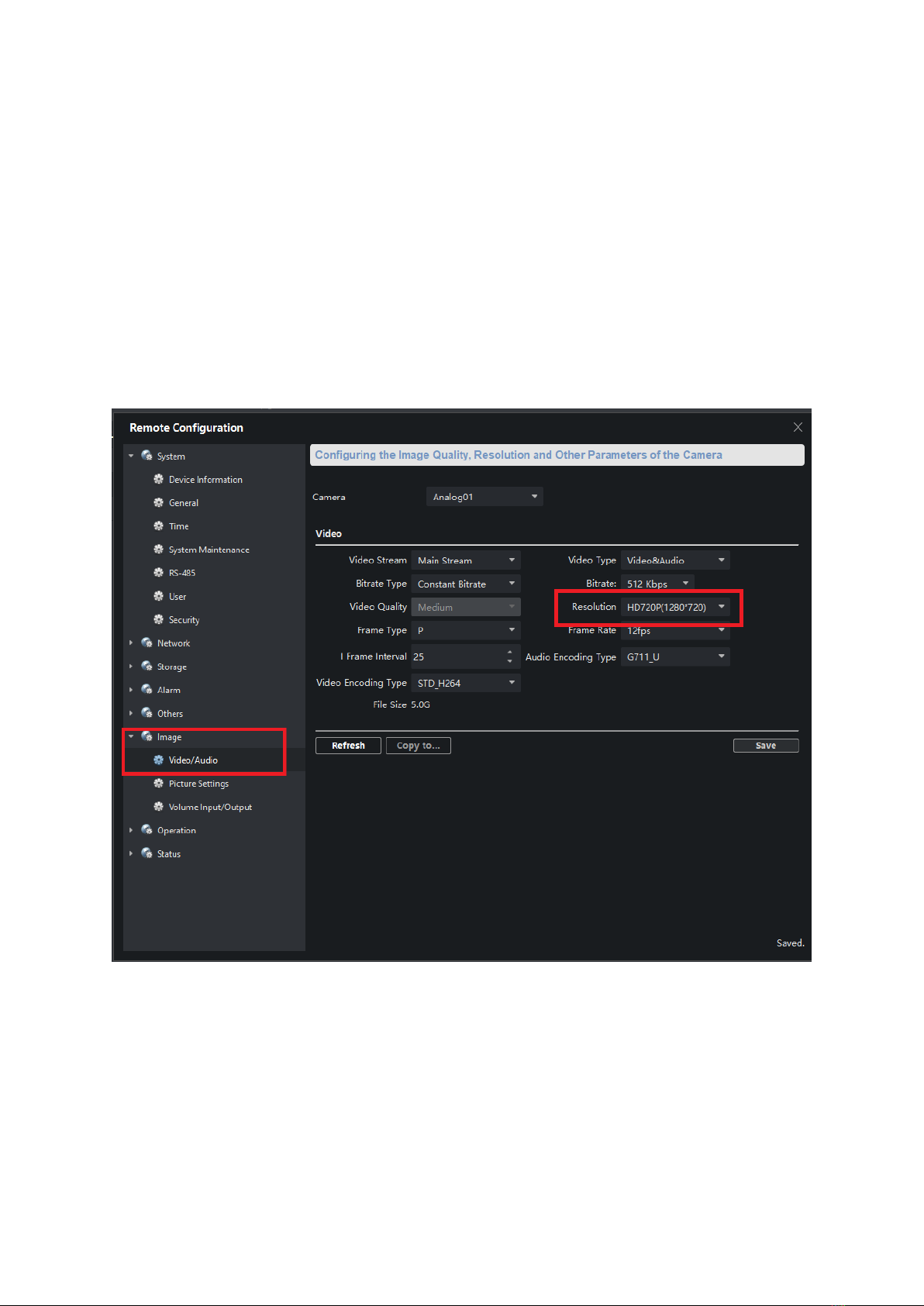

Remote configuration on DS-K1T501SF, select Video/Audio and

change the resolution to 720P

Q2: Customer feedbacks he can get the call on the indoor station

but can’t get the call on Hik connect.

DS-K1T501SF call 2nd indoor station and Hik connect

A: Check the call forward time whether it is 0s or not. Make sure it

is 0s.

Remote comfiguration on indoor station, select Time Parameters

and change the Call Forwarding Time to 0s.

Q3: when press the finger on DS-K1T501SF , it will not call indoor

station directly when can’t recognize the finger.

A : This function is disabled by default.

Go to the 4200 Access control Module and Select Device

parameters ->Door 1 and then click the Advanced.

After clicking, you will see the image 2.

Enable the function which is highlighted , after this, when press the

finger when can’t be recognized , it will call indoor station.

DS-K1T501SF call 2nd indoor station and Hik connect

Q4：The device neither call indoor station nor enroll card

A:Check the device whether it is in the arming status.

DS-K1T501SF call 2nd indoor station and Hik connect

Select Tool-> Device Arming Control , make sure the device is

arming.

This version doesn’t support two way audio beginning from the

indoor station side.
