HighPoint RocketStor 6614V Manuel utilisateur

RocketStor 6614V/ 6618V

4-Bay/ 8-Bay Thunderbolt 3 Tower RAID Enclosure

Quick Installation Guide

V1.00

RocketStor 6614V/6618V Overview

The RocketStor 6618V and 6614V are 4-Bay/ 8-Bay 40Gb/s

Thunderbolt™ 3 Tower RAID Enclosures are ideal for I/O intensive

applications that require consistent transfer performance.

Advanced Features

•Robust, 4 & 8-Bay Thunderbolt™ 3 Tower RAID Enclosures

•2x Thunderbolt™ 3 40Gb/s USB-C Ports

•Daisy Chain support for up to 6 devices

•4x (RocketStor 6614V) or 8x (RocketStor 6618V) 2.5"/3.5" Hot-

Swappable Drive Bays

•RAID 0, 1, 5, 10, 50 & JBOD / Non-RAID

•Built in Carry Handle for Easy Portability

•Adjustable Fan Control

•Integrated LCD Panel for Real-Time Enclosure Management

•User Friendly RAID Management Suite

•Windows, Mac, and Linux

System Requirements

PC Requirements

•PC or Mac System with Thunderbolt™ 3 support

•Windows 11, 10

•Windows Server 2022, 2019, 2016

•Microsoft Hyper-V

•Redhat/ Ubuntu/ Debian/ Fedora/ Proxmox/ Rocky Linux (Kernel

3.10 and later)

•macOS 10.13 ~ macOS Sonoma 14.x

RocketStor 6614V Kit Contents

•1x 4-Bay Enclosure

•4x 3.5 Inch Drive Trays

•1x 40Gb/s Thunderbolt™4 1M cable

•1x UL Power Cord

•20x 3.5" HDD mounting screws

•20x 2.5" SSD mounting screws

•1x Quick Installation Guide

RocketStor 6618V Kit Contents

•1x 8-Bay Enclosure

•8 x 3.5 Inch Drive Trays

•1x 40Gb/s Thunderbolt™4 1M cable

•1x UL Power Cord

•35x 3.5" HDD mounting screws

•35x 2.5" SSD mounting screws

•1x Quick Installation Guide

RocketStor 6614V/6618V Hardware

Front View

RocketStor 6614V

RocketStor 6618V

RocketStor 6614V/6618V Panel Layout

The RocketStor 6618V is shown below:

Front View

Disk Present LED: Solid Blue

Disk Active LED: Flash Blue

Power LED: Solid Blue (Normal Status)

Warning LED: Flash Yellow. The Enclosure's temperature has

exceeded the warning threshold 55℃ or the fan speed is below normal

operating levels 700rpm/min

Power LED

Warning LED

Fail LED Disk Active LED

Disk Present LED

LED display

Navigation keys

Fail LED: Red light. The temperature is greater than 60℃, solid red light;

the fan speed is less than 500 rpm/min, the red light is flashing, and

generates an audible alarm

LED display: 16x2 LCD display with user-controlled blue backlight

Navigation keys: 4x navigation keys to control Enclosures Fan

Speed/Audible Alarm and monitor temperature

Back View

Power Switch: Enclosure power switch

AC Power Input: Connecting AC power cord

Kensington Lock Slot: Use a computer lock through the keyhole to

lock the device to prevent theft

Mute Button: Mute the internal Enclosure alarm buzzer

2x Thunderbolt™4 USB-C Connector: The 40Gb/s Thunderbolt™4

1M cable connector for Enclosure connection

Ethernet Port: View device status through this port

Power Switch

AC Power Input

Body cooling

exhaust vent

Power supply

cooling exhaust vent

2x Thunderbolt™4

USB-C Connector

Mute Button

Kensington Lock Slot

Ethernet Port

Drive Tray

For 2.5-inch drive

For 3.5-inch drive

RocketStor 6614V/6618V Hardware Installation

Take RocketStor 6618V as an example

1. Place the RocketStor 6618V on a level surface and remove each

drive tray.

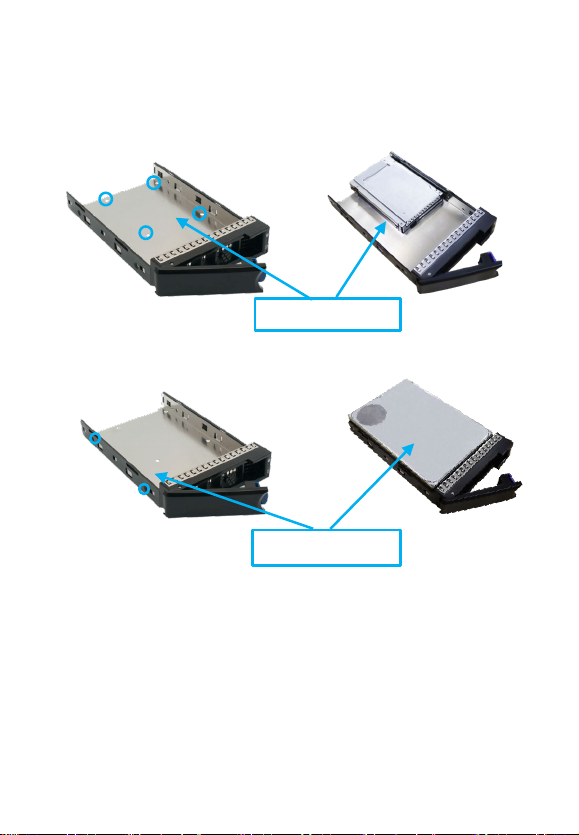

2. Carefully insert the SSD or HDD into the drive tray and secure it

with the provided mounting screws.

1). For 3.5-inch drive: use black screws to secure the drive to

each side of the drive tray.

2). For 2.5-inch drive: use silver screws to secure the drive to the

back of the drive tray.

3. Install each drive tray into the Enclosure.

4. Connect the Enclosure to the host system using the included

Thunderbolt™ 4 cable.

5. Connect the Power cable to the rear of the Enclosure and connect it

to an AC power source.

6. First switch on the Enclosure power switch (switch to the “ | ”

position) to power up the Enclosure, then power up the host

system.
