High Sec Labs SM40N-4 Manuel utilisateur

SECURE KM SWITCHES | USER MANUAL

Models:

SM20N-4 – Secure 2-Port KM Switch, PP 4.0

SM40N-4 – Secure 4-Port KM Switch, PP 4.0

SM80N-4 – Secure 8-port KM Switch, PP 4.0 HLT31927 Rev. 1.1

HSL Secure KM Switches User Manual

TABLE OF CONTENTS

SECTIONS

Table of Contents 1 2 3

Introduction .......................................................... 2

HSL Secure KM Switch ........................................................2

Installation............................................................ 3

Installing the KM ..............................................................3

General .......................................................................3

Step 1 – Connect peripherals to the KM Console ports........................3

Step 2 – Connect computers to the KM Computer ports......................4

Step 3 – Power ON your system ...............................................5

Step 4 – Presets Configuration ................................................6

Step 5 – Select a predefined display layout (Preset) ...........................7

4/8 Port KM Presets list........................................................8

2 Port KM Presets list ..........................................................9

Step 6 – Reset to Factory Defaults............................................10

Operation............................................................ 11

Operating the KM ............................................................11

Front Panel Push-Buttons ....................................................11

Smoothly switch between computers (Virtual Display Technology)..........12

Keyboard shortcut options...................................................13

HSL Secure KM Switches User Manual

INTRODUCTION

SECTIONS

Table of Contents 2 31

HSL Secure KM Switch

Work simultaneously with multiple computers connected to multiple

displays using one set of USB, keyboard and mouse peripherals.

Keyboard Mouse (KM) switch offered by HSL allows interacting with

multiple computers in real-time while maintaining the highest isolation

between computers and peripherals. Directly connect separate

display(s) to each computer and securely share keyboard, mouse and

USB devices through the KM.

Obviate the need for purchasing and installing dedicated, per-

computer peripheral sets.

This guide instructs how to install, configure and operate a secure HSL

KM switch.

HSL Secure KM Switches User Manual

INSTALLATION

SECTIONS

Table of Contents 1 32

Installing the KM

General

•Verify that all peripherals and computers are turned off prior to

connecting them to the product.

•The KM’s back panel is divided into Console Ports and Computer

Ports sections.

•Connect peripherals which are due to be shared by the KM to the

Console ports.

•Connect computers that require access to the shared peripherals

to the Computer ports.

Step 1 – Connect peripherals to the KM Console ports

•Keyboard: Connect a USB keyboard to the corresponding KM

console keyboard port.

•Mouse: Connect a USB mouse to the corresponding KM console

mouse port.

•USB peripherals: Connect USB peripherals to the KM console fUSB

port.

Note: authentication devices such as smartcard and biometric readers are

enabled by default, other devices must be explicitly whitelisted – for further

information please refer to the KM Administrator’s guide.

Note: 4 channel product illustrations shown throughout this manual are

applicable to other KM models.

Smart-Card

Reader

Computers

CONSOLE PORTS COMPUTER/SOURCE PORTS

Audio Keyboard Mouse

Displays

fUSB Cable

Audio Cable

Mouse Cable

Display Cable

Keyboard Cable

HSL Secure KM Switches User Manual

INSTALLATION

SECTIONS

Table of Contents 1 32

Step 2 – Connect computers to the KM Computer ports

•Computer keyboard & mouse connection: Connect each

computer to the KM keyboard & mouse computer port using a

USB A to USB B cable. Connect the USB A end to the computer

and the USB B end to KM.

•Computer USB peripherals: Connect each computer to the

KM fUSB computer port using a USB A to USB B cable. Connect

the USB A end to the computer and the USB B end to KM.

•Computer video connection: Directly connect a monitor to

each computer. Multi-monitor computers require driver

installation, currently available only for Windows

(https://highseclabs.com/downloads/km-multi-

display-drivers/).

Note: 4 channel product illustrations shown throughout this manual are

applicable to other KM models.

PC #4

Top Secret

PC #3

Condential

PC #1

Internet

PC #2

Restricted

SECURE

KM SWITCH

SECURE

KM SWITCH

Move mouse

to switch PCs

Multiple

Sources

Single

Keyboard & Mouse

HSL Secure KM Switches User Manual

INSTALLATION

SECTIONS

Table of Contents 1 32

Step 3 – Power ON your system

•Connect all peripherals and computers to the KM prior to powering

it up. Power ON the KM by plugging it to the AC wall outlet. By

default, after product power-up, the active channel will be computer

#1, indicated by the applicable front panel push button LED lit.

Note: Power ON self-test: As the product powers-up it performs a self-test

procedure. In case of self- test failure for any reason, including jammed buttons,

the product will be Inoperable. Self-test failure will be indicated by abnormal

LED behavior – for further information please refer to the KM setup guide.

HSL Secure KM Switches User Manual

INSTALLATION

SECTIONS

Table of Contents 1 32

Step 4 – Presets Configuration

•Presets reflect the layout and boarders of computer displays to the

KM.

Presets allow:

•Support of various display layouts. Align displays vertically (on top)

and Horizontally (along side).

•Associate the mouse cursor with each computer based on its

respective display position.

•Consider all displays as one absolute screen area to allow VDT.

•Virtual Display Technology (VDT) - Switch control between PCs

by moving the mouse cursor across display boarders (all over the

absolute screen area).

Absolute Mouse-Screen area

Preset #1 (Default)

Preset #2

F11 | F1

F11 | F2

Preset #1 (Default)

Preset #2

HSL Secure KM Switches User Manual

INSTALLATION

SECTIONS

Table of Contents 1 32

Step 5 – Select a predefined display layout (Preset)

•Load a preset to adjust the KM settings with the physical layout of

your computer displays.

•Setting presets is accomplished by typing the keyboard key

sequence L Ctrl | L Ctrl | F11 | Fx1 / x2 | x3 where x1,x2,x3 values

may vary according to the selected preset of your choice.

Setting presets:

1. Find the preset that corresponds to your display alignment.

2. Type the keyboard key sequence to activate the preset (a rapid click-

sound is played once a new preset is selected).

3. Restart the KM by disconnecting and reconnecting the power.

4. For example, in case all displays are aligned horizontally, type:

L Ctrl | L Ctrl | F11 | F2

this will load preset 1 | 2 | 3 | 4

F11 | F1

F11 | F2

F11 | F3

F11 | F4

F11 | F5 1

F11 | F6 1

F11 | F7 1P

F11 | F8 1P

F11 | F9 1

F11 | F10

(Factory

Default) F11 | 1 | 1

F11 | 1 | 2

F11 | 1 | 3

F11 | 1 | 4

F11 | 1 | 5

F11 | 1 | 6

F11 | 1 | 7

F11 | 1 | 8

F11 | 1 | 9

F11 | 1 | 0

F11 | 2 | 1

F11 | 2 | 2

F11 | 2 | 3

F11 | 2 | 4

F11 | 2 | 5

F11 | 2 | 6 1

F11 | 2 | 7

F11 | 2 | 8

F11 | 2 | 9

F11 | 2 | 0

F11 | 3 | 1

F11 | 3 | 2 12345678

F11 | 3 | 3

(8-Port Only)

F11 | 3 | 4

(8-Port Only) 1

F11 | 3 | 5

(8-Port Only)

F11 | 3 | 6

(8-Port Only)

F11 | 3 | 7

(8-Port Only)

F11 | 3 | 8

(8-Port Only)

F11 | 3 | 9

(8-Port Only) 1234567

F11 | 3 | 0

(8-Port Only)

Preset #1 (Default)

Preset #2

Note:

•Custom presets can be created using the HSL KM Configuration tool

(described in detail in the KM Administrator guide).

•Multi-monitor computers require driver installation, currently available

only for Windows (https://highseclabs.com/downloads/km-multi-display-

drivers/).

HSL Secure KM Switches User Manual

INSTALLATION

SECTIONS

Table of Contents 1 32

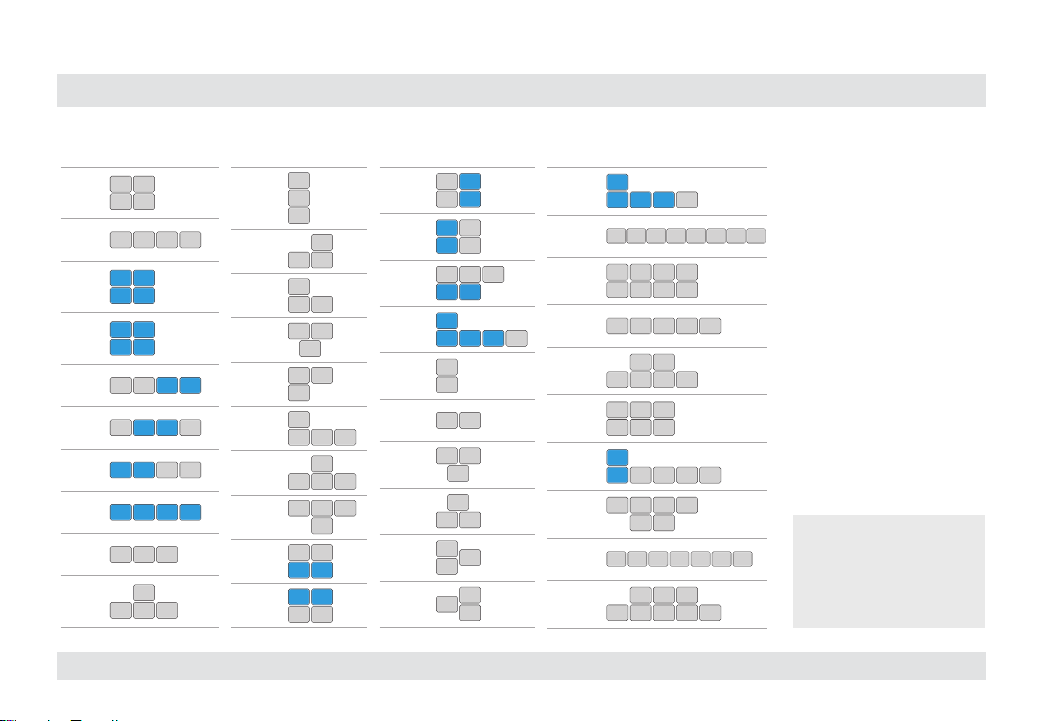

4/8 Port KM Presets list

F11 | F1

F11 | F2 1

F11 | F3

F11 | F4

F11 | F5 1

F11 | F6 1

F11 | F7 1P

F11 | F8 1P

F11 | F9 1

F11 | F10

(Factory

Default) F11 | 1 | 1

F11 | 1 | 2

F11 | 1 | 3

F11 | 1 | 4

F11 | 1 | 5

F11 | 1 | 6

F11 | 1 | 7

F11 | 1 | 8

F11 | 1 | 9

F11 | 1 | 0

F11 | 2 | 1

F11 | 2 | 2

F11 | 2 | 3

F11 | 2 | 4

F11 | 2 | 5

F11 | 2 | 6 1

F11 | 2 | 7

F11 | 2 | 8

F11 | 2 | 9

F11 | 2 | 0

F11 | 3 | 1

F11 | 3 | 2 12345678

F11 | 3 | 3

(8-Port Only)

F11 | 3 | 4

(8-Port Only) 1

F11 | 3 | 5

(8-Port Only)

F11 | 3 | 6

(8-Port Only)

F11 | 3 | 7

(8-Port Only)

F11 | 3 | 8

(8-Port Only)

F11 | 3 | 9

(8-Port Only) 1234567

F11 | 3 | 0

(8-Port Only)

Note: In the preset configurations,

Gray indicates a single-display

computer and Blue indicates a

multi-display computer. Pindicates

primary display and Sindicates

secondary display in multi-display

configurations.

HSL Secure KM Switches User Manual

INSTALLATION

SECTIONS

Table of Contents 1 32

2 Port KM Presets list

Note: Only Windows computers support multiple displays with the

KM.

F11, F1 12

F11, F2 1

F11, F3 1P 1S

2P 2S

F11, F4 1P 2P

1S 2S

F11, F5 12P 2S

F11, F6 1P 1S 2

F11, F7 1P 1S 1S 2

F11, F8 12P 2S 2S

F11, F9 1P 1S 2P 2S

F11, F10 1

2P 2S

F11, 1, 1 1P 1S

F11, 1, 2 2P

F11, 1, 3 1P

F11, 1, 4 2P

1P 1S 2S

F11, 1, 5

F11, 1, 6

F11, 1, 7 2P

12S

F11, 1, 8 12S 2S

2P 2S

F11, 1, 9 2P 2S

12S 2S

F11, 1, 0 1P 1S

2P 2S 2S 2S

F11, 2, 1 1P 1S 1S 1S

2P 2S

F11, 2, 2 1P 1S

1S 1S 2

F11, 2, 3 1P 1S 2

1S 1S

F11, 2, 4 1P 1S 1S

2P 2S 1S

Ce manuel convient aux modèles suivants

Autres manuels High Sec Labs Changer

High Sec Labs

High Sec Labs SX22H-M Manuel utilisateur

High Sec Labs

High Sec Labs K244E Manuel utilisateur

High Sec Labs

High Sec Labs K202B Manuel utilisateur

High Sec Labs

High Sec Labs K304 Manuel utilisateur

High Sec Labs

High Sec Labs K404F Manuel utilisateur

High Sec Labs

High Sec Labs SK81DU-3 Manuel utilisateur

High Sec Labs

High Sec Labs SC21H-M Manuel utilisateur

High Sec Labs

High Sec Labs SK21D-3 Manuel utilisateur

High Sec Labs

High Sec Labs SK21PH-4 Manuel utilisateur

High Sec Labs

High Sec Labs Mini-Matrix SX22D-3 Manuel utilisateur

High Sec Labs

High Sec Labs SC21H-3 Manuel utilisateur

High Sec Labs

High Sec Labs SX42 U-3 Series Manuel utilisateur

High Sec Labs

High Sec Labs Mini-Matrix SX22H-3 Manuel utilisateur

High Sec Labs

High Sec Labs SK41 N Series Manuel utilisateur

High Sec Labs

High Sec Labs SC21H-3 Manuel utilisateur

High Sec Labs

High Sec Labs K204 Manuel utilisateur

High Sec Labs

High Sec Labs SM20N-N Manuel utilisateur

High Sec Labs

High Sec Labs SC42PHU-4 Manuel utilisateur

High Sec Labs

High Sec Labs SC44HU-3 Manuel utilisateur

High Sec Labs

High Sec Labs Mini-Matrix SX22D-3 Manuel utilisateur

High Sec Labs

High Sec Labs SX22D-N Manuel utilisateur

High Sec Labs

High Sec Labs SC21H-N Manuel utilisateur

High Sec Labs

High Sec Labs SC42PHU-4 Manuel utilisateur

High Sec Labs

High Sec Labs Mini-Matrix SX42DU-3 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
