HF Elfin-EW10 Manuel utilisateur

HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 1 -

HF2211S_EW1X_PW1X

Operation Guide

This document applies to the following series of products, please refer

to the user manual for product hardware description.

Elfin-EW10

Elfin-EW10-0

Elfin-EW11

Elfin-EW11-0

HF2211S

Protoss-PW11

HF2211S_EW1X_PW1X Operation Guide
http://www.hi-flying.com/ - 2 -
INTRODUCTION.................................................................................................................................. 3
1. ELFIN-EW1X EVK.................................................................................................................................. 3
2. ELFIN-EW10 4PIN CONNECTOR ........................................................................................................... 3
3. ELFIN-EW11 4PIN CONNECTOR ........................................................................................................... 4
4. ELFIN-EW10 8PIN CONNECTOR ........................................................................................................... 4
5. ELFIN-EW11 8PIN CONNECTOR ........................................................................................................... 4
6. ELFIN-EW10/EW11 RJ45 CABLE......................................................................................................... 4
7. EW10 INTERFACE CONVERSION CABLE................................................................................................ 5
8. EW11 INTERFACE CONVERSION CABLE................................................................................................ 6
9. HF2211S HARDWARE............................................................................................................................ 6
10. PROTOSS-PW11 HARDWARE ............................................................................................................ 7
HARDWARE INTRODUCTION......................................................................................................... 8
1. POWER SUPPLY...................................................................................................................................... 8
2. POWER SUPPLY...................................................................................................................................... 8
3. INTERFACE CONNECTION........................................................................................................................ 8
INITIAL SETUP.................................................................................................................................... 9
1. WEBPAGE SET........................................................................................................................................ 9
2. IOTSERVICE SET.................................................................................................................................. 13
SERIAL PORT SETTINGS.............................................................................................................. 16
1. SERIAL PORT TOOL SECURECRT........................................................................................................ 16
2. SETTING SERIAL PORT PARAMETERS.................................................................................................. 16
3. CLI INSTRUCTION MODE....................................................................................................................... 16
TEST EXAMPLE................................................................................................................................ 19
1. AP WIRELESS NETWORKING................................................................................................................ 19
2. TCP SERVER TEST IN AP MODE ......................................................................................................... 20
3. STA WIRELESS NETWORKING ............................................................................................................. 24
4. TCP SERVER TEST IN STA MODE....................................................................................................... 27
5. STA TCP CLIENT TEST........................................................................................................................ 29
6. STA HTTP CLIENT TEST ..................................................................................................................... 31
7. STA MQTT CLIENT TEST .................................................................................................................... 34
8. FIRMWARE UPGRADE............................................................................................................................ 36
9. RESTORE TO FACTORY SETTING.......................................................................................................... 37
10. MORE APPLICATION CASE................................................................................................................ 37
APPENDIX A:REFERENCES................................................................................................................. 38
A.1．TEST TOOLS............................................................................................................................................ 38
A.2．SMARTLINK V8........................................................................................................................................ 38


HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 3 -

1.INTRODUCTION

Elfin-EW1X, HF2211S, Protoss-PW1X products software function is the same (integrate our HF-

LPT230 module, talk to our sales if need modules only), but with different hardware interface and size.

Here has a brief description of these products’hardware, and take EW for example of software

introduction.

All tools can be download at following link:

http://www.hi-flying.com/index.php?route=download/category&path=1_4

1.1. Elfin-EW1X EVK

Elfin-EW10/Elfin-EW10-0 is RS232 interface and Elfin-EW11/Elfin-EW11-0 is RS485 interface. The

EVK include the following attachment.

⚫Elfin-E1WX products

⚫Screw driver

⚫RJ45 connecter(4PIN or 8PIN)

1.2. Elfin-EW10 4PIN Connector

5 6 7 8

A B C D

HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 4 -

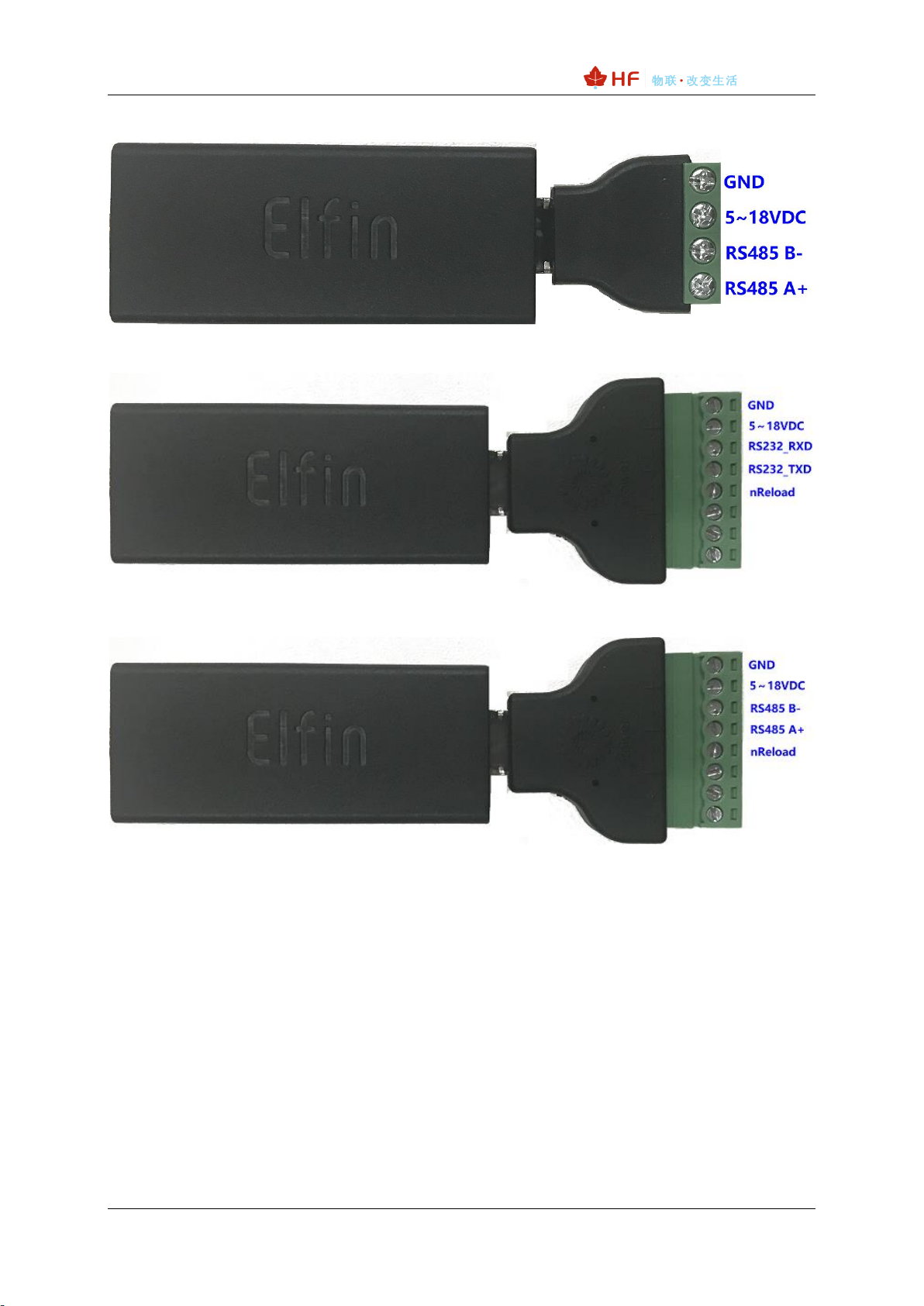

1.3. Elfin-EW11 4PIN Connector

1.4. Elfin-EW10 8PIN Connector

1.5. Elfin-EW11 8PIN Connector

1.6. Elfin-EW10/EW11 RJ45 Cable

The RJ45 cable can be done as following picture.

5 6 7 8

A B C D

1 2 3 4 5 6 7 8

HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 5 -

1.7. EW10 Interface Conversion Cable

HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 6 -

1.8. EW11 Interface Conversion Cable

1.9. HF2211S Hardware

HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 7 -

1.10.Protoss-PW11 Hardware

HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 8 -

2.HARDWARE INTRODUCTION

2.1. Power Supply

⚫EW1X

DC 5~18VDC@5W.

Note: USB is not enough for power supply.

⚫HF2211S

DC 5~36VDC@1A。

⚫PW1X

-H AC Version, 100~240VAC

-M DC Version, 9~48VDC@1A

2.2. Power Supply

See products user manual.

2.3. Interface Connection

Elfin-EW10 is RS232, 7V voltage, need to connect with Pin5(TX), Pin6(RX) and Pin8(GND).

Elfin-EW11 is RS485, use Pin5(A+), Pin6(B-), GND also can be connected in some extreme condition.

HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 9 -

3.INITIAL SETUP

HF Products provide multiple methods to config, webpage and IOTService tools.

Webpage is easy to use, but only for local setup and can not manage multiple device,

recommend to use IOTService tools.

3.1. Webpage Set

Power on product:

EW1X green LED will be repeat flash on 0.3s, then off 0.3s, indicate it works normally.

HF2211S Link LED will be repeat flash on 0.3s, then off 0.3s, indicate it works normally.

PW1X Net LED will be repeat flash on 0.3s, then off 0.3s, indicate it works normally.

PC Wi-Fi to search AP, different products with different SSID, XXXX is the end 4 characters

of MAC.

EW1X SSID is EW10_XXXX or EW11_XXXX.

HF2211S SSID is HF2211S_XXXX

PW1X SSID is PW11_XXXX

Set PC IP with Auto DHCP.

PC Wi-Fi connect to products and got IP as following picture

HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 10 -

Brower input 10.10.100.254, input default user name and password with admin/admin to login

in. The main page is as following.
