HeyCafe H1 Manuel utilisateur

Version 3.0, November 2020

All around professional Coffee Grinder

Version 3.0, November 2020

WARNINGS

This grinder is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the grinder by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the grinder.

Care is needed when handling cutting disks during cleaning.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly

qualified person in order to avoid the risk of electric shock.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it

responsibly to promote the sustainable reuse of material resources. To return your used device, please use the

return and collection systems or contact the retailer where the product was purchased. They can take this product

for environmental safe recycling.

Warranty Information

The manufacturer provides warranty in accordance with the legislation of the customer's own country of residence,

with a minimum of 2 years, starting from the date on which the grinder is sold to the end user.

The warranty only covers defects in material or workmanship.

The repairs under warranty may only be carried out by an authorized service center.

When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.

The warranty will not apply in cases of:

Normal wear and tear Incorrect use, overloading of the grinder, use of non-approved accessories, use of force,

damage caused by external influences, damage caused by nonobservance of the user manual, connection to a nun

suitable mains supply or noncompliance with the installation instructions. Partially or completely dismantled

grinders

Version 3.0, November 2020

TABLE of CONTENTS

1) Preface……………………………………………………………………………………………….4.

2) Technical Specifications …….………………………………………………………………4.

3) General Description ……………………………………………………………………..……5.

4) Unpacking and installation ………………………………………………………………..5.

5) Operation……………………………………………………………………………………………6.

6) Safety devices…………………………………………………………………………………….7.

7) Safety instructions………………………………………………………………………….….8.

8) Maintenance and service…………………………………….……….…………………….8.

9) Cleaning…………………….……………………………………………………….………………10.

10) Remarks and important details………………….…………………….……………….11.

Version 3.0, November 2020

1) PREFACE

Congratulations for purchasing the H1 commercial coffee grinder. The H1 was designed as an all-around

professional grinder with wide range of grinding settings, from as fine as Turkish coffee to espresso and different

filter-coffee brewing (including cupping tests).

The H1 coffee grinder is suitable for different commercial operations such as coffee shops, grocery shops, coffee

labs and offices.

The H1 coffee grinder features:

1. Belt drive system that separates motor’s heat from the grinding chamber

2. All Aluminum body and grinding chamber with cooling fins

3. BottomSetting® grinding setting mechanism with encoder measurement

4. 64mm flat burrs

5. Unique body design that allows using the grinder for different coffee brewing systems

Read this manual from cover to cover before using the grinder as it contains important safety, operations and

maintenance instructions. Keep the manual in a safe place for future reference. The manufacturer reserves the

right to modify the grinder and the manual accordingly. This manual can also be downloaded at www.heycafe.com

2) TECHNICAL SPECIFICATIONS H1

Dimensions: (view picture on right)

Height: 470mm

Width:138mm

Length:230mm

Weight: 6.5kg

Burrs diameter: 64mm (flat type)

Each hopper capacity: 380gr. Coffee beans

Electrical Specifications:

Voltage: 110V/ 230V 50Hz/60Hz

Power: 200W

Duty Cycle: 40%

Grinding capacities: 2.5-3g/second

230

470

138

Version 3.0, November 2020

3) General Description

Grind setting display (LCD)

4) UNPACKING AND INSTALLATION:

Unpack the carton box carefully. For your convenience, it is suggestable to store all the packaging materials

where they can be used whenever the grinder’s transportation is needed.

After opening the box, make sure that the grinder is in one piece and there is no visible damage. If you have

any doubt about the grinder’s condition, DONOT use the grinder and call your local dealer for further

assistance.

Place the grinder on a stable flat counter in a dry area away from water or water splashes and away from

direct sun.

This product was not design for outdoor use.

Position the coffee residue tray inside the grinder’s base frame.

Before plugging in the electrical cord, make sure:

oThe grinder voltage rating (per grinder’s label on the bottom base) is matching the supply mains.

oThe wall socket is fitted with an efficient grounding (Earth) contact.

oPlug in the grinder into the supply mains ONLY after the ground system was inspected and verified to

follow your country’s electric safety rules.

oIT IS COMPULSORY USING A GROUNDED POWER CABLE. The manufacturer cannot be held

responsible if this regulation was not complied with.

oThe power consumption of the grinder (per grinder’s label) is consistent with the relevant wall socket

capacity.

oThe wall socket is protected against short cuts and power surges.

oDo not use extension cables, plug adapters for multiple sockets, or make shift connections.

Plug in the grinder

NEVER OPERATE THE GRINDER IF THE BEAN HOPPER IS NOT FULLY INSTALLED.

Beans’ hopper lid

Demand push button (2)

Running signal light

Grinder’s body

Demand push button (1)

Portafilter support/cup tray

Universal accessories holder

Coffee residue tray

Beans’ hopper

Beans’ hopper finger protector

Grinding setting knob

Grind setting display (LCD)

Main power switch (on back)

Grinder’s base

Fuse housing (on bottom)

Coffee grind coarseness

C= grind setting coarser, (CW)

F= grind setting finer, (CCW)

Version 3.0, November 2020

5) OPERATION

General description of the H1 grinding

The H1 grinder is a manual grinder and can be operated by two ways:

oPressing the demand button on the grinder’s front cover.

oPressing the Jog switch (combined with the operation lamp)

Note：H1 core grinder own power switch on the machine back(Fig.5.1).So make sure the powder switsh is ON

before you operating the machine.

Grinding coffee with the H1:

Open the beans lid and fill a suitable amount of coffee beans into the hopper. Maximum capacity is 380gr.

(0.83Lb) At first operation it is recommended to fill in minimal quantity of beans.

Safety Note: the original hopper must be fully installed before using the grinder.

Set the desired grinding coarseness by turning the setting knob according the LCD reading. The grinder is

factory set to meet Espresso coarseness.

Adjusting the height of the portafilter support(Fig.5.2) according the portafilter needs. When there is a coffee

cup needs,you can use the cup tray which is package in tooling bag,then it can directly support by the

portafilter holder (Fig.5.3). If you need to adjust the height slightly, just loosen one screw on each side(Fig.5.2).

If you need to adjust the height significantly, just loosen three screws on each side(Fig.5.3).

Then place a porta filter handle or any collecting container under the outlet chute and use the demand switch

to operate the grinder.

Adjusting coffee grind coarseness

The grinding disks’ distance range was factory pre adjusted to satisfy different common coffee grinds (from

super fine to coarse).

The H1 is provided with a revolutionary accurate Grind Setting Measurement system (GSM) which is based on

an encoder measurement. Measurement reading is continuously displayed on the LCD. Measurement range is

0.1-8.0 (steps of 0.1), refer to the table below (Fig.5.4) for the correlation between the different measurement

Operating intervals:

The grinder was not designed to be used continuously for periods exceeding 90 seconds

The H1 grinder’s duty cycle is 40%(40% of the time grinding; 60% of the time resting)

It is a normal occurrence that during a long grinding periods the grinding chamber will heat up. To achieve

best grinding results, grind coffee in short intervals of a few seconds each.

Fig.5.3

Loose the front

screw on each side

cup tray

Fig.5.2

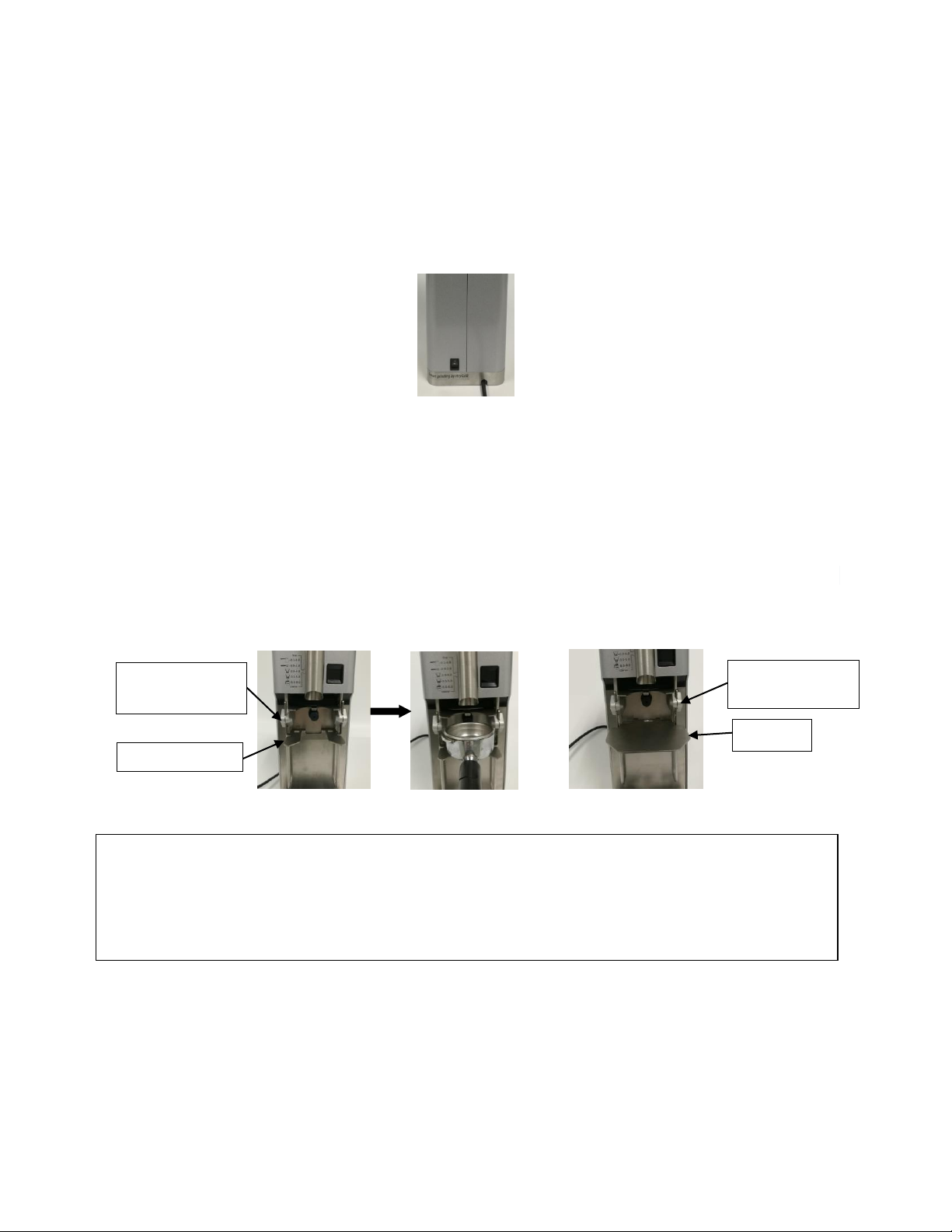

Fig.5.1

Portafilter support

Loose three

screws on each

side

Version 3.0, November 2020

to different type of brewing.

Turning the grinding dial incrementally counter clockwise direction will make the grind finer (letter F will

appear on the LCD) and turning it clockwise will make the grind coarser (letter C will appear on the LCD).

LCD reading

Coffee Brewing style

0.1-0.8

Turkish coffee

0.9-2.8

Espresso coffee

2.9-4.0

Super Automatics

3.5-5.0

Filter Coffee

5.0-8.0

French Press

Fig.5.4

When grinding the Turkish coffee powder, you need remove the outer flapper (Fig.5.5). Then when grinding

other types of coffee powder, you need keep the outer flapper. H1 coffee grinder default factory setting is 3.5.

Fig.5.5

H1 coffee grinder has the memory function, so you can adjust the dial knob whenever it’s plugged or not.The

display screen will always show the correct digits. Also no matter in any case you suspect the dial system’s

display digit’s setting,please refer to chapter 8 for GSM recalibration.

Grind a small amount of coffee and test its coarseness with your espresso machine.

As coffee beans’ qualities and characteristics are changing from time to time it is recommended repeating this

adjustment occasionally.

6) SAFETY DEVICES

A) Over current fuse protector

To eliminate the risk of fire the motor’s driver is equipped with an over-current fuse that is limiting the current

consumption of to the grinder.

If the over current fuse was tripped as a result of malfunction (e.g.: jammed disks, worn out bearings, foreign

object in grinding chamber, etc.) the main power plug must be disconnected.

oSet the grinder’s setting to most coarse

oClose the hopper door and remove the hopper

oEntirely empty the beans hopper into a container by turning the grinder upside down

oManually release any obstacle from the grinding chamber till you can freely turn the grinder’s shaft

oVisually inspect the driving belt and the grinding disks. In case any of them require replacement Refer

to section 8) for “Belt replacement instructions”, “Grinding disks replacement” and ”Fuse

replacement instructions”

oAlways replace the tripped fuse with the same size and capacity fuse (the grinder is originally

equipped with one spare fuse use the tripped fuse to get an identical replacement).

oIf after all the above steps were provided and the fuse is still tripping, then for further handling of the

grinder contact your local dealer.

If the fuse was tripped as a result of a long continuous grinding operation (read section 5, for operating

intervals) allow the grinder to cool down and replace the fuse protection with an identical new one.

B) Beans hopper

The grinding chamber can be a hazardous area if the proper precautions aren’t observed.

Version 3.0, November 2020

NEVER OPERATE THE GRINDER WITHOUT THE BEANS’ HOPPER

The grinder is equipped with safety switch that preventing grinding operation when beans hopper is absent.

In case the safety switch is malfunction don’t continue using the grinder and send the grinder for service with

your local dealer.

7) SAFETY INSTRUCTIONS

NEVER OPERATE THE GRINDER WITHOUT BEANS’ HOPPER. BEFORE REMOVING THE BEANS HOPPER (FOR ANY

REASON) MAKE SURE TO DISCONNECT THE POWER SUPPLY.

BEFORE CLEANING OR SERVICING THE GRINDING CHAMBER OR THE BEANS HOPPER, DISCONNECT THE

POWER PLUG FROM THE POWER SOCKET.

Never attempt to insert your fingers or any foreign objects into the grinding chamber or disks.

Be aware that grinding disks continue rotating for a short while after the grinding operation has ended.

Never bypass or tamper with the HOPPER safety switch or the grinder

Do not use the grinder barefoot or if your hands or feet are damp

Do not use the cable wire to pull and disconnect the power plug

Always keep the grinder dry (internally and externally)

Never put grinded coffee into the hopper or try to regrind coffee powder

The H1 is a COFFEE GRINDER, never attempt grinding anything else other than roasted coffee beans.

Keep all packing materials and the provided tool-bag away from children these items are not toys and can be

harmful if wrongly handled

Please make sure the socket is with correct wires connection,and ground connection is well funtional also.

8) MAINTENANCE AND SERVICE

Warning: grinder’s maintenance and repair should be performed by certified personnel or by your

local dealer. The procedures described below are the only user-level allowed maintenance

procedures.

Be aware of the grinder’s noise level. In case the noise level is higher than normal or irregular noises are coming

from within the grinder, get certified personnel to perform an overall check of the grinder.

A) GSM LCD calibration

1. In any case where you suspect the measurement display is not consistent with the real setting of the grinder

please follow the below steps to recalibrate the setting.

2. Close beans hopper door and turn on the grinder till running empty.

3. Turn the grind setting handle CCW (F on the LCD) till reaching minimum setting

4. Lean the grinder back and press shortly on the reset button (Fig. 8.A.1) the display will show again 0.1

5. Turn the grind setting handle back to your desired grinding setting and check that coarseness matches your

need.

*Remark: if after calibration the grind setting display and actual coarseness are still not matching please contact

your grinder’s dealer.

Fig.8.A.1

Version 3.0, November 2020

B) Over current fuse replacement

1. Turn OFF main switch and disconnect the main power cable.

2. Remove the beans hopper and turn H1 grinder upside down (Fig. 8.B.1). Turn the “FUSE” knob(Fig. 8.B.2).

3. Replace the tripped fuse with an identical size and rating fuse(Fig. 8.B.3)

4. Close the fuse housing; repeat the above steps in opposite order for closing and reconnecting the grinder.

C) Grinding disks replacement:

Check the state of the grinding disks periodically (approximately every 50kg of grinded coffee) good condition disks

will result in a high-quality grind and prevent the Grinder’s overheating.

Recommended grinding disks replacement:

Every 500-700Kg of grinded coffee (when using standard HeyCafé disks)

Every 1000-1500Kg of grinded coffee (when using Ditting original disks)

Warning: The replacement and assembly of a new set of disks is a delicate task. Perform blade removal and

assembly only if you are confident with your technical skills and after reading and understanding the entire

instructions below.

1. Grind thoroughly the entire left over beans

2. Disconnect main power plug

3. Remove hopper and hopper lid

4. Use the provided Allen key to remove the top spider construction (Fig.8.D.1)

5. Release the four top blade holder screws to expose the grinding chamber (Fig.8.D.2)

6. Use the flat screw driver to release the blade screws (3 of each blade) (Fig.8.D.3)

7. Before starting to assemble the new disks make sure the entire grinding chamber is clean (use brush,

vacuum cleaner and dry clean cloth) (Fig.8.D.4)

8. Use original replacements’ parts to assemble the new disks on the disks sitting and secure them with new

stainless-steel screws

9. Assemble the grinder following backward the above steps.

Note: return the dial knob to the same position (knob against the finest grinding setting stopper)

Fig.8.B.1

Fig.8.B.2

Fig.8.B.3

Fig.8.C.1

Fig.8.C.2

Fig.8.C.3

Fig.8.C.4

Version 3.0, November 2020

D) Driving belt replacement

The H1 grinder is equipped with a Lifetime warrantied drive belt (for normal usage of the grinder). Yet, it may

happen that jammed disks or improper grinded substance will result an abnormal wear of the belt and the need to

replace it. Always use an original HeyCafé belt as a replacement part. Follow the steps below to replace the belt:

1. Repeat steps Fig.8.C.1.

2. Open the screw connecting the grinder to the body

3. Pull out the grinder and grinder connecting plate

4. Release the motor tensioning screw to remove the drive belt

5. Replace the drive belt and tension back the motor .

6. Place the motor back to its original position make sure to assemble the outlet rubber ring

7. Repeat the steps above backwards to back assemble the grinder

9) CLEANING

PRIOR TO ANY CLEANING PROCEDURE GRIND COMPLETELY EMPTY (OR EMPTY THE BEANS’ HOPPER) AND

DISCONNECT THE GRINDER’S POWER SUPPLY.

NEVER USE RUNNING WATER TO CLEAN THE MAIN BODY.

USE ONLY PERFECTLY CLEAN CLOTHS OR SOFT BRUSHES TO CLEAN THE GRINDER.

WIPE THE EXTERANL BODY WITH WET CLOTH

DO NOT USE ABRASIVE CLEANING PRODUCTS AS THEY MAY SCRATCH THE GRINDER’S COATING.

Cleaning the beans’ hopper

Pull out the bean hopper (make sure to leave the silicone rubber ring on the grinder) and rinse it thoroughly with

water and soap. As the bean hopper is made of clear polymer, use only liquid detergent (free of abrasive

components) and soft sponge. Before reinstalling the beans hopper back to its position, make sure it is dried

thoroughly. To ensure great coffee taste, clean the bean hopper periodically.

Cleaning the powder chute pipe

Remove the nozzle body, use screwdriver to remove the chute pipe (Fig.9.1),

Clean the outlet chute slope (Fig.9.2) and chute pipe (use brush or vacuum cleaner), Install the cleaned chute pipe

and install the nozzle body.

Cleaning the grinding chamber and grinding disks

In order to clean the grinding chamber HeyCafé is recommending the usage of commercially provided cleaning pills.

Follow manufacturer instructions. In any case

Do not use sharp objects to scrape coffee deposits off of the disks.

After all cleaning and replacing tasks are through make sure to assemble all the parts the same way as they were

disconnected. If anything does not fit back together or there are some leftover parts, do not attempt to operate

the grinder, call for the assistance of your local dealer.

To ensure long lasting grinder and great fresh taste of coffee, the cleaning procedure

as described above should be repeated periodically and at least once per month or as necessary

according the grinder’s usage and quality of beans.

END

Fig.9.1

Fig.9.2

Table des matières

Autres manuels HeyCafe Moulin à café

HeyCafe

HeyCafe HC-880 LAB Manuel d'instructions et de sécurité

HeyCafe

HeyCafe Buddy Manuel utilisateur

HeyCafe

HeyCafe HC-880 Mode d'emploi

HeyCafe

HeyCafe TITAN II S Manuel utilisateur

HeyCafe

HeyCafe HC-600 Manuel utilisateur

HeyCafe

HeyCafe H5 Manuel utilisateur

HeyCafe

HeyCafe AROMA II S Manuel utilisateur

HeyCafe

HeyCafe HC-880 Manuel d'instructions et de sécurité

Manuels Moulin à café populaires d'autres marques

SOLAC

SOLAC All4Coffee MC6253 Manuel utilisateur

Teesa

Teesa TSA4011 Manuel utilisateur

Somogyi Elektronic

Somogyi Elektronic home HG KD 40 Manuel utilisateur

tomado

tomado TM-1287 Manuel utilisateur

Aicok

Aicok CG9220 Manuel utilisateur

Zelmer

Zelmer ZCG7925 Manuel utilisateur

Baratza

Baratza Vario Manuel utilisateur

Baratza

Baratza Forté Manuel utilisateur

Isomac

Isomac ROBY Manuel utilisateur

Eldom

Eldom Dott MK60 Manuel utilisateur

Bunn

Bunn SAFETY-FRESH 1 GPR Manuel utilisateur

Baratza

Baratza Forté AP Manuel utilisateur

FAMITEC

FAMITEC BOLD Manuel utilisateur

Santos

Santos SC55 Mode d'emploi

Lumme

Lumme LU-2601 Manuel utilisateur

TREVIDEA

TREVIDEA Girmi MC02 Manuel utilisateur

Eureka

Eureka Zenith E Mode d’emploi

Baratza

Baratza Maestro Manuel utilisateur
