HPE StoreOnce 3620 and

3640 Systems Start Here

Guide

*BB954-80005*

Part Number: BB954-80005

Published: September 2018

Edition: 1

Abstract

This guide describes how to install a basic HPE

StoreOnce 3620 or 3640 System that does not include

optional storage products. The StoreOnce System can

then be fully configured using the StoreOnce

Management Console, as described in the HPE

StoreOnce 3620, 3640, 5200, 5250, and 5650 Systems

Installation Guide.

Use this guide when installing a basic system without

optional storage products and with all PCIe cards pre-

installed. PCIe cards that were ordered with the system

are pre-installed.

Use the HPE StoreOnce 3620, 3640, 5200, 5250, and

5650 Systems Installation Guide in the following cases.

• The system includes optional storage products or

capacity upgrade kits.

• The system arrived without PCIe cards pre-installed

or requires additional PCIe cards.

Process overview

Required tools:

• Torx T25 screwdriver

• A monitor and USB keyboard or a KVM for initial

network configuration

Procedure

1. Verify the contents

2. Record the iLO default network information

3. Install the components in the rack

4. Attach the security bezel

5. Connect the system cables

6. Power up

7. Configure iLO during bootup (optional)

8. Configure the basic network

9. Configure the StoreOnce System

Verifying contents

Procedure

1. Verify that you received the following items:

• StoreOnce System

• Rail kit

• Security bezel

Page 1

• Two power cables

• Two network cables

Recording the iLO default network

information

Procedure

Record the iLO default network information from the

label on top of the server node.

iLO user name:________________________

iLO network name:_____________________

iLO password:_________________________

Installing the server in the rack

CAUTION: Use extreme caution when installing

and pulling units from the rack. Unattached units

can slip and fall, damaging the StoreOnce System

or causing personal injury. Hewlett Packard

Enterprise is not responsible for any damage or

injury caused by mishandling the StoreOnce

System.

Always use at least two people to lift and locate an

enclosure into the rack.

Procedure

1. Install the rail kit for the StoreOnce server. See the

installation instructions that ship with the rail kit.

2. Insert the two locking nuts for the server into the rack;

one on each front column.

3. Install the server into the rack and secure it using the

thumbscrews on the front bezel of the server.

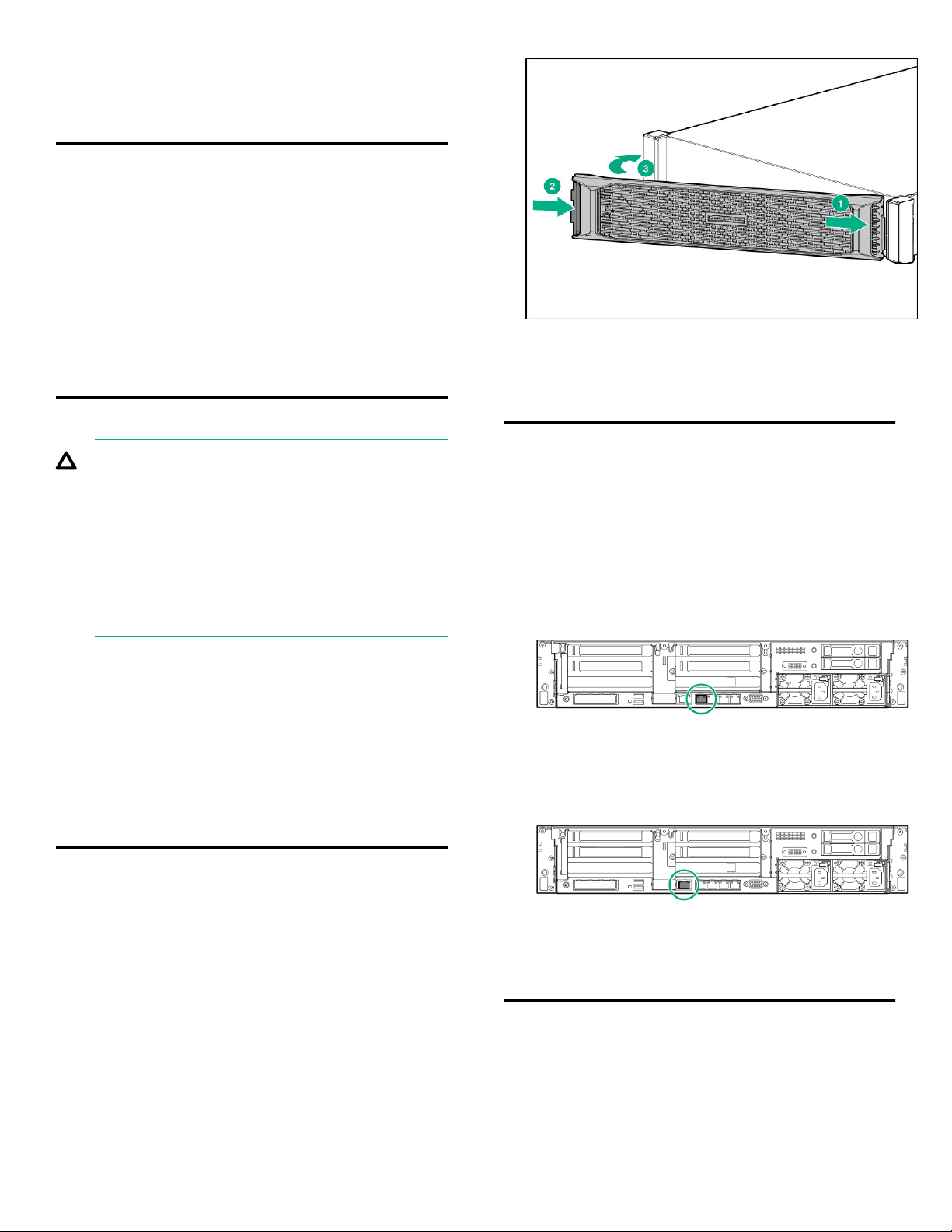

Attaching the security bezel

Procedure

1. Insert the security bezel right tab into the slot on the

chassis and then rotate the bezel to close.

2. Lock the bezel.

The key to lock the bezel is attached to the back of

the security bezel. One key is supplied.

Connecting the system cables

Procedure

1. Connect the power cables.

Connect each power cable to a separate PDU in the

rack.

2. Connect a network cable to LAN port 1.

3. Connect a network cable to the iLO port

(recommended).

4. If you are not using iLO for initial configuration,

connect a VGA monitor and a USB keyboard.

Powering on the system

Prerequisites

All storage enclosures must be installed and cabled

before the system is powered on. For instructions about

installing optional storage enclosures, see the HPE

StoreOnce 3620, 3640, 5200, 5250, and 5650 Systems

Installation Guide.

Page 2

Procedure

Power on the StoreOnce System (the power button is on

the front of the server).

The power button LED flashes green at the start of the

power-on sequence and then turns solid green, along

with the system health LED. If LAN port 1 is connected

to an active link, the NIC status LED will also begin to

flash green when the StoreOnce System is powering up.

While configuring the system using iLO virtual console,

the UID LED flashes blue.

1. Power LED and on/off button

2. NIC status LED

3. System health LED

4. UID LED

After successful bootup, the console displays a login

prompt.

Configuring iLO during bootup (optional)

Procedure

1. Press F9 System Utilities.

2. Navigate to System Configuration > iLO 5

Configuration > Network Options.

3. Configure the iLO network options and note the

details.

iLO IP address:___________________________

iLO subnet mask:_________________________

iLO gateway:_____________________________

Configuring the basic network

Procedure

1. Log in using the default user name and password.

Default user name: console

Default password: changeme

2. Change the console password to proceed.

Choose a secure password with at least eight

characters that is memorable to you.

3. To configure a static address for LAN port 1 (eno1),

select the Configure initial network option

from the console menu.

Note the DHCP assigned IP address or the static

address details.

IP address:______________________________

Prefix length:_____________________________

Gateway:________________________________

DNS:___________________________________

Configuring the StoreOnce System

The StoreOnce System is now accessible on the

network and ready for configuration.

Procedure

Use the First Time Setup wizard to configure the system

for use. The wizards runs automatically the first time a

user browses to the system IP address.

For configuration instructions, see the HPE StoreOnce

3620, 3640, 5200, 5250, and 5650 System Installation

Guide.

Finding StoreOnce documents in the HPE

Information Library

The latest product documentation is available in the

StoreOnce Backup section of the Hewlett Packard

Enterprise Information Library.

Procedure

1. Navigate to http://www.hpe.com/info/storeonce/

docs.

2. In Models / Subcategories, select your product.

3. To filter the entries, select the types of documents

and your language.

Page 3
