Installation Guide and User Manual
Airconditioning A2000
_________________________________________________________________________________________________
ENG –DE –DK –FR
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 2of 90
Content
ENG ..........................................................................................................................................5
Introduction.........................................................................................................................6
Operations ...........................................................................................................................8
Condensation ......................................................................................................................9
Choosing 230V power and using generator ....................................................................9
Installation requirements ................................................................................................10
Installation instructions....................................................................................................10
Preparation........................................................................................................................11
Installation .........................................................................................................................13
Tips......................................................................................................................................16
Remote control..................................................................................................................18
Plenum display ..................................................................................................................19
Operation of the remote control.....................................................................................19
Specification parameters .................................................................................................22
Product maintenance .......................................................................................................23
Troubleshooting guide.....................................................................................................24
Warranty ............................................................................................................................25
DE ...........................................................................................................................................26
Einführung .........................................................................................................................27
Betrieb................................................................................................................................29
Kondensat..........................................................................................................................30
Auswahl der 230V Stromquelle und Netzung eines Generators .................................30
Montageforderungen.......................................................................................................31
Montageanleitung ............................................................................................................31
Vorbereitung .....................................................................................................................32
Montage.............................................................................................................................34
Tipps ...................................................................................................................................37
Fernbedienung..................................................................................................................39
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 3of 90
Verteiler-Display................................................................................................................40
Gebrauch der Fernbedienung .........................................................................................40
Spezifikationsparameter ..................................................................................................44
Produktwartung................................................................................................................45
Wartung .............................................................................................................................45
Problembehandlung.........................................................................................................46
Garantie..............................................................................................................................47
DK...........................................................................................................................................48
Introduktion.......................................................................................................................49
Brug ....................................................................................................................................51
Kondensering ....................................................................................................................52
Valg af 230V strøm og brug af generator.......................................................................52
Installationskrav................................................................................................................53
Installationsinstruktioner.................................................................................................53
Forberedelse......................................................................................................................54
Installation .........................................................................................................................56
Tips......................................................................................................................................59
Fjernbetjening ...................................................................................................................61
Inderpanel display ............................................................................................................62
Brug af fjernbetjeningen..................................................................................................62
Specifikationsparametre ..................................................................................................65
Vedligeholdelse af produktet ..........................................................................................66
Fejlfindingsguide...............................................................................................................67
Garanti................................................................................................................................68
FR............................................................................................................................................69
Introduction.......................................................................................................................70
Fonctions............................................................................................................................72
Condensation ....................................................................................................................73
Choix d’une alimentation 230 V et emploi d’un groupe...............................................73
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 4of 90
Exigences d’installation....................................................................................................74
Instructions d’installation ................................................................................................74
Préparation........................................................................................................................75
Installation .........................................................................................................................77
Conseils ..............................................................................................................................80
Télécomande .....................................................................................................................82
Affichafe de plenum..........................................................................................................83
Utilisation de la télécommande.......................................................................................83
Paramètres des spécifications.........................................................................................87
Maintenance produit ........................................................................................................88
Guide de dépannage ........................................................................................................89
Garantie..............................................................................................................................90
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 5of 90
ENG
1. Introduction
2. Installation guide
3. Operation instructions
4. Specifications parameters
5. Product maintenance
6. Troubleshooting guide
7. Warranty
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 6of 90
Introduction
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 7of 90

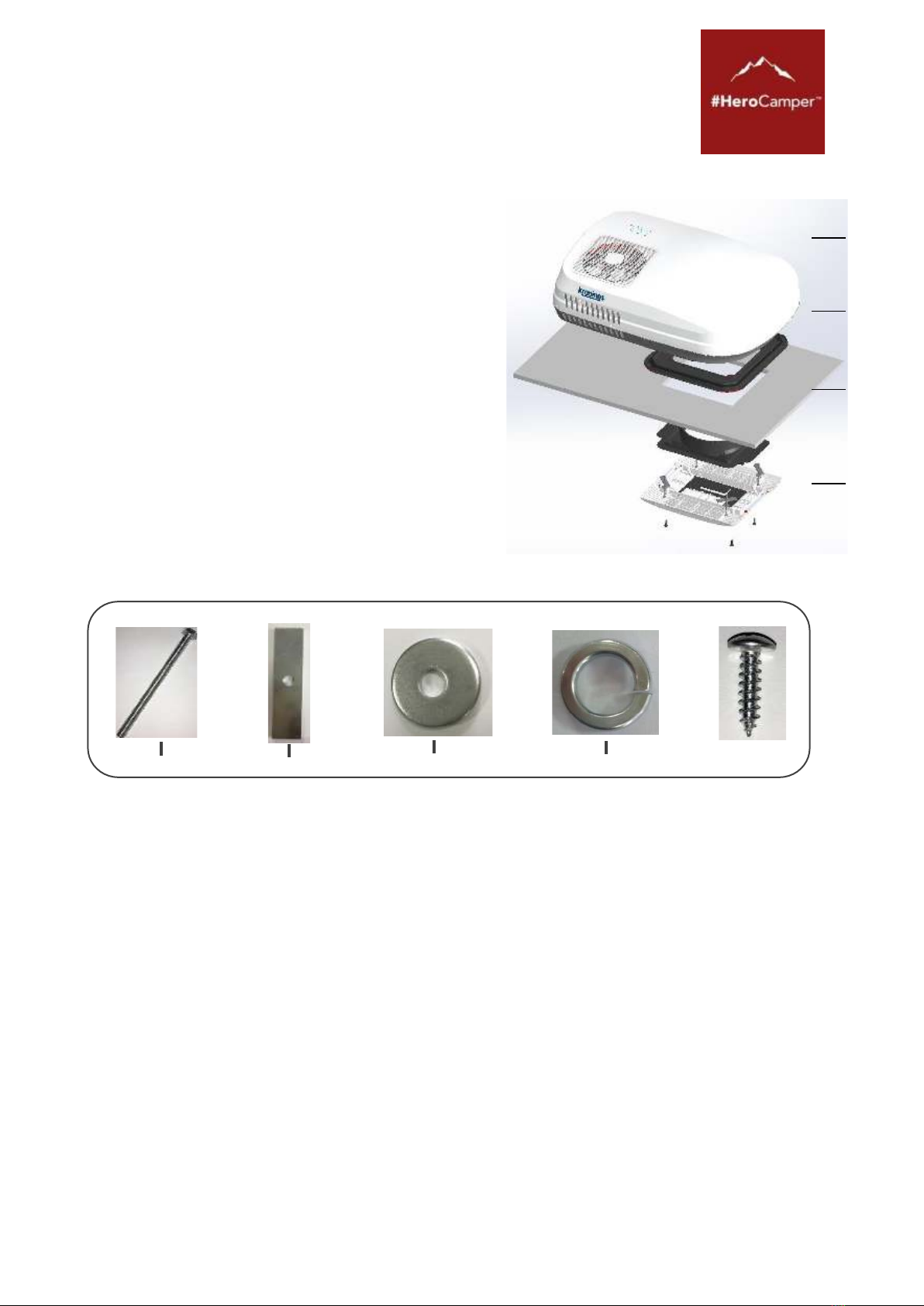

Exploded Parts List Key components:
1. Air-conditioner main unit ×1
2. Reinforced roof support ×1
3. Mounting frame ×1
4. Plenum unit ×1
Fastener components:
5. M8 x 110 mm bolts ×4
6. Fixing washers ×4
7. Round washers ×4
8. Spring washers x4
9. Screws for plenum ×4
5
6
7
8
9
1
2
4
3
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 8of 90
Operations
A2000-50 creates a comfortable environment for a recreational vehicle or caravan.
It is recommended the user should consult caravan manufacturer to understand
total heat-load, as well to choose a suitable air-conditioner, some tips to reduce heat-
load and improve performance:
Park the caravan at a shaded place to avoid direct sunshine exposure,
close all the doors, skylights and windows, draw the curtains and open
the sunshade.
Turn off any unnecessary electrical appliances to reduce the heat-load.
Turn on the air-conditioner in advance if exceptionally high
temperatures are expected.
Set suitable temperature by remote control to avoid frequent start and
stop.
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 9of 90
Condensation
Condensation usually happens in areas where the air humidity is comparatively high
and when warm moist air within the caravan meets with the cold air from the outlet.
In this case, please pay attention to the following measures:
Close all the doors, skylights, windows and draw the curtains to
decrease any warm moist air from entering.
In the operation of the air-conditioner, condensate (water) will be
produced on the roof. Please select High Fan mode to increase
circulation to decrease condensation degree.
Please note that damage caused by the condensate water is not covered by
warranty.
Choosing 230V power and using generator
A2000-50 requires a stabile 230V AC power source, and may require a generator in
some remote circumstance.
Requirements for inverter generator include: efficient power source; stable current;
output sine wave, which shall meet the requirements of the compressor. The user
should consult with the generator supplier for their recommendations.
Please note that damage caused by using a generator is not covered by
warranty.
#HeroCamper™ – Lammefjordsvej 5 –6715 Esbjerg N –Denmark
Phone +45 7022 5840 –sales@herocamper.com
www.herocamper.com
VAT No DK -40193189
Page 10 of 90
Installation requirements
•The RV or caravan roof and cutout needs to be able to support the air-
conditioners weight (29kg).
•Minimum thickness of roof: ≥23mm; maximum thickness of roof: ≤55mm.
Installation instructions
•Read and understand this manual thoroughly before installation.
•Abide by the wiring rules in the installation.
•Do not add other parts or restructure the product during the installation.
•The installers shall be qualified refrigeration technicians.
•Consult with dealer in the case of unusual applications or installation
conditions that are not specifically covered by this manual.
