Connecting fluid and air hoses
Connect the 14" long fluid outlet tube between the fluid
outlet port of the pump and the upper bulkhead on the tub.
DO NOT HEAT HOSE (see fig.4).
Connect the 16" long fluid inlet tube between the fluid
inlet port of the pump and the lower bulkhead on the tub.
DO NOT HEAT HOSE (see fig.4).
Connect the black 5/32" air hose between the regulator
and the air in port of the limit valve located on the rear leg
of the gun washer. Press tubing in through the collar until
seated. Pull firmly on hose to test for a tight connection.
(see fig.4).
Note: Air in port of limit valve is the port opposite the roller.
Connect the blue 5/32" air hose between the air in port of
limit valve located on the front leg and the air out port of the
limit valve located on the rear leg of the gun washer.
Press tubing in through the collar until seated. Pull firmly on
hose to test for a tight connection (see fig.4).
Connect the clear 5/32" air hose between the pump and
the air out port of the limit valve located on the front leg
of the gun washer. Press tubing in through the collar until
seated. Pull firmly on hose to test for a tight connection.
(see fig.4).
Connecting lid rod and actuator linkage
Slide the actuator over the lid rod opposite the drilled end
and hand tighten approx. 4" from the end of the rod. Insert
the actuator into the large slot in the right rear leg (see fig 6).
Attach the lid rod to the lid bracket using the 1/4" clevis pin
and circular cotter pin supplied (see fig. 5).
To adjust the actuator, close the lid and loosen the set
screw on the actuator. Slide the actuator down until it
completely closes the limit valve and retighten the set
screw (see fig. 6).
Grounding the lid
Using an 1/8" allen wrench, remove the back right lid screw.
Connect the ground wire (with the aluminum terminal
attached) from the pump to the lid screw and reconnect it
to the tub (see fig. 5).
STEP 14
STEP 15
STEP 10
STEP 11
STEP 12
STEP 13
STEP 7
STEP 8
STEP 9

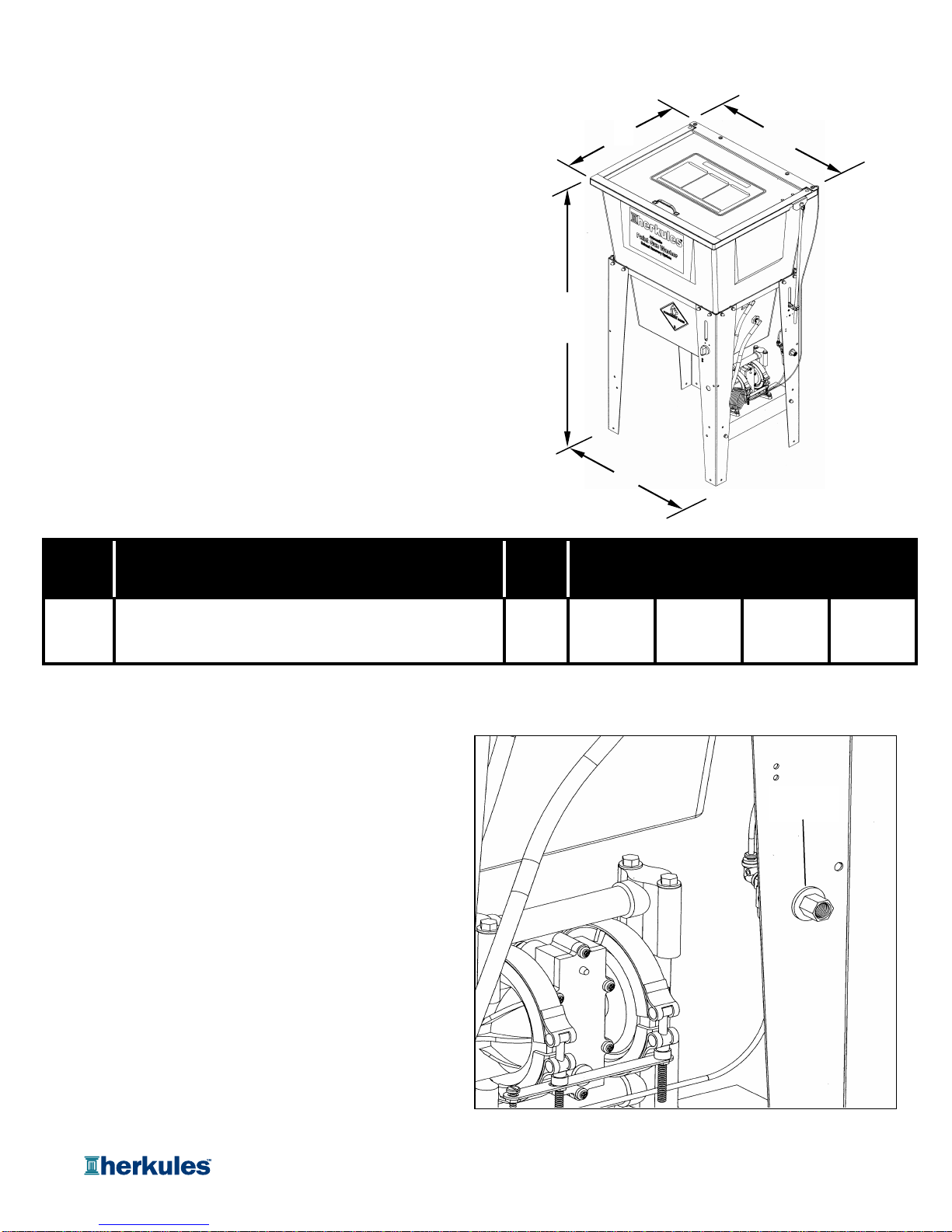

Assembly
fig.5
Lid screw
Ground wire
Lid rod
Cotter pin
Lid bracket
Clevis pin
Limit valve
Limit
valve
Clear air
hose
14" Fluid
outlet tube
16" Fluid
inlet tube fig.4
Black air
hose
Blue air
hose
fig.6
Lid rod
Actuator
Set screw
