OWNER/OPERATOR RESPONSIBILITY
It is the owner/operator responsibility to properly use and maintain this equipment.
The instructions and warnings contained in this manual shall be read and understood by the owner/operator prior
to operating this equipment.
If an owner/operator does not understand English, the contents of this manual shall be explained in the owner/
operator native language to assure the owner/operator comprehends.
It is the owner/operator responsibility to maintain the legibility of all warning and Instruction labels.
The owner/operator shall retain this manual for future reference to important warnings, operating and maintenance
instructions.
INSTALLATION
Installation consists of attaching the stabilizer
feet to the stand, the stand to the crushing
chamber, and connecting an external air
supply with 90 to 120 p.s.i.
See Figure (1). Install the crusher as follows.
A. Bolt stabilizer feet to the crusher stand
using the four 3/8-16 x 3/4 bolts & washers.
B. Using a hoist or Hi-Lo, set the crusher chamber
on the stand with the upper crossbar facing
the front of the unit.
C. Bolt crusher chamber to stand using the remaining
3/8" hardware supplied.

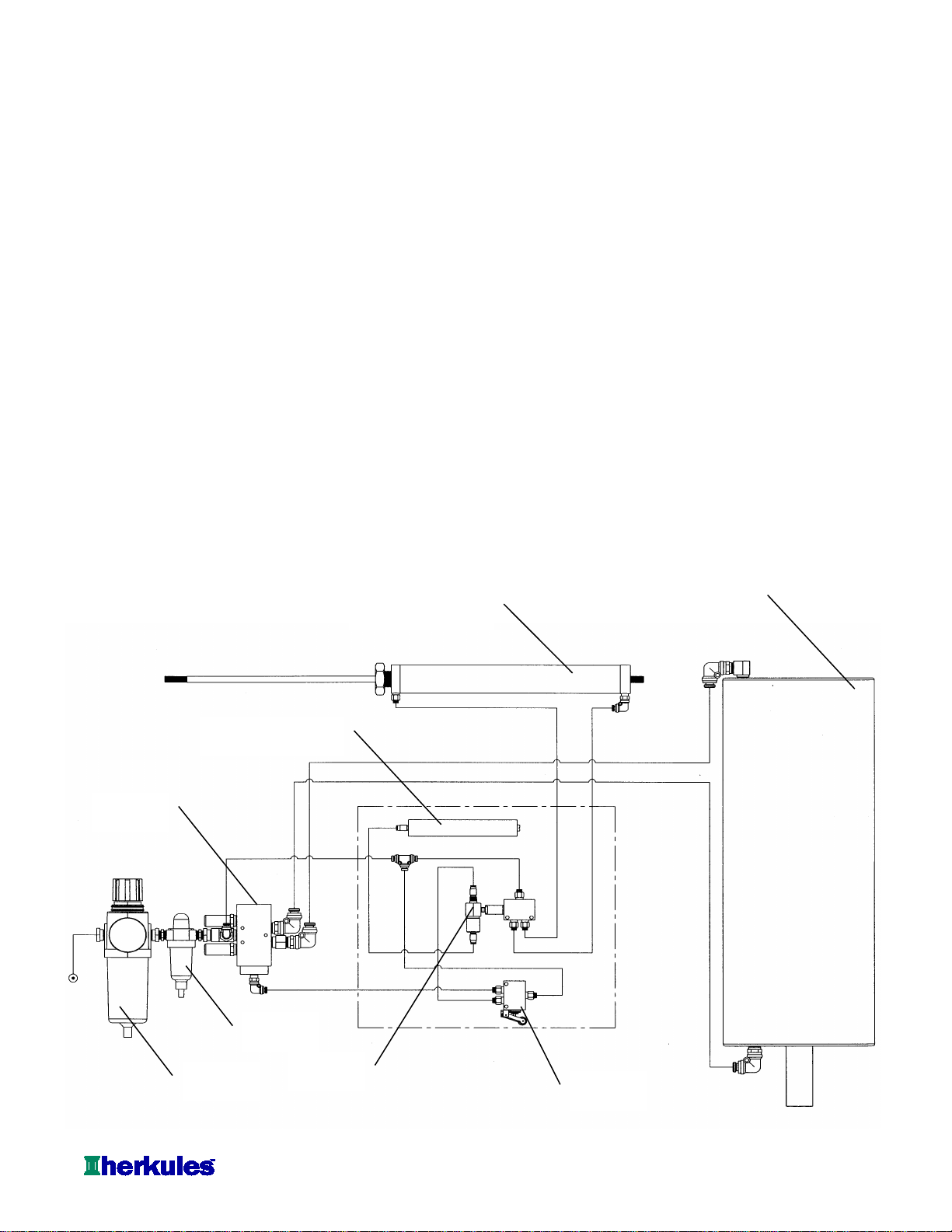

D. Connect the supplied pressure
regulator/filter and oiler assembly to the 3/8"
valve located on the back of the crushing chamber.
E. Remove the bowl of the oiler and fill to 3/4 full with
30W non-detergent oil, replace bowl.
F. Set the oiler at about 1/3 of it's maximum drip rate.
Drip rate should be lowered if oil is noticed leaking
from the cylinder.
G. Connect the external air supply to
the pressure regulator/filter.

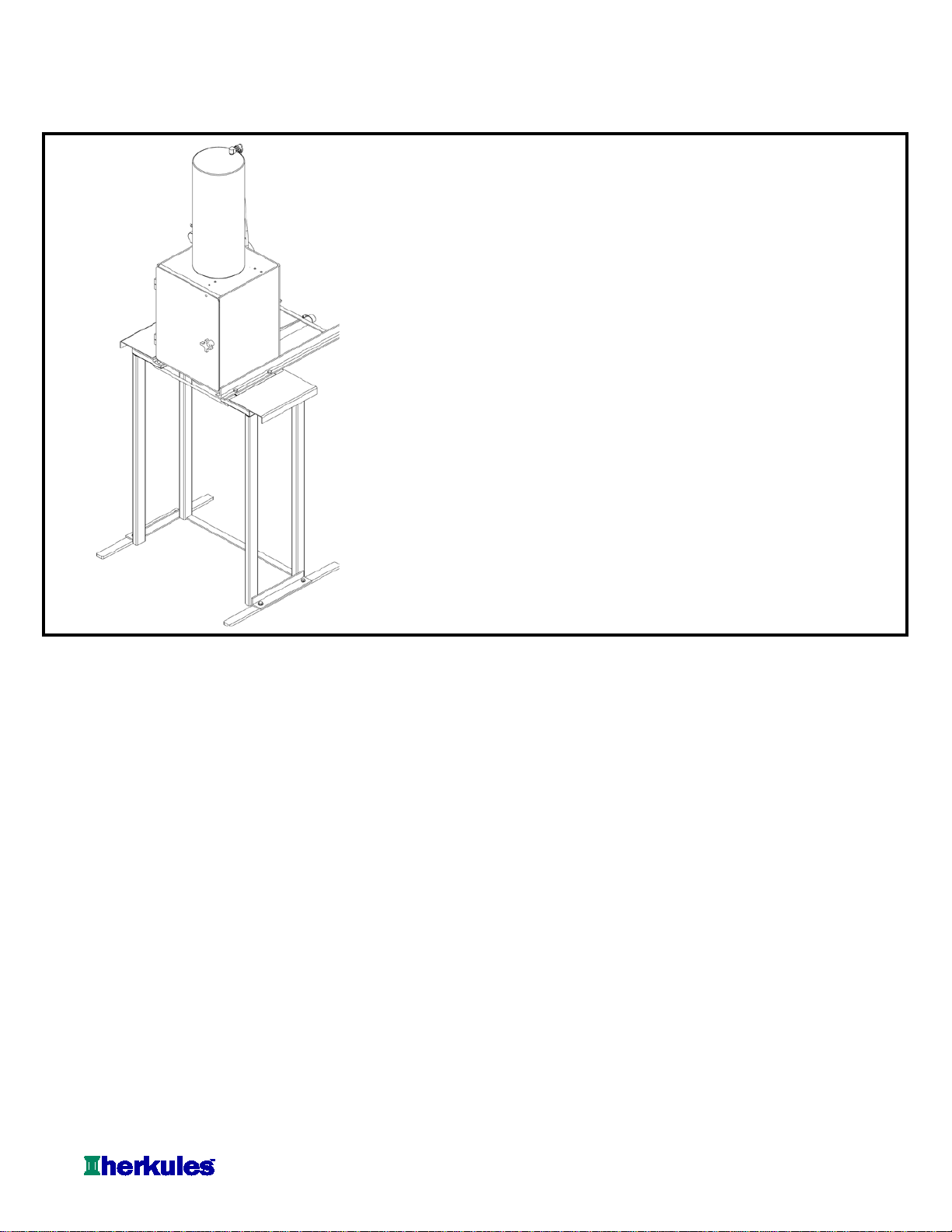

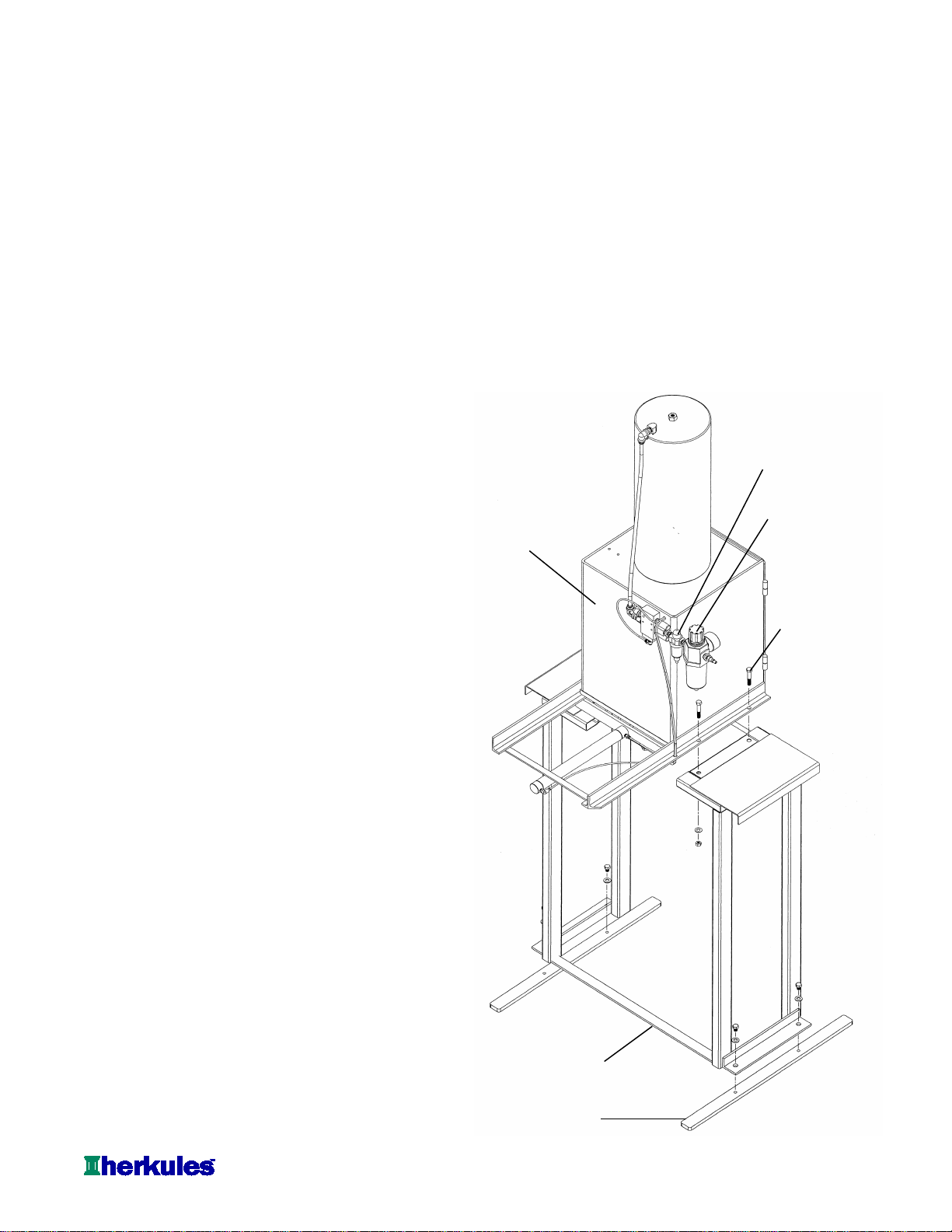

Figure 1
Stabilizer foot
Filter/Regulator
Crusher stand
3/8" Hex bolt
Crusher chamber
Oiler
