Herd IN27BG Manuel utilisateur
1
Installation guide
1-888-543-4373
www.HERD.com
1-888-543-4373
Part No: IN13 & 27BG-IG
Rev: A
Date: 11-DEC -17
Important
HERD Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it
was designed for will constitute improper use of the product and will void HERD product warranty.
Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these
instructions, OE hardware means the truck's original factory hardware.
For further detail of warranty coverage and warranty repair information visit www.HERD.com.
SKU #
Truck Model
IN27BG
INTERNATIONAL PROSTAR
INTERNATIONAL LT
General Safety
Take time to fully read the instructions before installing the HERD bumper.
At all times exercise safe work shop practices, wear steel toe boots and safety glasses during installation.
Parts and components of the HERD bumper can be heavy, please handle with care to avoid injuries.
Respect power tools and use them as advertised.
For assistance call
1-888-543-4373
www.HERD.com
Thank you for choosing HERD!
HERD North America Inc.
2168 Springfield Road
Box 28, Group 525, RR5
Winnipeg, MB. Canada R2C 2Z2
Parts and tools referenced in this instruction
2
1-888-543-4373
www.HERD.com
1-888-543-4373
Part No: IN13 & 27BG-IG
Rev: A
Date: 11-DEC -17
Parts and hardware included
Tools Required
Tool
Specification
Socket & Ratchet
1-1/8”
Socket & Ratchet
3/4”
Wrench
1-1/8”
Wrench
3/4”
Item No
Part No
Description
Qty
1
BG-GR-07
BUMPER GUARD-2018+ CASCADIA NARROW RAD
1
2
1TBA004
ASSY-WLD SUBMOUNT
2
3
1TBA003
ASSY-WLD TOW
2
4
FW0.75GR8
SAE FLAT WASHER 3/4 GR8 YZP
2
5
NLN0.75-10GR8
NYLON LOCK NUT 3/4-10 GR8 YZP
2
6
FW0.5GR8
FLAT WASHER 1/2 GR8 YZP
4
7
HN0.5-13GR8
HEX NUT 1/2-13 GR8 YZP
4
1
3
2
7
6
5
4
Installation Procedure
3
1-888-543-4373
www.HERD.com
1-888-543-4373
Part No: IN13 & 27BG-IG
Rev: A
Date: 11-DEC -17
1. Insert tow receiver stud (Item 3) into tow
receivers of truck frame and rotate 90° to
lock it in place. Repeat on opposite side of
bumper.
Figure 1 –Tow stud installation (Driver side shown).
2. Attach driver side sub-mount (Item 3) and
passenger side sub-mount to tow receiver
stud (Item 3) using 3/4” flat washers (Item 4)
and 3/4” nylon lock nuts (Item 5). Check the
level and make sure the sub-mounts are
perpendicular with ground. Torque 3/4”
hardware to 110 lb∙ft.
Figure 2 –Submount installation for alternate bumpers (Driver side
shown).
4
2
3
3
5
0
Installation Procedure
4
Part No: IN13 & 27BG-IG
Rev:A
Date: 11-DEC-17
1-888-543-4373
www.HERD.com
1-888-543-4373
3. Install bumper guard onto sub-mounts. From
backside of upright, install ½” lock washers
(Item 6) and ½” hex nuts (Item 7) as shown.
Center and level the bumper guard and
torque hardware to 86 lb-ft.
Note:
If bumper guard adjustment is required,
loosen hardware, readjust, then tighten all
hardware.

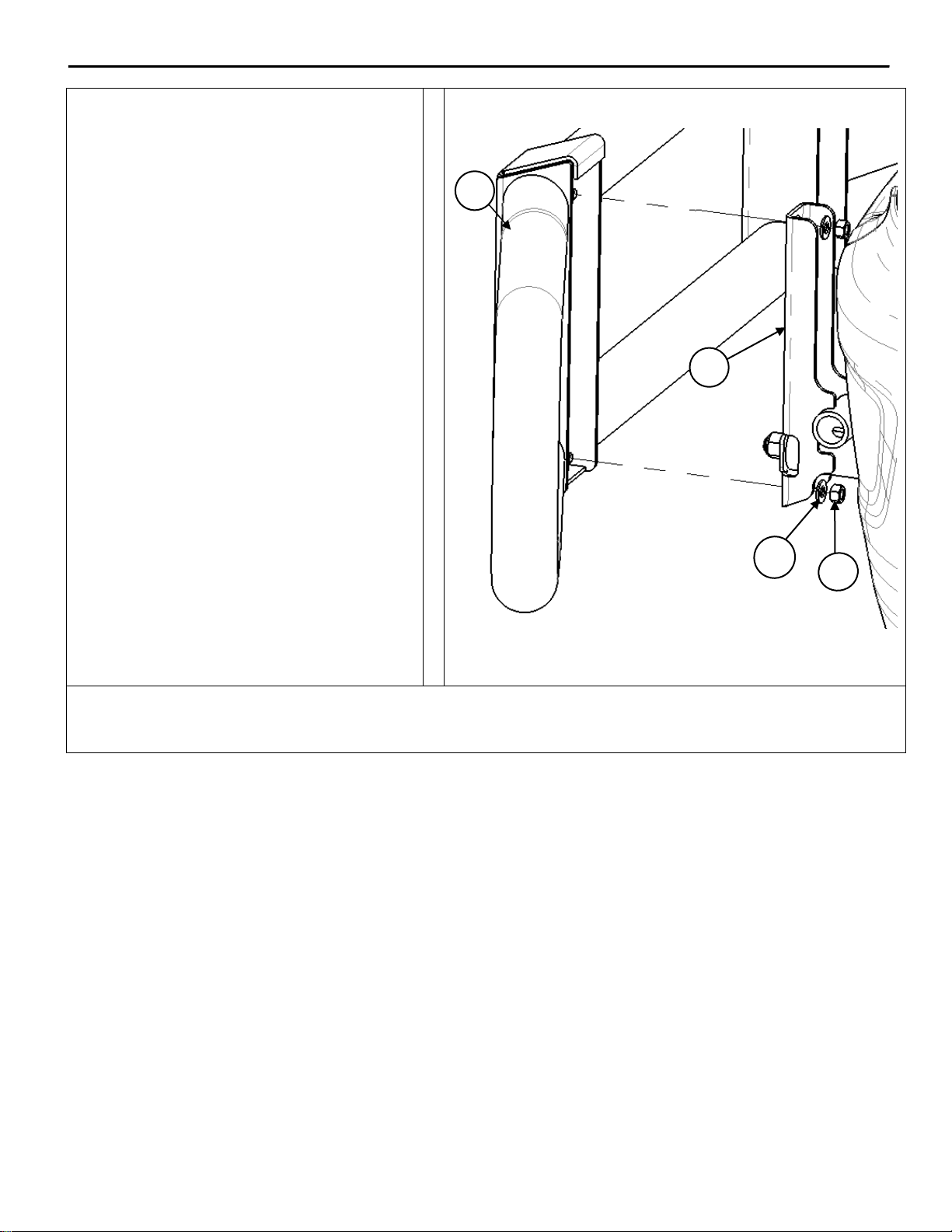

Figure 3 –Bumper guard attached to sub-mounts (Driver side shown).
Important
Check mounting points after the first 5000 km and every 3-6 months.
2
0
7
6
1
1
