Heatstore HSAC9000E Manuel utilisateur



All electrical appliances produced by the Company are guaranteed for two years against faulty

materials or workmanship. This applies only if the appliance has been used for purposes in

accordance with the instructions provided and has not been connected to an unsuitable

electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person

not authorised by us. This guarantee is offered to you as an extra benefit and does not affect your

legal rights.

The correct electricity supply voltage is shown on the rating label attached to the appliance.

Reasonable care has been taken to ensure that this guide is accurate at the time of printing.

In the interest of progress the Company reserve the right to vary specifications from time to time

without notice.



HSAC9000E HSAC12000E HSACW9000E

HSACW12000E HSACW14000E  



 







1 General Information

1.1 Warnings

1.2 Health and Safety

1.3 Electrical Supply

1.4 Location

1.5 Clearance Distance

1.6 Standards

2 Introduction

2.1 Introduction

2.2 Mechanical switch

2.3 Optional Upgrade Colour Controller - Provides energy saving options

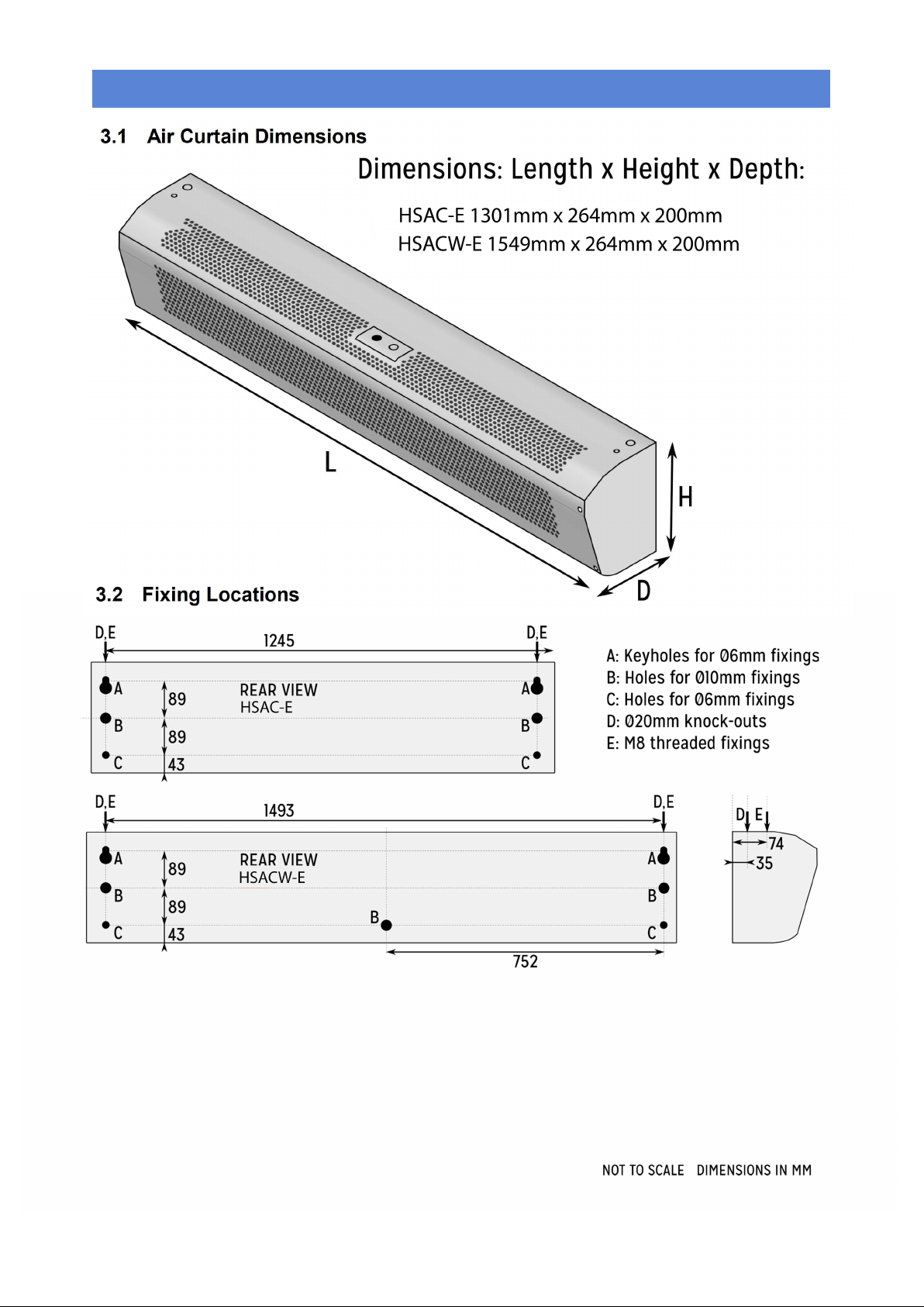

3 Dimensions & fixing locations

3.1 Dimensions

3.2 Fixing location

4 Technical Specification

4.1 Specification

5 Wiring Details

5,1 Installer Wiring

5.2 Factory Wiring

5.3 Network Wiring - Controller

5.4 Network Wiring - Switches

6 Modifying the heater to single phase operation

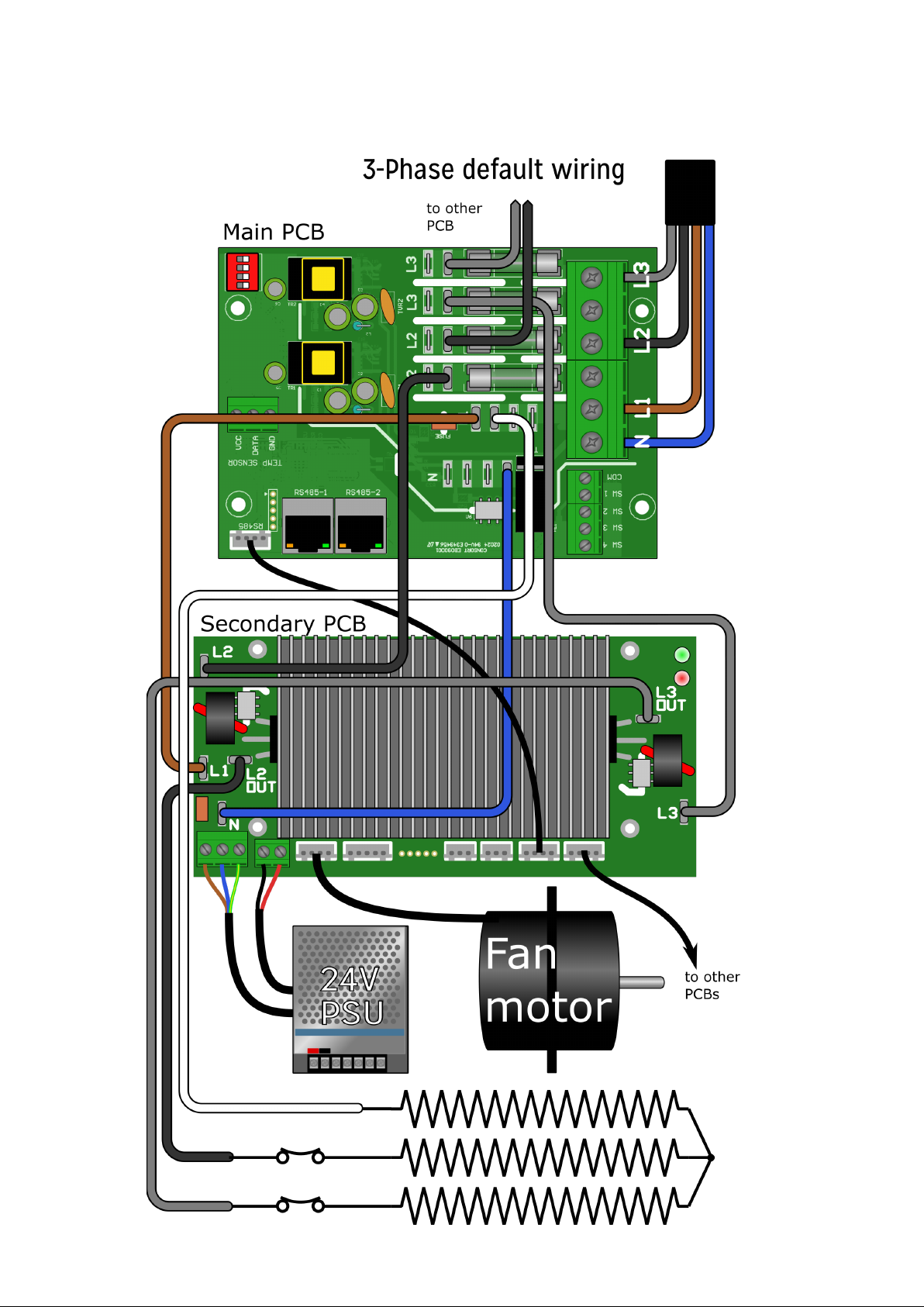

6.1 3 phase internal wiring

6.2 Single phase internal wiring

6.3 Internal wiring of the heating element for 3 phase operation

6.4 Modification of internal wiring of the heating element for single phase operation

6.5 Modification for use on single phase (HSAC9000E only)

7 Installation Details

7.1 Screw location for grille removal

7.2 Mounting

7.3 Electrical Supply

7.4 Installation

8 Fault detection and LEDs

8.1 Fault detection

8.2 Overheat protection reset

9 BMS Connection MODBUS Protocol

9.1 BMS Connection

9.2 MODBUS Protocol

10 Touchscreen Controller Operation

10.1 Home screen

10.2 Setting menu

10.3 Time

10.4 Lock

10.5 Timer

10.6 Timer - time schedule

10.7 External switches

10.8 Operating Mode selection

10.9 Manual Mode

10.10 Automatic Mode

10.11 Temperature Mode 1

10.12 Temperature Mode 2

10.13 Heater status

10.14 Energy usage

10.15 Identification



1.1 Warnings

All installations must be in accordance

with the regulations. These instructions

must be handed to the user on comple-

tion of the installation. Installers and ser-

vice engineers must be able to demon-

strate competence and be suitably

qualified in accordance with the regula-

tions. To ensure continued and safe op-

eration it is recommended that the ap-

pliance is serviced annually. The air cur-

tain outlet/inlet grille must not be ob-

structed during use. Any modifications

made to the unit not approved by

Heatstore will void manufacturers

warranty and potentially create a

hazard. The appli-ance is NOT intended

for use by persons (including children)

with reduced physi-cal, sensory or

mental capabilities or lack of experience

or knowledge unless they have been

given instruction concerning use of the

appliance by a person re-sponsible for

their safety. Children should be

supervised to ensure that they do not

play with the appliance. Parts of the

heater can become very hot when in

operation and cause burns. The heater is

not equipped with room thermostat and

should not be used in small rooms so as

to avoid overheating.

1.2 Health and Safety

Please read these instructions thoroughly

before installing the appliance. Sole liability rests

with the installer to ensure that all site safety

procedures are adhered to during installation.

Sole liability rests with the installer to ensure

that protective safety wear such as hand, eye,

ear and head protection is used during

installation of the prod-uct. Ensure that all

anchoring points are suitable for the weight of

the appliance.

1.3 Electrical Supply

This heater must be permanently connected

to the electricity supply via a double pole

switch having 3mm gap on each

pole.There are no exceptions.

All units must be wired in accordance with I.E.E.

regulations for the Electrical Equipment of

Buildings.

BMS control, time switches and door interlocks

can be installed at the discretion and responsi-

bility of the installer.

Follow paragraph 4 ‘technical specification’

for more details.

1.4 Location

All units should be installed directly over the

door opening. It is recommended that the air

curtain is installed on the inside of the building.

Care must be taken to allow complete free air

movement into the inlet grilles of the unit to

ensure correct working operation of the air cur-

tain. The discharge opening should be as close

to the top of the door as possible and cover

the entire door width.

Units can be mounted adjacent to each other

to cover the full door opening across wider en-

trances.

1.5 Clearance Distance

It is recommended that a minimum clearance

of 50mm is allowed above the heater. The

clearance allows for cable entry and addition-

al air inlet. It also prevents surfaces overheat-

ing.

The minimum mounting height (floor to grille) is

2m. The maximum mounting height is 3.4m.

1.6 Standards

The heater conforms to the following standards

Electrical Equipment (Safety) Regulations 2016

SI. 2016 1101

Electromagnetic Compatibility Regulations

2016 SI. 2016 No. 1091

Radio Equipment Regulations 2017 SI. 2017

No. 1206

The Ecodesign for Energy Related Products

and Energy Information (Amendment) (EU Exit)

Regulations 2019. SI. 2010 2617

The Restriction of use of Certain Hazardous

Substances. SI. 2012 No. 3032

The Supply of Machinery (Safety) Regulations

2008 (SI 2008/1597)





2.1 Introduction

This instruction manual describes the

Heatstore Commercial range of air curtains.

They are designed for discreet positioning

above the doorways of retail or

commercial prem-ises up to 3.4m ceiling

height.

The air curtains comprise multiple modular

blower units 510mm or 615mm wide and

with nominal maximum power output from

4.5kW to 7kW 3Ph 415V.

Models are available in 1.3m and 1.5m

lengths, made up of 2 or 3 blower units.

For wider doorways, up to 7 air curtains

can be easily interconnected using CAT5/

CAT6 RJ45 networking cable.

It is recommended that this control cable is

run separately within its own trunking to

avoid external interference.

The air curtain can be controlled by option-

al Touchscreen controller (not supplied with

the heater) , mechanical switches or BMS.













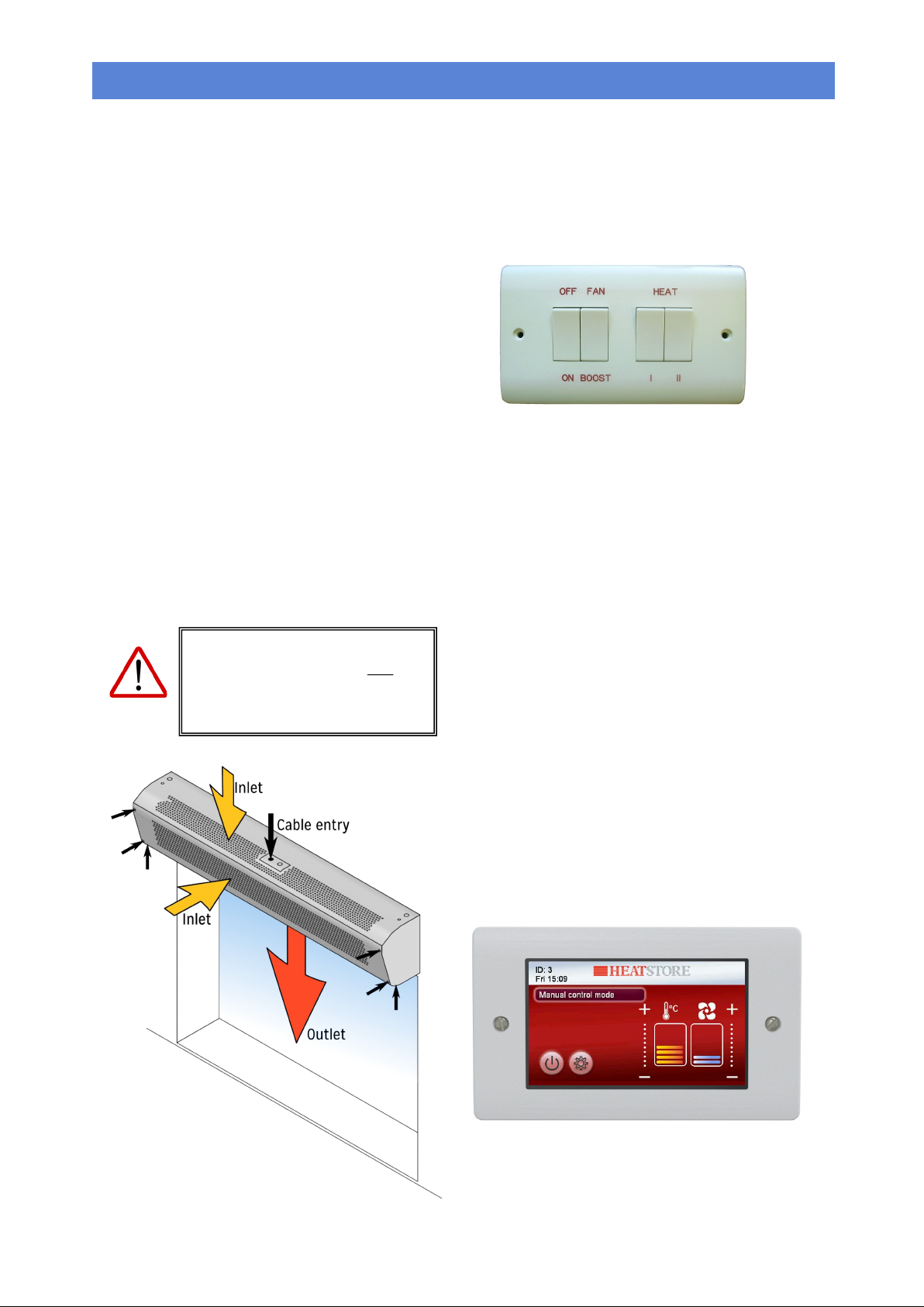

2.2 Mechanical Switch Controller

Each air curtain is supplied with HSRCU1

me-chanical switch. More details at Installer

wiring section. This controller will provide 2 fan

speed and 3 heat setting options.

2.3 Optional Upgrade Colour

Controller - Provides energy

saving options

Optional Color touch screen controller (not

supplied with the heater) giving options for 8

fan and 8 heat settings can be mounted up to

50m from the air curtain. Optional BMS control,

remote thermostats and door interlocks can be

installed.

The electronic touch screen controller shown

on the picture below allows the user to control

either a single air curtain, or a network of up to

7 air curtains with the same settings.

The controller is designed to be mounted on a

surface double gang back box, and is pow-

ered by an RJ45 connection. The controller will

not fit metal or dry lining back box.

The cable length between the base unit and

the controller can be up to 50 metres.





 

 



 HSAC9000E HSAC12000E HSACW9000E

  

    

 

    

 

 

 

    



 

    

    

    

    

 

 

  

 



 



     

      

  

  

  

     

@ 10

   

  



    

  

  





 HSACW12000E

 

  

 

  

 

 

 

  



 

  

  

  

  

 

 

  

 



 



   

     

 

 

 

   

@ 10

  

 



  

 

 

































HSACW14000E















Optional external temperature sensor

 

 -

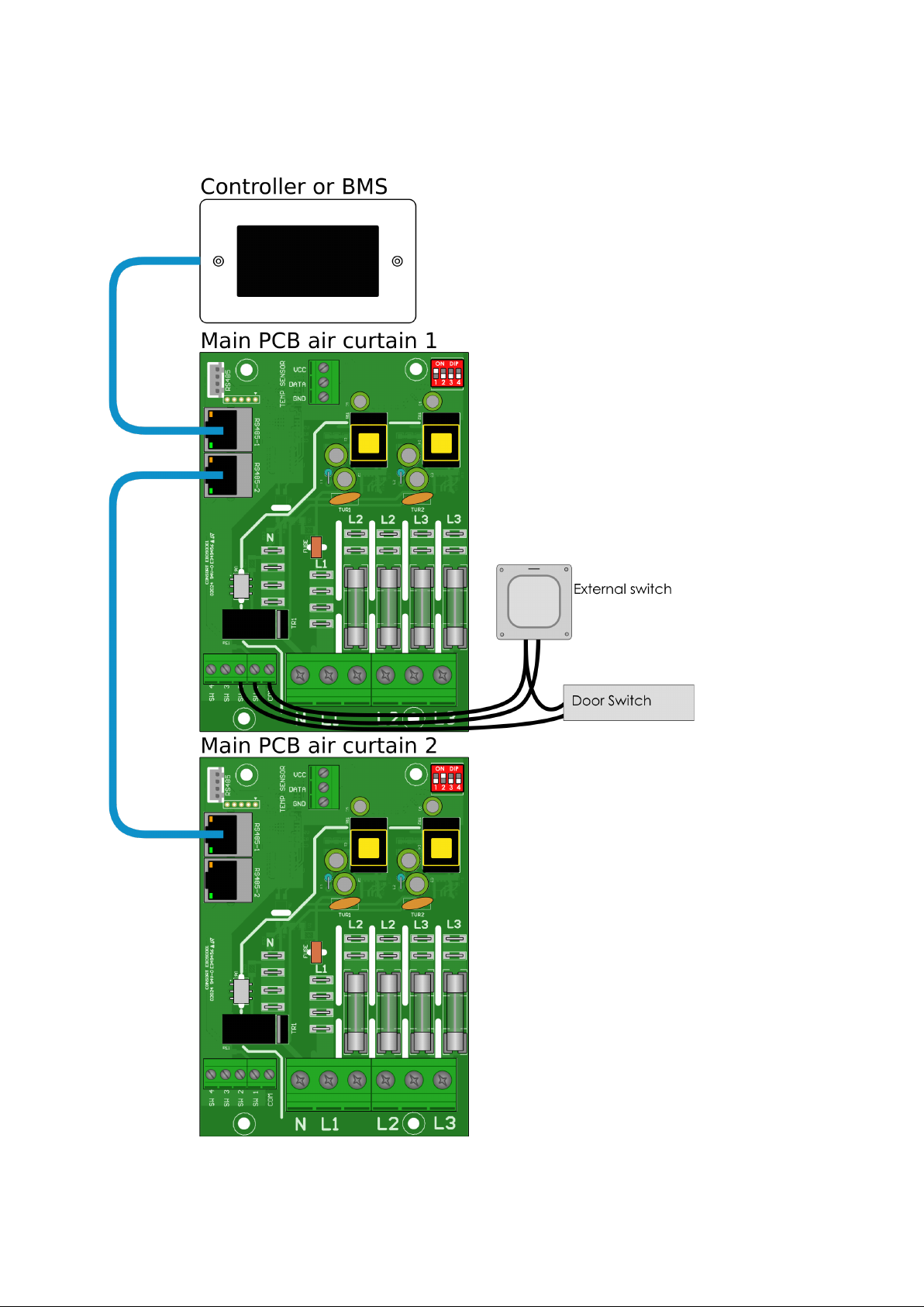

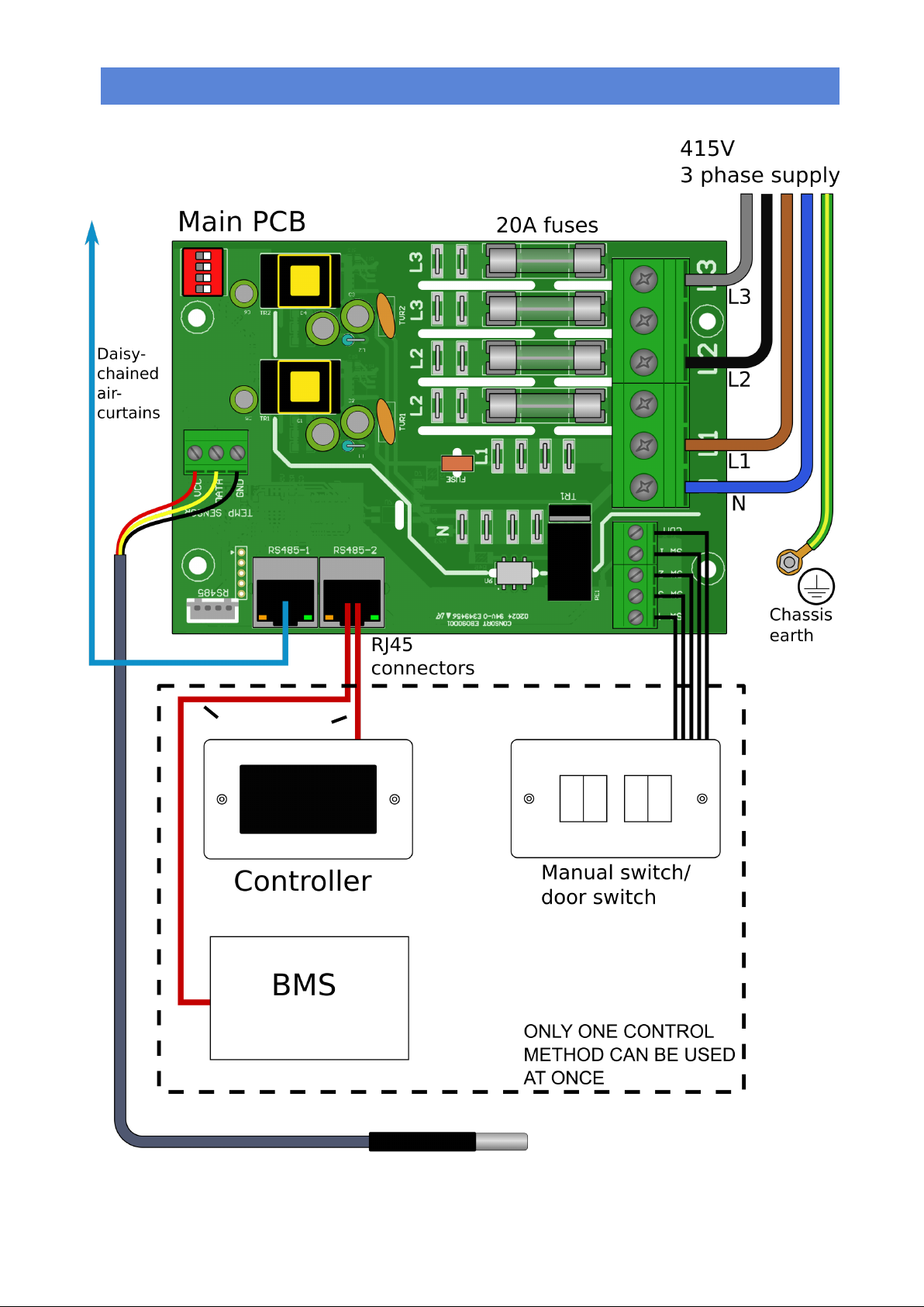

CAT5 cable with RJ45 connectors can be

used to network up to 7 air curtains in a

daisy-chain configuration.

The DIP switches 1, 2 and 3 are used to

configure each air curtain with a unique

address.

DIP switch setting 000X is reserved for

when a controller or BMS is not used.

E.g. air curtain 1 DIP switches set to 1000.

External and door switches are connected

between COM and SW1 or SW2.

Their behaviour can be configured in the

controller settings menu.

E.g. air curtain 2 DIP switches set to 0100.

All possible addresses are:

1 100X

2 010X

3 110X

4 001X

5 101X

6 011X

7 111X
