Heatese 80 Manuel d'installation et d'exploitation
Installation, Commissioning and Instruction manual
HEATESE
80
Unique heating system
“Lavish on heat, miserly on fuel” TM
Always On, Always Warm
HEATESE issue (1) 08/2016
Insulated and Baffled 80L Copper
Cylinder with Heat-Sync on base
3 off Small Cleaning Ports
1 off Large Cleaning Port
to facilitate
Flue Cleaning
Oil Fired Burner with Fuel
Safety Valve located
externally at rear of
enclosure (sensor located
internally above burner)
Page 1
Page 2
Thermostats
Electrical Panel
Trip switch,
Timer, Relay

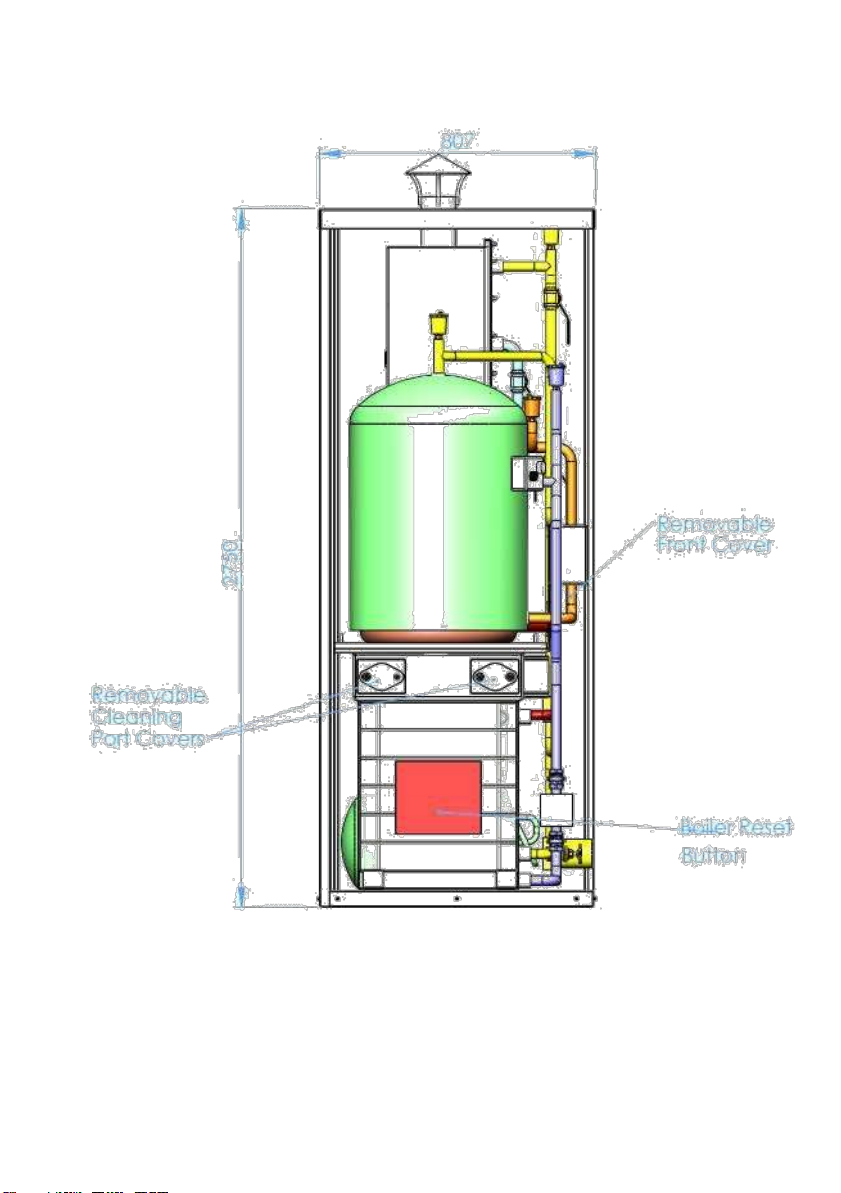

Removable
Cleaning Port
Covers
Automatic Air Vents at
high points in circuits
1107
Pressurised
Closed Loop
(Blue, Orange &
Green)
Return From
Dwelling
Hot Feed to
Mains Cold
Water Feed
(1.5 Bar G Max)
Pressure Relief
set at 3.0 bar
G max.
Condensate
Out
Automatic filling valve Lever valves
Page 3
Weather Cowl
Flue Gas Exhaust
Flue Gas Condenser
Return Feed
from Dwelling
Mains Feed
(1.5barG Max)
Pressure Safety Valve
opens to relieve
pressure at 3.0barG
Condensate Out
Heat Exchanger
Hot Feed
to Dwelling
18 LPressure
Vessel
Page 4
Condenser preheats return
Dwelling water before C
Shaped Baffled Boiler
Motorized Valve is open until
the Cylinder Thermostat (B)
reaches 50°C, the valve then
closes and feeds to dwelling,
which thermostat (A) would be
set at 600C.
C Shaped Baffled Boiler
transfers Heat to preheat
cylinder contents in addition
to Cylinder Coil
Page 5
Jacketed Flue Pipe
transfers Heat into Loop
which is circulated
through Cylinder Coil
Mains Cold Water Feed
for Initial Fill and Top-
Ups
L-Shaped Baffled Boiler
Wall transfers Heat into
Loop which is circulated
through Cylinder Coil
Closed Loop System
Flow Diagram
Page 6
Page 7
CONVECTOR RADIATORS
Page 8
CONTENT
LAYOUT AND COMPONENTS………………….1-7
INTRODUCTION /WARRANTY...........................11
SAFETY INSTRUCTIONS....................................13
MAINTENANCE TIPS ...........................................14
REGULAR SERVICING........................................15
GENERAL INFORMATION………………………..16
PRE-INSTALLATION.............................................18
INSTALATION GUIDE...........................................20
HEATESE USER GUIDE......................................27
ELECTRICAL CONNECTIONS...........................29
WIRING DIAGRAM................................................30
POSITIONING GUIDE...........................................31
TECHNICAL DATA TABLE –HEATESE 80......33
CONVECTOR RADIATORS.................................37
CONVECTOR RADIATOR WARRANTY...........39
CONVECTOR RADIATOR DATA………………...40
HEATESE 80 HEATING SYSTEM FAULT
FINDING GUIDE ....................................................52
HEATESE COMMISIONING CHECKLIST.........54
SERVICE RECORD...............................................57
HEATESE CONTACT NUMBERS ......................60
Page 9
