Health O Meter PRO PLUS 2650KL Manuel utilisateur

PRO PLUSTM ELECTRONIC WHEELCHAIR SCALE

MODEL 2650KL

BALANCE ELECTRONIQUE PRO PLUSTM

POUR FAUTEUIL ROULANT

MODELE 2650KL

BALANZA ELECTRONICA PRO PLUSTM

PARA SILLON DE RUEDAS

MODELO 2650KL

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACIÓN

PRO PLUSTM ELECTRONIC WHEELCHAIR SCALE

MODEL 2650KL

Thank youfor your purchase of this product.

Please read this manual carefully and keep it handy for ready reference.

Mercid'avoir acheté ce produit.

Veuillez lire attentivement ce manuel et le garder à portée de main pour pouvoir le consulter à

tout moment

Graciaspor la adquisición de este producto.

Lea por favor este manual cuidadosamente y manténgalo a su alcance para una pronta

referencia.

ENGLISH............................................................................................ 1

FRANÇAIS......................................................................................... 24

ESPAÑOL .......................................................................................... 47

TABLE OF CONTENTS

CAUTION AND WARNING....................................................................................................2

SPECIFICATIONS.................................................................................................................2

ASSEMBLY INSTRUCTIONS ...............................................................................................3

SET UP .................................................................................................................................6

OPERATION INSTRUCTIONS..............................................................................................7

MAINTENANCE.....................................................................................................................18

TROUBLESHOOTING...........................................................................................................19

CALIBRATION PATH............................................................................................................20

EXPLODED VIEW OF SCALE..............................................................................................20

PARTS LIST..........................................................................................................................22

WARRANTY..........................................................................................................................23

CAUTION AND WARNING

To prevent injury and damage to your scale, please follow these instructions very carefully.

•Do not transport the scale while the platform is loaded.

•For accurate weighing the scale must be placed on a flat, stable surface.

•For accurate weighing, verify proper operation according to the procedure described in this

manual before each use.

•Do not use in the presence of flammable materials.

•Operating at other voltages and frequencies than specified could damage the equipment.

•If the “LOW BAT” indicator activates, for accurate weighing, replace the batteries or connect

the scale to an AC power source as soon as possible.

SPECIFICATIONS

GENERAL

Health o meter’s Pro PlusTM Electronic Wheelchair Scale Model 2650KL uses highly

sophisticated microprocessor technology. Each precision instrument is designed to provide

accurate, reliable and repeatable weight measurements and features that make the weighing

process simple, fast and convenient.

The scale is set up to use motion-sensing weighing technology, to determine the actual weight

of a moving patient. The scale may be changed to measure live weight; see page 15 for

instructions on changing the scale setting.

The weight can be display in pounds (decimals, fractions of a lb or lb/oz) or in kilograms. The

scale features a platform-independent ramp for easy wheelchair access.

The unit can be operated using its AC adapter or by 6-D cell batteries (not included).

SCALE SPECIFICATIONS

Capacity and Resolution 1000 Lb x 0.2 lb / ¼ lb / 4 oz (450 kg x 0.1 kg)

Power Requirements Adapter 120VAC - 6VDC - 60Hz or 6 x D size batteries

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Humidity: 85%

Physical Dimensions Platform

Length: 33” (82 cm)

Width: 36” (91 cm)

Height: 3” (7.5 cm)

Platform with Ramp

Length: 43” (109 cm)

Width: 56¼” (143 cm)

Height: 3” (7.5 cm)

Weight: 48.5 lb (22 kg)

ASSEMBLY INSTRUCTIONS

Parts List:

(1) Platform Assembly (plus 2 ramps) (1) Handle

(1) Display Assembly (4) Ramp Holder

(4) Rubber Feet Assemblies (1) Display Support

(1) AC Adapter (4) Screws

(1) LC Cable Connector (1) Power Cord

(2) Wheels

Tools required: Phillips head screwdriver, Allen wrenches (included).

Remove each piece from the carton and unwrap packing material carefully to prevent scratching

the unit’s parts. It is recommended that assembly is performed by two people.

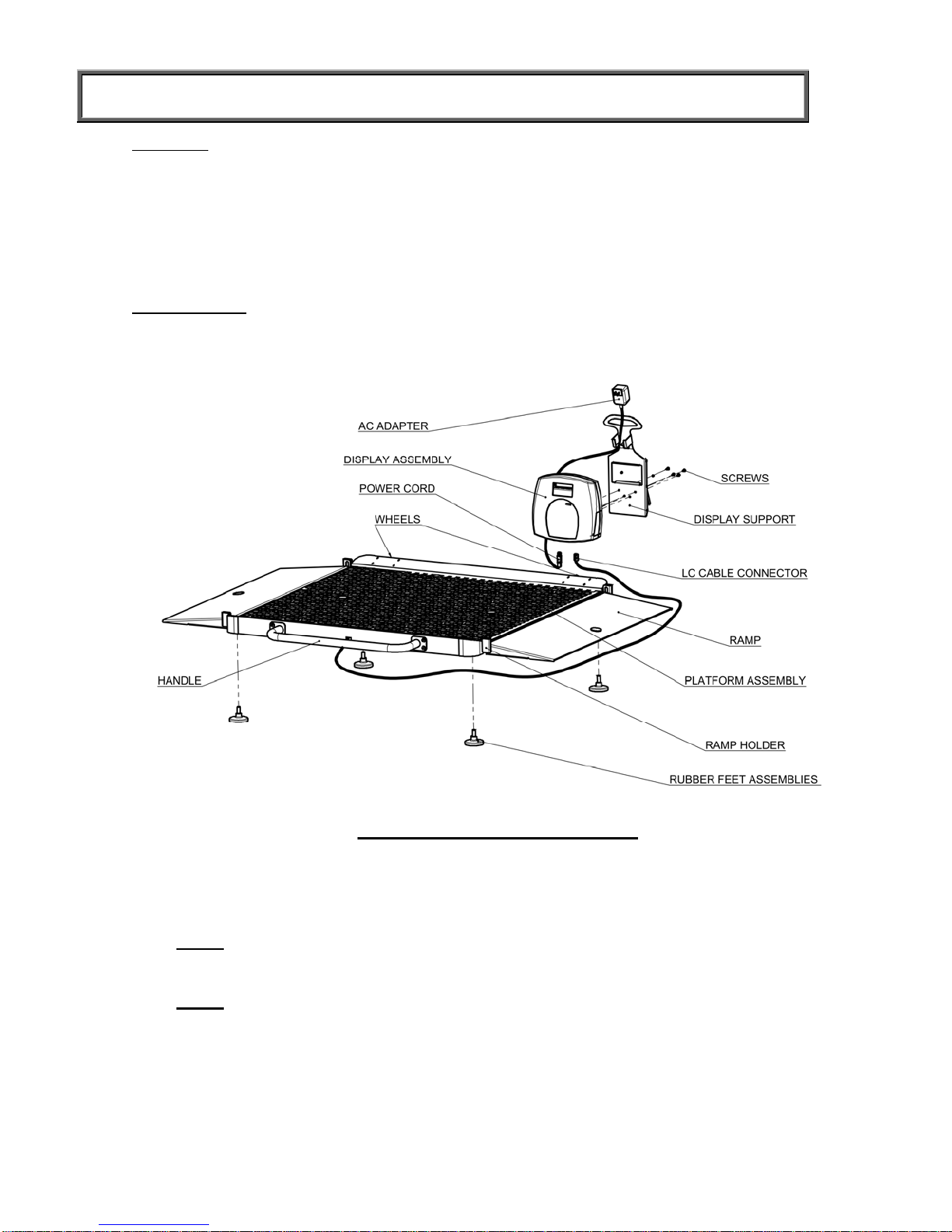

Figure 1. Assembly after Shipment

(refer to the Parts List on page 22 for details on parts)

1. Open the scale to operational position.

2. Connect the load cell cable connector to the load cell port on the rear of the display

assembly and insert and secure the cable into the center channel in the display.

NOTE:Do not attach the Power Cord at this point.

3. Connect the load cell cable to the display unit see Figure 2.

NOTE:The load cell cable should now be secured in the channel between the display

assembly and the display support.

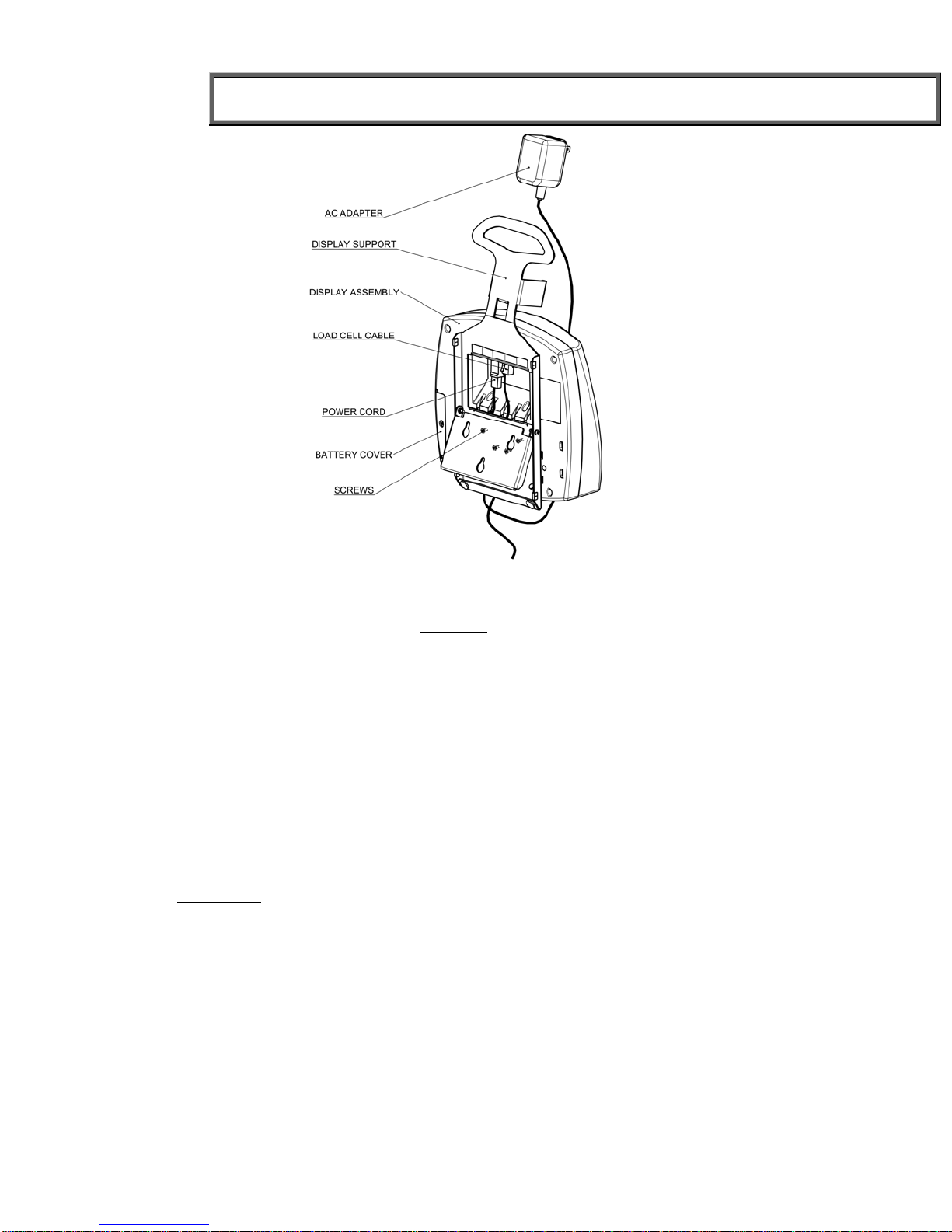

Figure 2

Refer to the Parts List on page 22 for details on parts

4. Insert 4 screws into the display support and tighten.

5. Connect power cord to the power port in the display assembly and insert and

secure the cable into the exposed portion of the 2nd channel from the left in the

display.

6. Insert the power cord into the retaining slot. Align the rear cover tabs with the

slots on the rear of the display assembly. Secure with 4 screws.

7. Gently tip the scale. Screw in 4 plastic feet. Do not tighten.

8. Gently return the scale to the upright position.

WARNING:Do not drop the scale on its feet. This could result in load cell damage.

9. Screw/unscrew the plastic feet to level the scale.

ASSEMBLY INSTRUCTIONS

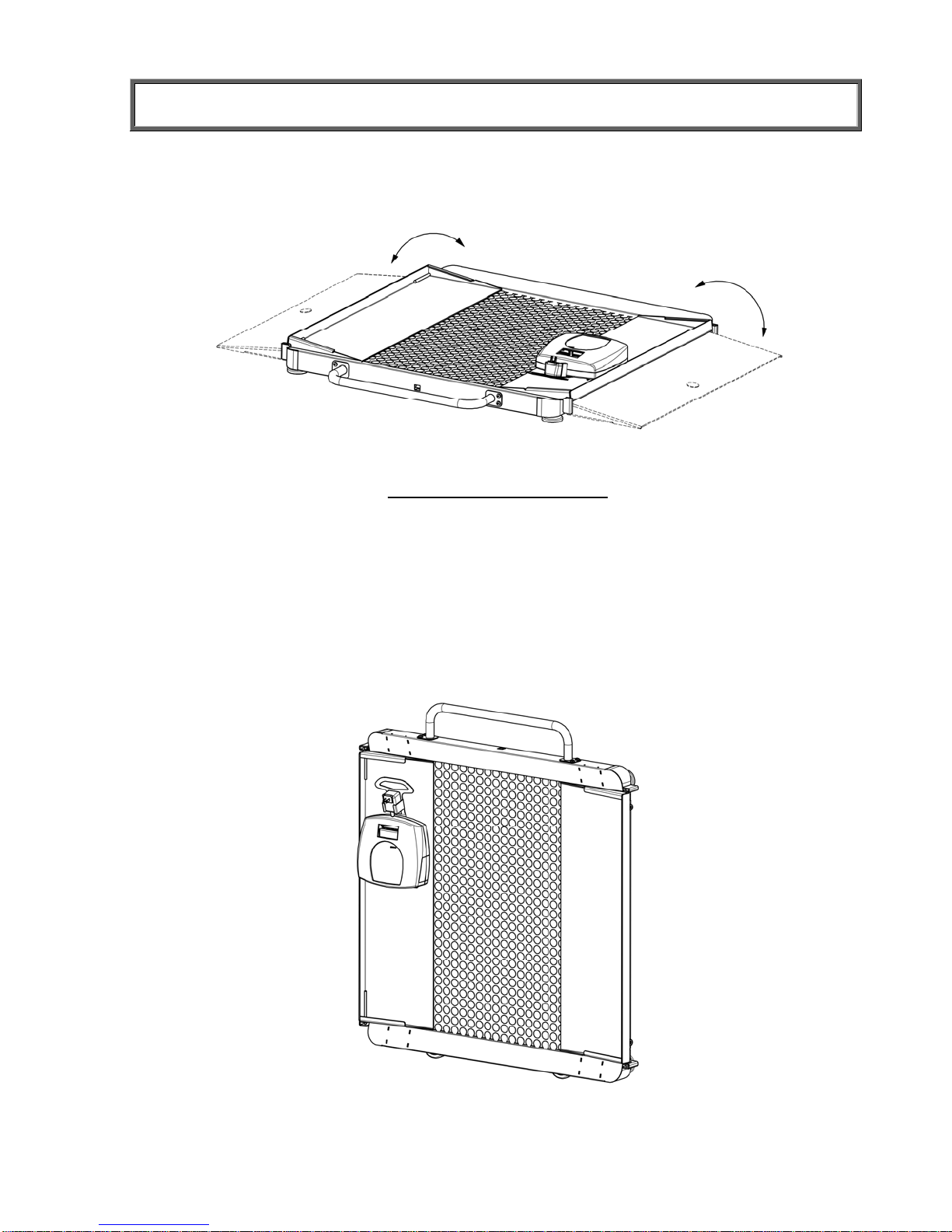

Figure 3. Folding the Ramp

1. Both ramps (left and right) can fold onto the platform.

2. The indicator is mounted onto one of the folded ramps by sliding the slots in the back of

the indicator into raised pins..

3. Lift the scale platform onto its side using the handle, and it is now able to be transported

on two wheels see Figure 4.

Figure 4. Folded Ramp

SET UP

Preparing the Scale for Use

1. Remove protective plastic film from keypad and display.

2. Place batteries in the battery holder (see “Replacing Batteries”).

3. Plug the scale’s AC adapter into the power source.

4. Press the ON/OFF button to turn the scale on. The display will show “Health o Meter

Pro Plus” and then ”000Lb00oz”.(a)

5. Place a weight [not to exceed 1000 Lb (450 Kg)] on the scale. The display should read

“WEIGHING“ until the weight calculation is complete and the weight is displayed.

6. Press the KG/LB button to select the weight mode (Lb/Kg).(b) *

7. Press the REWEIGH button; the scale should perform the weighing process again.

8. Remove the weight from the scale, the scale will return to zero and the display will read

“ZERO” on the left upper side of the screen along with ”000Lb00oz”.

9. Disconnect the scale’s AC adapter from the power source. The scale will shut off. Press

On/Off and the scale will switch to battery power.

NOTE: If the set up procedure failed, refer to the troubleshooting instructions. If the

problem is not corrected, refer to qualified service personnel.

(a) To adjust the display backlight and/or contrast, please refer to page 14.

(b) To change the display mode in pounds to fractions or decimals, please refer to page 9.

Replacing Batteries

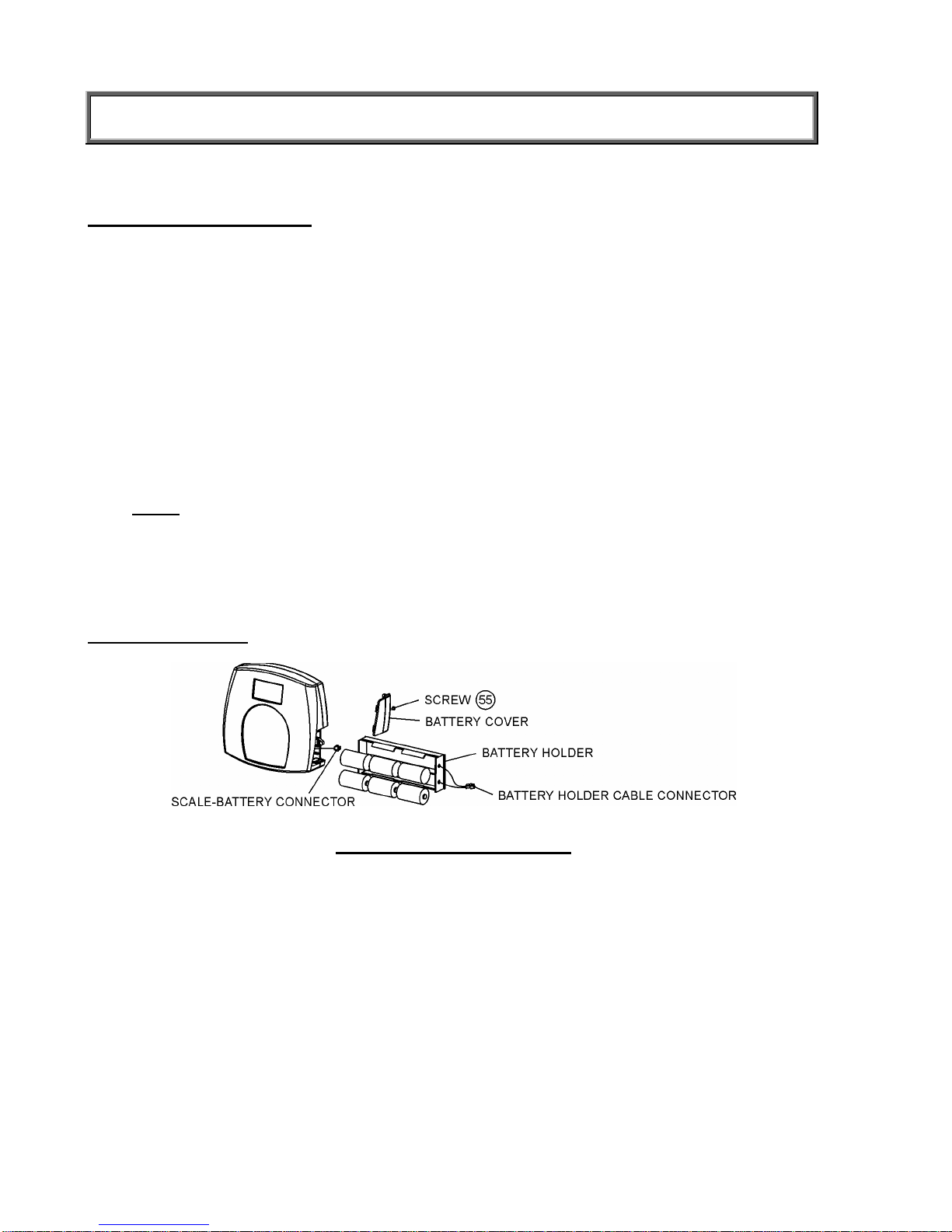

Figure 5. Replacing Batteries

(refer to the Parts List on page 22 for details on parts

1. Unplug the scale.

2. Remove the battery cover from the display assembly.

3. Disconnect battery holder cable connector from the scale-battery connector.

4. Carefully remove the battery holder by sliding it out the display assembly.

5. Replace the batteries with new ones.**

6. Carefully position the battery holder into the display assembly.

7. Plug the battery holder cable connector to the display cable connector.

8. Attach the cover to the display assembly and install the screw.

* To change the scale default units to kilograms, or to deactivate the LB/KG button,

please contact Technical Support at 1 800 638-3722 or +1 708 598-9100.

** We recommend the use of EVEREADY Energizer®e2TM batteries.

OPERATION INSTRUCTIONS

1. Press the ON/OFF button to turn the scale on.

2. Wait until ”000Lb00oz” and “ZERO” on the left side of the display will appear.

3. If the wheelchair weight is known, enter the TARE value according to instructions in the

“Menu”, para 02. If the wheelchair weight is unknown, place the wheelchair only on the

platform; press REWEIGH. Enter the Automatic TARE by pressing the TARE button.

4. Move the wheelchair and patient onto the platform over the ramp until the front wheelchair

wheels are stopped by the platform guardrail. The display should read “WEIGHING“ until

the weight of the patient is displayed.

5. We recommend reweighing after the patient is sitting still on the wheelchair on the platform

by pressing the REWEIGH button.

6. Remove the wheelchair and patient from the scale by moving straight back off the ramp.

NOTE:The scale will always default to the settings and units last used.

OPERATION INSTRUCTIONS

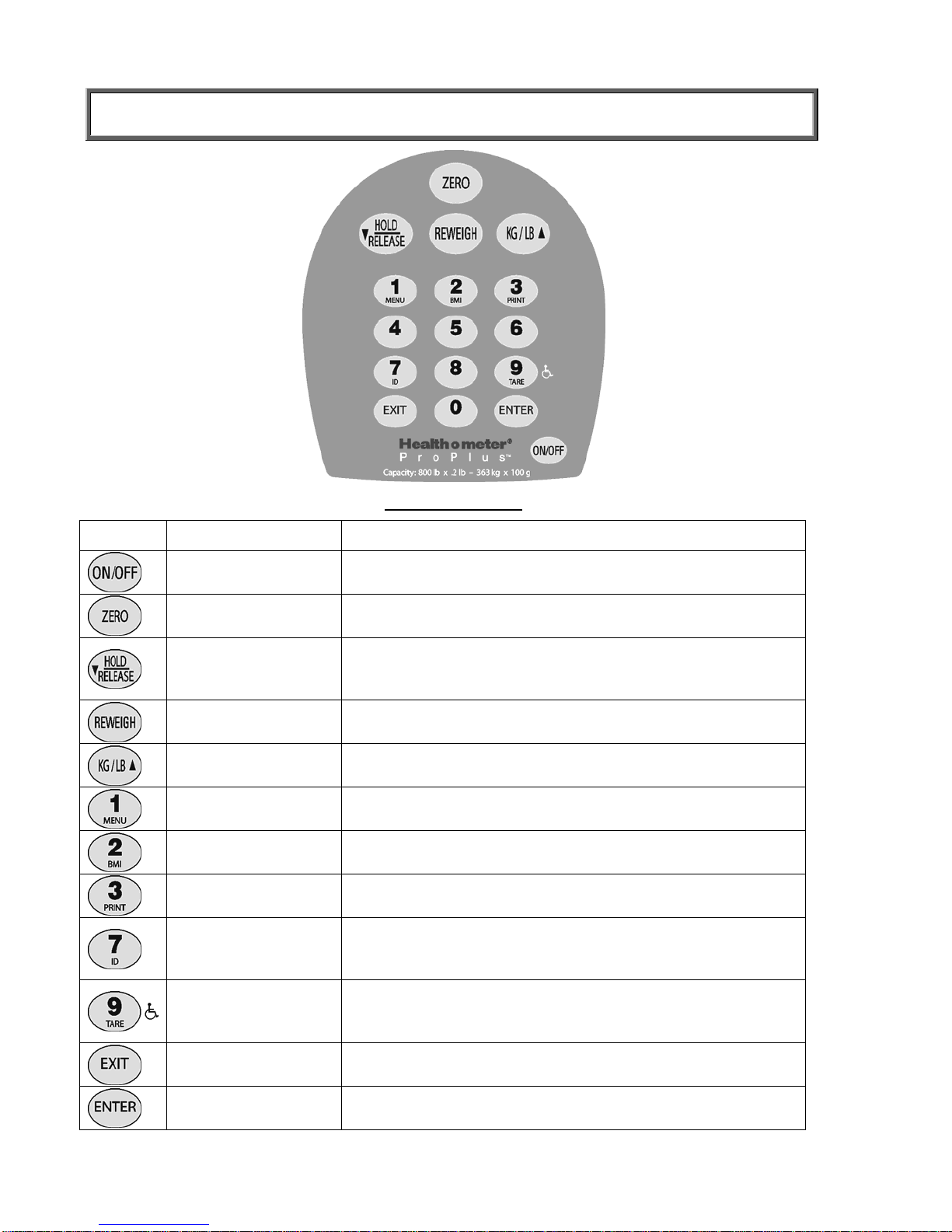

Figure 6. Keypad

ITEM DESCRIPTION FUNCTION

POWER Turns scale ON and OFF.

ZERO Zeros the scale prior to weighing.

HOLD/RELEASE Holds the value of the weighed object on the display until

the button is pressed again to clear the value. Also used to

scroll down in the menu.

REWEIGH Allows repeated weighing of the patient without stepping

off the scale.

KG/LB button Toggles between kilograms or pounds. Also used to scroll

up in the menu.

MENU Press 10 seconds in order to enter the scale menu.

BMI Prompts entry of data to calculate the patient’s Body Mass

Index (BMI).

PRINT Prints patient’s data (if printer is connected to the scale).

ID Prompts entry of patient’s identification number (ID). This

ID will be stored with all the weighing made until is cleared

or a different ID is stored.

TARE Prompts entry of TARE value that will be deducted from

the weight on the platform. Also releases tare weight

(returns display to zero).

EXIT Reverts back one step when in the menu and data entry

modes.

ENTER Used to enter commands and values into the scale.

OPERATION INSTRUCTIONS

In the menu screen the user can set preferences and/or instruct the scale how to handle stored

data. The menu can be navigated using the up and down keys (cd) or by entering the

associated menu position number with the keypad. The menu has a “roll-over” way of working:

when the user scrolls to the bottom of the menu and presses the down button, it will return to the

top of the menu.

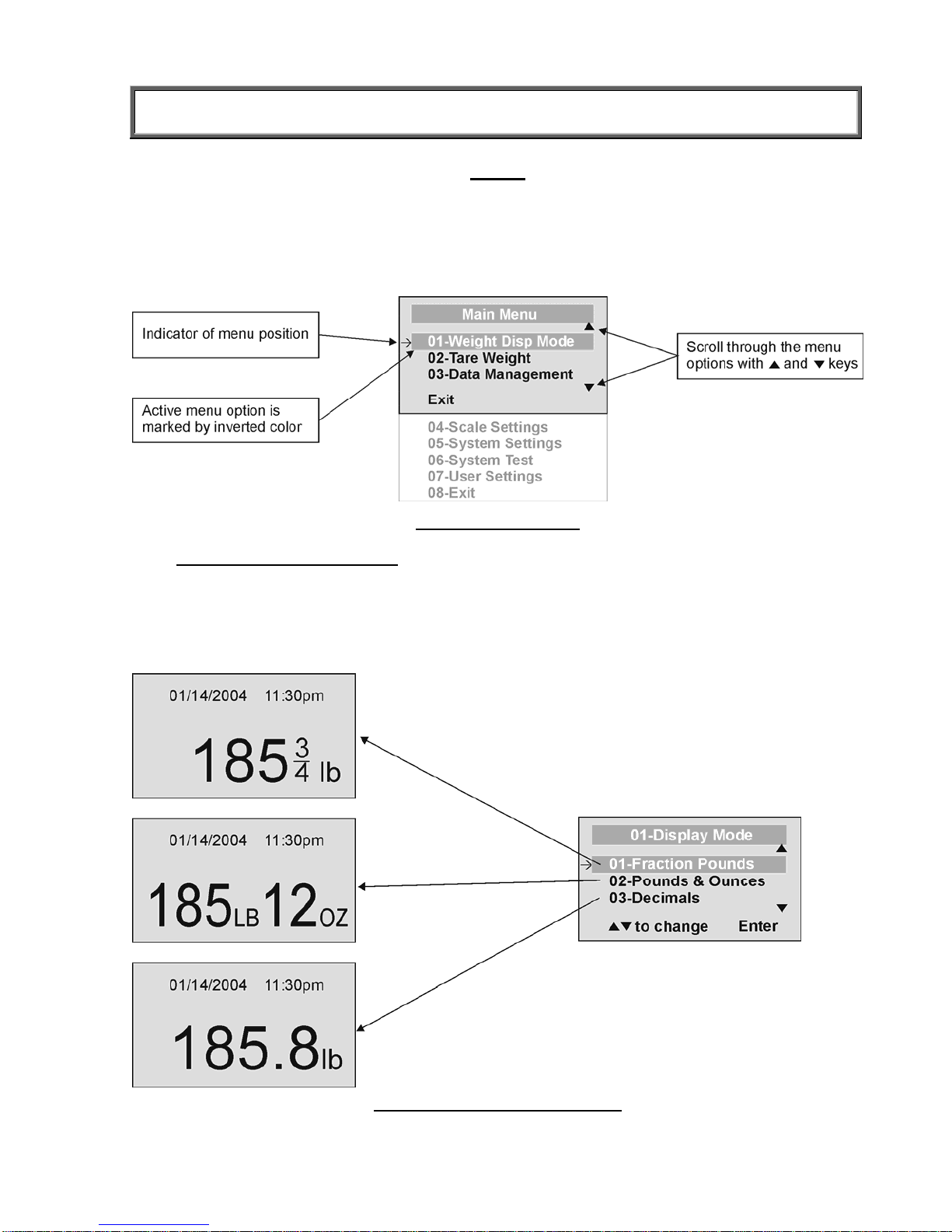

Figure 7. Main Menu

01 WEIGHT DISPLAY MODE

(only applies to pound values, NOT the metric values)

The user can set the screen display value in either fraction of pound (¼, ½ or ¾ lb), in pounds

and ounces (resolution of 4 ounces) or in decimals (resolution of 0.2 lb). When kg is selected as

the units of use, these settings have no effect. The mode that is selected is used through all the

screens.

Figure 8. Weight Display Mode

Table des matières

Langues :

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter HDM173-99 Manuel utilisateur

Health O Meter

Health O Meter Professional 498KL Manuel utilisateur

Health O Meter

Health O Meter HDL489-60 Manuel utilisateur

Health O Meter

Health O Meter HDM560 Manuel utilisateur

Health O Meter

Health O Meter 2595KL Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 1100KL Manuel utilisateur

Health O Meter

Health O Meter 2210KL Manuel utilisateur

Health O Meter

Health O Meter 553KL Manuel utilisateur

Health O Meter

Health O Meter Pro Plus 2101KL Manuel utilisateur

Health O Meter

Health O Meter Healthometer BFM950 Manuel utilisateur

Health O Meter

Health O Meter 822KL Manuel utilisateur

Health O Meter

Health O Meter 880KL Manuel utilisateur

Health O Meter

Health O Meter Professional 498KL Manuel utilisateur

Health O Meter

Health O Meter 500KL Manuel utilisateur

Health O Meter

Health O Meter BFM147-01 Manuel utilisateur

Health O Meter

Health O Meter 1522KL Guide de référence rapide

Health O Meter

Health O Meter 2842KL Manuel utilisateur

Health O Meter

Health O Meter 594KL Guide de référence rapide

Health O Meter

Health O Meter Digital Scale Manuel utilisateur

Health O Meter

Health O Meter 2101KL Manuel utilisateur

Health O Meter

Health O Meter BFM142 Manuel utilisateur

Health O Meter

Health O Meter 402KL Guide de référence rapide

Health O Meter

Health O Meter 3001KL-AM Manuel utilisateur

Health O Meter

Health O Meter 2500KL Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
