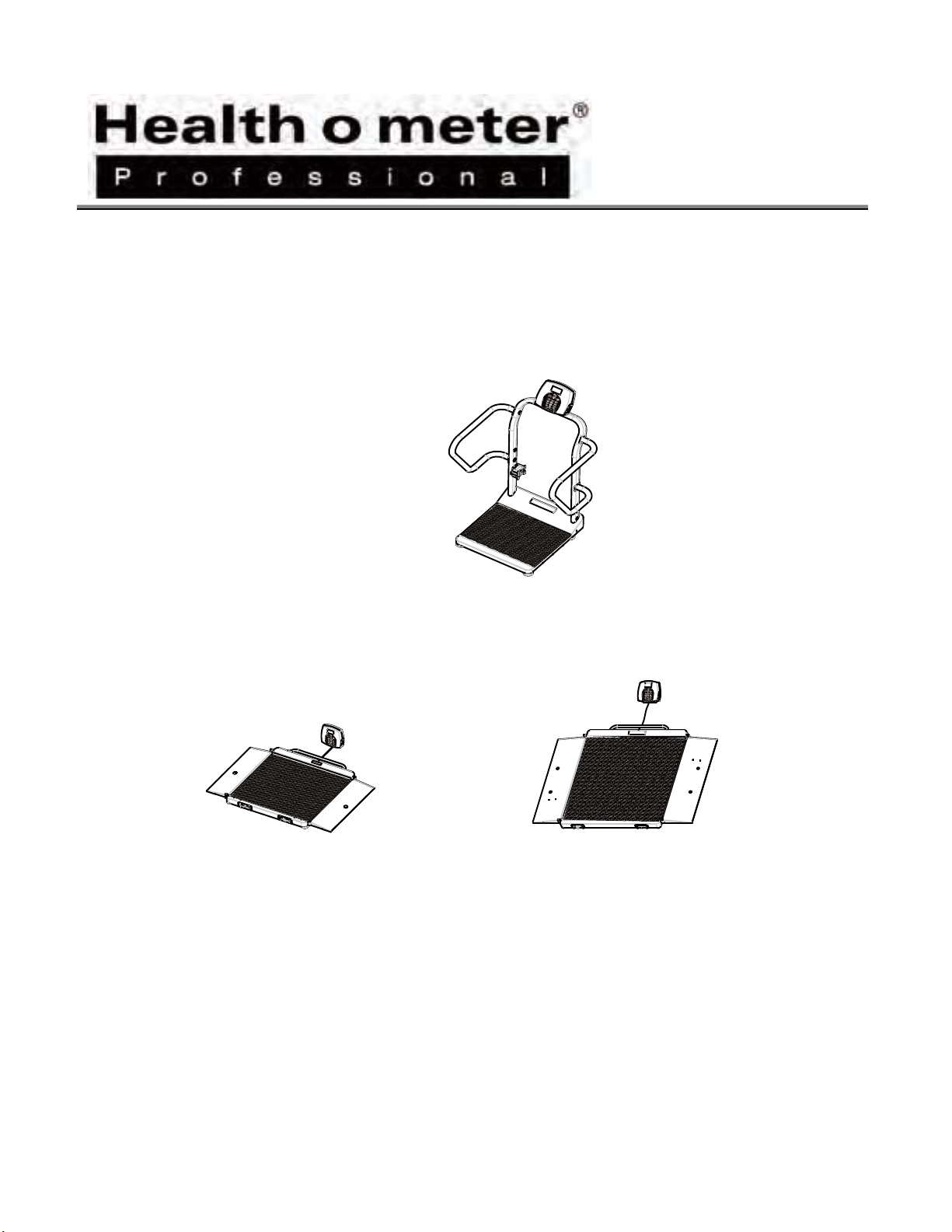

Health O Meter PRO PLUS 1100KL Manuel utilisateur

www.homscales.com

PRO PLUSTM ELECTRONIC SCALES

MODELS1100KL,2650KL, & 2700KL

WHEELCHAIR SCALE FOLDING WHEELCHAIR SCALE

PLEASE REGISTER YOUR PRODUCT FOR WARRANTY AT

WWW.HOMSCALES.COM

Patents: US: D508655, D523367, Europe:0149984/1-8, China: 200430004551.2

0011LK

HANDRAIL SCALE

0072LK

0562LK

¤Pelstar LLC 2009

OPERATION MANUAL

www.homscales.com

PROPLUSTM ELECTRONIC SCALES

MODELS 1100KL, 2650KL AND 2700KL

Thank youfor your purchase of this product. Please read this manual carefully and

keep it handy for ready reference.

ENGLISH.............................................................................................................. 1

FRANÇAIS ........................................................................................................... 38

ESPAÑOL ............................................................................................................ 77

TABLE OF CONTENTS

ASSEMBLY INSTRUCTION .................................................................................................2

CAUTION AND WARNING....................................................................................................7

SPECIFICATIONS.................................................................................................................7

SET UP..................................................................................................................................8

OPERATION INSTRUCTIONS..............................................................................................9

MAINTENANCE.....................................................................................................................22

TROUBLESHOOTING...........................................................................................................23

CALIBRATION PATH ............................................................................................................24

EXPLODED VIEW OF DISPLAY MODULE...........................................................................25

DISPLAY MODULE PARTS LIST..........................................................................................25

1100KL EXPLODED VIEW ……………………………………………………………………......26

1100KL PARTS LIST………………………………………………………………………….........27

2650KL EXPLODED VIEW ………………………………………………………………………..28

2650KL PARTS LIST……………………………………………………………………………… .29

2700KL EXPLODED VIEW ……………………………………………………………………......30

2700KL PARTS LIST…………………………………………………………………………….....31

COMMUNICATION PROTOCOL……………………………………………………………….....32

WARRANTY ..........................................................................................................................37



ASSEMBLY INSTRUCTIONS1100KL)

Parts List:

(1) Platform Assembly

(1) Display Assembly

(4) Rubber Feet Assemblies

(1) AC Adapter

(1) LC Cable Connector

(1) Handle

(4) Ramp Holder

(1) Display Support

(4) Screws

(1) Power Cord

(2) Wheels

Tools required: Phillips head screwdriver (not included), Allen wrenches (included).

Remove each piece from the carton and unwrap packing material carefully to prevent scratching

the unit’s parts. It is recommended that assembly is performed by two people.

(refer to the Parts List on page 27 for details on parts)

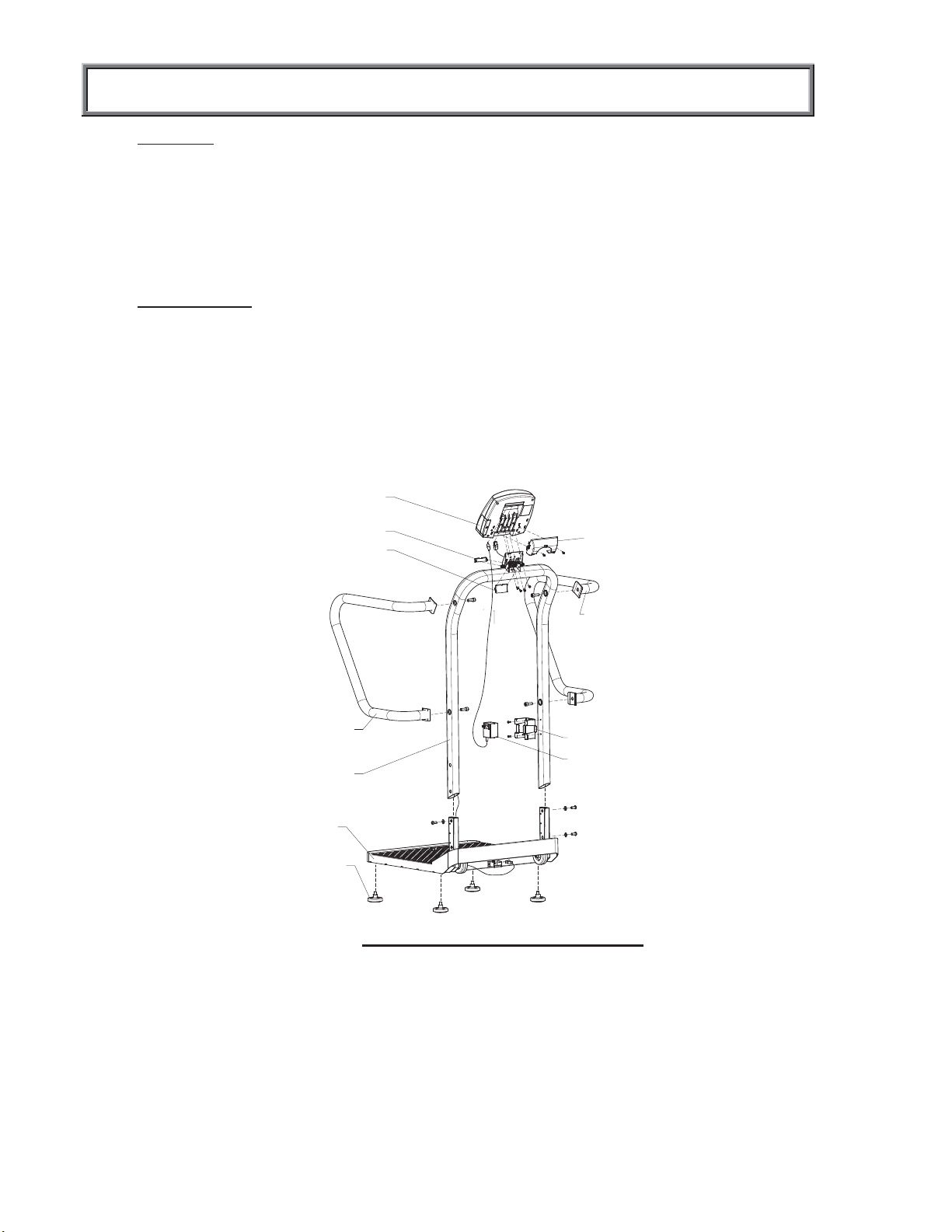

Figure

FOOT ASSEMBLY

BASE ASSEMBLY

CURVED PIPE #1ASSEMBLY

CURVED PIPE #2 ASSEMBLY

CURVED PIPE #3ASSEMBLY

FRONT COVER

BACK COVER CABLE COVER

HEAD ASSEMBLY

ADAPTER

ADAPTER BRACKET

1100KL Assembly Instructions

1. Remove the base of the scale from the box and screw in the 4 Feet into

the underside of the Platform.

2. Place the Platform on the floor and adjust the feet to level Platform. (DO

NOT OVERTIGHTEN).

3. Locate the load cell cable and pull it out the bottom of the center handrail.

Position the Handrail over the Platform and feed the cable through the

Handrail Support.

4. The load cell cable should pass through the Handrail Support and exit

underneath.

5. Plug the load cell cable into the base of the scale.

6. Slide the center Handrail over the Handrail Supports and insert the

Handrail bolts. (2 on each side of Handrail) DO NOT OVERTIGHTEN.

7. Using the largest Allen wrench, attach the 2 Side Handrails to the center

Handrail.

8. Connect the load cell cable to the Load Cell port on the back of the

Display Unit and slide the Display Assembly onto the display support.

Note: Route the load cell cable through the channel on the rear of the

Display Unit.

9. Insert 4 screws into the Display Support.

10. Connect the power cord to the power port.

ASSEMBLY INSTRUCTIONS(2650KL & 2700KL)

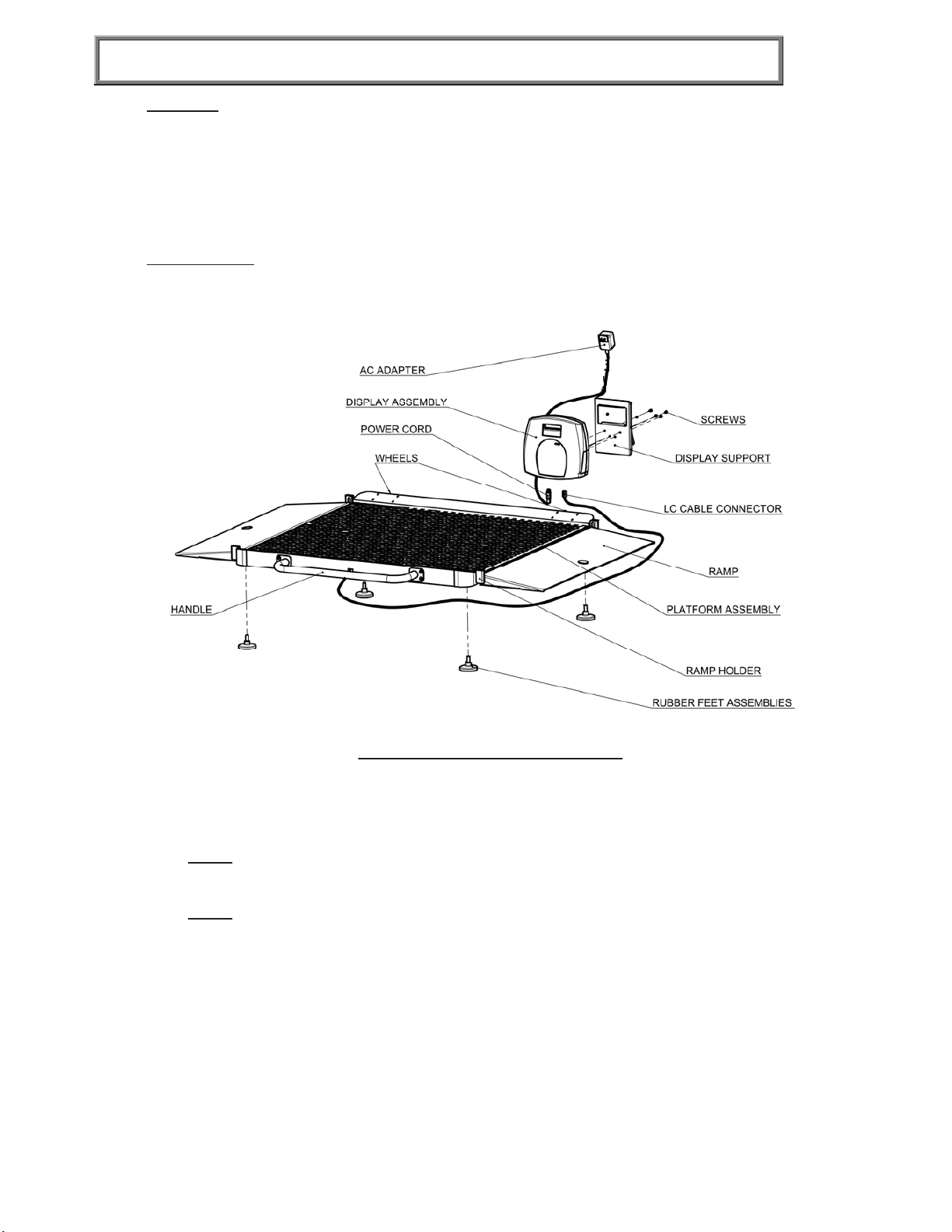

Parts List:

(1) Platform Assembly (plus 2 ramps) (1) Handle redloHpmaR)4(ylbmessAyalpsiD)1( troppuSyalpsiD)1(seilbmessAteeFrebbuR)4( swercS)4(r

etpadACA)1( droCrewoP)1(rotcennoCelbaCCL)1( (2) Wheels

Tools required: Phillips head screwdriver (not included).

Remove each piece from the carton and unwrap packing material carefully to prevent scratching

the unit’s parts. It is recommended that assembly is performed by two people.

(refer to the Parts List on page 29 & 31 for details on parts)

1. Open the scale to operational position.

2. Connect the load cell cable connector to the load cell port on the rear of the display

assembly and insert and secure the cable into the center channel in the display.

NOTE:Do not attach the Power Cord at this point.

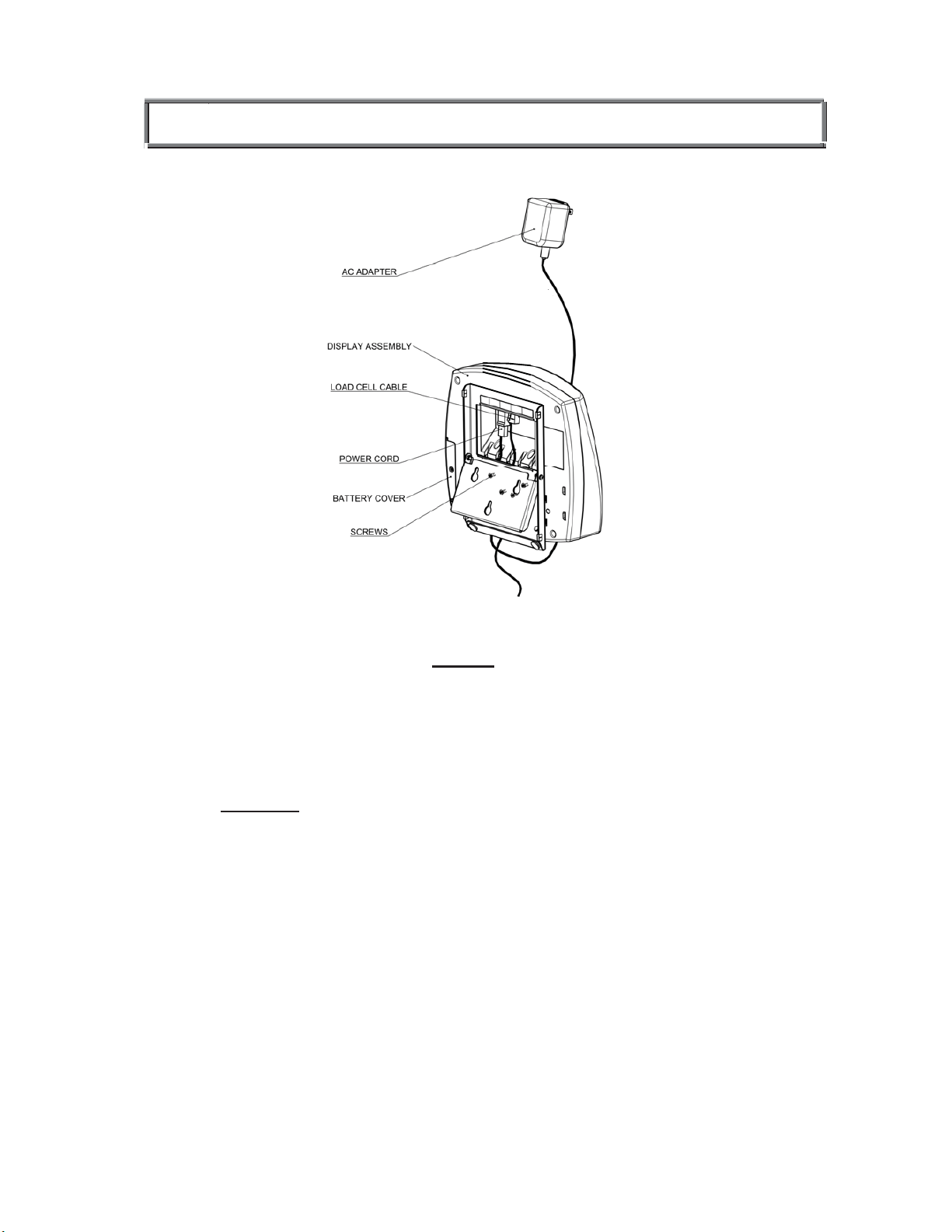

3. Connect the load cell cable to the display unit see Figure 2.

NOTE:The load cell cable should now be secured in the channel between the display

assembly and the display support.

Figure 2

Re er e r Li ge 25r e i r

 Insert the power cord into the retaining slot. Align the rear cover tabs with the

slots on the rear of the display assembly. Secure with 4 screws.

.ently tip the scale. Screw in 4 plastic feet. Do not tighten.

.ently return the scale to the upright position.

ARNIN :Do not drop the scale on its feet. This could result in load cell damage.



7. Screw unscrew the plastic feet to level the scale.

ASSEMBLY INSTRUCTIONS (2650KL & 2700KL)

Figure 2

ASSEMBLY INSTRUCTIONS (2650KL & 2700KL)

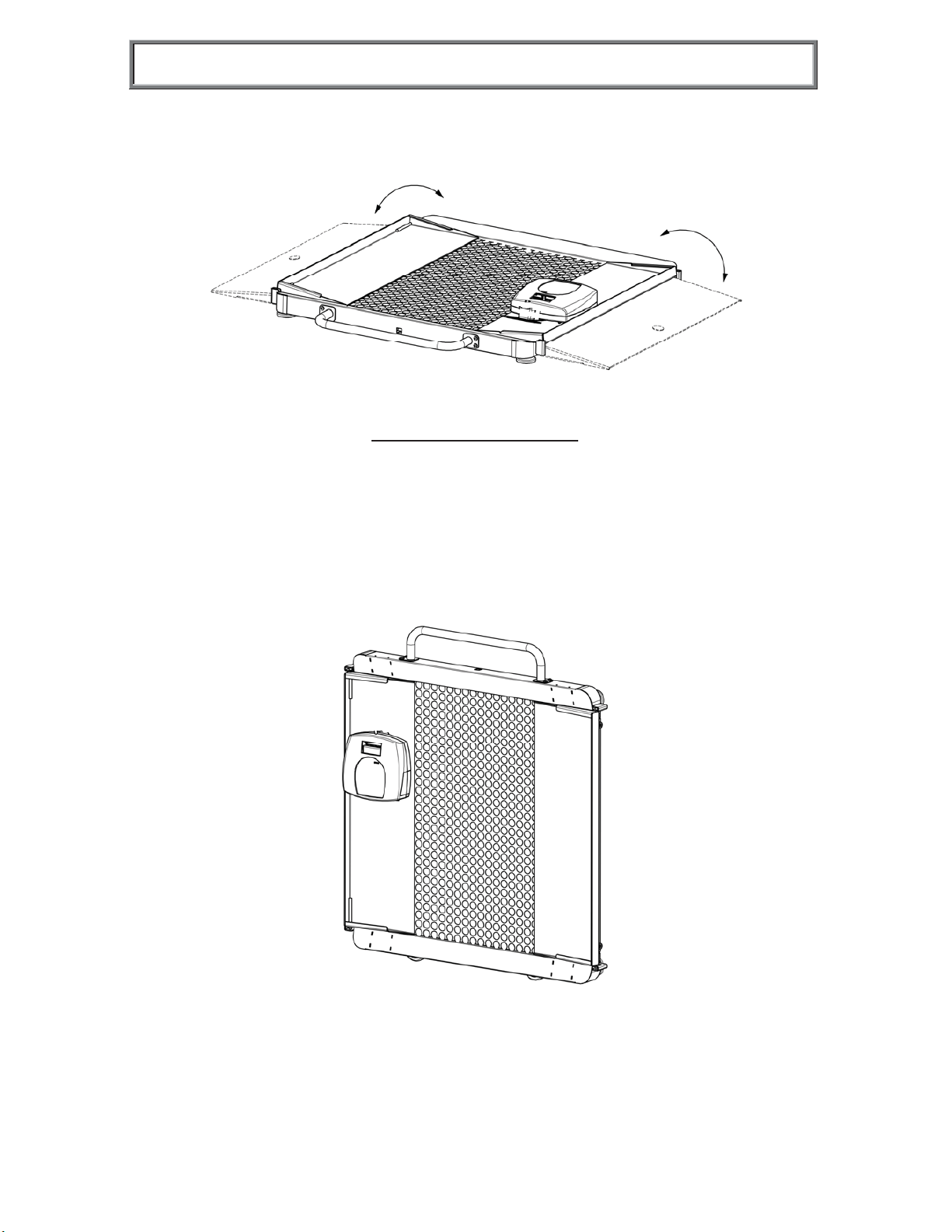

Figure 4. Folded Ramp

Figure Folding the Ra p

1. Both ramps (left and right) can fold onto the platform.

2. The indicator is mounted onto one of the folded ramps by sliding the slots in the back of

the indicator into raised pins..

3. Lift the scale platform onto its side using the handle, and it is now able to be transported

on two wheels see Figure 4.

CAUTION AND WARNING

To prevent in ury and damage to your scale, please follow these instructions very carefully.

x Do not transport the scale while the platform is loaded.

x For accurate weighing the scale must be placed on a flat, stable surface.

x For accurate weighing, verify proper operation according to the procedure described in this

manual before each use.

x Do not use in the presence of flammable materials.

x Operating at other voltages and frequencies than specified could damage the equipment.

x If the LOW BAT indicator activates, for accurate weighing, replace the batteries or connect

the scale to an AC power source as soon as possible.

x It is intended that this equipment be used with assistance of a health care worker.

SPECIFICATIONS

GENERAL

Health o meter’s Pro PlusTM Electronic Scales Models 1100KL, 2650KL and 2 00KL use highly

sophisticated microprocessor technology. Each precision instrument is designed to provide

accurate, reliable and repeatable weight measurements and features that make the weighing

process simple, fast and convenient.

The scale is set up to use motion sensing weighing technology, to determine the actual weight

of a moving patient. The scale may be changed to measure live weight see page 18for

instructions on changing the scale setting.

The weight can be displayed in pounds (decimals, fractions of a lb or lb o ) or in kilograms. The

1100KL features a wrap around handrail for patient comfort and safety and a 1 0 degree

swivel pivot head for reading from either side of the scale. Also included on the platform scales

are two wheels for easy mobility.

The unit can be operated using its AC adapter or by D cell batteries (not included).

SCALE SPECIFICATIONS

Capacity and Resolution

2650KL & 2700KL

1100KL

1,000 Lb x 0.2 Lb / ¼ lb / 4 oz (454 Kg x 0.1 Kg)

700 Lb x 0.2 Lb(310 Kg x 0.1 Kg) for 1100KL

Power Requirements Adaptor model ADPT31*(USA-CSA only) 120 VAC-9VDC

60Hz (INCLUDED) or 6 D cell batteries. Adaptor model

ADPT30*(IEC)120-240 VAC-9VDC 50-60Hz (NOT

INCLUDED)

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Humidity: 85%

Physical Dimensions

Model 1100KL

Platform size

Length: 18” (46 cm)

Width: 22” (56 cm)

Height: 21/3” (6cm)

Product size and weight

Length: 291/4” (74cm)

Width: 31” (78.7 cm)

Height: 491/2” (126 cm)

Weight: 53 Lb (24 Kg)

Physical Dimensions

Model 2650KL

Platform size

Length: 36” (91.6 cm)

Width: 32 ” ( 2, cm)

Height: 2 1/2” (6.2cm)

Product size and weight

Length: 413/5” (106 cm)

Width: 561/4” (143 cm)

Height: 31/8” (8 cm)

Weight: 80.5 Lb (36.5 Kg)

Physical Dimensions

Model 2700KL

Platform size

Length: 44” (111 cm)

Width: 42” (107 cm)

Height: 21/2” (6.2cm)

Product size and weight

Length: 511/8” (130 cm)

Width: 69” (175 cm)

Height: 31/2” (9 cm)

Weight: 179 Lb (81 Kg)

SCALE SPECIFICATIONS (continued)

Use only Healthometer Professional power supply, Adaptor model ADPT31*(USA-CSA

only) 120 VAC-9VDC 60Hz (INCLUDED) or 6D cell batteries. Adaptor model

ADPT30*(IEC)120-240 VAC-9VDC 50-60Hz (NOT INCLUDED)

SET UP

This scale is shipped with the Menu Lock function enabled. The Menu Lock function disables

certain buttons on the scale’s keypad, thus preventing unauthori ed users from making

changes to your scale settings This Lock can be bypassed temporarily to allow you to

customi e your scale’s functionality. Please refer to page 12 for instructions on how to bypass

the Menu Lock.

1. Remove protective plastic film from keypad and display.

2. Place batteries in the battery holder (see Replacing Batteries ).

3. Plug the scale’s AC adapter into the power source.

4. Make sure there is no ob ect on the weighing platform

. Press the ON OFF button to turn the scale on. The display will show Health o Meter

Pro Plus and then 000Lb00o.(a)

. Place a weight not to e ceed the capacity on the scale. The display should read

WEI HIN until the weight calculation is complete and the weight is displayed.

. Press the K LB button to select the weight mode (Lb Kg).(b)

. Press the REWEI H button the scale should perform the weighing process again.

. Remove the weight from the scale, the scale will return to ero and the display will read

ERO on the left upper side of the screen along with 000Lb00o.

NOTE If the set up procedure failed, refer to the troubleshooting instructions. If the problem

is not corrected, refer to qualified service personnel.

(a) To ad ust the display backlight and or contrast, please refer to page 17.

(b) To change the display mode in pounds to fractions or decimals, please refer to page 12.

SPECIFICATIONS

1/2

SET UP

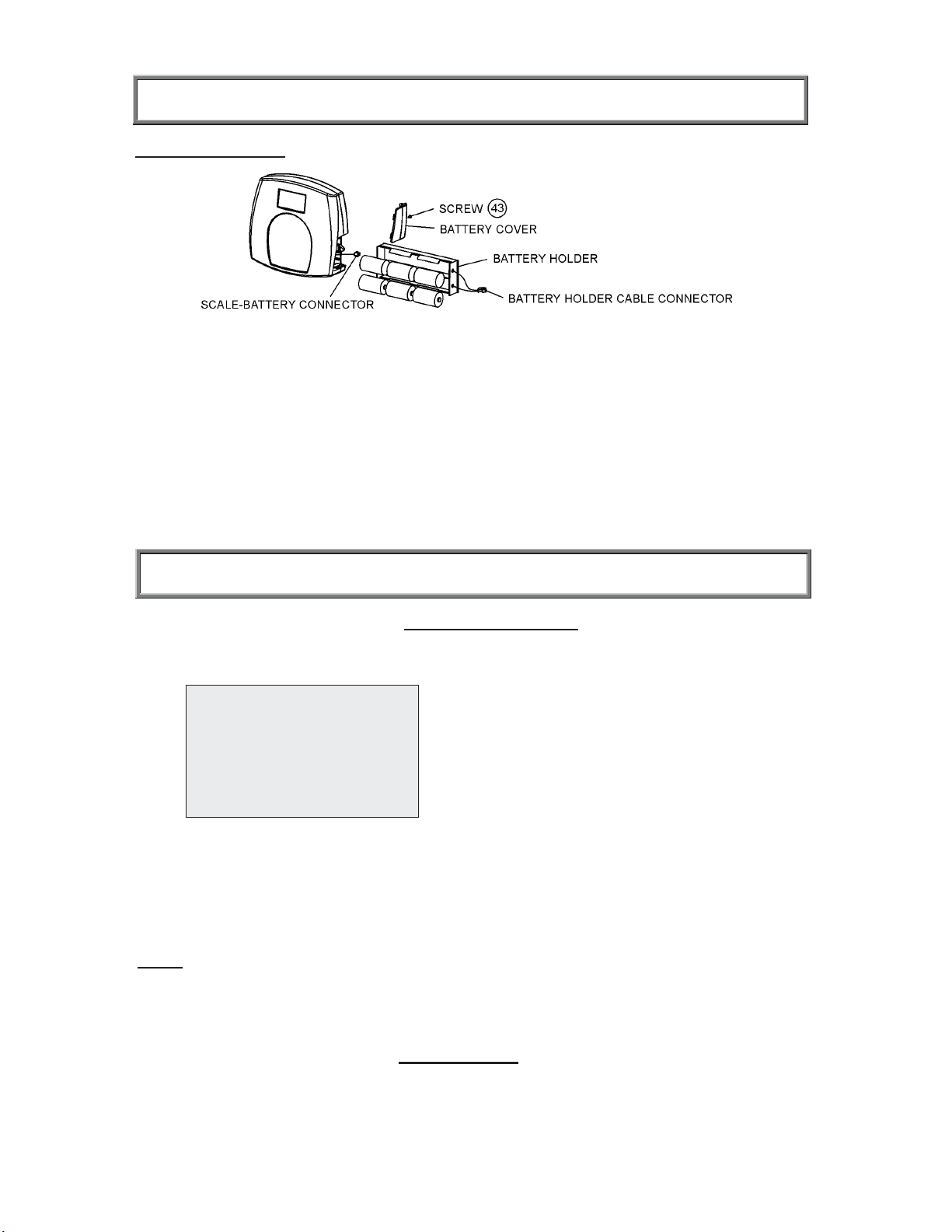

Replacing Batteries

1. Unplug the scale.

2. Remove the battery cover from the display assembly.

3. Disconnect battery holder cable connector from the scale battery connector.

4. Carefully remove the battery holder by sliding it out the display assembly.

. Replace the batteries with new ones.

. Carefully position the battery holder into the display assembly.

. Connect the battery holder cable connector to the scale battery connector.

. Attach the battery cover to the display assembly and install the screw.

We recommend the use of EVEREADY Energi er e2TM batteries

OPERATION INSTRUCTIONS

1. Make sure there is no ob ect on the weighing platform

2. Press the ON OFF button to turn the scale on.

3. Wait until 000Lb00oand ERO on the left side of the display appear.

4. Ask the patient to step on the scale. The display should read WEI HIN until the

weight calculation is complete and the weight is displayed.

Health o Meter

Pro Plus

. If you wish to reweigh without asking the patient to step off and to step on the scale

again, press the REWEI H button.

. Ask the patient to step off the scale.

NOTE:The scale will always default to the settings and units last used.

WARNING: If the scale will not be used for a prolonged period of time, remove batteries

ha ard.

to avoid a safety

TARE FUNCTION

When using the scale the weight of an object such as a wheelchair or shoes accompanying the

patient can be subtracted from the total weight to determine the weight of the patient alone. The

Tare function automatically performs this subtraction, avoiding the need for manual calculations.

Pro Plus scales allow tare weight to be entered automatically or manually.

WEIGHING A PATIENT

Figure 4. Replacing Batteries

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Health O Meter Échelle

Health O Meter

Health O Meter 499KL Manuel utilisateur

Health O Meter

Health O Meter 1101KL Manuel utilisateur

Health O Meter

Health O Meter 501KL Manuel utilisateur

Health O Meter

Health O Meter 845KL Manuel utilisateur

Health O Meter

Health O Meter 3423 Manuel utilisateur

Health O Meter

Health O Meter 450KL Manuel utilisateur

Health O Meter

Health O Meter 2500CKL Manuel utilisateur

Health O Meter

Health O Meter HNY200 Manuel utilisateur

Health O Meter

Health O Meter PROPLUS 1100KL Instructions d'installation

Health O Meter

Health O Meter PROPLUS 2000KL Manuel utilisateur

Health O Meter

Health O Meter 2595KL Manuel utilisateur

Health O Meter

Health O Meter DIGITAL PEDIATRIC SCALE 549KL Manuel utilisateur

Health O Meter

Health O Meter HDM560 Manuel utilisateur

Health O Meter

Health O Meter 822KL Manuel utilisateur

Health O Meter

Health O Meter 524KL Manuel utilisateur

Health O Meter

Health O Meter BFM582 Guide de l'utilisateur

Health O Meter

Health O Meter 594KL Manuel utilisateur

Health O Meter

Health O Meter Proplus 2101KGWA Manuel utilisateur

Health O Meter

Health O Meter 142KL Manuel utilisateur

Health O Meter

Health O Meter HAB957 Manuel utilisateur

Health O Meter

Health O Meter 2600KL Manuel utilisateur

Health O Meter

Health O Meter 402KL Guide de référence rapide

Health O Meter

Health O Meter 2210KL-AM Manuel utilisateur

Health O Meter

Health O Meter 142KL Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
