HDTV Supply HDMI Matrix Manuel utilisateur
HDTV Supply, Inc.
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction
manual Carefully before using our product.
Quick Start Guide
Page 2
User Manual
Table of Contents
Quick Start Guide
Page 3
Contents
Introduction 4
HDMI Matrix 5
Product Overview 5
Features 5
Package Contents 7
Specifications 7
Panel Descriptions 8
Front Panel 8
Rear Panel 8
Side Panel 9
Installation 9
Operation 10
Maintenance 17
Product Service 17
Provided Service 17
Mail-In Service 17
Warranty 18
Warranty Limits and Exclusions 18
Quick Start Guide
Page 4
Introduction
This is a 4-by-2 HDMI true matrix. It allows any source
(Blue-Ray player, HD DVD player, satellite receiver, game
system, etc.) to be shown on the any of the two displays
simultaneously, no matter the source is HDCP or not.
Extra infrared receiver extension and IR emitter can
control HDMI source and HDMI MATRIX.
This 4X2 HDMI Matrix Switch has the ability of
equalization and amplification to ensure HDMI signal's
transmission through long cable without quality loss.
This 4X2 HDMI Matrix Switch offers solutions for digital
entertainment center, HDTV retail and show site, HDTV,
STB, DVD and projector factory, noise, space and security
concerns, data center control, information distribution,
conference room presentation, school and corporate
training environments.
Quick Start Guide
Page 5
HDMI Matrix
Product Overview ( Model Number: MX0402-321 )
Features
Easy to use: install in seconds, no need for setting.
Allows up to four HDMI source devices to be independently switched to two
HDMI monitors, HDTVs, or projectors.
The two outputs could show the same or different source at the same time no
matter the source is HDCP or not.
Support high definition resolutions 1080P, 1080i, 720P and standard video
format.
Three switching modes：panel buttons, local IR, IR extension.
With extra infrared receiver extension and IR emitter extension for IR call back
function to control the HDMI source or HDMI MATRIX from remote rooms.
HDCP compliant.
HDMI 1.3 version.
Notice
Quick Start Guide
Page 6
HDTV Supply Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
Quick Start Guide
Page 7
Package Contents
1.Main unit. P/N_MX0402-321.
Quick Start Guide
Page 8
2.5VDC Power Supply. P/N_VDC0502.
3.1x Remote.
4.2x IR_RX (IR receiver) extension cable.
5.4x IR_TX (IR emitter) extension cable.
6.2x IR_RX cable extender jack pair.
7.Operating Instructions. P/N_INS MX0402-321.
8.2x Mounting Ear.
NOTE: PART NUMBER (Abbreviation as P/N).
Specifications
Operating Temperature
Range
-5 to +35°C(-41 to +95 °F)
Operating Humidity Range
5 to 90 % RH (no condensation)
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Signaling Rate
2.25Gbit/s
Video Format Supported
DTV/HDTV:
1080P/1080i/720P/576P/480P/576i/480i
Output Video
HDMI1.2 and HDMI 1.3
Audio Format Supported
DTS-HD、Dolby trueHD
Maximum Transmission
Distance
<15m (If needed, HDMI extender is
optional)
Power Consumption
10wtts (Max.)
Dimensions
204mmL×95mmW×29mmH/8.0''L×3.7''
W×1.1''H
Mass (Main Unit)
0.45kg
Note: Specifications are subject to change without notice. Mass and dimensions are
approximate.
Panel Descriptions
Front Panel
Quick Start Guide
Page 9
1. IR receiver.
2. Indicator of inputs (2 color LED, RED for Output1, BLUE for Output 2).
3. Input select button for Output 1.
4. Input select button for Output 2.
5. IR extension transmitter sockets.
6. Power switch.
Rear Panel
1. Mini USB for firmware update.
2. Power input.
3. IR extension receiver sockets.
4. HDMI output 1.
5. HDMI inputs.
6. HDMI output 2.

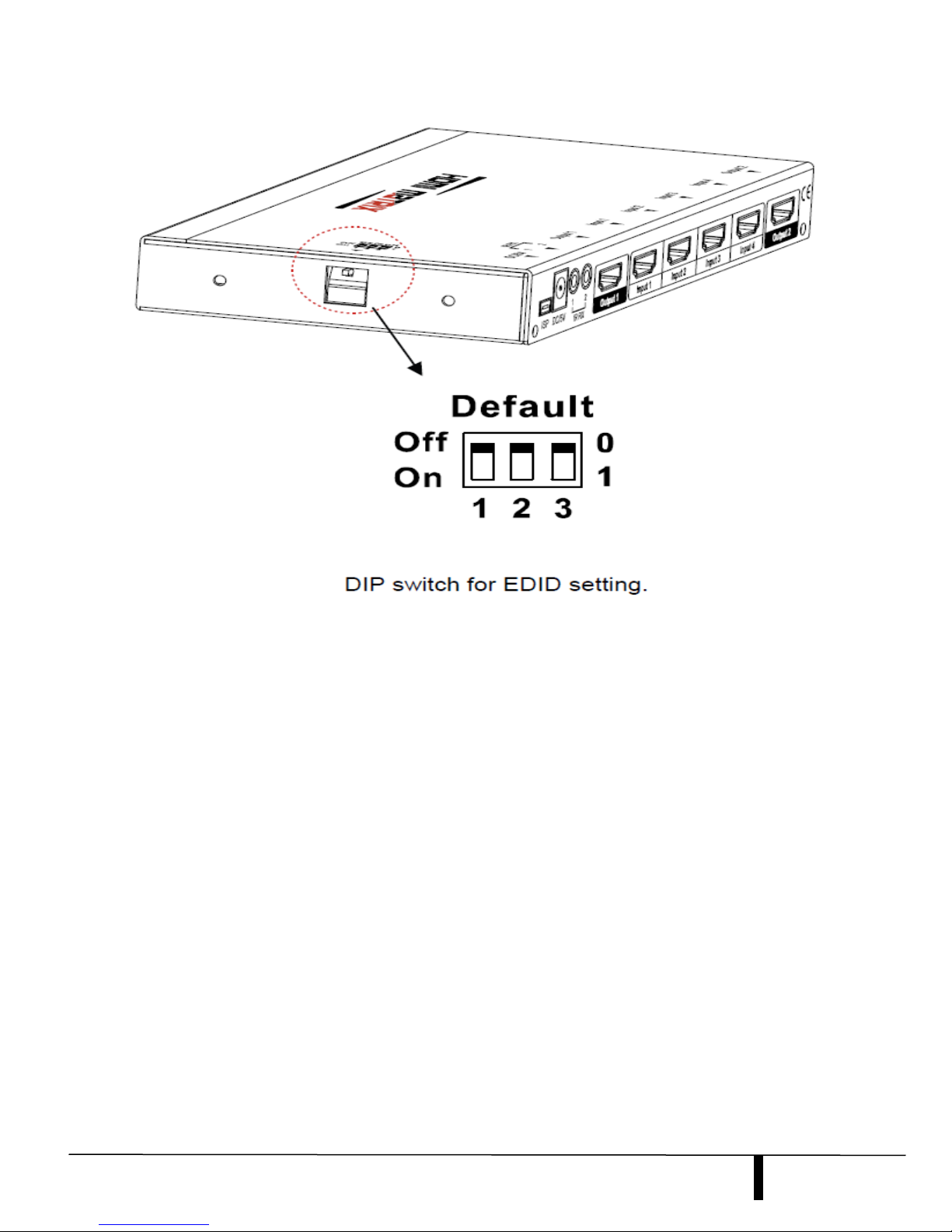

Side Panel
Quick Start Guide
Page 10
Installation
1. Connect the HDMI input sources ( such as HD-DVD, PS3, STB
etc) into the matrix switch.
2. Connect the HDMI outputs ( such as HD-LCD, HD-DLP) into the
matrix switch.
3. Power on the input source you want to show. ( Keep the unused
input power off, otherwise it may interfere the normal display.)
4. Connect the power supply into the matrix switch and turn on the
display you want to watch.
5. Use remote or push the button to choose input source. Extra
infrared receiver extension and IR emitter are supplied for
remote control.
6. IR call back from remote rooms to control the HDMI Matrix
function.
Attention: Insert / Extract cables gently.
