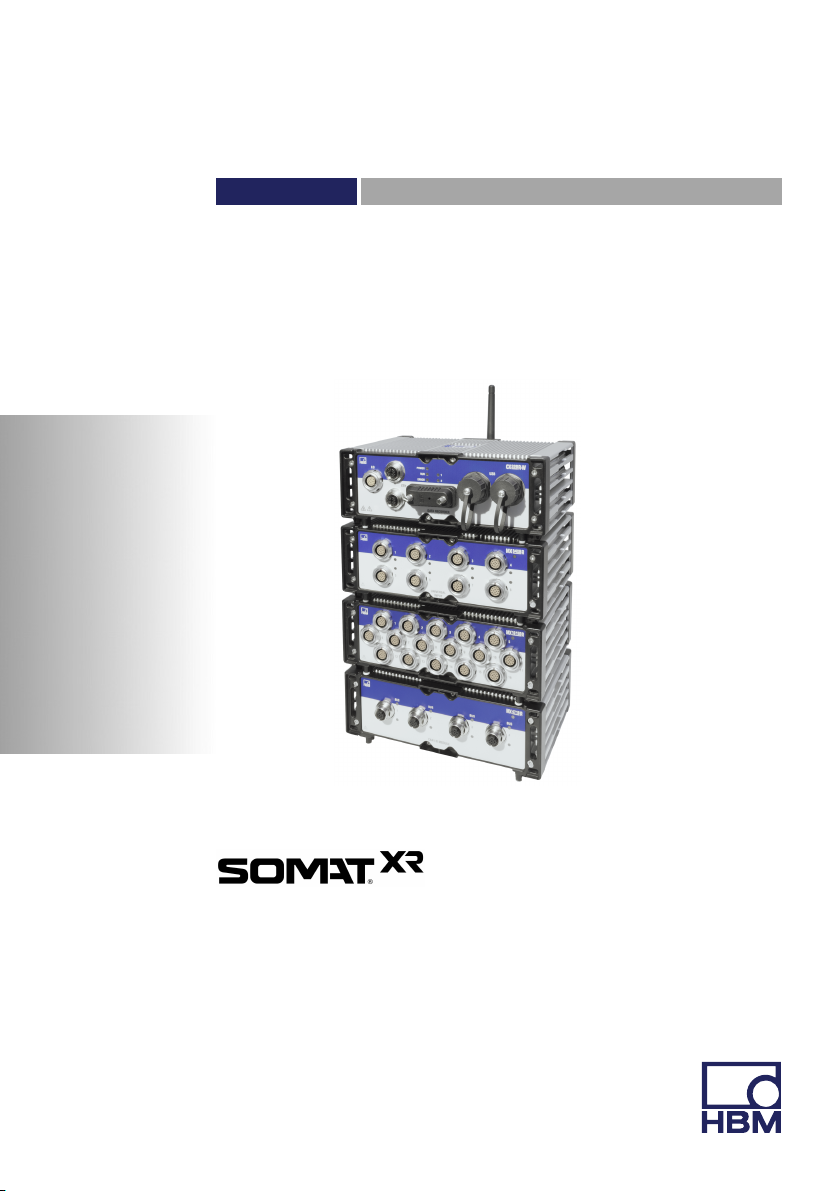

HBM SomatXR CX22B-R Manuel utilisateur
Operating Manual
English
CX22B-R
catmanData Recorder
Hottinger Baldwin Messtechnik GmbH
Im Tiefen See 45
D-64239 Darmstadt
Tel. +49 6151 803-0
Fax +49 6151 803-9100
www.hbm.com
Mat.: 7-2002.4722
DVS: A4722-1.0 HBM: public
12.2017
EHottinger Baldwin Messtechnik GmbH.
Subject to modifications.
All product descriptions are for general information only.
They are not to be understood as a guarantee of quality or
durability.
CX22B-R A4722-1.0 HBM: public 3
English
1 Safety instructions 5........................................
2 Markings used 13............................................
2.1 Markings used in this document 13..............................
2.2 Symbols on the module 14.....................................
2.3 Trademarks 15...............................................
3 Introduction 16..............................................
4 Connections and displays 18.................................
4.1 Voltage supply 19.............................................
4.2 Ground connection and grounding 20............................
4.3 Connection of MX modules 20..................................
4.4 Communication with the Data Recorder 21.......................
4.5 USB 2.0 interfaces 22.........................................
4.6 Digital inputs and outputs 22...................................
4.7 LED displays 23..............................................
5 Connecting measurement modules 26........................
6 Operating the Data Recorder 29..............................
6.1 Operation with monitor and keyboard/mouse 29...................
6.2 Operation via a PC 31.........................................
6.2.1 A direct Ethernet line between PC and Data Recorder 32..........
6.2.2 Connection via a network 38...................................
6.2.3 Connection via WLAN 39......................................
6.2.4 Connection via a tablet 41.....................................
6.3 Connection via remote desktop 42..............................
6.4 Detecting and resolving connection problems 47..................
6.5 Using Ethernet and WLAN in parallel 48.........................
6.6 UPS settings and shut‐down 49.................................
4A4722-1.0 HBM: public CX22B-R
7 The CX22B‒R Data Recorder start screen 51...................
8 The first DAQ job with catman[EASY 53......................
8.1 Creating a DAQ job 53........................................
8.2 Transferring data/files to the PC 58..............................
8.3 Data analysis 60..............................................
8.4 Monitoring functionality 61.....................................
9 Configuring the CX22B‒R for self-contained measurements 64.
10 Saving data on the Data Recorder 68..........................
10.1 Memory partitioning 68........................................
10.2 Memory performance 69.......................................
10.3 EWF, safeguarding your settings against change 69...............
11 Operating the CX22B-R as gateway 71........................
11.1 Description 71................................................
11.2 Activate/deactivate gateway mode 71...........................
11.3 Connect to a QuantumX module behind a CX22B-R 72............
11.4 Performances 74.............................................
12 System settings, update and recovery 75......................
12.1 Installing drivers 75...........................................
12.2 Changing system settings (Settings) 76..........................
12.3 Updating the software 78......................................
12.4 System restoration (Recovery) 78...............................
12.5 Potential sources of error and remedial action 79..................
13 FCC (USA) and CI (Canada) statement 80......................
14 Waste disposal and environmental protection 82..............
15 Index 84....................................................
Safety instructions
CX22B-R A4722-1.0 HBM: public 5
1 Safety instructions
Intended use
The SomatXR Data Recorder CX22B-R is to be used
exclusively for measurement tasks and directly related
control tasks within the ratings stated in the "Specifica
tions" section and under the conditions given in the same
section. Any other use is not appropriate.
Proper and safe operation requires proper transportation,
correct storage, siting and mounting, and careful opera
tion. Everyone involved with siting, starting up, or operating
the module must have read and understood the operating
manual and in particular the technical safety instructions.
In the interest of safety, the module should only be oper
ated by qualified personnel (see below) and as described
in the operating manual.
It is also essential to comply with the legal and safety
requirements for the application concerned during use.
The same applies to the use of accessories.
Notice
If the measurement module is not used as intended or is
used outside the ratings, the protection provided by the
module may be impaired.
Safety instructions
6A4722-1.0 HBM: public CX22B-R
Installation of the module(s)
SomatXR modules are IP65/IP67 rated. They can be
used outdoors without any special protection. In dirty
environments, protective caps should be attached to con
nectors that are not being used to allow later plug inser
tion.
SomatXR modules can be used as tabletop unit but also
mounted on a surface or in a box.
Please consider following conditions at the place of
installation:
SObserve the maximum permissible ambient tempera
tures given in the specifications.
SMinimize device exposure to direct sunlight in hot
operating environments.
A module must not be connected directly to a power sup
ply network. The maximum permissible supply voltage is:
Module Power supply
CX22B-R 10 VDC … 30 VDC
CX23‐R 10 VDC … 30 VDC
EX23‐R 10 VDC … 36 VDC
MX modules 10 VDC … 30 VDC
Notice
The module must not be connected directly to the power
supply system.
Safety instructions
CX22B-R A4722-1.0 HBM: public 7
Tip
When modules are installed in a vehicle, we recommend
connection to a separate battery or integration of an unin
terruptible power supply (UPS), as battery voltage is par
ticularly likely to fall below 10 V when a combustion
engine starts up, which would automatically cause the
modules to restart.
Maintenance, repair and modification
The modules are maintenance-free.
Only trained and qualified personnel who are authorized
to do so by HBM are allowed to open the module. Before
opening the module, disconnect all connections. Opera
tion when open is not allowed. Once the device has been
opened, it must be professionally inspected in accor
dance with EN 60950, before starting it up again.
The module is delivered from the factory with a fixed
hardware and software configuration. Changes can only
be made within the possibilities documented in the man
ual.
The module must not be modified from the design or
saftey engineering point of view except with our express
agreement. In particular, any repair or soldering work on
printed wiring boards (exchanging components) is prohib
ited. When exchanging complete subassemblies, use
only original parts from HBM.
Following modules contain a battery to buffer memory
content and guarantee an uninterruptible operation of the
time basis:
- CX22B-R: BR2330A/FAN (soldered)
- CX23-R: BR2477 (soldered)
Safety instructions
8A4722-1.0 HBM: public CX22B-R
Only trained and qualified personnel who are authorized
to do so by HBM are allowed to change these batteries.
Notice
If the module is opened, modified, or inexpertly repaired,
the protection provided by the module may be impaired.
Cleaning
Please note the following when cleaning the housing:
► Before cleaning, disconnect all connections.
► Clean the housing with a soft, slightly damp (not wet!)
cloth. Never use solvent, as this could damage the
label or the housing.
► Do not apply high water pressure to the unit for clean
ing.
► Give the module sufficient time to dry before starting it
up again.
General dangers of failing to follow the safety
instructions
The module is a state of the art device and, as such, is
fail-safe. The module may give rise to further dangers if it
is inappropriately installed and operated by untrained per
sonnel. Any person instructed to carry out installation,
commissioning, maintenance or repair of the module
must have read and understood the User Manuals and in
particular the technical safety instructions.
Product liability
In the following cases, the protection provided for the de
vice may be adversely affected. Liability for device func
tionality then passes to the operator:
Safety instructions
CX22B-R A4722-1.0 HBM: public 9
SThe device is not used in accordance with the operat
ing manual.
SThe device is used outside the field of application
described in this chapter.
SThe operator makes unauthorized changes to the
device.
Working safely
► When the module is unpacked, check it for visible
signs of damage. If damge has occurred, the module
must not be operated.
Error messages should only be acknowledged once the
cause of the error is removed and no further danger
exists.
When modules are in operation, the following measures
need to be taken to reduce the risk of incineration at sur
faces:
- Operating personnel must be advised of the possi
bility of incinerations when touching the surface of
the module.
- Operating personnel must be instructed to touch
the surface of the module only with appropriate pro
tective equipment (adequate protective gloves).
The equipment complies with the EMC standards of EN
61326-1 / EN 61326-2-x. These standards define emis
sion limits and immunity requirements for multiple envi
ronments.
With respect to emissions, the standards contain limits
for industrial (class A) and residential / commercial (class
B) environments. The standard herein references CISPR
11:2009+A1:2010.
Safety instructions
10 A4722-1.0 HBM: public CX22B-R
With respect to immunity, the standards contain limits for
electromagnetically protected (lowest requirements), gen
eral and industrial (highest requirements) environments.
The SomatXR modules listed in the declaration of con
formity conform to the requirements for:
- Emissions: Class A
- Immunity: Industrial
The SomatXR series and its modules are intended for
use in an industrial environment. When used in residen
tial or commercial environments, additional arrangements
may be required to limit electromagnetic emissions.
The supply connection, as well as the signal and sense
leads, must be installed in such a way that electromag
netic interference does not adversely affect device func
tionality. (HBM recommendation: "Greenline shielding
design," downloadable from the Internet at
http://www.hbm.com/greenline.)
The measurement module and devices used in automa
tion equipment must be covered over in such a way that
adequate protection or locking against unintentional actu
ation is provided (e.g. access checks, password protec
tion, etc.).
For those measurement modules operating in networks,
safety precautions must be taken in terms of both hard
ware and software, so that a line break or other interrup
tions to signal transmission do not cause undefined
stated or loss of data in the autmation device.
After making settings and carrying out activities that are
password-protected, ensure that any controls that may
be connected remain in a safe condition until the switch
ing performance of the module has been tested.
An emergency and incident plan must be prepared,
decribing the responses to minimize risk in the event of
Table des matières
Autres manuels HBM Autre
