Hayter LT324 Manuel utilisateur

English Version

FROM SERIAL NO: 924C001001 MANUAL PART NO: 924916(REV.0.)

Issue: 01.10.04

OPERATOR'S MANUAL

LT324

TRIPLE TURF MOWER

CODE 924C

THIS MANUAL SHOULD BE REGARDED AS PART OF THE

MACHINE, AS IT GIVES ESSENTIAL INFORMATION REGARDING

MACHINE SAFETY, OPERATION AND SPECIFICATIONS.

ATTENTION

THIS SYMBOL MEANS

BE ALERT!

YOUR SAFETY IS INVOLVED

READ THIS MANUAL BEFORE USING THE LT324 MOWER.

IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY.

ALL OPERATORS SHOULD SEEK AND OBTAIN PROFESSIONAL AND

PRACTICAL INSTRUCTIONS ON THE SAFE USE OF THE MOWER. THESE

SERVICES ARE AVAILABLE THROUGH HAYTER LIMITED OR HAYTER APPROVED

COMMERCIAL DEALERS.

924916KG251004

CONTENTS

SAFETY PRECAUTIONS.

Training.

Preparation.

Operation.

Handling and storage of fluids.

Maintenance and storage.

Decals.

EC CONFORMITY INFORMATION.

Noise levels.

EC Declaration of Conformity.

INTRODUCTION.

SPECIFICATIONS.

Engine.

Transmission system.

Cutterhead drive system.

Cutterhead lift system and steering.

Hydraulic system.

Vehicle specifications.

Operator controls.

Instrumentation.

Weight and dimensions.

Recommended lubricants and hydraulic fluids.

Cutterheads.

OPERATING THE MOWER.

Safety Notice

Operator presence controls.

Identification of controls.

Braking system.

Throttle control.

Travel.

Transport latches.

Differential lock.

Speed Control Pedal.

Operator platform latching mechanism.

Adjustable Steering Column.

Operator Seat.

Warning systems.

Audible warning horn.

Ignition key.

Engine pre-heat indicator light.

Fuel level gauge.

Page No.

1.6 - 1.14

1.6

1.6 - 1.7

1.7 - 1.9

1.10

1.11

1.12 - 1.14

1.15 - 1.16

1.15

1.16

1.17

1.18 - 1.24

1.18

1.19

1.20

1.21

1.22

1.23

1.24

1.25 - 1.40

1.25

1.26

1.27

1.28

1.29

1.30

1.31

1.32

1.33

1.4 1.4

924916KG251004

CONTENTS

CONTENTS Continued.

Hourmeter.

Transmission neutral indicator light.

Cutterdeck drive switch indicator light.

Parking brake indicator light.

Hydraulic return filter indicator light.

Hydraulic transmission filter indicator light.

Cutterhead position control.

Cutterhead drive engagement.

Weight transfer/traction assistance.

Starting the engine.

Stopping the engine.

General operating hints.

Cutterhead general information.

MK3 200mm Fixed Cutterhead.

MK3 254mm Fixed Cutterhead.

MK3 200mm Floating Cutterhead.

Centre Cutterhead Height of Cut Correction Adjustment

MAINTENANCE.

Maintenance

Engine.

Running in period.

Running in period - at first 50 hours.

Daily and before use.

Every 50 hours.

Every 250 hours.

Every 500 hours.

Cutterhead cylinder to bottom blade adjustment.

Cutterhead backlapping.

Cutterhead grinding.

Cutterhead bottom blade replacement.

Raising the mower off the ground.

Towing the mower.

GRASS CUTTING FAULTS.

TROUBLE SHOOTING.

ELECTRICAL CIRCUIT DIAGRAM .

HYDRAULIC CIRCUIT DIAGRAMS.

WARRANTY.

NOTES.

CUSTOMER INFORMATION.

Page No.

1.33

1.34

1.35

1.36

1.36 - 1.37

1.37

1.38

1.39

1.40

1.41

1.42 - 1.60

1.42 - 1.43

1.44

1.44 - 1.45

1.46 - 1.49

1.50 - 1.51

1.52

1.53 - 1.55

1.56

1.57

1.58

1.59

1.60 - 1.61

1.62 - 1.64

1.65 - 1.71

1.72 - 1.73

1.74 - 1.76

1.77

1.78

1.79

1.5 1.5

924916KG251004

SAFETY PRECAUTIONS

TRAINING

Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Learn

how to stop the mower quickly in an emergency.

Never allow children or people unfamiliar with these instructions to use the mower. Local regulations

may restrict the age of the operator.

Never mow while people, especially children, or pets are nearby.

Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or

their property.

Do not carry passengers.

All drivers should seek and obtain professional and practical instruction. Such instruction should emphasise:

The need for care and concentration when working with this machine.

The need to slow down when making tight turning manoeuvres. Failure to take adequate care can affect

stability leading to loss of control of the machine particularly when operating in transport mode.

Control of a ride-on-machine sliding on a slope will not be regained by application of the brake.

The main reasons for loss of control are:

- Insufficient wheel grip.

- Being driven too fast.

- Inadequate braking.

- The type of machine is unsuitable for the task.

- Lack of awareness of the effect of ground conditions, especially slopes.

- Incorrect load distribution.

PREPARATION

Check that the machine complies with all applicable regulations, including those in force when used on

the public highway.

While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when

barefoot or wearing open sandals. Eye protection should be worn.

Thoroughly inspect the area where the equipment is to be used and remove all objects which can be

thrown by the machine.

Never operate the machine without first checking that the operator platform latching mechanism is fully

engaged and in good working order, refer - ‘OPERATOR PLATFORM LATCHING MECHANISM’.

READ THIS MANUAL BEFORE USING THE LT324 MOWER, IT IS ESSENTIAL THAT

OPERATORS STUDY IT FOR THEIR OWN SAFETY.

THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT ACCIDENTS.

A CAREFUL OPERATOR WHO USES COMMON SENSE IS THE SAFEST OPERATOR.

1.6 1.6

924916KG251004

SAFETY PRECAUTIONS

PREPARATION Continued.

Ensure that the cutterheads are fully raised with the latches and safety locks engaged in position before

transporting the mower.

Replace faulty silencers.

Check the condition of the tyres and ensure that they are inflated to the correct pressures, refer -

SPECIFICATIONS.

This is particularly important if the machine is to be taken on the public highway.

Check that the mower is in good working order, paying particular attention to the brakes and steering.

Also ensure that the forward/reverse speed control pedals move freely to neutral when released.

Before use, always visually inspect to see that the blades, blade bolts and cutting cylinders are not worn

or damaged. Replace worn or damaged components.

Check the mower hydraulic system, particularly the hydraulic hoses, fittings and hose supports. Worn,

crushed or damaged hoses can burst, with risks to health and damage to the machine and surrounding

turf areas.

After refuelling and adding oil to the hydraulic oil tank ensure that the caps are replaced securely.

Check that all linkages, connections and pivot nuts are secure and that wheel nuts are torqued correctly,

refer - SPECIFICATIONS.

Before operating the machine ensure that there are no foreign objects or liquids on the platform or ped-

als - ALWAYS KEEP THE OPERATOR PLATFORM CLEAN/CLEAR.

OPERATION

Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.

Mow only in daylight or in good artificial light.

Before attempting to start the engine, engage the parking brake, disengage the cutterhead drive system

and ensure that the forward/reverse speed controls are in the neutral position.

Never operate the machine without first checking that the operator platform latching mechanism is fully

engaged and in good working order, refer - OPERATOR PLATFORM LATCHING MECHANISM.

Stored energy devices are charged when the outer wing units are in transport position. Always operate

the relevant lift controls to provide hydraulic support for the wing units suspensions before attempting

to release the transport latches.

1.7 1.7

924916KG251004

SAFETY PRECAUTIONS

OPERATION Continued.

Do not use on a slope of more than 19 degrees. Where ground conditions are such that there may be a

risk of the mower rolling over, the requirements of SI 1998 No 2306 "Provision and Use of Work

Equipment Regulations" should be considered, refer - INTRODUCTION - Optional Extras.

Ground conditions affect traction. Particular conditions may not permit safe operation on the slope lim-

its stated.

Remember there is no such thing as a "safe" slope. Travel on grass slopes requires particular care. To

guard against overturning or loss of traction when travelling or mowing on a slope:

- Exercise extreme care when changing direction on a slope.

- Do not stop or start suddenly.

- Engage drive slowly.

- Keep machine speed low.

- Avoid tight turns.

- Stay alert for humps, hollows and other hidden hazards.

- Keep away from sharp inclines and steep drops.

- A thorough risk assessment should be carried out by a competent

person before travelling or mowing on a slope.

Never park on a slope.

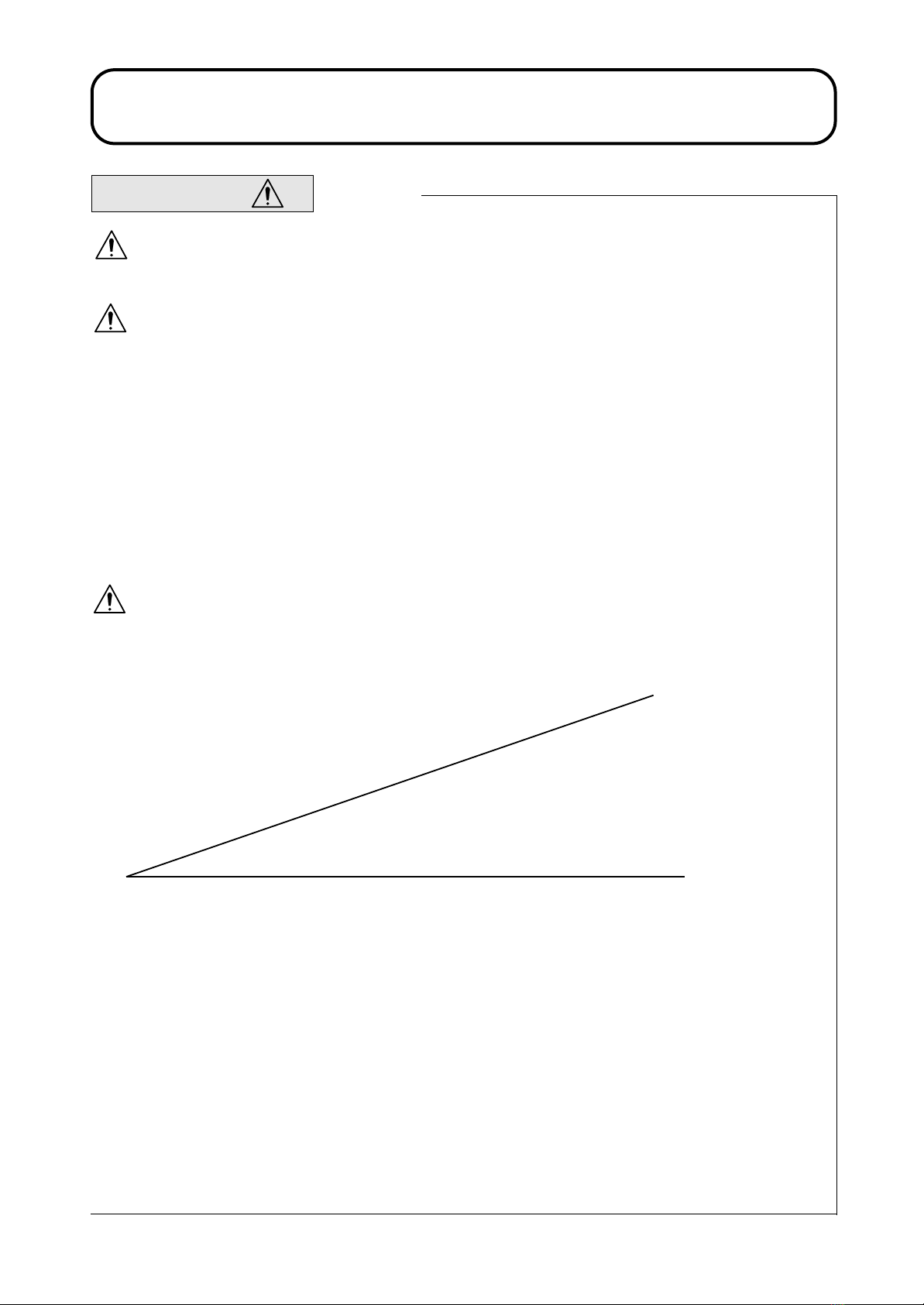

Ground level

3DA176

19 Degree slope

1.8 1.8

924916KG251004

SAFETY PRECAUTIONS

OPERATION Continued.

Watch out for traffic when crossing or near roadways.

Use extreme caution when reversing.

Disengage the cutterhead drive system before crossing surfaces other than grass.

When using the machine, never direct discharge of material towards bystanders or allow anyone near

the machine while in operation.

Never operate the mower with defective guards, shields or without safety protective devices in place

and in good working order.

Do not change the engine governor settings or overspeed the engine. Operating an engine at excessive

speed may increase the risk of personal injury.

Before leaving the operator's position:

- Disengage the drive to the cutterheads.

- Lift cutterheads to the transport position and securely lock the safety latches

or alternatively lower cutterheads to the ground.

- Change into neutral and set the parking brake.

- Stop the engine and remove the ignition key.

Engage the parking brake, disengage the drive to the cutterheads, stop the engine and remove ignition key :

- Before releasing blockages.

- Before checking, cleaning or working on the mower.

- After striking a foreign object. Inspect the mower for damage and make

repairs before restarting and operating the equipment.

- If the machine starts to vibrate abnormally ( check immediately ).

- Before refuelling.

- Before making cutterhead adjustments.

Disengage the drive to the cutterheads when transporting or not in use.

Reduce the throttle setting during engine run - out.

Never work on the mower when the engine is running.

Always keep feet and hands well away from the cutting cylinders when making adjustments.

Never operate the mower without first checking that the operator platform is securely latched.

1.9 1.9

924916KG251004

SAFETY PRECAUTIONS

HANDLING AND STORAGE OF FLUIDS

Hydraulic Oil

- Avoid contact with eyes and prolonged contact with skin.

- Protective goggles should be worn when pouring.

- Use of gloves or barrier cream is recommended.

- Wash hands thoroughly after contact.

- Store under cover, away from heat and sources of ignition.

Diesel Oil

- Avoid skin and eye contact.

- Wear impervious gloves when regular contact is likely and goggles when there is risk of splashing.

- Wash hands thoroughly after contact.

- Store in a cool dry well ventilated place away from heat and sources of ignition, in vessels specifi-

cally designed for storing fuel oils.

Lubricating Oil

- Avoid skin and eye contact.

- Wear impervious gloves when regular contact is likely and goggles when there is risk of splashing.

- Wash hands thoroughly after contact.

- Store in a cool dry well ventilated place away from heat and sources of ignition.

Anti- Freeze

- Keep away from heat, sparks, and flames.

- Avoid skin and eye contact and breathing vapours.

- Store in a closed container in a cool dry well ventilated area.

1.10 1.10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hayter Tondeuse à gazon

Hayter

Hayter Harier 41 410E Guide de l'utilisateur

Hayter

Hayter Harrier 48 Autodrive VS Manuel utilisateur

Hayter

Hayter Motif 432F Guide de l'utilisateur

Hayter

Hayter 48 PRO Autodrive FS Manuel utilisateur

Hayter

Hayter Envoy 100A Guide de l'utilisateur

Hayter

Hayter Ranger 398C Guide de l'utilisateur

Hayter

Hayter Hayterette 005E Guide de l'utilisateur

Hayter

Hayter MT313 Manuel utilisateur

Hayter

Hayter 12/30 143P Manuel utilisateur

Hayter

Hayter Spirit 41 617J Guide de l'utilisateur

Hayter

Hayter Harier 56 340A Guide de l'utilisateur

Hayter

Hayter Harrier 48 BBC Guide de l'utilisateur

Hayter

Hayter CODE610B Manuel utilisateur

Hayter

Hayter Harrier 41 Electric Guide de l'utilisateur

Hayter

Hayter Harrier 48/56 Pro 496G Guide de l'utilisateur

Hayter

Hayter Hayterette Guide de l'utilisateur

Hayter

Hayter Harrier 56 BBC Guide de l'utilisateur

Hayter

Hayter Harrier 56 BBC Guide de l'utilisateur

Hayter

Hayter Envoy 36 Manuel utilisateur

Hayter

Hayter H15/40 145S Manuel utilisateur

Hayter

Hayter Sprint 41 616E Guide de l'utilisateur

Hayter

Hayter Spirit 41 Guide de l'utilisateur

Hayter

Hayter 131B Manuel utilisateur

Hayter

Hayter 13/30 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
