Hayter Heritage RS 14/82 Mode d’emploi

HERITAGE TRACTOR

CODE 148C

RRSS1144//8822

SPARE PARTS MANUAL

English Version

FROM SERIAL NO: 148C001001 MANUAL PART NO: 148009 (REV.0.)

Issue: 04.07.04

148004PM040704

PARTS LIST - CONTENTS

1.3 1.3

STEERING & FRONT AXLE 1.4 - 1.5

ENGINE COVER & PANELS 1.6 - 1.7

CUTTERDECK 1.8 - 1.11

GRASSBAG ASSEMBLY 1.12 - 1.13

REAR AXEL & CONTROL PEDALS 1.14 - 1.17

GRASSBAG MOUNTING 1.18 - 1.19

ENGINE BATTERY & DRIVE 1.20 - 1.21

SEAT ASSEMBLY 1.22 - 1.23

ELECTRICS 1.24 - 1.25

When ordering spare parts please give the following information.

PART NUMBER, DESCRIPTION AND QUANTITY REQUIRED,

MACHINE TYPE, MODEL AND SERIAL NUMBER.

Use only Hayter spare parts, others may be dangerous and will invalidate the machine warranty.

148004PM040704

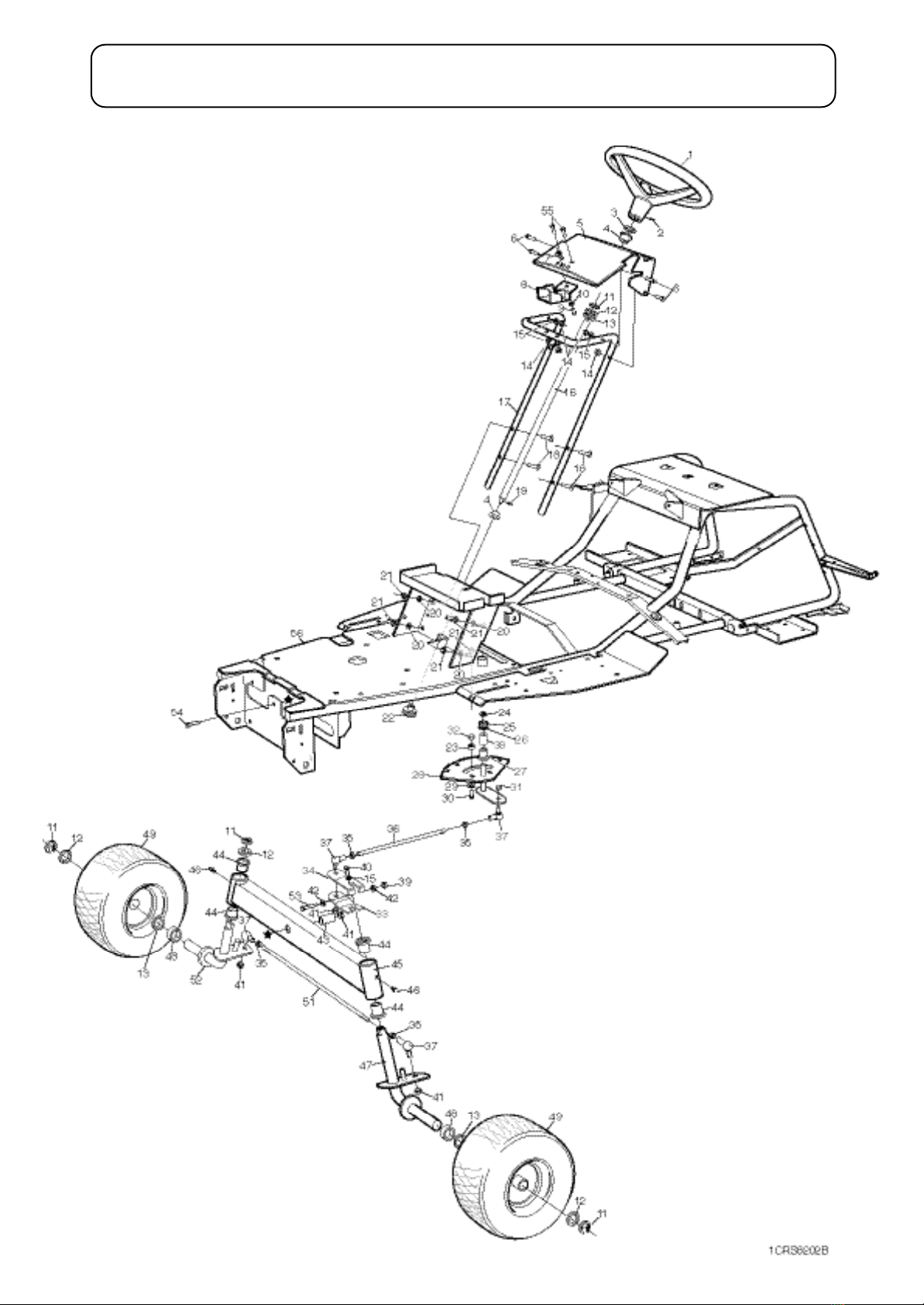

STEERING & FRONT AXLE

1.4 1.4

148004PM040704

STEERING & FRONT AXLE

1.5 1.5

ITEM NO. DESCRIPTION. PART NO. QTY. ITEM NOTE.

1 Steering Wheel AL514013 1

2 Roll Pin AL700664 1

3 Washer AL521115 1

4 Bush Flanged AL514197 2

5 Cover AL514085 1

6 Bolt AL700553 6

7 Nut AL321126 1

8 Hood Lock Down AL514416 1

9 Bolt AL700555 1

10 Washer AL700200 1

11 Clip AL702724 4

12 Washer AL700719 1

13 Shim AL701166 3

14 Nut AL700276 6

15 Washer AL700148 6

16 Steering Rod AL514032 1

17 Support Rod AL514049 1

18 Bolt AL703191 4

19 Key AL704275 1

20 Washer AL701765 4

21 Nut AL700121 5

22 Steering Gear AL514009 1

23 Spacer AL51438730 1

24 C Clip AL702893 1

25 Washer AL702574 1

26 Washer AL704540 1

27 Spacer AL461109 1

28 Quadrant Assembly AL46110530 1

29 Washer AL521123 1

30 Bolt AL702381 1

31 Nut AL461231 1

32 Nut AL704537 1

33 AL46110730 1

34 AL46110830 1

35 Nut AL700109 4

36 Rod AL51468530 1

37 Ball Joint AL514701 4

38 AL461110 1

39 Nut AL348988 1

40 Bolt AL523134 1

41 Nut AL461231 4

42 Washer AL701083 2

43 Bushing AL51436030 1

44 Bush Flanged AL514042 4

45 Axle AL514477 1

46 Nipple-Grease AL700203 1

47 LH Axle AL521170 1

48 Bearing AL521268 2

49 Wheel Assembly AL52104640 2

50 Inner Tube AL546220 2 Not Illustrated

51 Rod AL51404130 1

52 RH Axle AL521171 1

53 Bolt AL701985 1

54 Bolt AL702812 1

55 Bolt AL701489 2

56 Chassis AL51405101 1

148004PM040704

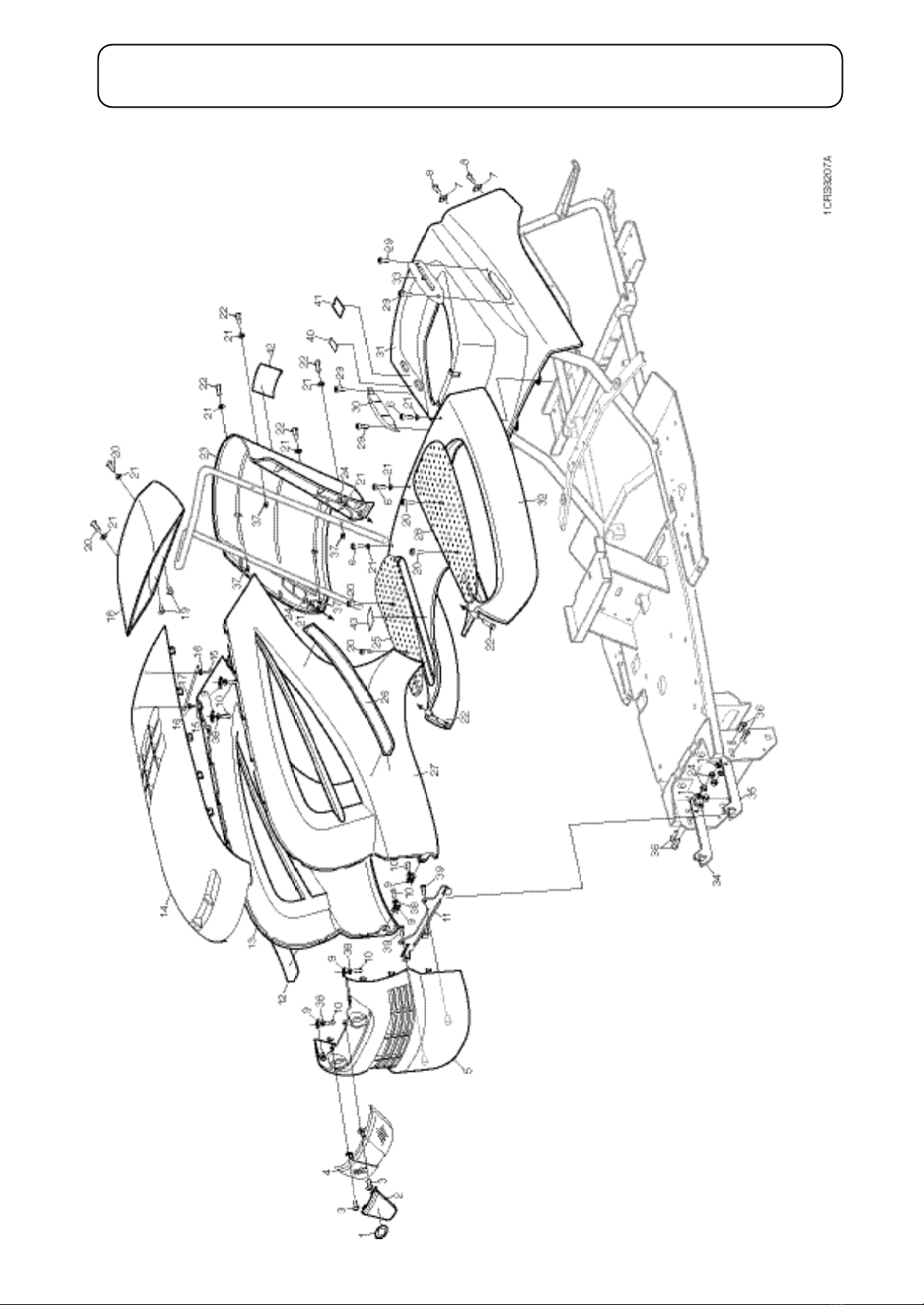

ENGINE COVER AND PANELS

1.6 1.6

148004PM040704

ENGINE COVER AND PANELS

1.7 1.7

1 Decal Grass Blade 410064 1

2 Panel AL52157813 1

3 Screw AL521679 2

4 Lens Assembly AL521720 1

5 Grille AL52157413 1

6 Screw AL514317 3

7 Nut AL514331 7

8 Screw AL704350 7

9 Receptacle fastener AL521676 6

10 Screw AL702572 6

11 Strut AL521460 1

12 Decal RH 149007 1

13 Panel RH AL52157513 1

14 Hood Assembly AL52157213 1

15 Screw AL510177 2

16 Washer AL700148 6

17 Rod AL514419 1

18 Cover AL521529 1

19 Screw AL518482 2

20 Screw AL514316 6

21 Washer AL703005 11

22 Screw AL704325 6

23 Cover AL51400213 1

24 Nut AL700276 6

25 Mat RH AL51416101 1

26 Decal LH 149006 1

27 Panel LH AL52157613 1

28 Mat LH AL51496401 1

29 Screw AL514544 4

30 Cover RH AL521085 1

31 Deck seat AL52142513 1

32 Deck AL51400413 1

33 Cover LH AL521164 1

34 RH Front Bracket AL521461 1

35 LH Front Bracket AL521462 1

36 Bolt AL700799 4

37 Nut AL321126 4

38 Washer AL700147 6

39 Screw AL348947 2

40 Plug AL51499901 1

41 Plug AL52113801 1

42 Decal - Caution AL526506 1

43 Decal Parking Brake AL 1

ITEM NO. DESCRIPTION. PART NO. QTY. ITEM NOTE.

148004PM040704

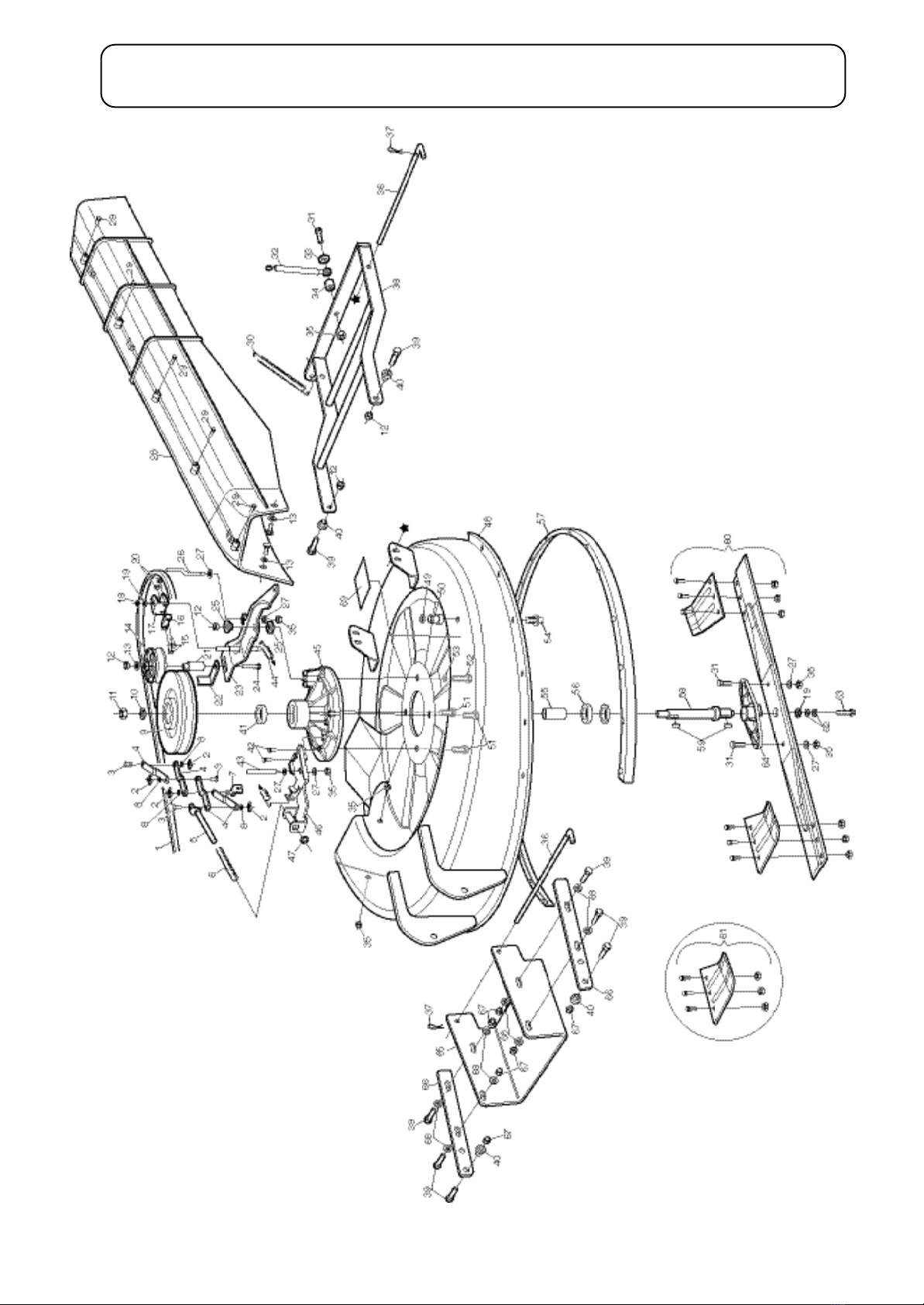

CUTTERDECK

1.8 1.8

148004PM040704

CUTTERDECK

1.9 1.9

1 Belt Cutter AL514083 1

2 Clip AL543474 4

3 Bolt AL52118130 3

4 Latch AL52114730 4

5 Pin AL52114830 1

6 Spring AL521202 1

7 Square Link AL52114930 1

8 Washer AL700138 4

9 Pulley AL514098 1

10 Washer AL700141 1

11 Nut AL700232 1

12 Nut AL700121 4

13 Washer AL700148 1

14 Pulley AL514716 1

15 Screw AL701168 2

16 Packer AL514434 1

17 Bracket AL51440230 1

18 Cir - Clip AL700413 1

19 Washer AL700139 2

20 Nut AL700119 2

21 Spacer AL51421630 1

22 Bracket AL51439430 1

23 Bracket AL51440530 1

24 Bolt AL701672 1

25 Bush AL514220 2

26 Direction Rod AL52138330 1

27 Washer AL700137 6

28 Chute AL521089 1

29 Screw AL348947 7

30 Spring AL514439 1

31 Screw AL700702 3

32 Height Adjust AL521129 1

33 Washer AL701647 1

34 Latch Lever AL52119030 2

35 Nut AL700276 7

36 Bar AL51425330 2

37 Pin AL701626 2

38 Clip - Hitch Pin AL51420801 1

39 Bolt AL700704 8

40 Rear Adjuster Spacer AL51415930 2

41 Bearings AL700503 1

42 Bolt AL523134 2

43 Pin AL51412830 1

44 Spring AL514437 1

45 Quill AL514258 1

46 Bracket AL52138230 1

47 Washer - Star AL 1

48 Deck AL51420401 1

49 Ring AL522575 1

50 Connector AL321347 1

ITEM NO. DESCRIPTION. PART NO. QTY. ITEM NOTE.

148004PM040704

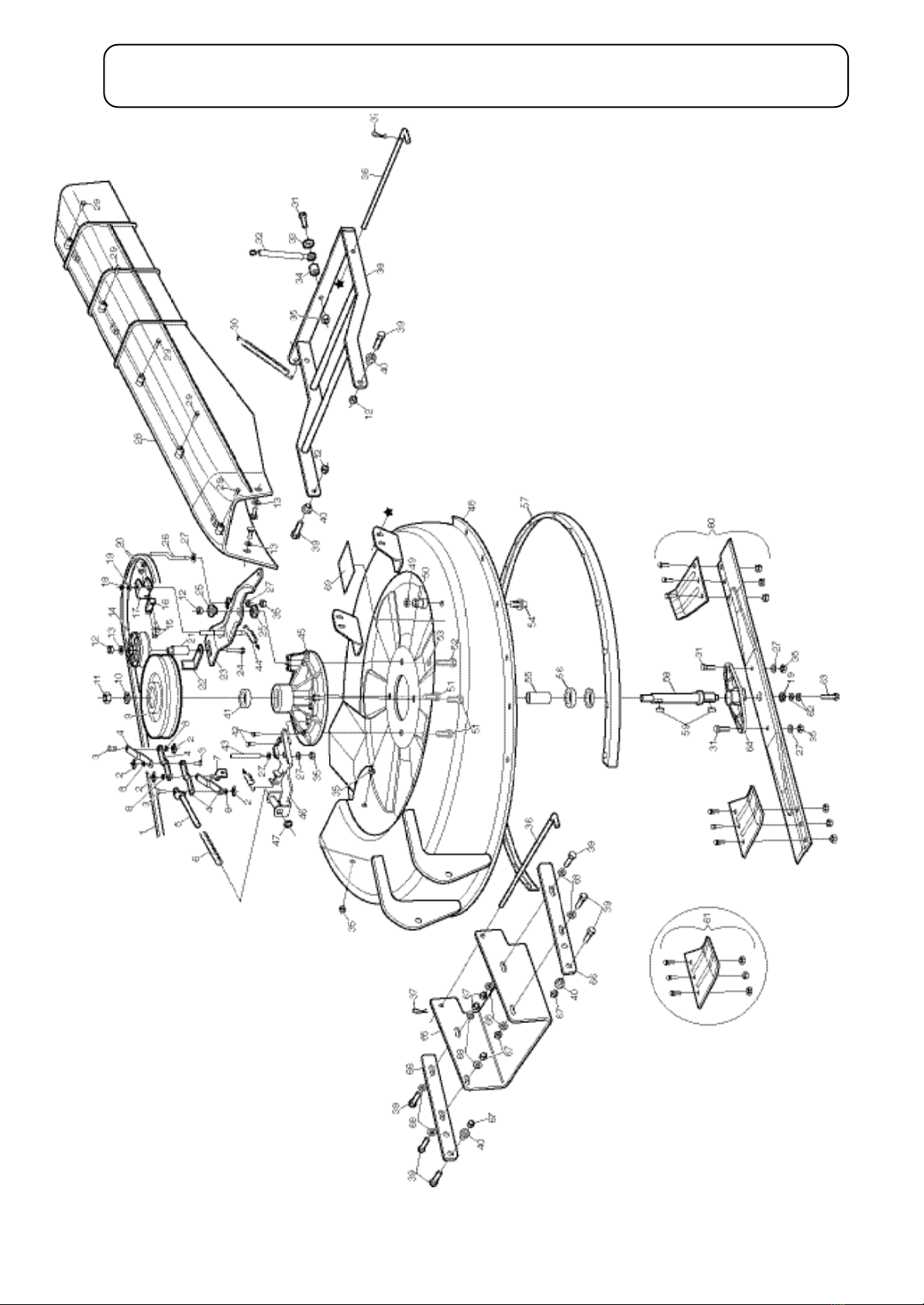

CUTTERDECK

1.10 1.10
