Hayter Harrier 48 BBC Guide de l'utilisateur

OWNER’S HANDBOOK

(English Version)

FROM SERIAL NO: 486V001001 HANDBOOK: 486038 (Rev.1.)

Issue : 20.10.00

Harrier

CODE 486V

1.2

MODEL CODE 486V

Engine Briggs & Stratton Intek Edge 60

Engine Type 121682-0247-E1

Engine / Cutterblade Speed 2870 rpm

Fuel Type Unleaded Petrol

Fuel Capacity 1.5 litres

Oil Type SAE 30 engine oil

Oil Sump Capacity 0.6 litres

Spark Plug 491055 (Briggs & Stratton)

Spark Plug Gap 0.76mm

Width of Cut 480mm

Height of Cut 12 - 65mm

Overall Dimensions 1044 x 514 x 1377mm

Dry Weight 49 Kg

1. Spark Plug Lead

2. Primer Bulb

3. Engine Cover

4. Air Cleaner

5. Fuel Cap

6. Serial Number Label

7. Oil Filler Cap & Dipstick

8. Handlebar Securing Knob

9. Rear Deflector

10. Engine Start Grip

11. Throttle Control

12. Engine Stop Lever

13. Handlebar

14. Ground Drive Clutch Lever

15. Grassbag Assembly

16. Support Brace

17. Handlebar Height Adjuster

18. Height of Cut Lever

19. Exhaust Guard

20. Front Rail

13 14

Main Features

Specifications

MAIN FEATURES /SPECIFICATIONS

1.16 Maintenance Schedule

1.17 - 1.23 Mower Maintenance

1.17 - Engine

1.17 - Throttle Cable Adjustment

1.17 - Carburettor Adjustments

1.18 - Oil Service

1.18 - Air Cleaner Service

1.19 - Spark Plug Service

1.19 - Keeping Engine Clean

1.19 - Grassbag

1.20 - Deck Housing

1.20 - Securing Nuts and Bolts

1.20 - Clutch Cable Adjustment

1.21 - Lubrication

1.21 - Cutterblade Removal

1.22 - Cutterblade Assembly

1.22 - Cutterblade Sharpening

1.23 - Storage

1.24 - 1.25 Trouble Shooting

1.26 Declaration of Conformity

1.27 - 1.28 Parts List

1.30 Parts list Diagram

1.31 Customer Info/Notes

1.2 Main Features/Specifications

1.3 Contents

1.4 Introduction

1.5 Warranty

1.6 - 1.9 Safety Precautions

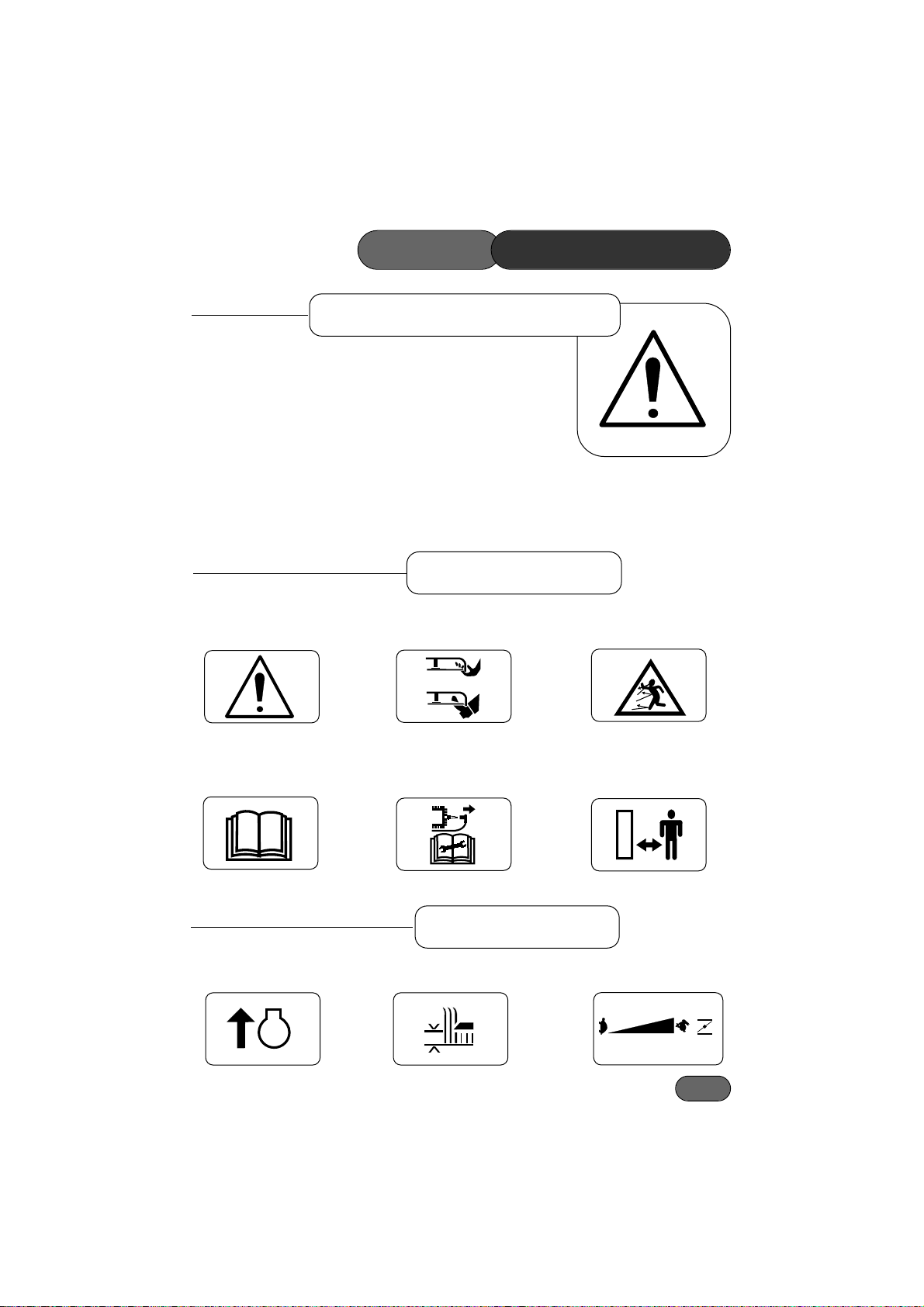

1.9 Safety Symbols

1.9 Decal Symbols

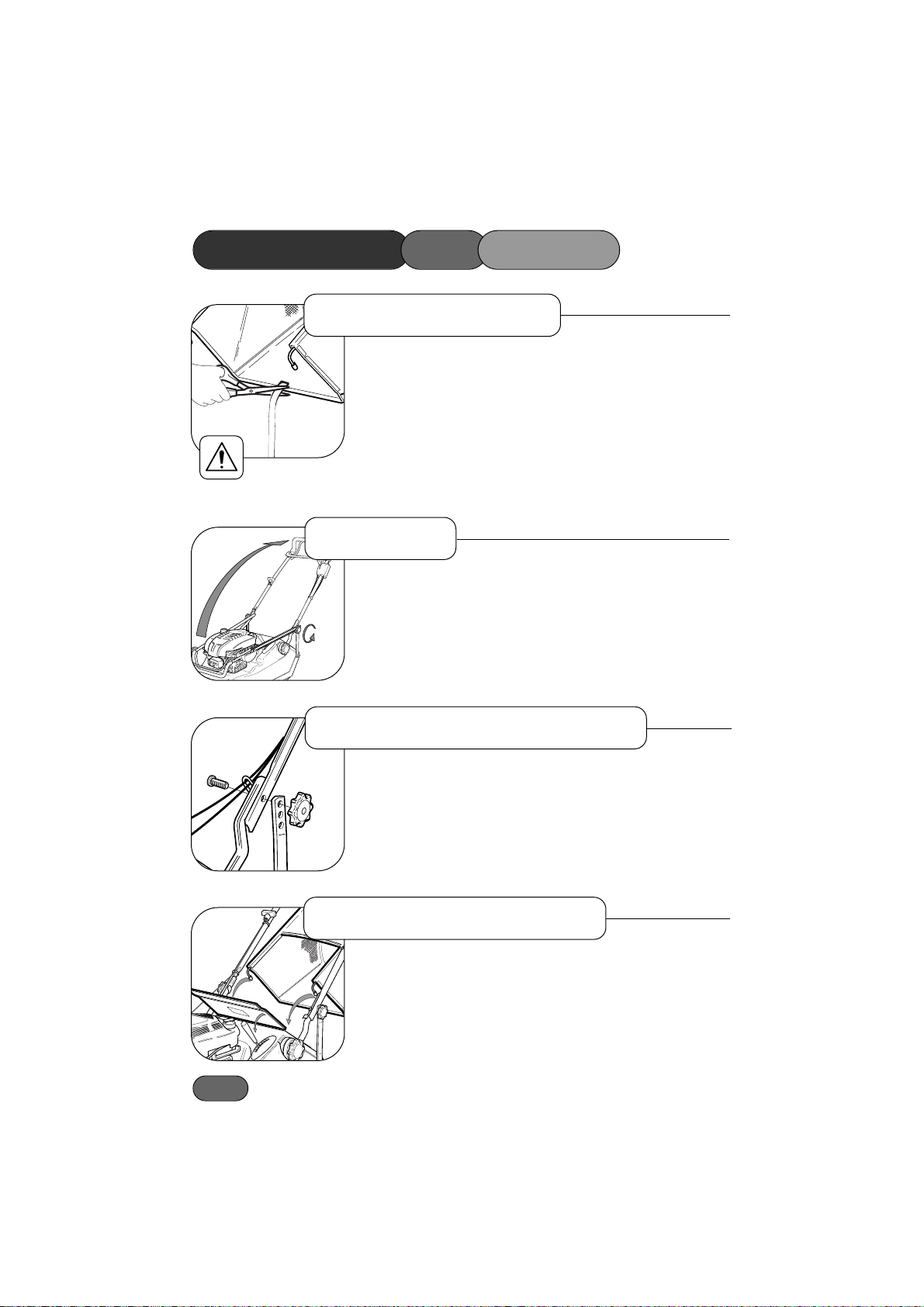

1.10 Assembling the Mower

1.10 - Delivery Checklist

1.10 - Handlebar

1.10 - Adjust Handlebar Height

1.10 - Grassbag Attachment

1.11 Before Starting the Mower

1.11 - Prevent Engine Damage

1.11 - Oil Type

1.11 - Check Oil Level

1.11 - Fuel Type

1.12 - 1.15 Operating The Mower

1.12 - Controls

1.12 - Starting Step 1

1.12 - Step 2

1.12 - Step 3

1.13 - Forward Travel

1.13 - Turning

1.13 - Stopping

1.13 - Slopes

1.14 - Height of Cut

1.14 - Before Mowing

1.14 - Grassbag

1.14 - Without Grass Collection

1.15 - Heavy Growth

1.15 - Friction Disc

1.15 - Non-Grassed Areas

CONTENTS

1.3

Thank you for purchasing a Hayter mower. The following pages are designed to help you gain

safe and efficient service from your mower.

IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the mower as it gives

essential information regarding mower safety, operation, maintenance and specifications. Read

and understand this handbook prior to operating your mower for the first time. Make sure you

are familiar with all the controls and points of regular maintenance. If you have any doubts,

consult your local Hayter authorised dealer who will be pleased to give you assistance.

IMPORTANT: This mower is designed solely for use in a domestic grass cutting

environment. Use in any other way is considered as contrary to the intended use. Compliance

with and strict adherence to the conditions of operation, service and repair as specified in this

handbook also constitute essential elements of the intended use.

This mower should be operated, serviced and repaired only by persons who are familiar with

its particular characteristics and who are acquainted with the relevant safety procedures.

The safety precautions listed in this handbook and all other generally recognised regulations on

safety must be observed at all times.

Any arbitrary modifications carried out to this machine may relieve Hayter Limited of

liability for any resulting damage or injury.

Hayter mowers are robustly constructed and designed for efficient economical

performance under normal mowing conditions. Correct operation and maintenance will ensure

a long and satisfactory service life. Prior to despatch from our factory every effort is made to

ensure that your mower is delivered in perfect condition.

Throughout this handbook all references to left and right are as viewed from behind the han-

dlebar, in the direction of forward travel.

This handbook is based on information available at the time of publication.

HAYTER LIMITED reserve the right to amend product specifications without prior notification.

INTRODUCTION

1.4

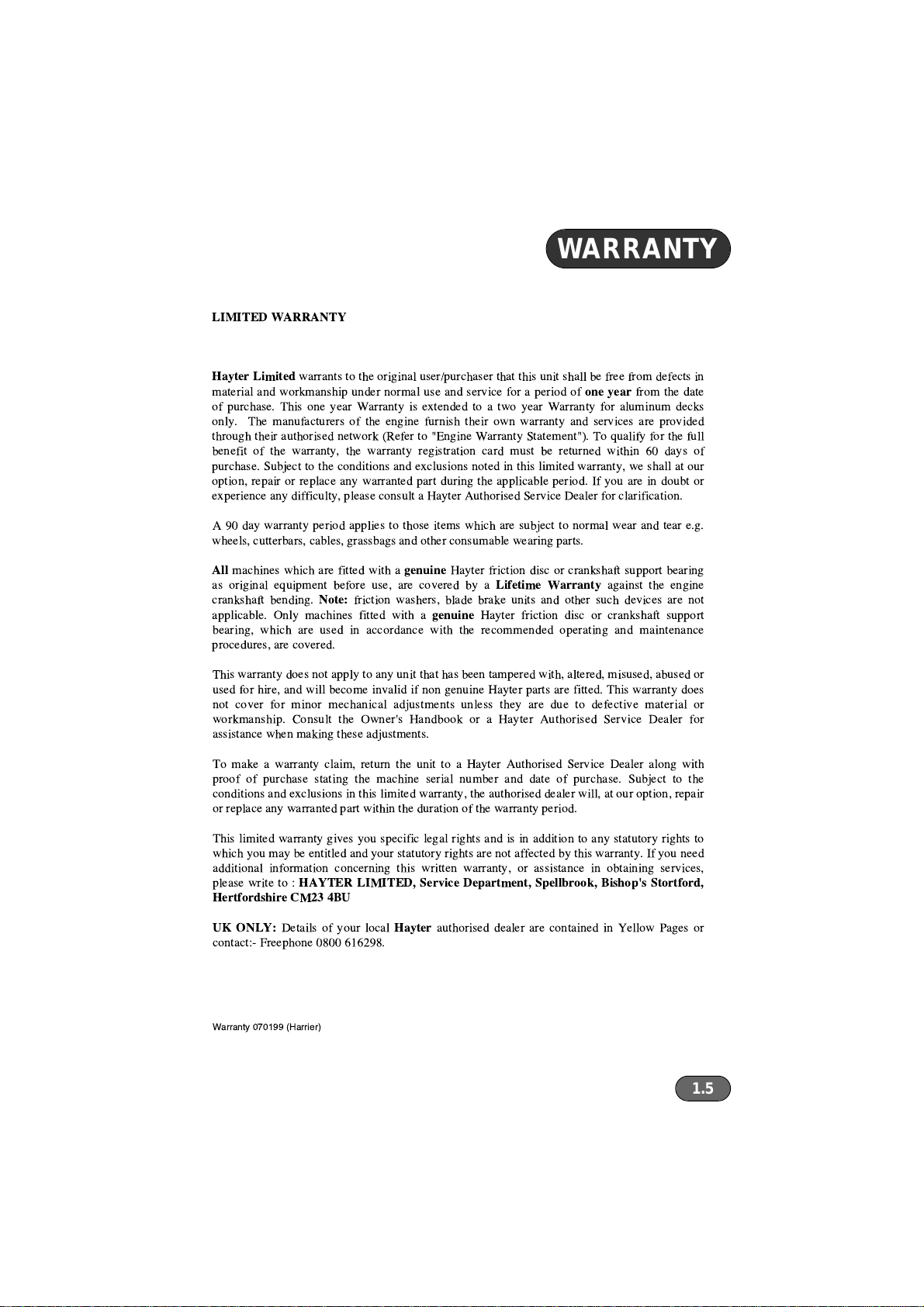

LIMITED WARRANTY

Hayter Limited

warrants to the original user/purchaser that this unit shall be free from defects in

material and workmanship under normal use and service for a period of

one year

from the date

of purchase. This one year Warranty is extended to a two year Warranty for aluminum decks

only. The manufacturers of the engine furnish their own warranty and services are provided

through their authorised network (Refer to "Engine Warranty Statement"). To qualify for the full

benefit of the warranty, the warranty registration card must be returned within 60 days of

purchase. Subject to the conditions and exclusions noted in this limited warranty, we shall at our

option, repair or replace any warranted part during the applicable period. If you are in doubt or

experience any difficulty, please consult a Hayter Authorised Service Dealer for clarification.

A 90 day warranty period applies to those items which are subject to normal wear and tear e.g.

wheels, cutterbars, cables, grassbags and other consumable wearing parts.

All

machines which are fitted with a

genuine

Hayter friction disc or crankshaft support bearing

as original equipment before use, are covered by a

Lifetime Warranty

against the engine

crankshaft bending.

Note:

friction washers, blade brake units and other such devices are not

applicable. Only machines fitted with a

genuine

Hayter friction disc or crankshaft support

bearing, which are used in accordance with the recommended operating and maintenance

procedures, are covered.

This warranty does not apply to any unit that has been tampered with, altered, misused, abused or

used for hire, and will become invalid if non genuine Hayter parts are fitted. This warranty does

not cover for minor mechanical adjustments unless they are due to defective material or

workmanship. Consult the Owner's Handbook or a Hayter Authorised Service Dealer for

assistance when making these adjustments.

To make a warranty claim, return the unit to a Hayter Authorised Service Dealer along with

proof of purchase stating the machine serial number and date of purchase. Subject to the

conditions and exclusions in this limited warranty, the authorised dealer will, at our option, repair

or replace any warranted part within the duration of the warranty period.

This limited warranty gives you specific legal rights and is in addition to any statutory rights to

which you may be entitled and your statutory rights are not affected by this warranty. If you need

additional information concerning this written warranty, or assistance in obtaining services,

please write to :

HAYTER LIMITED, Service Department, Spellbrook, Bishop's Stortford,

Hertfordshire CM23 4BU

UK ONLY:

Details of your local

Hayter

authorised dealer are contained in Yellow Pages or

contact:- Freephone 0800 616298.

Warranty 070199 (Harrier)

WARRANTY

1.5

SAFETY PRECAUTIONS

This safety alert symbol indicates important safety messages. When

you see this symbol be alert to the possibility of injury. Carefully read

the following and inform others.

Your mower is perfectly safe if used correctly. Failure to observe the

following precautions may result in serious injury.

Before using the mower read the owners handbook carefully. Pay par-

ticular attention to the safety precautions. Ensure that you are familiar

with the controls and the proper use of the equipment. Learn how to

stop the mower quickly in an emergency.

Never allow children or people unfamiliar with these instructions to

use the mower.

Never mow while people, especially children, or pets are nearby.

Keep in mind that the user is responsible for accidents or hazards

occurring to other people or their property.

While mowing, always wear substantial footwear and long trousers.

Do not operate the equipment when barefoot or wearing sandals.

Thoroughly inspect the area where the mower is to be used and remove

all objects which may be thrown by the machine.

WARNING: Petrol is highly flammable.

- Store fuel in containers specifically designed for this purpose.

- Add fuel before starting the engine. Never remove the cap from the

fuel tank or add petrol while the engine is running or when the engine

is hot. Allow the engine to cool for at least two minutes before refu-

elling.

- Do not attempt to start the engine if petrol is spilled or a smell of

petrol is present. Move the mower away from the area of spillage

and avoid creating any source of ignition until petrol vapours have

dissipated.

1.6

Safety Alert Symbol

Preparation

Training

SAFETY PRECAUTIONS

- Always use fresh fuel. Stale fuel can block the carburettor and cause

leakage.

- Replace fuel tank and oil tank caps securely.

A damaged cutterblade or loose fixing bolt are major hazards. Before

use, always visually inspect the cutting mechanism to ensure that it is

in good condition. A damaged cutterblade must be replaced immedi-

ately with a genuine Hayter replacement part

Do not operate the engine in a confined space where exhaust fumes

(carbon monoxide) can collect. Refuel outdoors only and do not smoke

while refuelling.

Always pull the starter cord slowly until resistance is felt. Then pull

the cord rapidly to avoid kickback and prevent hand or arm injury.

Mow only in daylight or good artificial light.

Avoid using the mower on wet grass, where feasible.

Always be sure of your footing on slopes.

Walk, never run.

Mow across the face of slopes, never up and down.

Exercise extreme caution when changing direction on slopes.

Do not mow excessively steep slopes of more than 20 degrees.

Use extreme caution when reversing or pulling the mower towards you.

Stop the engine before moving the mower across areas other than grass.

Never operate the mower unless the guards are securely in position and

in good condition.

Do not change the engine governor settings or overspeed the engine.

Disengage the rear roller drive clutch before starting the engine.

Start the engine carefully, with feet well away from the cutterblade.

1.7

Operation

Preparation

SAFETY PRECAUTIONS

Do not tilt the mower when starting the engine.

Do not put hands or feet near or under rotating parts.

Never pick up or carry the mower while the engine is running.

Never lift the rear deflector while the engine is running.

Never touch the exhaust/exhaust guard or cooling fins when the engine

is hot.

Stop the engine and disconnect the spark plug lead:

- Before clearing blockages or unclogging the discharge chute.

- Before cleaning/checking or working on the mower.

- After striking a foreign object. Inspect the mower for damage and

ensure necessary repairs are made before re-starting.

- If the mower starts to vibrate abnormally (check immediately).

Stop the engine:

- Whenever you leave the mower.

- Before refuelling.

Keep all nuts, bolts and screws tight to ensure that the equipment is in

safe operating condition.

Frequently check fuel lines and fittings for cracks or leaks and replace

if necessary.

Never check for a spark when the spark plug is removed. (Use approved

tester)

Inspect the exhaust periodically and replace if worn or leaking.

Never crank the engine with the spark plug removed.

Never start the engine with the air-cleaner or air-cleaner cover

removed.

Never store the mower with petrol in the tank within an enclosed area

where fumes may reach an open flame or spark.

1.8

Operation

Maintenance & Storage

Allow the engine to cool before storing in any enclosure. To reduce the

fire hazard, keep the engine and the surrounding deck area free of

grass, leaves, or excessive grease.

Check the rear deflector and grassbag frequently for wear or deterioration.

Replace worn or damaged parts for safety.

If the fuel tank has to be drained, this should be done outdoors and

when the engine is cool.

Wear strong work gloves when removing and reassembling the cut-

terblade.

Always replace worn or faulty parts with genuine Hayter parts.

Maintenance & Storage

SAFETY PRECAUTIONS

1.9

Safety Symbols

Safety Alert - Be aware to the

possibility of injury. Danger of severing toes or fin-

gers in cutting mechanism.

Carefully read the Owners

Handbook before using the

machine.

Danger of being hit by thrown

objects.

Stop engine and remove spark

plug lead before working on

the mower.

Keep bystanders at a safe

distance from the mower.

Engine Stop (Symbol) Height of Cut Adjustment (Symbol) Throttle Control (Symbols)

Decal Symbols

STOP

305113

CS198

Remove the mower from the packaging and check that the following

items have been supplied correctly. If any items are missing contact,

your local Hayter dealer.

1 . Engine Handbook.

2. Warranty Reg. C ard.

3 . Grassbag.

To prevent accidents cut off the long ribbon attached to the grass-

bag and discard.

Unscrew the handlebar securing knobs sufficiently to allow the handle-

bar to pivot. Move the engine stop lever away from the engine to avoid

damage and unfold the handlebar to the operating position. Tighten both

handlebar knobs to secure the handlebar in position.

Take care to ensure that the control cables do not become snagged at

the pivot point.

Unscrew the two handlebar securing Knobs to release the handlebar

brace then loosen the two nyloc nuts at the base of the handlebar suf-

ficiently to allow it to be moved to the upper, middle or lower position.

Re-attach the handlebar brace in relevant hole for best position and

comfort. Ensure that both sides are set to the same height. Tighten

both the nyloc nuts and knobs to secure the handlebar in place.

Raise the rear deflector, lower the grassbag through the handlebar and

hook in position. Lower the deflector to rest on the grassbag

ASSEMBLING THE MOWER

Handlebar

Delivery Checklist

Adjust Handlebar Height

Grassbag Attachment

1.10

Autres manuels pour Harrier 48 BBC

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hayter Tondeuse à gazon

Hayter

Hayter Ranger 415A Guide de l'utilisateur

Hayter

Hayter Harrier 48 490G Guide de l'utilisateur

Hayter

Hayter Harrier 48 48ST Guide de l'utilisateur

Hayter

Hayter Hayterette Guide de l'utilisateur

Hayter

Hayter Harrier 56 BBC Guide de l'utilisateur

Hayter

Hayter Harrier 48 Autodrive VS Manuel utilisateur

Hayter

Hayter Hayterette 005C Guide de l'utilisateur

Hayter

Hayter RRS82H Mode d’emploi

Hayter

Hayter Envoy 100D Guide de l'utilisateur

Hayter

Hayter H15/40 145S Manuel utilisateur

Hayter

Hayter Harrier 41 Autodrive VS ES IS Manuel utilisateur

Hayter

Hayter Harrier 56 BBC Guide de l'utilisateur

Hayter

Hayter CODE543A Manuel utilisateur

Hayter

Hayter Envoy Code 100C Guide de l'utilisateur

Hayter

Hayter Harrier 56 Autodrive VS Manuel utilisateur

Hayter

Hayter harrier 48 485A Guide de l'utilisateur

Hayter

Hayter Harier 41 410E Guide de l'utilisateur

Hayter

Hayter T424 Manuel utilisateur

Hayter

Hayter SST38/ST42 Manuel utilisateur

Hayter

Hayter Ranger 398C Guide de l'utilisateur

Hayter

Hayter Harrier 48 Pro Guide de l'utilisateur

Hayter

Hayter RANGER 53 PRO 396E Guide de l'utilisateur

Hayter

Hayter 48 PRO Autodrive FS Manuel utilisateur

Hayter

Hayter Harrier 48 BBC Guide de l'utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
