Hawksmoor CG330FHB Manuel utilisateur
Original User’s Instructions
SKU: 51405
33cc 42cm Petrol Brush Cutter

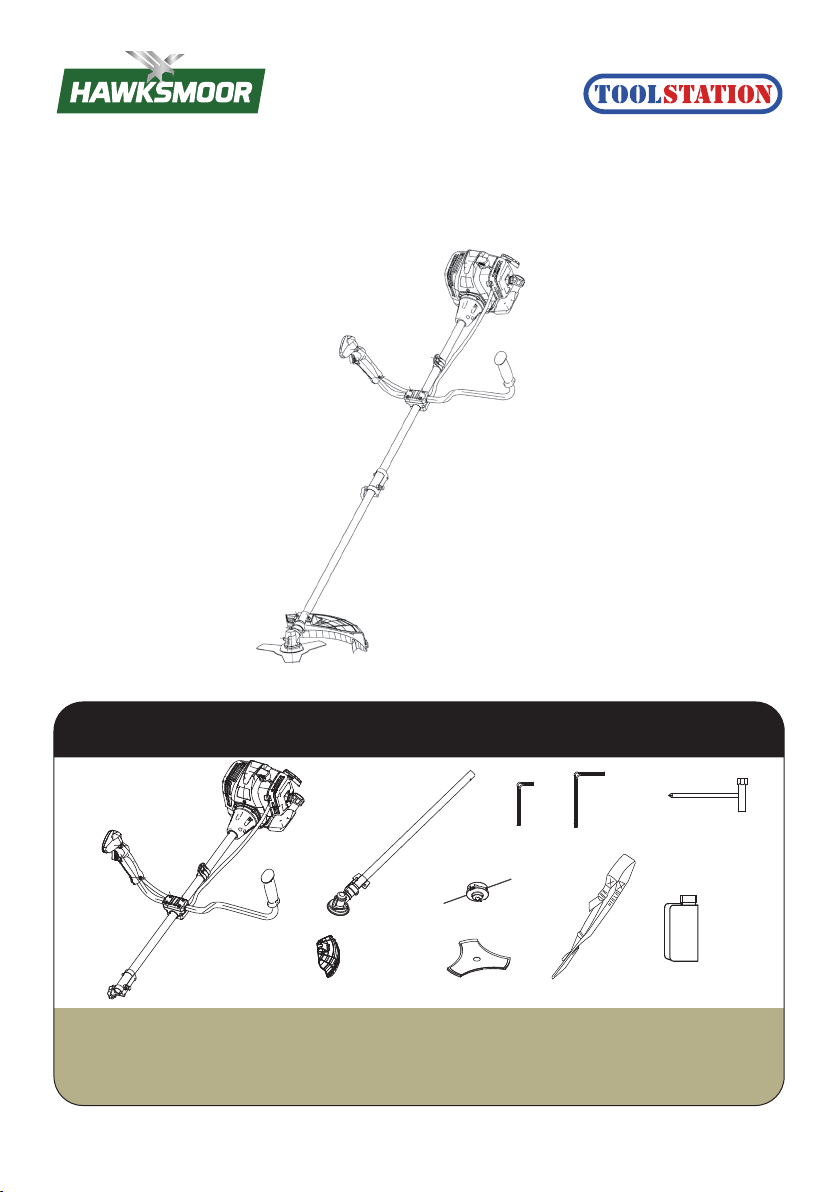

WHAT'S IN THE BOX
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: +44 01904 947568
Email [email protected]
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE
Main unit x 1
Brush cutter/
grass trimmer
shaft x 1
Blade x 1
Guard x 1
Spool x 1 Belt x 1
Hex key 4mm
x 1
Hex key 5mm
x 1
Socket wrench/
slotted screw drive
x 1
Fuel bottle x 1
2
SPECIFICATION
Technical Data
Model CG330FHB
Engine Type 2-Stroke Euro V
Displacement 33 cm3
Max. Cutting speed 6500 rpm(grass trimmer)/7000 rpm (brush cutter)
Rated Power 0.9 kw
Metal Blade size 1.4 x 255 x 25.4 mm
Nylon Line Cutting Head (Max. Cut) 420mm(grass trimmer)/255mm(brush cutter)
Nylon LIne size 2 mm
Fuel Capacity 0.7 L
Fuel/Oil Ratio 40:1
Easy Start Yes
Net Weight 7.2 kg
Spark plug RCJ6IY
Value of Vibration a front_hv,eq: max. 10.0 m/s² ,K=1,5m/s² a rear_
hv,eq: max. 9.0 m/s² ,K=1,5m/s²
Sound Power LwA,eq:108.7dB(A) K=3dB(A)
Sound Pressure Uncertain K LpA,eq: 93dB(A)
Uncertain KpA=3,0dB(A)
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS
Symbol warning of a warning
Read and refer to these operating instructions
Wear safety equipment that includes a helmet, protective helmet and protective
goggles
3
114

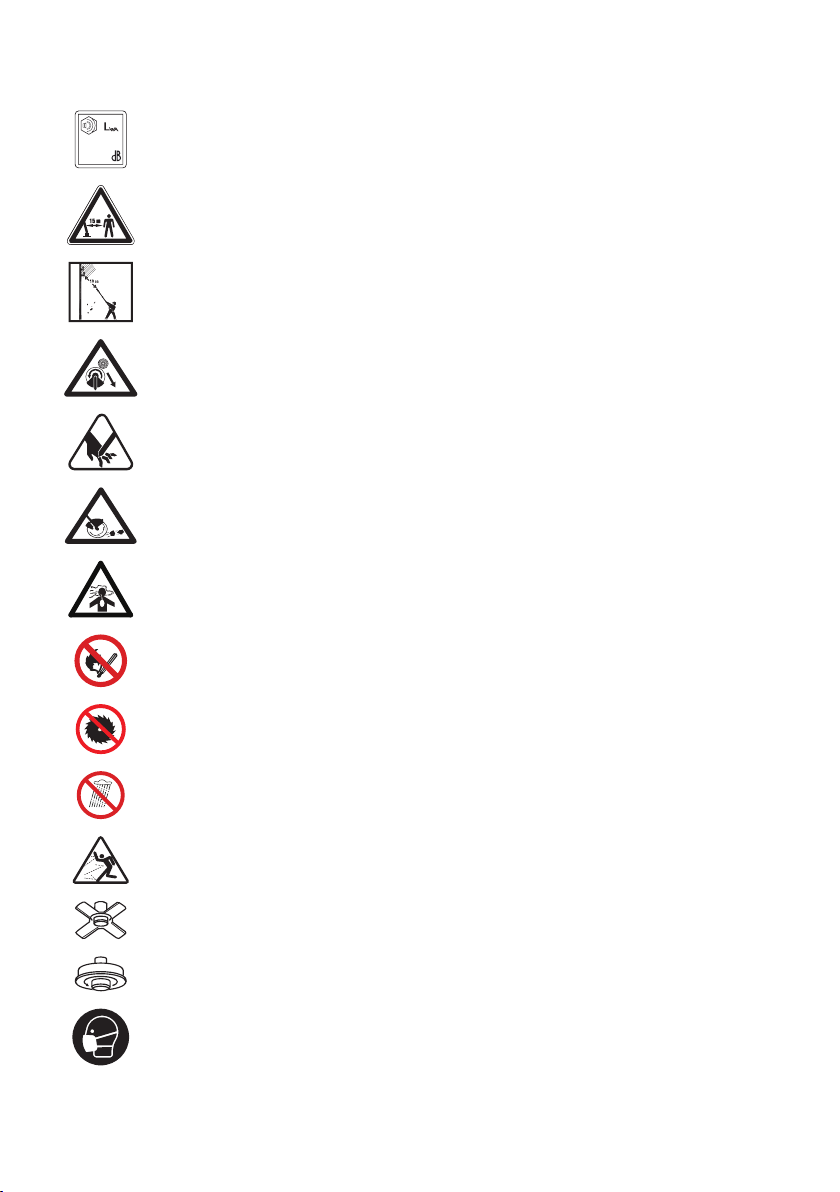

Guarantee sound power level
Keep all children, bystanders and helpers 15 meters away from the machine.
The machine shall not be used in any position that causes any part to come within 10
m of overhead electrical lines.
Beware of blade trust. Blade is continually in motion.
Caution! Risk of injury due to running blades!
Beware of recoil!
Caution! Risk of suffocation!
Fire, naked flames and smoking are prohibited!
Warning! Do not use circular saw blades for the cutting
blade function.
Protect the appliance from rain and moisture!
Beware of thrown objects
Maximum cutting speed with blades
Maximum cutting speed with string
Wear respiratory protection.
4

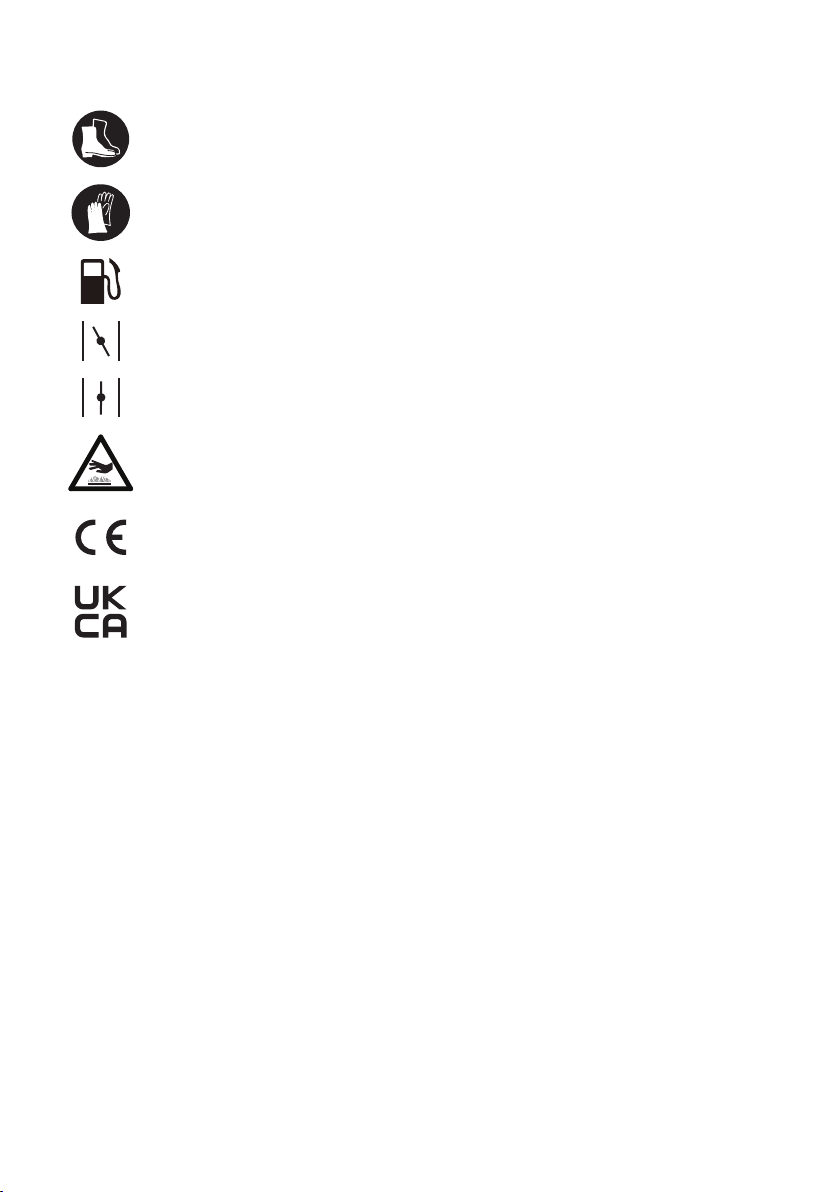

Wear protective gloves
Wear protective foot wear.
The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP
The direction to close the choke
Position: TOP COVER
The direction to open the choke
Position: TOP COVER
Keep all parts of your body away from hot surfaces
The product complies with the applicable European directives and an evaluation
method of conformity for these directives was done.
A product placed on the United Kingdom market meets the UKCA Marking
requirements
5
HEALTH AND SAFETY
SAFETY INSTRUCTIONS
TRAINING
A. Read the instructions carefully. Get familiar with the controls
and proper use of the tool.
B. Only use the tool for the purpose for which it was designed. Any
other use can be hazardous and may also cause damage to the
tool.
C. Never allow children or people unfamiliar with these instructions
to use the tool. Local regulations may restrict the age of the
operator.
D. Never use the tool:
• When people, especially children, or pets are nearby.
• If the operator has taken medicine or substances that can
affect his ability to react and concentrate.
E. Remember that the operator or user is responsible for accidents
or hazards occurring to other people or their property.
WARNING! Proper safety precautions must be observed.
Like all power equipment this tool must be handled
carefully. DO NOT EXPOSE YOURSELF OR OTHERS
TO DANGER. Follow these general rules. Do not permit
others to use this tool unless they are trained in its
operation.
WARNING! THIS TOOL CAN CAUSE SERIOUS INJURIES.
Read the instructions carefully for the correct handling,
preparation, maintenance, starting and stopping of the
tool. Be familiar with all controls and the proper use of
the tool.
6
GENERAL SAFETY INSTRUCTIONS
A. Never allow children to use the tool.
B. Beware of overhead power lines.
C. Do not use the tool while people or children are nearby. Keep at
least 15 metres away.
D. Dress properly! Do not wear loose clothing or jewellery, which
can be caught in moving parts.
E. Use of sturdy gloves, nonskid footwear hearing protection and
safety glasses.
F. Use extra care when handling fuels. They are ammable and the
vapours are explosive.
G. The following points should be observed:
• Use only an approved fuel container.
• Never remove the fuel cap or add fuel with the engine
running.
• Allow engine and exhaust components to cool down before
refuelling.
• Do not smoke.
• Never refuel indoors.
• Never store the tool or fuel container inside where there is
an open ame, such as near a water heater.
• If fuel is spilled, do not attempt to start the engine, move the
tool away from the spillage before starting.
• Always replace and securely tighten the fuel cap after
refuelling.
H. If the tool starts making any unusual noise or vibration. Turn
OFF the engine and allow the tool to stop and take the following
steps:
• Inspect for damage:
• Check for and tighten any loose parts;
7
• Have any damaged parts replaced repaired with parts
having equivalent specifications
WHEN USING THE TOOL
A. Stop the engine before:
• Cleaning or when clearing a blockage.
• Checking, carrying out maintenance or working on the tool.
• Adjusting the working position of the cutting device.
• Leaving the tool unattended.
B. Ensure that the tool is correctly located in a designated working
position before starting the engine.
C. While operating the tool always ensure that the operating
position is safe and secure, especially when using steps or a
ladder.
D. To reduce fire hazards keep the engine and silencer free of
debris, leaves and excessive lubricant.
E. Always ensure that all handles and guards are fitted when using
the tool. Never attempt to use an incomplete tool or one fitted
with an unauthorised modification.
F. Always be aware of your surroundings and stay alert for
possible hazards of which you may not be aware due to the
noise of the tool.
G. Keep fuel in a suitable container specially made for this
purpose.
ADDITIONAL SAFETY RULES FOR PETROL BRUSH CUTTER
WARNING! Beware of kickback.
KICKBACK
Take care using the metal blade with the tool. Kickback is a reaction
that occurs when the blade hits objects that it can not cut. This can
8
make the blade push away from the object or run along the object.
This reaction can be intense enough to lose control of the tool and
can occur without a warning.
The operator should cut from right to left to minimize the chance of
kickback.
WARNING! Dress appropriately.
A. Always use the brush cutter with the shoulder strap.
B. Do NOT use saw blades. Use only blades designed for use with
brush cutters.
C. Do not operate with loose clothing or long hair. These can be
sucked into the air intake of the tool.
D. While using, always wear sturdy footwear and long trousers. Do
not operate the equipment with bare feet or open sandals.
E. Do not operate in a hazardous location. Such areas include
where there is a risk of explosion of fumes, leaking gas or
explosive dust.
F. Do not operate in a confined area. Exhaust gases, smoke or
fumes could reach dangerous concentrations.
G. Protect your tool. This tool is NOT WEATHERPROOF and
should not be exposed to direct sunlight, high ambient
temperature and damp, wet or high humidity conditions.
H. Do not smoke or use a mobile phone while refuelling. This is
potentially dangerous as it may ignite the fuel and cause an
explosion.
I. Take care not to spill fuel. When refuelling the tool ensure that
the engine has been switched off. Prevent the spilling of fuel as
this may also ignite with the hot engine. Never refuel whilst the
engine is running.
J. Be careful where you store the tool. Store the tool in a dry area
away from ammable liquids.
9
K. Keep your distance. The tool emits exhaust fumes.
L. Ensure you use fuel oil mix. Ensure that you mix 40 parts
unleaded fuel to 1 part two stroke oil, if not the engine will
overheat and cause damage to your tool.
M. Never fill fuel tank indoors.
N. Never fill fuel tank when engine is running or hot.
O. Stop the engine before re-fuelling.
P. Stop the engine and disconnect the spark plug wire If the tool
starts to vibrate abnormally (find and remove the cause of the
vibration immediately).
Q. Reduce the throttle before turning off the engine.
R. The user is responsible for the safety of other people, animals
and objects in the working area. Keep people, children and
domestic
ASSEMBLY AND USE
BEFORE THE BRUSH CUTTER CAN BE USED IT
REQUIRES SOME ASSEMBLY.

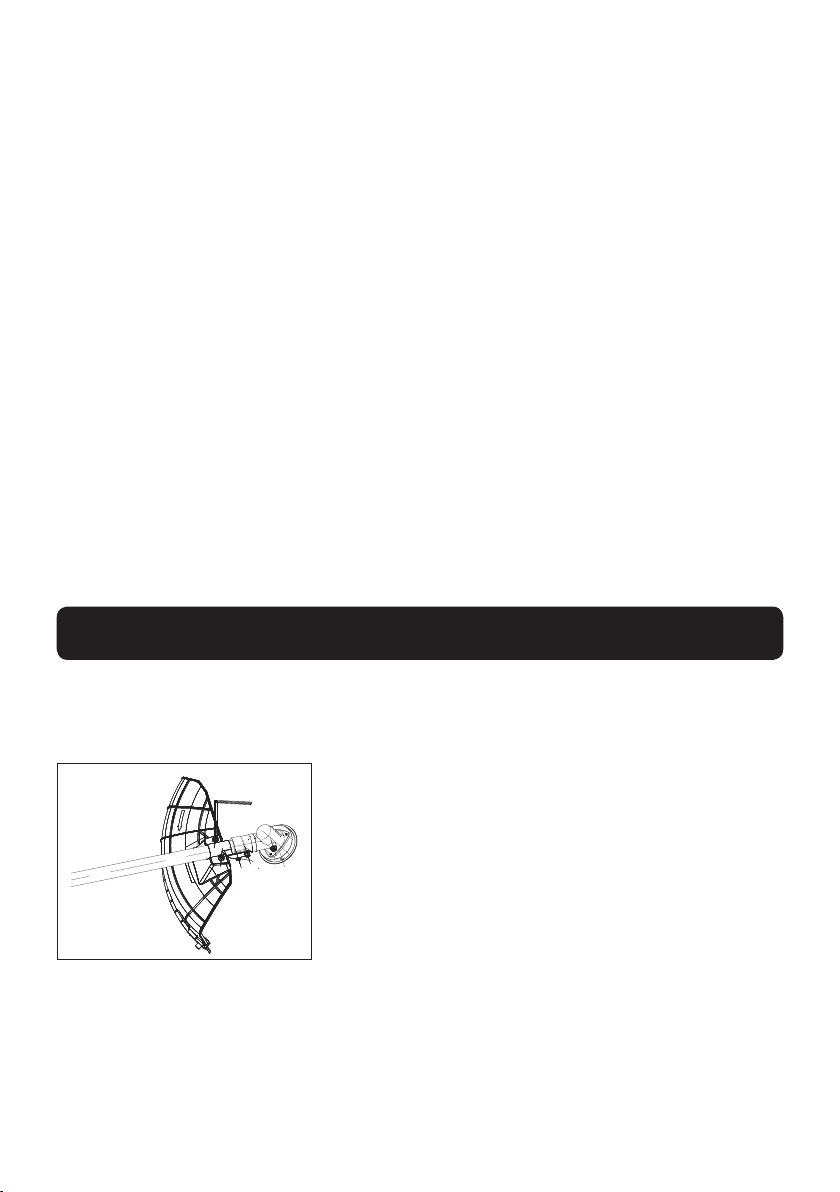

INSTALLING THE GUARD
• With the 5 mm Hex key. Remove the two screws from the
top of the guard.
• Hold the Guard underneath the bracket, insert the two
screws through the bracket in to the holes in the guard and
retighten firmly.
10

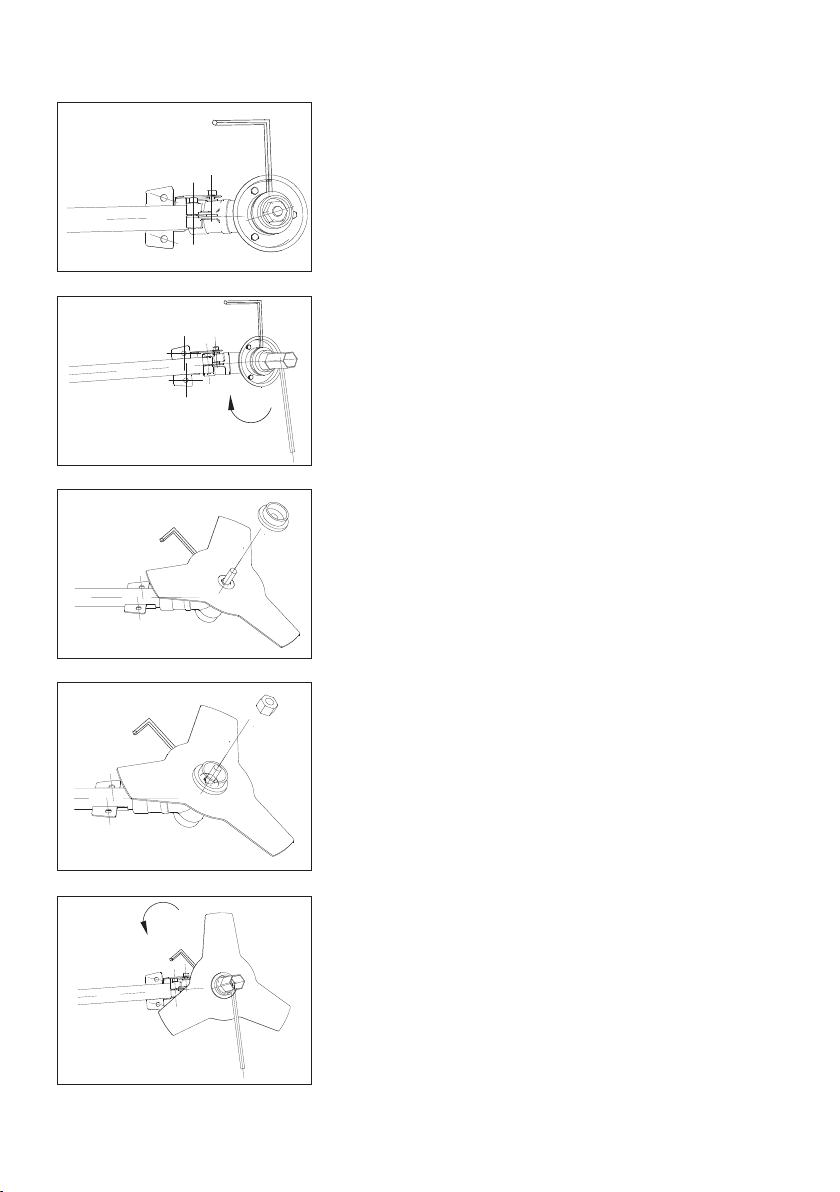

FITTING THE BLADE
• Lock the shaft by Inserting the 5mm hex key through the
hole and into the blade mounting boss as shown.
NOTE: The flange nut has a left hand thread.
• Remove the flange nut using the Spark plug spanner by
turning it in a clockwise direction.
• Remove the top flange and mount the blade on the centre
boss.
• Replace the flange and make sure that the blade stays
correctly mounted.
• Replace the flange nut.
• Tighten the flange nut firmly anti-clockwise.
• Remove the Hex key to unlock the shaft.
