Havis DS-GTC-710 Series Manuel utilisateur

Owner’s Manual

www.havis.com

1-800-524-9900

Havis Docking Station

For Getac Z710 &ZX70 Rugged Tablets

DS-GTC-710 Series

DS-GTC-711

DS-GTC-711-2

DS-GTC-714

DS-GTC-714-2

DS-GTC-715

DS-GTC-715-2

DS-GTC-716

DS-GTC-716-2

DS-GTC-717

DS-GTC-717-2

DS-GTC-718

DS-GTC-718-2

Before Beginning (Original Instructions)

Havis is pleased to provide this Owner’s Manual to aid in the proper

installation and use of the DS-GTC-710 Series Docking Station for

the Getac Z710 &ZX70 Rugged Tablets.

For questions regarding the set-up of your DS-GTC-710 Series Docking Station,

please contact Havis at 1-800-524-9900 or visit www.havis.com for additional

product support and information.

This Owner’s Manual applies to the following Part Numbers:

•NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN AVEHICLE

AIRBAG DEPLOYMENT ZONE.

•DO NOT USE COMPUTER WHILEDRIVING.

•READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNINGINSTALLATION.

•DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE,

STEAM, DUST, ETC.ARE PRESENT

•DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF.DOCKING OR

UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES

CAN CAUSE PERMANENT DAMAGE.

•FOR THE DS-GTC-711,DS-GTC-711-2, DS-GTC-714,DS-GTC-714-2, DS-GTC-715,

DS-GTC-715-2 DOCKINGS STATIONS:DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE

source rated for a continuous, regulated 12DC output (Havis Part Number LPS-164 or

equivalent). Failure to comply with this requirement will cause product damage that is NOT

repairable and is NOT covered under warranty.

•FOR DS-GTC-716, DS-GTC-716-2 DOCKING STATIONS:

DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE:The Getac Z710/ZX70 tablet

output. Failure to comply with this requirement will cause product damage that is NOT

repairable and is NOT covered under warranty.

•FOR DOCKING STATION MODELS EQUIPPED WITH ABUNDLED POWER SUPPLY

REFER TO THESUPPLIED GETAC POWER SUPPLY REFERENCE GUIDE.

•WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN

0°C to 50°C (32°Fto 122°F).

PLEASE REFER TO GETAC Z710/ZX70OWNER’S MANUAL FOR MORE INFORMATION.

DS-GTC-711

DS-GTC-711-2

DS-GTC-714

DS-GTC-714-2

DS-GTC-715

DS-GTC-715-2

DS-GTC-716

DS-GTC-716-2

DS-GTC-717

DS-GTC-717-2

DS-GTC-718

DS-GTC-718-2

Table of Contents

Parts Included 4

Port Replication Capability 5

Installation 6

Cable Management 7

Operation -Docking 8

Operation -Undocking 10

Precautions

•Do not place metal objects or containers of liquid on top of the Docking Station

•If amalfunction occurs, immediately unplug the Power Supply and remove the tablet

(Part #LPS-164)with this Tablet

•Do not leave the Docking Station in ahigh temperatureenvironment (greater than 70°C, 158°F)

for along period of time

Power Supply Input 12.0 VDC-In

Dimensions 8.7” (22.1 cm) H x 9.2” (23.4 cm ) W x 2.9” (7.4 cm ) D

Weight 1.5 lbs ( 0.68 kg )

Operating Environment -20°C to 50°C ( -4° F to 122°F )

Storage Environment -40° C to 70° C ( -40° F to 158° F )

Is in conformity with the following directives, standards, or other normative documents:

EMC Directive 2014/30/EU EN55022::2010/AC:2011

EN55024:2010

RoHS Directive 2011/65/EU EN 50581:2012

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the

Council of 8June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Supplementary Information:

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation.

Signed for and on behalf of Havis, Inc.:

Warminster, PA, USA June 10, 2014 Bruce Jonik, Director of Engineering , Havis,Inc.

FCC 47CFR, Part 15 compliance:

to the model DS-GTC-7XX not expressly approved by Havis, Inc. could void

the user's authority to operate this equipment.

EC DECLARATION OF CONFORMITY

Manufacturers Name: Havis,Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974USA

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Product name:

Model:

(Object of Declaration)

Product Options:

Tablet Docking Station

DS-GTC-7XX, where ‘x’ may be any alphanumeric character and which describes product options.

May be followed by any alphanumeric characters which describe product options.

This declaration covers all options of the above product which bear the CE Marking.

Hardware Kit

Parts Included

Docking Station

(Optional, Part #s

DS-GTC-711-2/ 714-

2/715-2/716-2)

(DS-GTC-711/711-2)

(DS-GTC-714/714-2)

(DS-GTC-715/715-2)

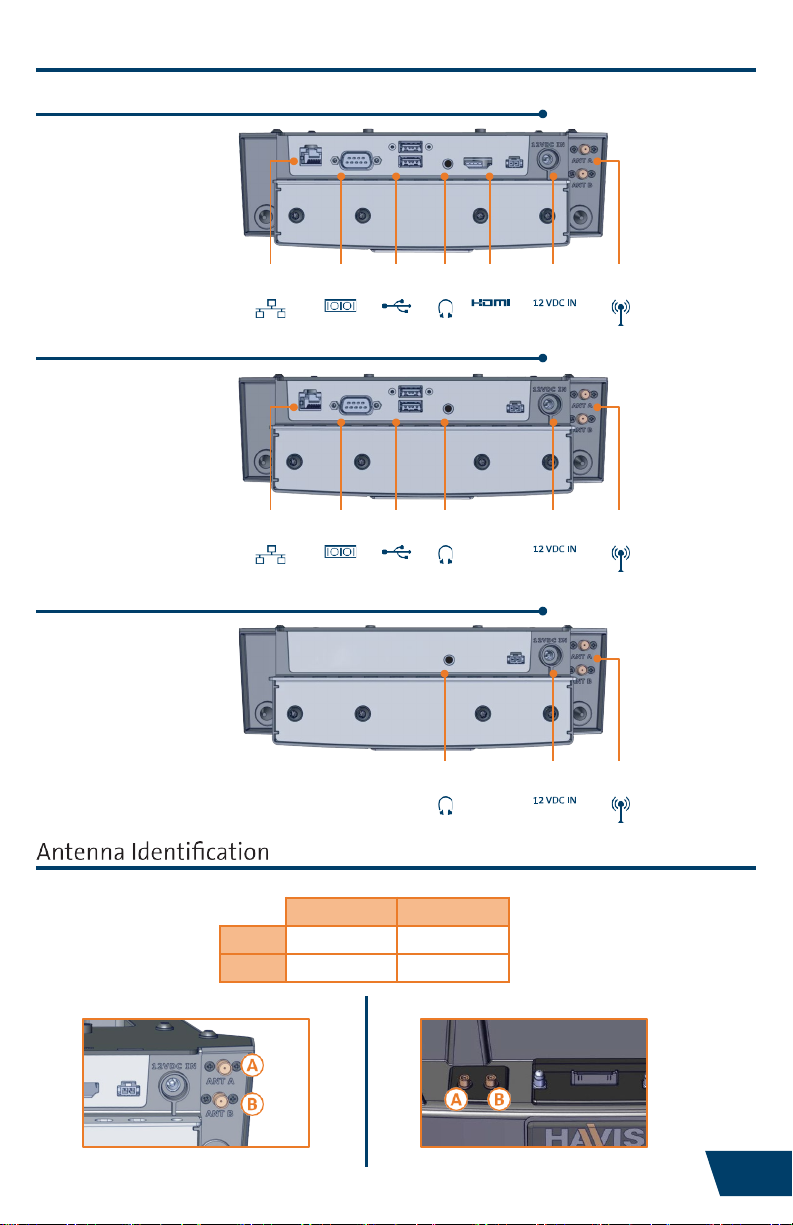

Port Replication Capability

Full Port Replication (JAE Connector Only)

(DS-GTC-711-2, DS-GTC-712-2, DS-GTC-714-2, DS-GTC-715-2)

In reference to the GETAC Z710 &ZX70 Antenna connections

(DS-GTC-711, DS-GTC-711-2)

Power Input Antenna Connectors (SMA)

(Optional -DS-GTC-711-2)

Serial USB 2.0 Speaker HDMI

(x2)

Ethernet

(RJ45)

Lite Port Replication (POGO Connector Only)

(DS-GTC-714, DS-GTC-714-2)

Serial USB 2.0 Speaker

(x2)

Ethernet

(RJ45)

Power Input Antenna Connectors (SMA)

(Optional -DS-GTC-714-2)

Power Only Port Replication (POGO Connector Only)

(DS-GTC-715, DS-GTC-715-2)

Power Input Antenna Connectors (SMA)

(Optional -DS-GTC-715-2)

Speaker

Antenna Connectors (SMA) Tablet Interface

ANT. AANT. B

Z710 WWAN GPS

ZX70 WWAN GPS

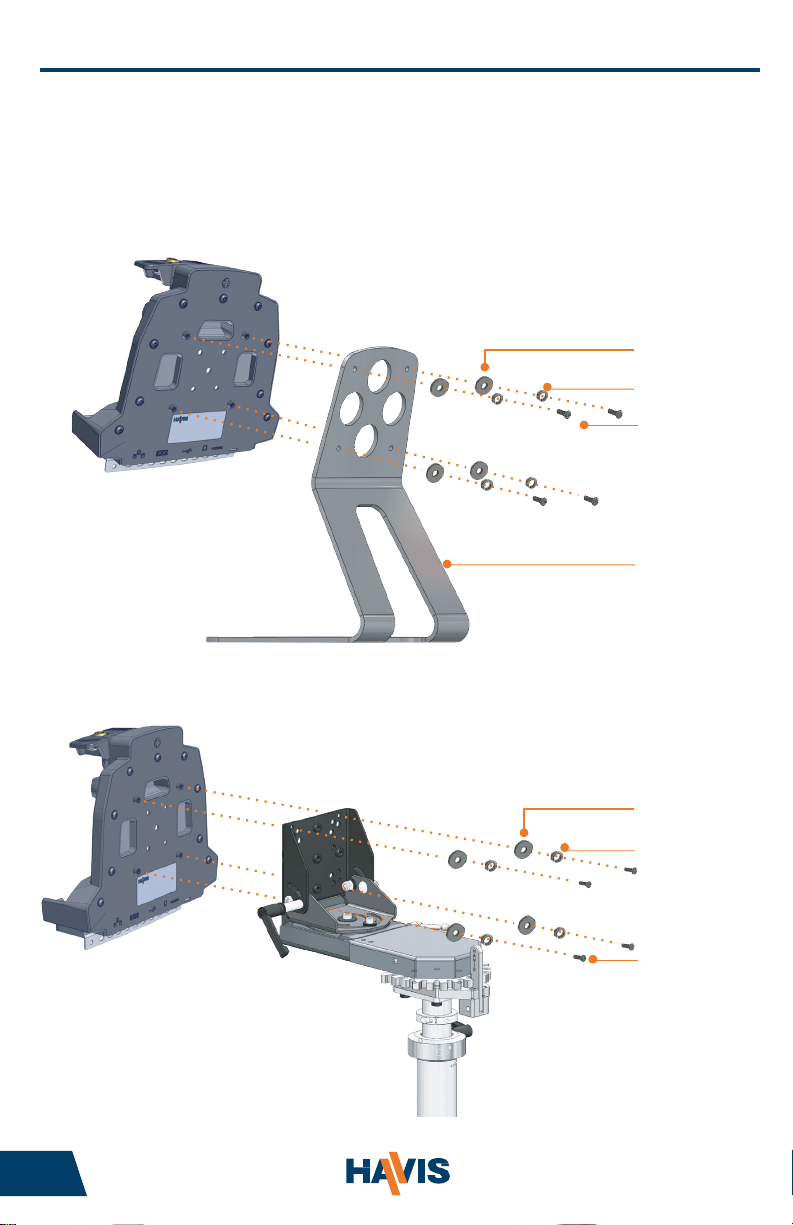

Installation

1) Align Docking Station mounting holes with the holes on VESA 75mm

hole pattern device.Using the four (4) M4 x 0.7x12mm Pan HeadScrews

(Hardware Kit Item 3), four (4) Washers, M4 (Hardware Kit Item 4), and four (4)

Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device.

Torque screws to 20 in-lbs (2.3Nm) ±10%.

A) Havis Desktop Stand installation (sold seperately, Part #DS-DA-218).

B) In-Vehicle mounting system installation.

Desktop Stand

(VESA 75 mm)

Washer, M4

Lock Washer, M4

M4 x0.7x12mm

Pan HeadScrews

M4 x0.7x12mm

Pan HeadScrews

Washer, M4

Lock Washer, M4

www.havis.com •1-800-524-9900 7

This loop must be large enough

to allow full range of expected

rotation and extension without

stressing connections.

Collect cables and secure

to the mountingsystem.

(Note: Mounting system notincluded)

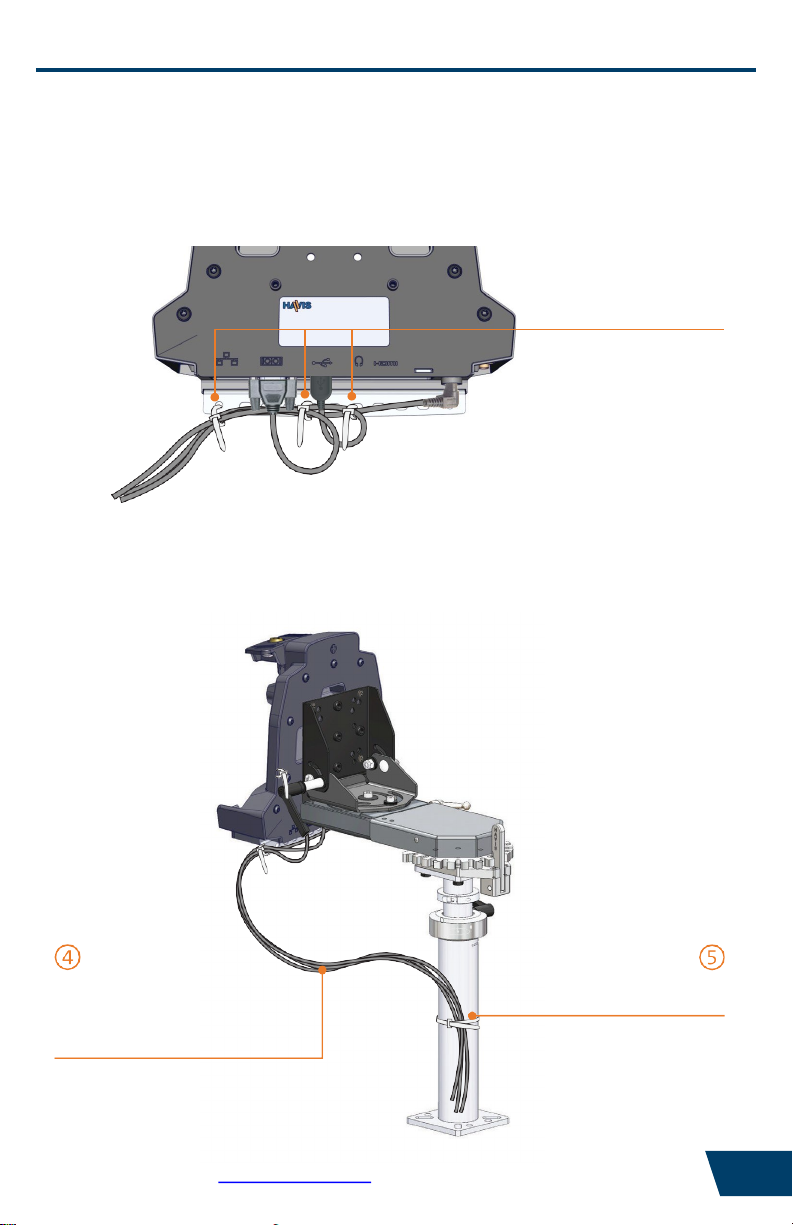

Cable Management

1) Tip the Docking Station to aposition that is comfortable to work with.

2) Connect all cables that are necessary for computing needs.

3) Use Zip Ties (Hardware Kit Item 1) to strain relieve cables. Strain ReliefPoints

are located on the bottom and sides of Docking Station and should be used

to anchor each cable.

4) Create aservice loop with cables to ensure that no tension is on the

connectors and to enable intended motion.

5) Tie off cables onto astationary part of the mounting system.

Use as many zip ties as

necessary to securecables.

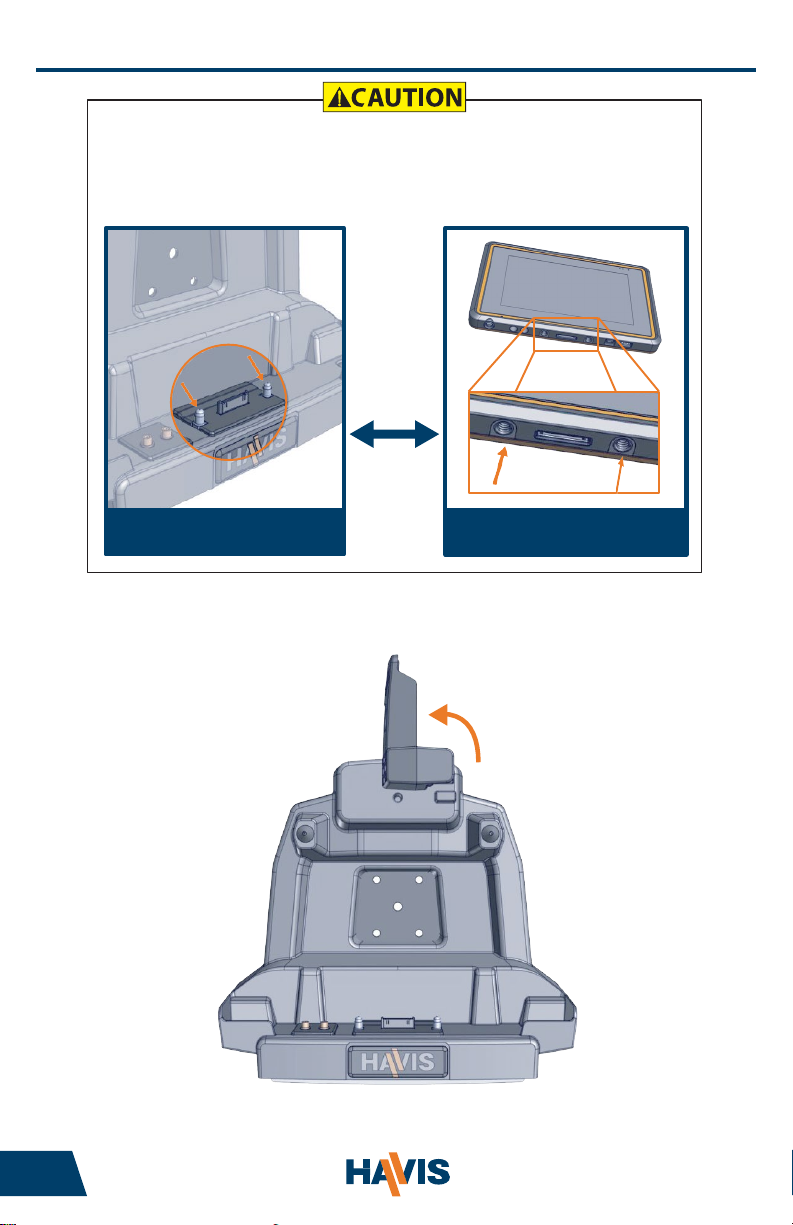

Operation -Docking

1) Ensure Docking Station is unlatched by lifting Latch Handle.

DO NOT FORCETABLET ONTO DOCKING STATION. IFTHEREIS RESISTANCE,

CHECK ALIGNMENT OF TABLET ON DOCKING STATION.

NOTE: Ensure a proper connection by aligning the tablet’s

Alignment Sockets with the Docking Station’s Alignment Posts

Alignment Posts

DS-GTC-710 Series Docking Station

Alignment Sockets

Bottom of Getac Z710 Rugged Tablet

Latch Tab willengage

in front of your tablet

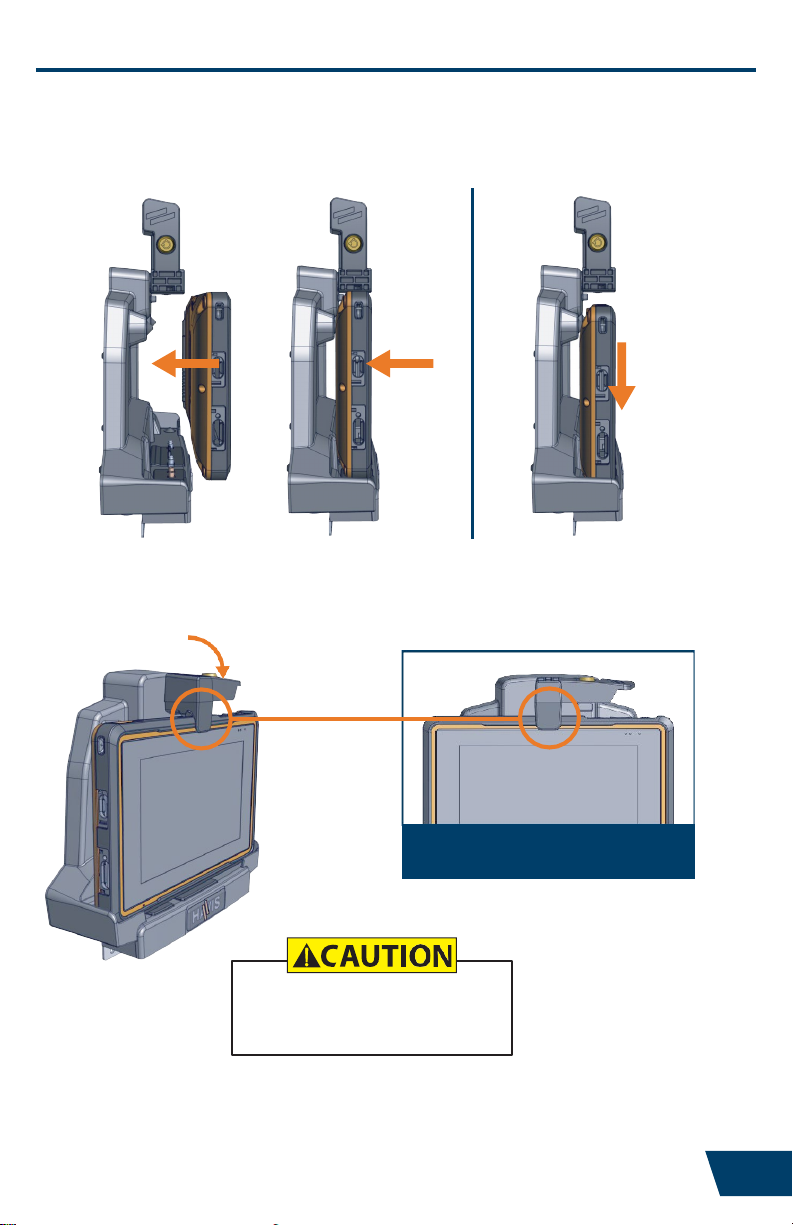

Operation -Docking

2) Hold tablet in landscape orientation, and guide into the Docking Station.

Next, lower tablet into the bottom of the Docking Station, while ensuring

that the alignment sockets are aligned with the Docking Station’s

Alignment Posts.

3) When tablet is properly seated in the Docking Station, lower the Latch

Handle to secure tablet inplace.

If there is excessive force while

lowering the Latch Handle, check

orientation and position of tablet

Operation -Docking(continued)

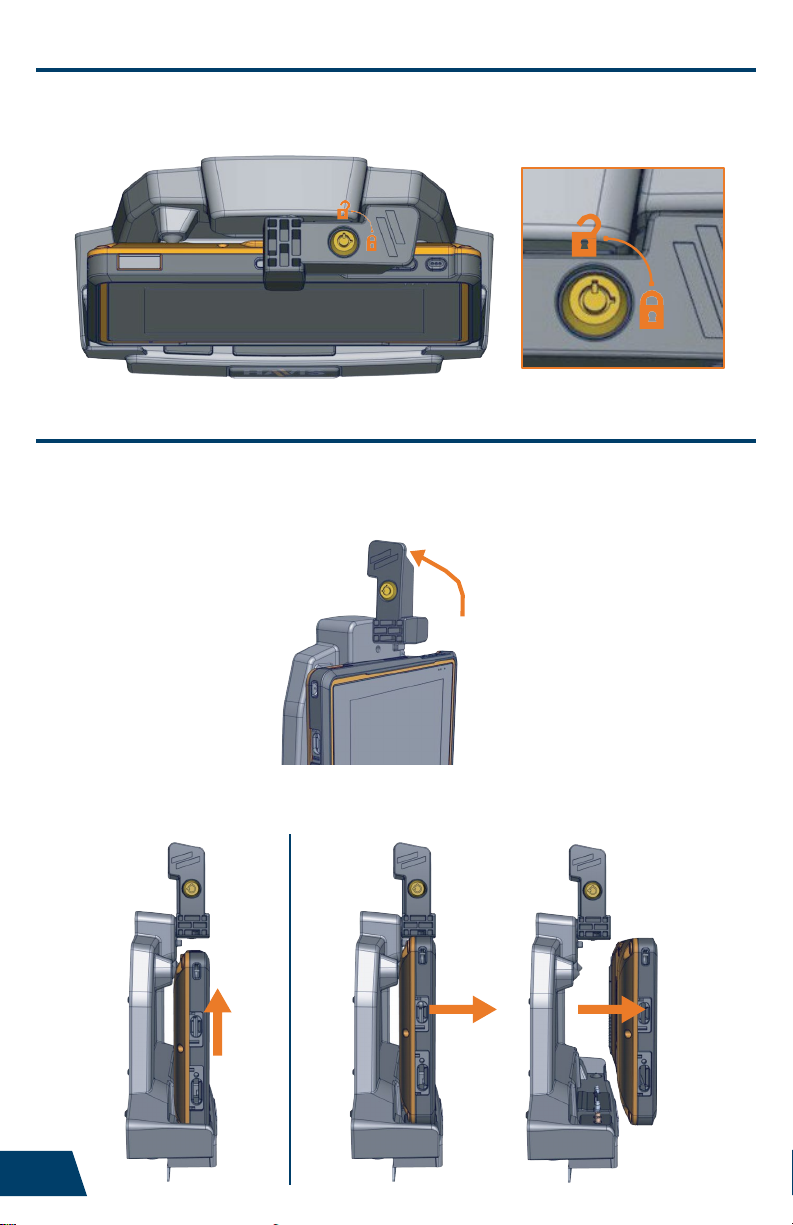

4) For theft deterrence, secure tablet by locking Docking Station with

supplied key (Hardware KitItem 2).

Operation -Undocking

1) If previously locked, unlock Docking Station using supplied key.

2) While holding tablet with one hand, lift the Latch Handle on the top

of Docking Station.

3) Once unlatched grab both sides of tablet, carefully lift tablet up and out

of Docking Station.
