Hatco TOAST-QWIK TQ-700 Guide d'application

TOAST-QWIK

Electric Conveyor Toasters

REPLACEMENT

PARTS LIST

TQ-700

TQ-700BA

TQ-700-ENG

TQ-700H

TQ-700HBA

TQ-700H-S

TQ-700 Series

HATCOTOAST-Qwik

OIL

MOTOR

PERIODICALL

OFF

TOASTBUNS

CONVEYORTOASTER

TCOCORP

.MILWAUKEE,WIU.S.A.

Form No. TQ700RP-0603 2 Printed in U.S.A.

Model Designation

TQ-XXX XXX

T = Toast

Q = Qwik

X = Maximum slices per hour

BA = Bagel

ENG= England

H = High Opening

HBA = High Opening Bagel

H-S = High Speed

HATCO TOAST-QWIK®

TQ-700 Series

CONVEYOR TOASTERS

28C 28A, 28B

26 13

215

12 8

931

833

18A, 18B

14 7

40 23

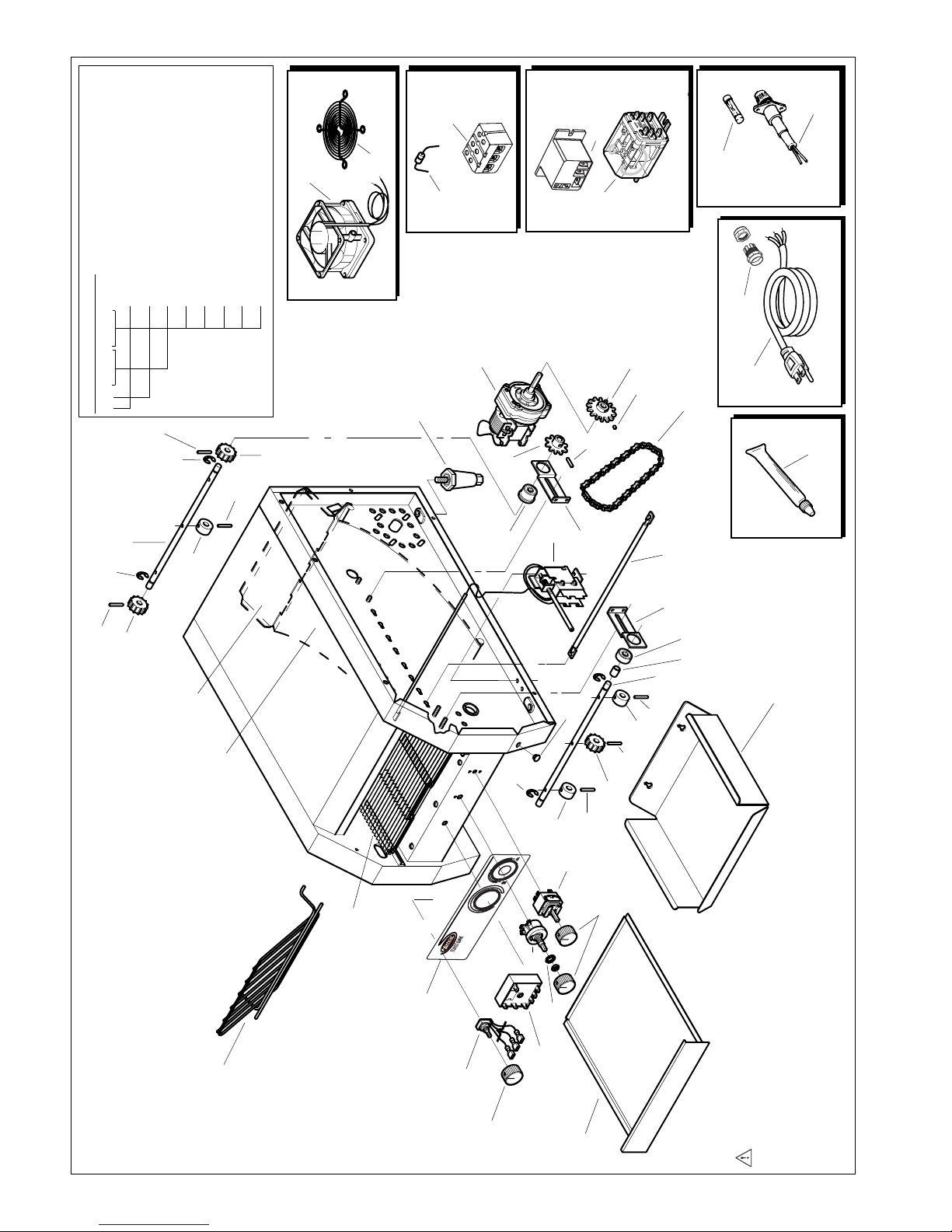

CAUTION - Use of replacement

parts other than those supplied

by Hatco Corporation may result in

damage to the unit or injury

to personnel.

Form No. TQ700RP-0603 3 Printed in U.S.A.

PARTS COMMON TO ALL TQ-700, -700BA, -700-ENG, -700H, -700HBA, -700H-S MODELS

ITEM DESCRIPTION PART NO. QTY. ITEM DESCRIPTION PART NO. QTY.

1 Diode 02.40.002.00 1

2 Selector Switch R02.19.082.00 1

3 Cooling Fan Guard 02.12.011.00 1

4 Terminal Block (4 Pole) 02.15.047.00 1

5 Conveyor Belt 05.03.024.00 1

6 Drive Chain 05.03.003.00 1

7 Shaft (Front & Rear) 05.07.011.00 2

8 Bearing 05.02.011.00 4

9 Bearing Support 04.05.207.00 4

10 Groove Pin 1/8" x 1" 05.03.023.00 6

11 Retaining Clip 05.11.035.00 4

12 Bearing Spacer 05.11.022.00 2

13 Washer 05.11.002.00 1

14 Sprocket-Conveyor 05.09.041.00 3

15 Sprocket-Idler 05.09.042.00 3

16 Spring Pin 1/8" x 3/4" 05.08.006.00 1

17 Hollow Lock Screw 05.04.044.00 1

18A Leg 2-1/2" (6 cm) Clearance 05.30.040.00 4

18B Leg 4" (10 cm) Clearance 05.30.007.00 4

19 Toast Ramp 04.05.235.00 1

20 Toast Collector Pan 04.05.238.00 1

21 Crumb Tray 04.05.234.00 1

22 Discharge Vane 04.05.215.00 1

23 Cord Grip 02.20.259.00 1

24 Snap Plug 3/8" Black 02.20.217.00 1

25 Motor Bearing Lube 05.01.018.00 1

Form No. TQ700RP-0603 4 Printed in U.S.A.

26 Solid State Infinite

Heat Control

27 Potentiometer with Leads

28A Relay

28B Relay

28C Relay

29 Rheostat

30 Thermostat

31 Elements

200W (Quantity: 10)

325W (Quantity: 2)

32 Gearmotor

33 Driven Sprocket 10 Tooth

34 Drive Sprocket 14 Tooth

35 Cooling Fan

36 Fuse, 1 Amp (2 Pack)

37 Fuse Holder with Fuse

38 Knob (Quantity: 2)

39 Conveyor Feeder Guide

40 Power Cord

41 T-Block, 3 Pole, Snap In*

42 Decal, Control Panel

Electrical Drawing

---

R02.13.101.00

02.16.011.00

R02.09.030.00

R02.09.031.00

R02.12.024.00

05.09.020.00

05.09.025.00

02.12.008A.00

R02.03.005A.02

R02.19.028.00

05.30.020.00

04.05.073.00

02.18.039.00

---

07.01.109.00

HS1-2963

---

R02.13.111.00

02.16.011.00

R02.09.037.00

R02.09.040.00

R02.12.020.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.036.00

---

07.01.109.00

HS1-2964

---

R02.13.111.00

02.16.011.00

R02.09.038.00

R02.09.041.00

R02.12.021.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.038.00

---

07.01.109.00

HS1-3236

---

R02.13.111.00

02.16.011.00

R02.09.039.00

R02.09.042.00

R02.12.021.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.036.00

---

07.01.109.00

HS1-2965

---

R02.13.125.00

02.16.011.00

R02.09.038.00

R02.09.041.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.038.00

---

07.01.109.00

HS1-3015

---

R02.13.125.00

02.16.011.00

R02.09.039.00

R02.09.042.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.068.00

---

07.01.109.00

HS1-3016

---

R02.13.125.00

02.16.011.00

R02.09.203E.00

R02.09.206E.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.038.00

02.15.028.00

07.01.109.00

HS1-4073

---

R02.13.125.00

02.16.011.00

R02.09.214E.00

R02.09.217E.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.068.00

02.15.028.00

07.01.109.00

HS1-4103

220V

50 Hz

240V

50 Hz

220-230V CE

50 Hz

230-240V CE

50 Hz

240V

60 Hz

208V

60 Hz

200V

50/60 Hz

120V

60 Hz

220V

60 Hz

---

R02.13.111.00

02.16.011.00

R02.09.037.00

R02.09.040.00

R02.12.020.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.036.00

---

07.01.109.00

HS1-3221

ITEM DESCRIPTION

Shaded area reflects export models only.

Element configuration shown on back page.

Not shown



PARTS SPECIFIC TO MODEL TQ-700

Form No. TQ700RP-0603 5 Printed in U.S.A.

---

R02.13.101.00

02.16.011.00

R02.09.030.00

R02.09.031.00

R02.12.024.00

05.09.020.00

05.09.025.00

02.12.008A.00

R02.03.005A.02

R02.19.028.00

05.30.020.00

04.05.073.00

02.18.039.00

---

07.01.204.00

HS1-3690

---

R02.13.111.00

02.16.011.00

R02.09.037.00

R02.09.040.00

R02.12.020.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.036.00

---

07.01.204.00

HS1-3691

---

R02.13.111.00

02.16.011.00

R02.09.038.00

R02.09.041.00

R02.12.021.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.038.00

---

07.01.204.00

HS1-3696

---

R02.13.111.00

02.16.011.00

R02.09.039.00

R02.09.042.00

R02.12.021.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.036.00

---

07.01.204.00

HS1-3692

---

R02.13.125.00

02.16.011.00

R02.09.038.00

R02.09.041.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.038.00

---

07.01.204.00

HS1-3693

---

R02.13.125.00

02.16.011.00

R02.09.039.00

R02.09.042.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.068.00

---

07.01.204.00

HS1-3694

---

220V

50 Hz

240V

50 Hz

220-230V CE

50 Hz

230-240V CE

50 Hz

240V

60 Hz

208V

60 Hz

200V

50/60 Hz

120V

60 Hz

220V

60 Hz

---

R02.13.111.00

02.16.011.00

R02.09.037.00

R02.09.040.00

R02.12.020.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.036.00

---

07.01.204.00

HS1-3695

ITEM DESCRIPTION

26 Solid State Infinite

Heat Control

27 Potentiometer with Leads

28A Relay

28B Relay

28C Relay

29 Rheostat

30 Thermostat

31 Elements

200W (Quantity: 1)

325W (Quantity: 7)

32 Gearmotor

33 Driven Sprocket 10 Tooth

34 Drive Sprocket 14 Tooth

35 Cooling Fan

36 Fuse, 1 Amp (2 Pack)

37 Fuse Holder with Fuse

38 Knob (Quantity: 2)

39 Conveyor Feeder Guide

40 Power Cord

41 T-Block, 3 Pole, Snap In*

42 Decal, Control Panel

Electrical Drawing

Shaded area reflects export models only.

Element configuration shown on back page.

Not shown



PARTS SPECIFIC TO MODEL TQ-700BA

---

R02.13.125.00

02.16.011.00

R02.09.039.00

R02.09.042.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.073.00

02.18.103.00

---

07.01.109.00

HS1-3219

---

220V

50 Hz

240V

50 Hz

220-230V CE

50 Hz

230-240V CE

50 Hz

240V

60 Hz

208V

60 Hz

200V

50/60 Hz

120V

60 Hz

220V

60 Hz

---

ITEM DESCRIPTION

Form No. TQ700RP-0603 6 Printed in U.S.A.

26 Solid State Infinite

Heat Control

27 Potentiometer with Leads

28A Relay

28B Relay

28C Relay

29 Rheostat

30 Thermostat

31 Elements

200W (Quantity: 6)

325W (Quantity: 9)

32 Gearmotor

33 Driven Sprocket 10 Tooth

34 Drive Sprocket 14 Tooth

35 Cooling Fan

36 Fuse, 1 Amp (2 Pack)

37 Fuse Holder with Fuse

38 Knob (Quantity: 2)

39 Conveyor Feeder Guide

40 Power Cord

41 T-Block, 3 Pole, Snap In*

42 Decal, Control Panel

Electrical Drawing

Shaded area reflects export models only.

Element configuration shown on back page.

Not shown



PARTS SPECIFIC TO MODEL TQ-700-ENG

Item 28A only used with toasters manufactured up to and including July 2000.

Item 28B only used with toasters manufactured after July 2000.

Element configuration shown on back page.

Not shown

Form No. TQ700RP-0603 7 Printed in U.S.A.

---

02.01.102.00

02.01.113.00

R00.02.0018.00

02.01.188.00

---

R02.13.111.00

02.16.011.00

R02.09.037.00

R02.09.040.00

R02.12.020.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.111.00

---

07.01.201.00

HS1-3634

02.01.102.00

02.01.113.00

R00.02.0020.00

02.01.180.00

---

R02.13.111.00

02.16.011.00

R02.09.038.00

R02.09.041.00

R02.12.021.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.103.00

---

07.01.201.00

HS1-3673

02.01.102.00

02.01.113.00

R00.02.0019.00

02.01.105.00

---

R02.13.111.00

02.16.011.00

R02.09.039.00

R02.09.042.00

R02.12.021.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.111.00

---

07.01.201.00

HS1-3635

02.01.102.00

02.01.113.00

R00.02.0020.00

02.01.180.00

---

R02.125.00.00

02.16.011.00

R02.09.038.00

R02.09.041.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.103.00

---

07.01.201.00

HS1-3670

02.01.102.00

02.01.113.00

R00.02.0019.00

02.01.105.00

---

R02.13.125.00

02.16.011.00

R02.09.039.00

R02.09.042.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.103.00

---

07.01.201.00

HS1-3671

02.01.102.00

02.01.113.00

---

02.01.180.00

---

R02.13.125.00

02.16.011.00

R02.09.203E.00

R02.09.206E.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.103.00

02.15.028.00

07.01.201.00

HS1-4074

02.01.102.00

02.01.113.00

---

02.01.105.00

---

R02.13.125.00

02.16.011.00

R02.09.214E.00

R02.09.217E.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.103.00

02.15.028.00

07.01.201.00

HS1-4109

220V

50 Hz

240V

50 Hz

220-230V CE

50 Hz

230-240V CE

50 Hz

240V

60 Hz

208V

60 Hz

200V

50/60 Hz

120V

60 Hz

220V

60 Hz

02.01.102.00

02.01.113.00

R00.02.0018.00

02.01.188.00

---

R02.13.111.00

02.16.011.00

R02.09.037.00

R02.09.040.00

R02.12.020.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.111.00

---

07.01.201.00

HS1-3672

ITEM DESCRIPTION

Shaded area reflects export models only.

†





26 Solid State Infinite

Heat Control

27 Potentiometer with Leads

28A Relay†

28B Relay

28C Relay

29 Rheostat

30 Thermostat

31 Elements

200W (Quantity: 4)

325W (Quantity: 9)

32 Gearmotor

33 Driven Sprocket 10 Tooth

34 Drive Sprocket 14 Tooth

35 Cooling Fan

36 Fuse, 1 Amp (2 Pack)

37 Fuse Holder with Fuse

38 Knob (Quantity: 3)

39 Conveyor Feeder Guide

40 Power Cord

41 T-Block, 3 Pole, Snap In*

42 Decal, Control Panel

Electrical Drawing

NOTE: The last four digits in a ten digit numerical serial number is the date code.

Example: Serial number 9625060007 has a date code of “0007” which indicates the following; 00 07

Please also note, effective January 2001 the serial number date code was updated to indicate

the week of manufacture. Example: xxxxxx01 24

Year 2001

Week Twenty-four

Year 2000

Month Seven, July

PARTS SPECIFIC TO MODEL TQ-700H

---

02.01.102.00

02.01.117.00

---

02.01.098.00

R02.13.111.00

---

R02.09.037.00

R02.09.063.00

R02.12.020.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.075.00

02.18.111.00

---

07.01.210.00

HS1-3874

02.01.102.00

02.01.117.00

---

02.01.098.00

R02.13.111.00

---

R02.09.038.00

R02.09.064.00

R02.12.021.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.075.00

02.18.038.00

---

07.01.210.00

HS1-3913

02.01.102.00

02.01.117.00

---

02.01.098.00

R02.13.111.00

---

R02.09.039.00

R02.09.062.00

R02.12.021.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.075.00

02.18.111.00

---

07.01.210.00

HS1-3875

02.01.102.00

02.01.117.00

---

02.01.098.00

R02.13.125.00

---

R02.09.038.00

R02.09.064.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.075.00

02.18.038.00

---

07.01.210.00

HS1-3912

02.01.102.00

02.01.117.00

---

02.01.098.00

R02.13.125.00

---

R02.09.039.00

R02.09.062.00

R02.12.025.00

05.09.020.00

05.09.025.00

02.12.010.00

---

05.30.020.00

04.05.075.00

02.18.068.00

---

07.01.210.00

HS1-3911

---

220V

50 Hz

240V

50 Hz

220-230V CE

50 Hz

230-240V CE

50 Hz

240V

60 Hz

208V

60 Hz

200V

50/60 Hz

120V

60 Hz

220V

60 Hz

---

ITEM DESCRIPTION

Form No. TQ700RP-0603 8 Printed in U.S.A.

26 Solid State Infinite

Heat Control

27 Potentiometer with Leads

28A Relay

28B Relay

28C Relay

29 Rheostat

30 Thermostat

31 Elements

200W (Quantity: 2)

375W (Quantity: 7)

32 Gearmotor

33 Driven Sprocket 10 Tooth

34 Drive Sprocket 14 Tooth

35 Cooling Fan

36 Fuse, 1 Amp (2 Pack)

37 Fuse Holder with Fuse

38 Knob (Quantity: 3)

39 Conveyor Feeder Guide

40 Power Cord

41 T-Block, 3 Pole, Snap In*

42 Decal, Control Panel

Electrical Drawing

Shaded area reflects export models only.

Element configuration shown on back page.

Not shown



PARTS SPECIFIC TO MODEL TQ-700HBA

Form No. TQ700RP-0603 9 Printed in U.S.A.

---

R02.13.111.00

---

R02.09.037.00

R02.09.040.00

R02.12.020.00

05.09.033.00

05.09.034.00

02.12.010.00

R02.03.005A.02

R02.19.028.00

05.30.020.00

04.05.252.00

02.18.122.00

---

07.01.109.00

HS1-4907

---

R02.13.111.00

---

R02.09.039.00

R02.09.042.00

R02.12.021.00

05.09.033.00

05.09.034.00

02.12.010.00

---

05.30.020.00

04.05.252.00

02.18.111.00

---

07.01.109.00

HS1-4908

---

220V

50 Hz

240V

50 Hz

220-230V CE

50 Hz

230-240V CE

50 Hz

240V

60 Hz

208V

60 Hz

200V

50/60 Hz

120V

60 Hz

220V

60 Hz

---

ITEM DESCRIPTION

26 Solid State Infinite

Heat Control

27 Potentiometer with Leads

28A Relay

28B Relay

28C Relay

29 Rheostat

30 Thermostat

31 Elements

200W (Quantity: 4)

325W (Quantity: 9)

32 Gearmotor

33 Driven Sprocket 17 Tooth

34 Drive Sprocket 7 Tooth

35 Cooling Fan

36 Fuse, 1 Amp (2 Pack)

37 Fuse Holder with Fuse

38 Knob (Quantity: 3)

39 Conveyor Feeder Guide

40 Power Cord

41 T-Block, 3 Pole, Snap In*

42 Decal, Control Panel

Electrical Drawing

---

Shaded area reflects export models only.

Element configuration shown on back page.

Not shown



PARTS SPECIFIC TO MODEL TQ-700H-S

Form No. TQ700RP-0603 10 Printed in U.S.A.

HATCO TQ-700 SERIES HEATING ELEMENT CONFIGURATION

Model TQ-700HBA

Heating Element Controlled by Thermostat

Heating Element Controlled by Electronic Thermostat

Heating Element Controlled by Both Thermostats(TQ-700H only)

Heating Element (Always On)

No Heating Element

TOP

FRONT REAR

BOTTOM

375W 375W 375W 375W 375W 375W 375W

200W 200W

Model TQ-700

TOP

FRONT REAR

BOTTOM

200W 200W 200W 200W 200W 200W

200W 200W 200W 200W 325W 325W

Model TQ-700BA

TOP

FRONT REAR

BOTTOM

325W 325W 325W 325W 325W 325W 325W

200W

Model TQ-700 ENG

TOP

FRONT REAR

BOTTOM

200W 200W 200W 325W 325W 325W 325W

200W 200W 200W 325W 325W 325W 325W 325W

Model TQ-700H

TOP

FRONT REAR

BOTTOM

325W 325W 325W 325W 325W 325W

200W 200W 200W 200W 325W 325W 325W

Model TQ-700H-S

TOP

FRONT REAR

BOTTOM

325W 200W 325W 325W 325W 325W

200W 200W 325W 200W 325W 325W 325W

•Selector Switch in TOAST position

•

Ce manuel convient aux modèles suivants

Autres manuels Hatco Grille-pain

Hatco

Hatco Toast-Qwik TQ3-10 Series Manuel utilisateur

Hatco

Hatco TK Series Manuel utilisateur

Hatco

Hatco TM-5 Manuel utilisateur

Hatco

Hatco TOAST-QWIK TQ-10 Series Manuel utilisateur

Hatco

Hatco Toast-Max TM-5H Instructions d'installation

Hatco

Hatco TRH Series Manuel utilisateur

Hatco

Hatco TOAST-QWIK TQ-10 Series Manuel utilisateur

Hatco

Hatco ITQ Series Manuel utilisateur

Hatco

Hatco TM-5 Manuel utilisateur

Hatco

Hatco TOAST-QWIK TQ-10 Series Manuel utilisateur

Hatco

Hatco Toast Qwik TQ-10 Series Manuel utilisateur

Hatco

Hatco Toast-Qwik ITQ Series Manuel utilisateur

Hatco

Hatco TOAST-QWIK TQ-300 Instructions d'installation

Hatco

Hatco TPT Series Manuel utilisateur

Hatco

Hatco TOAST-QWIK TQ-10 Series Instructions d'installation

Hatco

Hatco Toast-Rite TRH-100B Guide d'application

Hatco

Hatco TPT-120 TPT-208 Manuel utilisateur

Hatco

Hatco TOAST-QWIK TQ-10 Series Instructions d'installation

Hatco

Hatco Toast-Qwik TQ3-500 series Manuel utilisateur

Hatco

Hatco TOAST KING TK-100 Manuel utilisateur

Hatco

Hatco TPT Series Instructions d'installation

Hatco

Hatco TOAST-QWIK TQ-10 Series Instructions d'installation

Hatco

Hatco TOAS-MAX TM-5H series Manuel utilisateur

Hatco

Hatco TOAST KING TK-100 Manuel utilisateur

Manuels Grille-pain populaires d'autres marques

Taurus

Taurus ARCTIC 960648 Manuel utilisateur

Redfox

Redfox TO 920 G Manuel utilisateur

Moulinex

Moulinex LS340D11 Manuel utilisateur

Amica

Amica TD 3021 Manuel utilisateur

Electrolux

Electrolux EAT978 Manuel utilisateur

SEVERIN

SEVERIN SA 9275 Manuel utilisateur

Breville

Breville the Big One BTS100 Manuel utilisateur

Sunbeam

Sunbeam TA2540 Manuel utilisateur

ARENDO

ARENDO 305716 Manuel utilisateur

Life

Life Crispy AT-001 Manuel utilisateur

Beko

Beko TAM 6201 I Manuel utilisateur

Zephir

Zephir ZHC485 Manuel utilisateur

H.Koenig

H.Koenig TOS9 Manuel utilisateur

ZIEGELMULLER

ZIEGELMULLER Ritter ET 10 Guide produit

HURAKAN

HURAKAN HKN-TOP3 Manuel utilisateur

Philips

Philips HD2565 Manuel utilisateur

Bosch

Bosch DesignLine Plus TAT4P44 GB Series Manuel utilisateur

Panasonic

Panasonic NT-ZP1-V Manuel utilisateur
