INSTALLATION OF THE CONTROLS
1. Locate the rocker switch provided in the parts box. The switch is to be located in position
8(shown below.) Knock out the panel plug in position 8. Connect the switch to the connector
labeled 534. (If the 534 label is not found, look for the connector having a brown wire #231.)
Snap the rocker switch into the panel with tank symbol forward and refer to the operator’s
manual for the switch operating information. The switch has three positions:
2. Locate a place in the cab to mount the control box (usually between the front and side
windows and within easy reach.)

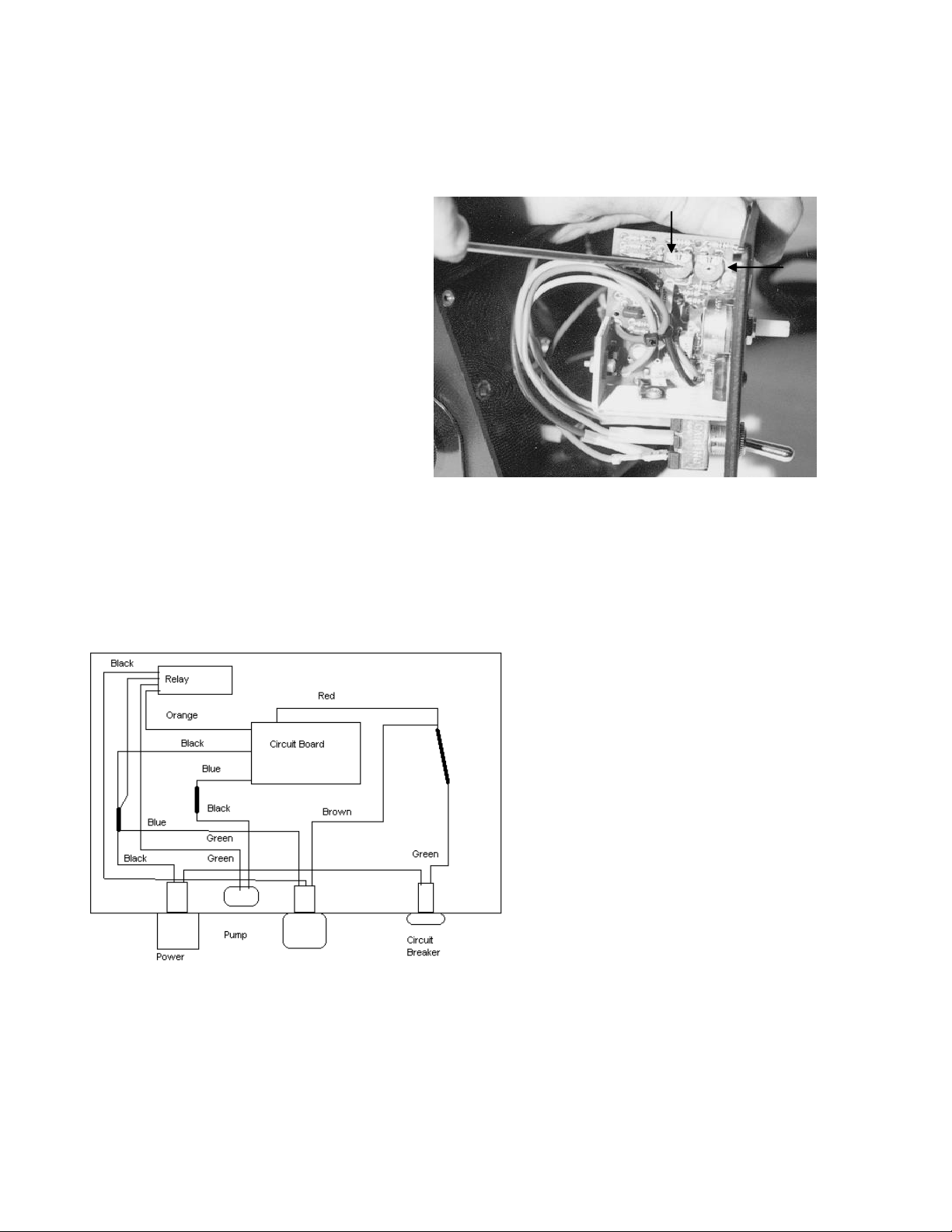

3. Run both wires outside the cab. Connect the plug to the socket behind the cab and the other
wire too the connectors on the pump.

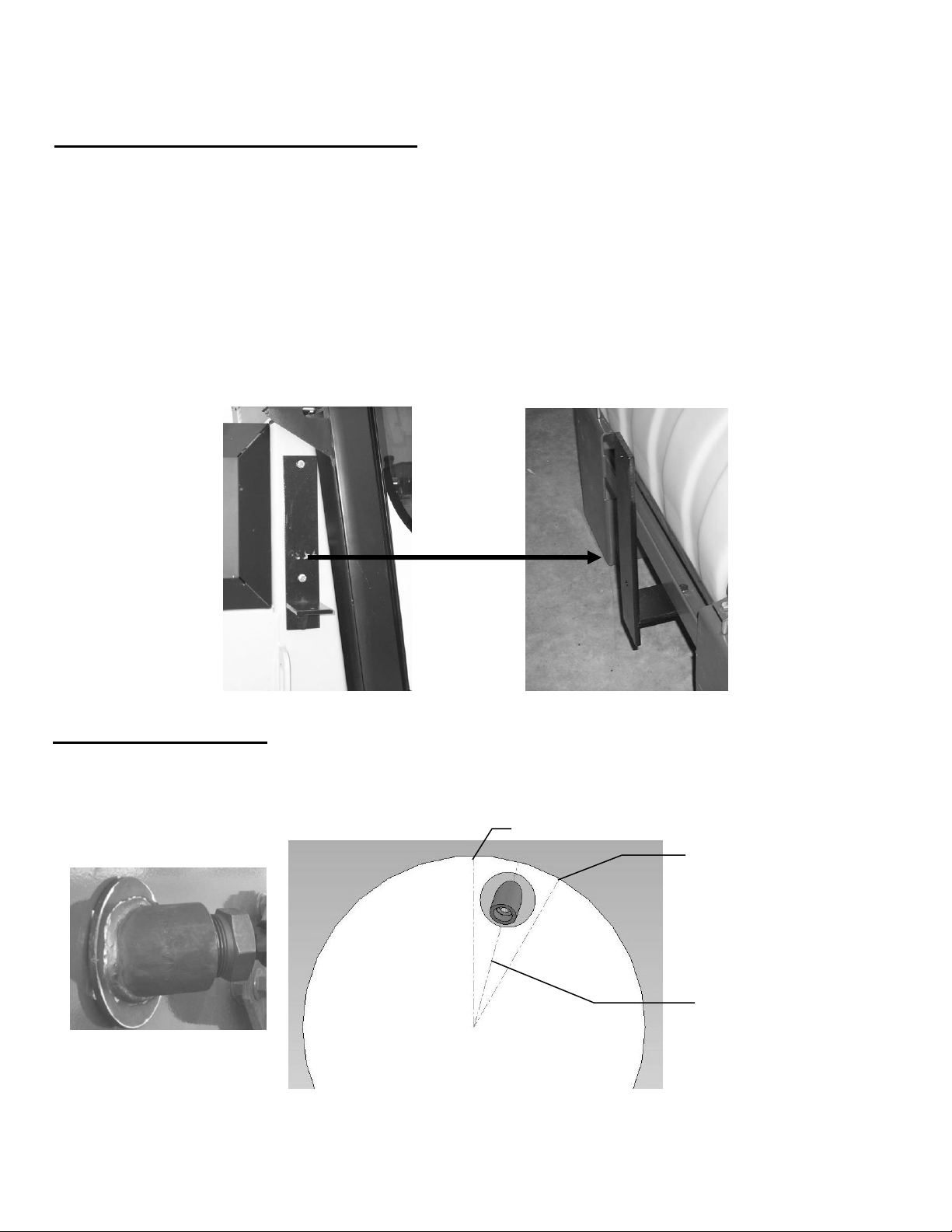

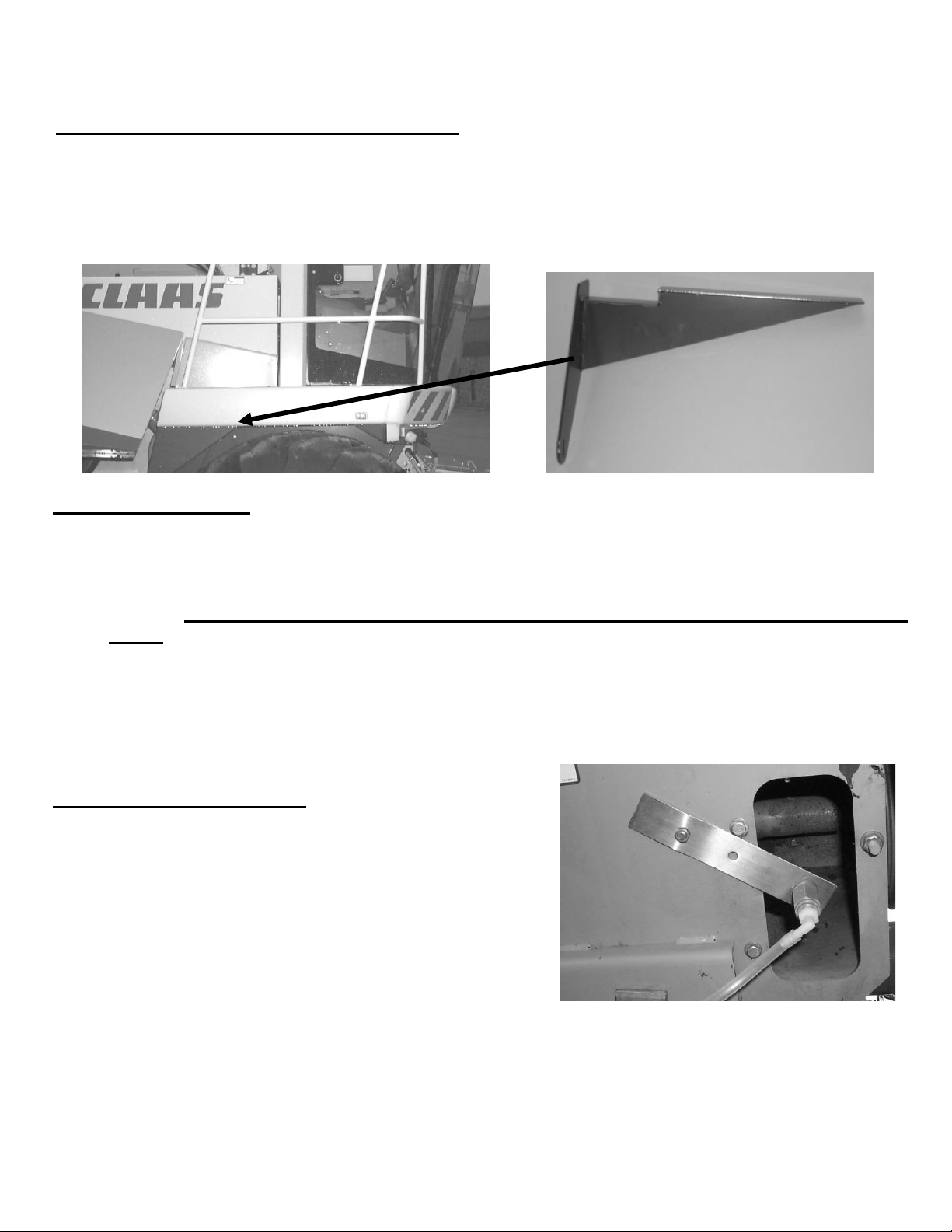

MOUNTING THE SPOUT NOZZLE ASSEMBLY
1. The spout nozzle will mount on the back of the spout.
2. First, locate and mark the location of the hole where the nozzle will fit into the spout.
3. Drill the hole for the spout nozzle, which should be 11/16” in diameter. The material lining in
the spout is extremely difficult to drill through so be sure to have a sharp bit.
4. Once the spout nozzle hole is drilled, place the assembly on the spout and weld the plate with
the treaded studs to the spout. Only the two outer edges need to be welded to the spout.
5. Be sure to remove excess slag on the welded plate so that the nozzle plate fits securely.
6. The plate containing the nozzle will fit on top of the plate welded to the spout. Fasten the
nozzle plate using lock washers and 5/16” nuts. Before fastening, be sure that the nozzle is
inserted in the spout so it sprays upward and to the right at approximately a 45-degree angle.
