Hartke 115TP Manuel utilisateur

1 x15″Stackable

Bass Enclosure

Hartke

SERIES

115TP Introduction and Features

Congratulations on purchasing the 115TP bass enclosure by Hartke! The

Transporter Series enclosures have been designed to provide excellent tone

with a fast attack, deep low-end and punchy output. The 115TP Features a 15”,

proprietary low frequency driver with specially designed aluminum cone, large

voice coil on Kapton former, impregnated fabric surround, and matched convex

dust cover all mounted in a heavy-duty steel frame. Using heavy-duty plywood

construction, covered in rugged carpet with recessed jack plate and ergonomic

handle, the 115TP will provide reliable performance from gig to gig and venue to

venue.

In these pages, you’ll find a detailed description of the features of the 115TP, as

well as a description of its front and rear panels, step-by-step instructions for its

setup and use and full specifications. You’ll also find a warranty card enclosed—

please don’t forget to fill it out and mail it in so that you can receive online tech-

nical support and so we can send you updated information about these and

other Samson products in the future.

We recommend you record your serial number in the space provided below for

future reference.

Serial number:

Date of purchase:

Should your unit ever require servicing, a Return Authorization number (RA)

must be obtained before shipping your unit to Samson. Without this number, the

unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-

6766) for a Return Authorization number prior to shipping your unit. Please

retain the original packing materials and if possible, return the unit in the origi-

nal carton and packing materials.

115TP Features

•1x 15 Inch heavy-duty aluminum

Low Frequency drivers

•3/4" Plywood construction

•Dual Tuned Front Ports

•Perforated metal speaker grill

•Recessed handles

•Stacking corners

•Dual, parallel wired 1/4" jacks

•Covered in durable carpet

About Impedance

Before you hook up your speaker cabinet, be sure that you understand a little about

impedance. Impedance is the electronic load that the speaker puts on the power amplifier

and is measured in Ohms.

Here is the tricky, yet simple rule of impedance: When two speakers, of equal impedance

are wired in "Parallel" the total imped-

ance is cut in half and when two speak-

ers are wire is “Series” the total imped-

ance is the sum of the speakers individ-

ual impedance.

The 115TP impedance is 8 Ohms. So,

when two 115TP’s are connected

together in parallel, the total impedance

is 4 Ohms. The impedance of your

speaker also has an effect on your

amplifier. In general, the lower the

impedance, the more power your ampli-

fier will put out.

IMPORTANT: There is a minimum safe

impedance so be sure to check the

manufacturer’s recommended imped-

ance for your amplifier to avoid any

damage to your amplifier or voiding

your warranty.

Connecting the 115TP to Your Amplifier

The 115TP connections are made via

1/4” phone jacks located on the rear

panel jack-plate. Be sure to make your

connection with un-shielded speaker

cable. Connect the Amplifier Output to

the speaker Input on the 115TP’s rear

jackplate.

Using the EXTENSION Output

The 115TP provides a convenient

Extension Output for connecting addi-

tional speaker cabinets in parallel. Be

sure to read the section above on

impedance to insure a proper hook up

with your amplifier. Follow the steps

below to connect two 115TP’s using the

Extension Output. Connect the

Amplifier Output to the Input of the first

115TP. Now, connect the Extension

Output to the Input of the second

115TP.

115TP BASS CABINET

150 WATTS

Hartke

8 EXTENSION

INPUTS

MADEINCHINA

SERIALNUMBER

HartkeSystems Distributed worldwide by SamsonTechnologies

www.hartke.com

Hartke Systems

Distributed Exclusively by

Samson Technologies Corp.

Hicksville, New York 11802

MODEL 2000

200 WATTS

= 120 WATTS

= 200 WATTS

CAUTION

TOPREVENT SHOCK, DO NOT OPEN. NO USER SERVICE-

ABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.TO PREVENT FIRE OR SHOCK

HAZARD,DO NOT EXPOSE TO RAIN OR MOISTURE.

ASSEMBLEDIN R.O.K.

SERIALNUMBER

115

~AC INPUT

115V/230V50/60Hz

FUSE

5A/250V,180W (115V)

2.5A/250V,450W (230V)

SPEAKER OUTPUTS

ONOFF

HPF

EFFECT

SEND

RETUIRN

Connecting the 115TP

115TP BASS CABINET

150 WATTS

Hartke

8 EXTENSION

INPUTS

MADEINCHINA

SERIALNUMBER

HartkeSystems Distributed worldwide by SamsonTechnologies

www.hartke.com

115TP BASS CABINET

150 WATTS

Hartke

8 EXTENSION

INPUTS

MADEINCHINA

SERIALNUMBER

HartkeSystems Distributed worldwide by SamsonTechnologies

wwwhartke com

Hartke Systems

Distributed Exclusively by

Samson Technologies Corp.

Hicksville, New York 11802

MODEL 2000

200 WATTS

= 120 WATTS

= 200 WATTS

CAUTION

TOPREVENT SHOCK, DO NOT OPEN. NO USER SERVICE-

ABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.TO PREVENT FIRE OR SHOCK

HAZARD,DO NOT EXPOSE TO RAIN OR MOISTURE.

ASSEMBLEDIN R.O.K.

SERIALNUMBER

115

~AC INPUT

115V/230V50/60Hz

FUSE

5A/250V,180W (115V)

2.5A/250V,450W (230V)

SPEAKER OUTPUTS

ONOFF

HPF

EFFECT

SEND

RETUIRN

Hartke 115TP Specifications

Type Tuned, Tube-Port Enclosure

Impedance (Ohms) 8 Ohms Impedance

Power Handling 150 Watts RMS Power Handling

Driver 1 Hartke 15TP8 Special Design,

Aluminum 15", 8 ohm, 200 watt

drive unit

SPL 96dB @ 1W/1M

Frequency Response 40Hz - 2.5kHz

Inputs 1/4-inch phone jack

Extension Output 1/4-inch phone jack

Weight 51 lbs . (23.13 kg)

Dimensions Height:24" (609.6 mm)

Width: 24" (609.6 mm)

Depth: 15" (381 mm)

Specifications

Distributed Worldwide Exclusively by:

Samson Technologies Corp.

575 Underhill Blvd.

P.O. Box 9031

Syosset, NY 11791-9031

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: 516-364-3888

www.samsontech.com

Hartke

Table des matières

Autres manuels Hartke Enceinte

Hartke

Hartke PRO 2100 Manuel utilisateur

Hartke

Hartke 115XL Manuel utilisateur

Hartke

Hartke AK410 Manuel utilisateur

Hartke

Hartke VX1508 Manuel utilisateur

Hartke

Hartke PRO 1800 Manuel utilisateur

Hartke

Hartke VX115 Manuel utilisateur

Hartke

Hartke Hydrive HX115 Manuel utilisateur

Hartke

Hartke Hydrive HX115 Manuel utilisateur

Hartke

Hartke 410TP Manuel utilisateur

Hartke

Hartke Bass Enclosure VX410 Manuel utilisateur

Hartke

Hartke PRO 2200 Manuel utilisateur

Hartke

Hartke 210XL Manuel utilisateur

Hartke

Hartke 2.5xl Manuel utilisateur

Hartke

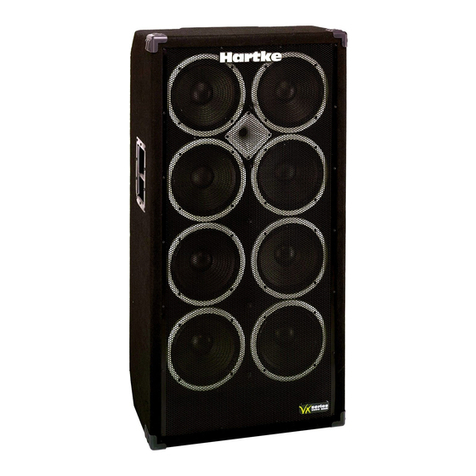

Hartke VX810 Manuel utilisateur
