Harman JBL STUDIO 2 6IW Manuel utilisateur

STUDIO 2 6IW, STUDIO 2 8IW, STUDIO 2 55IW

In-Wall Architectural Loudspeaker

Instruction Manual

2JBL Studio 2 In-Wall Architectural Loudspeaker

Instruction Manual

English

ABOUT JBL®IN-WALL SPEAKERS

For more than 68 years, JBL®engineers have been involved in

every aspect of music and ﬁlm recording and reproduction, from live

performances to the recordings you play on-the-go and in your home,

car or ofﬁce. We’re conﬁdent that the JBL system you have chosen will

provide every note of enjoyment you expect – and that when you think

about purchasing additional audio equipment, you will once again choose

JBL products.

IN-WALL LOUDSPEAKER HIGHLIGHTS

• Long-throw woofers with rubber surrounds provide high output with

low distortion.

• 1-inch (25mm) CMMD Lite tweeter with an integrated waveguide

provides optimized response both on and off axis.

• High-order crossover network delivers accurate timbre reproduction.

PRODUCT REGISTRATION

Please take a moment to register your product on our Web site at

www.jbl.com. You’ll enable us to keep you posted on our latest

advancements and help us to understand our customers and build

products that meet their needs and expectations.

BOX CONTENTS

Your JBL in-wall loudspeaker box should contain the following items:

1 x JBL in-wall loudspeaker

1 x grille

1 x extra scrim cloth for grille

1 x mounting template

1 x instruction manual

UNPACKING THE SPEAKER

Carefully unpack the speaker. If you suspect damage from transit, report

it immediately to your dealer and/or delivery service. Keep the shipping

carton and packing materials for future use.

INSTALLATION CONSIDERATIONS

Your new JBL loudspeakers have been engineered to provide extremely

accurate performance. However, any speaker’s ultimate performance

will be affected by the speaker’s placement in the listening room and

the acoustics of the room. Not all listening spaces can accommodate the

ideal conditions of these two factors. Therefore, careful attention to the

placement of your JBL in-wall loudspeakers will have a signiﬁcant impact

on the general performance of the loudspeakers.

DOCUMENTATION CONVENTIONS

This document contains general safety, installation and operation

instructions for the JBL STUDIO 2 6IW, 8IW and 55IW in-wall

loudspeakers. It is important to read this document before

attempting to use this product. Pay particular attention to:

WARNING: Calls attention to a procedure,

practice, condition or the like that, if not correctly

performed or adhered to, could result in injury or

death.

CAUTION: Calls attention to a procedure, practice, condition

or the like that, if not correctly performed or adhered to,

could result in damage to or destruction of part of or the

entire product.

Note: Calls attention to information that aids in the installation or

operation of the product.

JBL Studio 2 In-Wall Architectural Loudspeaker

Instruction Manual

English

LOUDSPEAKER PLACEMENT FOR DISTRIBUTED

SOUND

• Since distributed sound is general sound throughout an area, place

the loudspeakers as uniformly as possible for even sound coverage

throughout the area.

• Place the left and right loudspeakers roughly the same distance from

the primary listener locations.

• To avoid “hot spots” where the sound is too loud, plan to use more

loudspeakers, with each set to play at a lower volume.

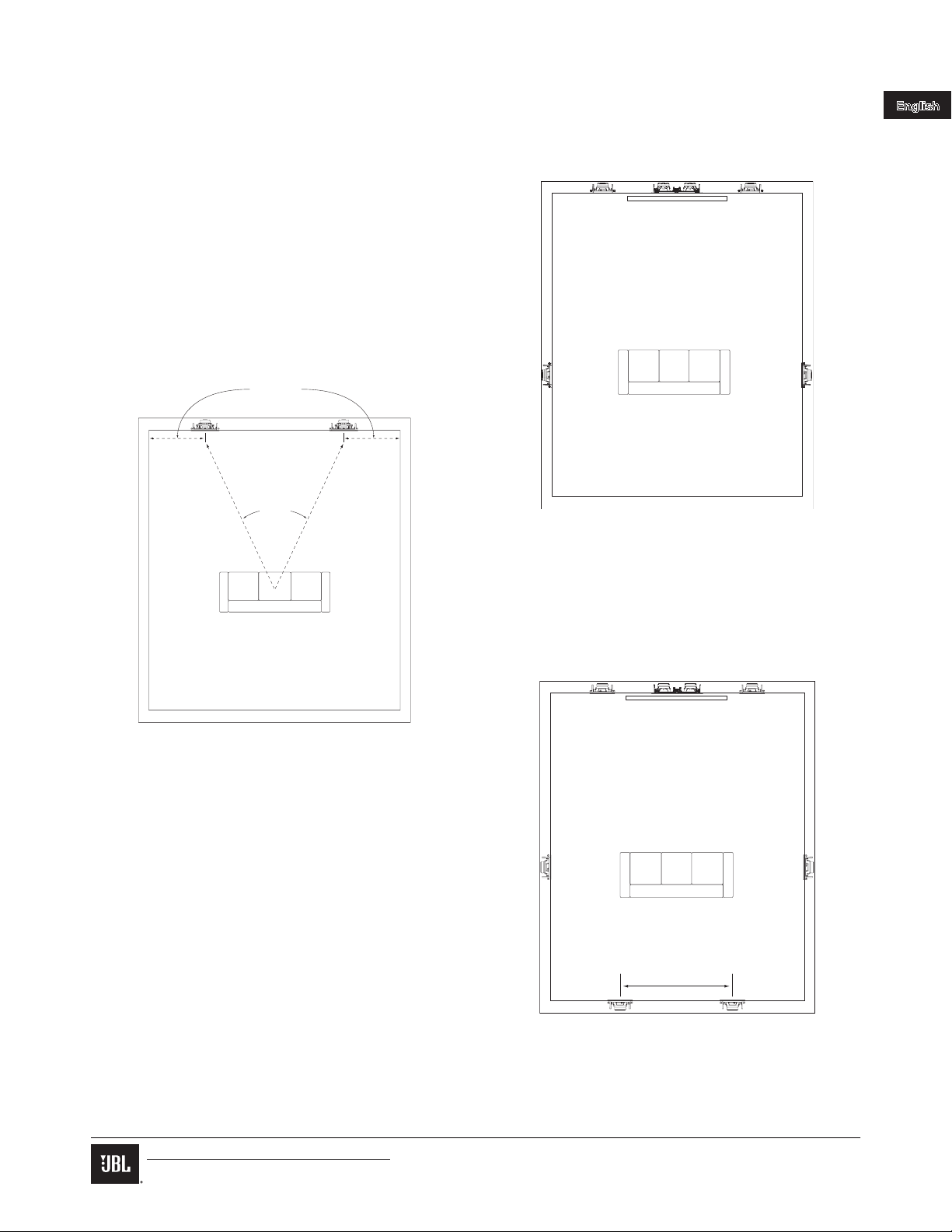

LOUDSPEAKER PLACEMENT FOR TWO-CHANNEL

STEREO

Place the left and right loudspeakers the same distance from the primary

listening area (or as close to the same distance as possible). The distance

from each speaker to its nearest side wall should also be as close to the

same distance as possible.

Equal

Distance

Equal

Distance

Left

Speaker Right

Speaker

Ideally, the distance between the left and right loudspeakers should be

slightly less than their distance from the primary listening area.

LOUDSPEAKER PLACEMENT FOR HOME THEATER

The front left and front right loudspeakers should be located on either side

of the video display, with their tweeters as close to ear level as possible.

• The front left and front right loudspeakers should be relatively close

to the sides of the video display. For example, front left and front right

loudspeakers used with a 50-in (1.3m) video display should generally

not be more than 80 in (2m) apart.

• The center loudspeaker should be aligned with the center of the

video display. Its tweeter should be no more than 2 ft (0.6m) above or

below the tweeters of the front left and front right speakers.

• The JBL HDI waveguide will maintain even sound dispersion and a

high-performance listening experience even when the front in-wall

loudspeakers are installed above ear-level. This permits more ﬂexible

speaker placement during installation.

5.1-Channel Speaker Placement

• In a 5.1-channel system, the surround left and surround right

loudspeakers should be located to the sides of the main listening

area, 5 ft – 7 ft (1.5m – 2.1m) from the ﬂoor.

Front Left Front RightCenter

Video Display

Surround

Left Surround

Right

7.1-Channel Speaker Placement

• In a 7.1-channel system, the surround left and surround right

loudspeakers should be located directly to the sides of the main

listening area, 5 ft – 7 ft (1.5m – 2.1m) from the ﬂoor.

• In a 7.1-channel system, the surround back left and surround back

right loudspeakers should be located on the rear wall, 3 ft – 6 ft

(0.9m – 1.8m) apart and at 5 ft – 7 ft (1.5m – 2.1m) from the ﬂoor.

3' – 6'

(0.9m – 1.8m)

Front Left Front RightCenter

Video Display

Surround

Left Surround

Right

Surround

Back Left Surround

Back Right

4JBL Studio 2 In-Wall Architectural Loudspeaker

Instruction Manual

English

INSTALLATION INSTRUCTIONS

JBL architectural speakers are extremely easy to install. However, if you

are unable to understand and follow the instructions in this manual clearly

and fully, or if you are unsure of your ability to install these loudspeakers

properly, please contact your dealer or a qualiﬁed installer.

WARNING: HARMAN International assumes

no responsibility for improper installation of

hardware or for any personal injuries or product

damages resulting from improper installation or a

fallen loudspeaker.

CONNECTING TO THE AMPLIFIER

CAUTION: REMOVE POWER

You must connect the speaker wires before the speaker is fully

installed. To protect the audio system and yourself from damage

or injury through accidental electrical shorting and surges during

installation, turn all audio system power OFF before beginning the

speaker installation.

Speaker Wire

Use high-quality speaker wire to obtain the best performance from your

JBL in-wall speakers.

• For wire lengths of less than 50 ft (15m), use at least 16-gauge

speaker wire.

• For wire lengths between 50 ft and 100 ft (15m – 30m), use at least

12-gauge speaker wire.

• For wire lengths of greater than 100 ft (30m), use at least 10-gauge

speaker wire.

Note: All speaker wires must comply with all local building and safety

codes for use in in-wall applications.

Making Connections

Connect each channel’s positive (+) terminal on the back of the ampliﬁer

or receiver to the positive (red) terminal on the corresponding speaker;

connect each channel’s negative (–) terminal on the back of the ampliﬁer

or receiver to the negative (black) terminal on the corresponding speaker.

Do not reverse polarities (that is, do not connect + to –, or – to +) when

making connections. Doing so will cause poor imaging and diminished

bass response.

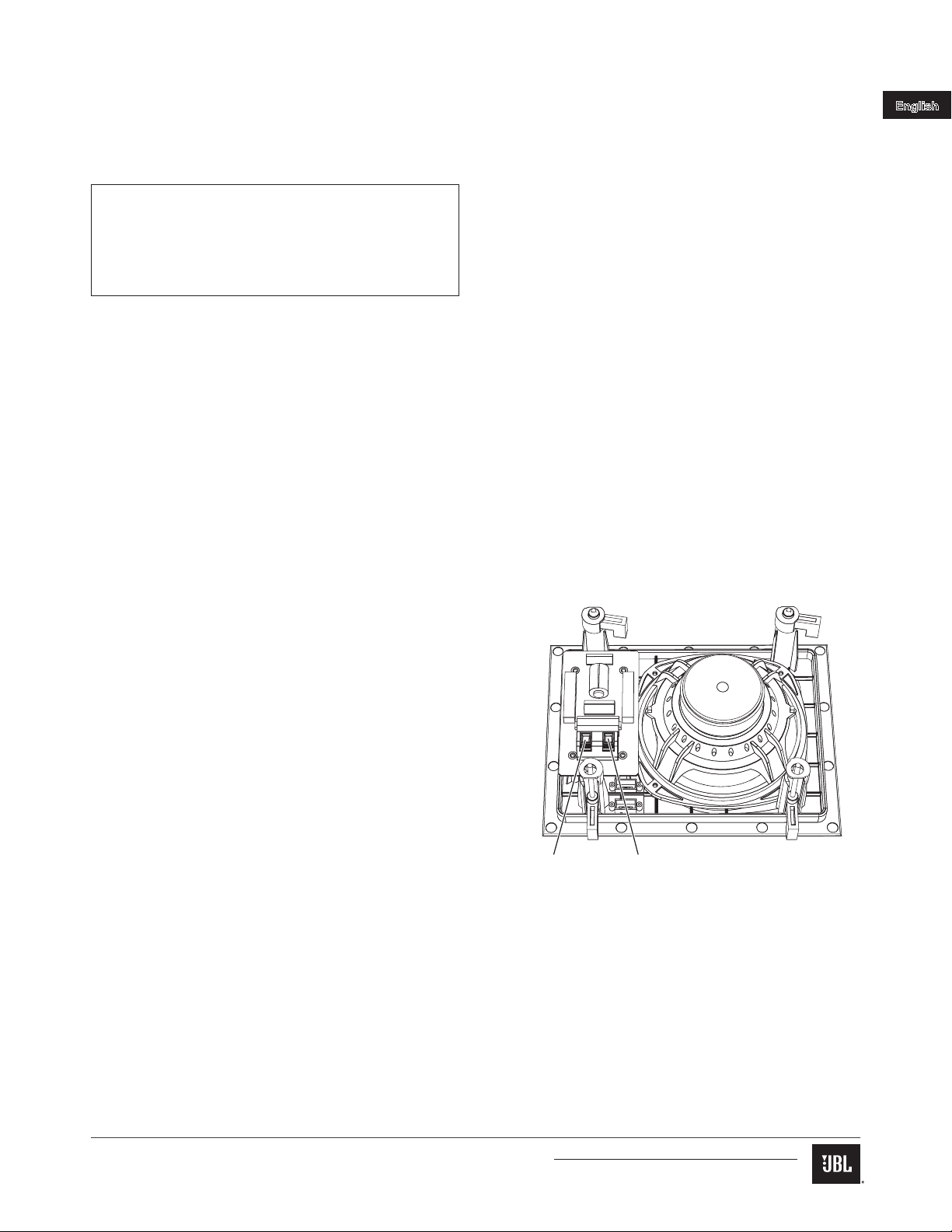

Negative Terminal

(Black)

Positive Terminal

(Red)

Press down on the post to open the hole; insert the bare end of the wire

into the hole and release the post to secure the wire.

CAUTION: To avoid short circuits that may damage your

equipment, be certain that positive and negative wire strands do

not touch each other and do not touch metal parts such as the

speaker frame.

JBL Studio 2 In-Wall Architectural Loudspeaker

Instruction Manual

English

MOUNTING THE SPEAKERS

For New Construction

If you wish to pre-install a rough-in frame for the speakers before

the drywall is installed in new construction, you will need to purchase

the correct rough-in frame kit for your loudspeaker model from your

authorized JBL dealer. Detailed mounting instructions are supplied with

the rough-in kit. After the drywall is installed, follow the installation

instructions in For Existing Construction, below.

For Existing Construction

Note: The installation procedure is the same for all models covered by

this manual.

1. Ensure that the drywall, plywood or other wall material is 1/2" – 2"

(13mm – 51mm) thick and capable of withstanding the weight of the

speaker being installed.

Make sure to allow at least 1" (25.4mm) between the edge of the

supplied installation template and any rafters or other obstructions behind

the wall, so the speaker’s locking mechanism will have room to engage

fully. Perform an obstruction survey to be sure that there are no studs,

lengths of conduit, pipes, heating ducts or air returns in the wall cavity

that will interfere with the speaker.

1 "

(25.4mm) 1 "

(25.4mm)

1 "

(25.4mm)

Mounting

Opening

2. Determine the correct speaker location and use the template included

with the speaker to mark the wall material.

3. Cut the drywall along the mark you made in Step 2 to create the

mounting opening.

4. Connect the speaker to the ampliﬁer as explained in Connecting to the

Ampliﬁer, on page 4.

Speaker Clamps in

Ready-to-Mount Position

5. Make sure all four speaker clamps are in their “ready-to-mount”

position.

Speaker Clamps in Ready-to-Mount Position

6JBL Studio 2 In-Wall Architectural Loudspeaker

Instruction Manual

English

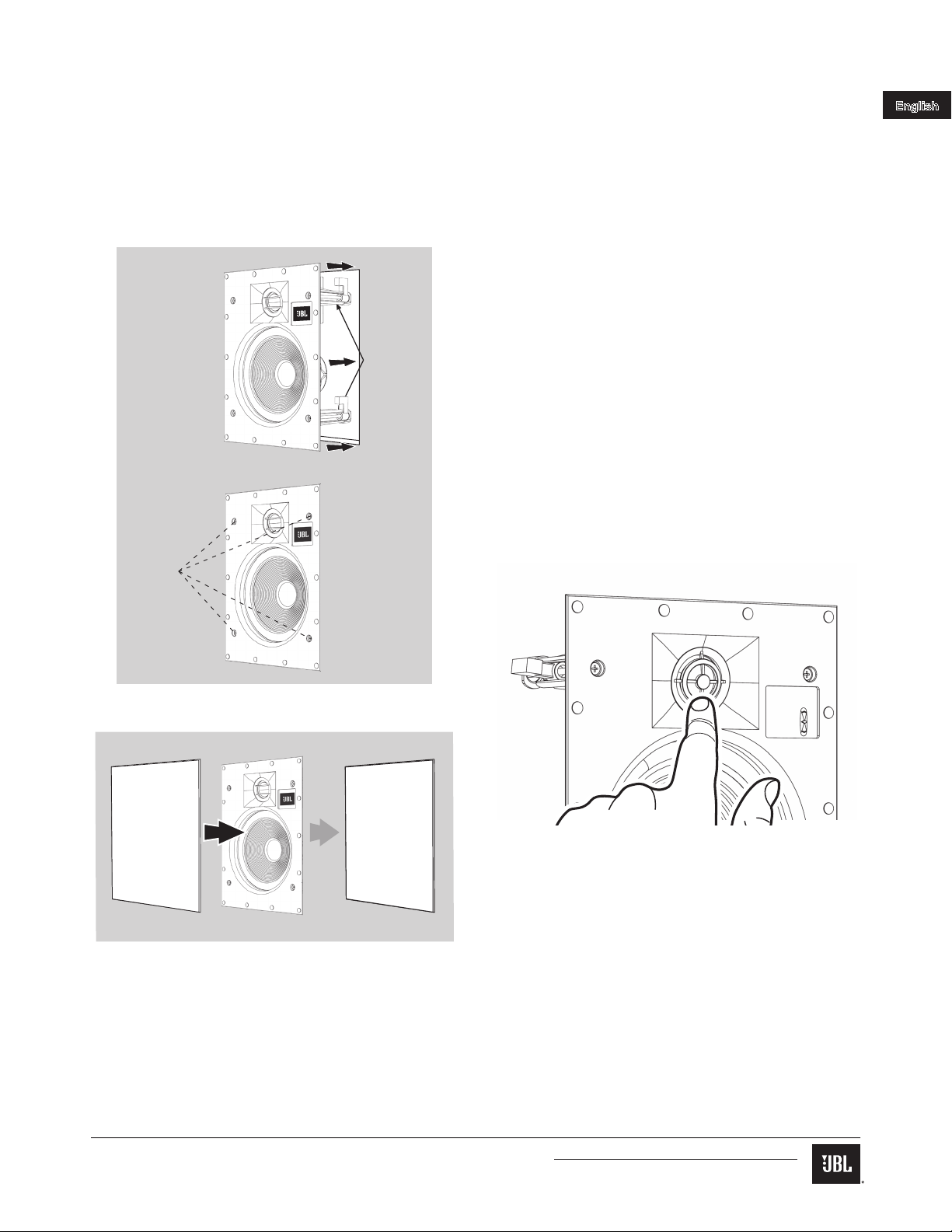

6. Insert the speaker straight into the mounting opening. Tighten the

speaker clamp screws on the front of the speaker bafﬂe. The speaker

clamps will automatically rotate into position and begin clamping the

speaker.

• When you notice resistance on the screws the speaker has been

clamped successfully.

IMPORTANT: Always use low-torque settings. NEVER over-

tighten the clamp screws

Insert Speaker

Straight Into

Mounting Cut-Out

All Clamps

Inside

Mounting

Cut-Out

Tighten

Clamping

Screws

7. Attach the supplied grille. Powerful magnets in the speaker frame will

securely hold the grille in place.

Attach Supplied Grille

Painting the Grille

JBL architectural loudspeaker grilles can be painted to match any décor.

If you wish to change the grille’s color, its satin ﬁnish will function as a

primer coat. For the best results follow this procedure:

1. Gently remove the scrim cloth from the back side of the grille before

painting.

2. Use a high-quality spray paint and apply a thin coat of color. Ensure

that the grille perforations remain free of paint. Filling them with

paint will diminish the speaker’s sound quality. If any perforations are

plugged, use compressed air to blow the paint out of the perforations.

Note: If you ﬁnd any grille perforations that are plugged with paint after

the paint has dried, carefully use a straight pin or sewing needle to

remove the paint.

3. We have included replacement scrim cloths. After the paint has dried,

apply a light coat of spray adhesive to the inside of the perforated grille

and attach a new scrim cloth. IMPORTANT: Never spray adhesive on the

cloth.

ADJUSTMENTS

ADJUSTABLE ANGLE TWEETER

The JBL Studio 2 in-wall speaker models allow you to adjust the angle

of the tweeter. To change the angle, press on the tweeter’s outer ring

as shown in the illustration below. Be careful not to touch the tweeter

diaphragm or suspension.

HIGH-FREQUENCY LEVEL CONTROL

The High-Frequency Level control lets you ﬁne-tune the speaker’s high

frequency output to compensate for various acoustical environments. The

control has three settings:

+: Increases high-frequency output. Set the switch to this position if

the room has many features that absorb high-frequency sound energy,

such as thick carpeting, drapes and fabric-covered furniture.

0: Normal high-frequency output. Set the switch to this position for

most installations.

–: Decreases high-frequency output. Set the switch to this position if

the room has many features that reﬂect high-frequency sound energy,

such as large uncovered windows, bare tile ﬂoors and large expanses of

bare walls, or if the speakers are used without grilles.

JBL Studio 2 In-Wall Architectural Loudspeaker

Instruction Manual

English

EXCESSIVE OUTPUT LEVELS

Your JBL loudspeakers feature custom-designed transducers and high-

quality network components featuring high-order ﬁlters with steep cutoffs

that reduce the potential of damage to individual speaker drivers and

help the loudspeakers maintain their performance even under extreme

operating conditions. However, all loudspeakers have limits when it comes

to continuous playback. To extend these limits, avoid playback at volume

levels that result in distorted or strained sound.

OBTAINING SERVICE

To obtain service, contact an authorized JBL dealer. Refer to Limited

Warranty, below for more information.

DIMENSIONS

Mounting Opening

Dimensions

Mounting

Depth

Overall Dimensions

(w/grille)

STUDIO 2

6IW

(H x W): 9-13/16" x

7-9/32" (249mm x 185mm)

3-19/32" (91mm) (H x W): 10-7/8" x 8-11/32"

(276mm x 212mm)

STUDIO 2

8IW

(H x W): 11-15/16" x 8-15/16"

(303mm x 227mm)

3-13/16" (97mm) (H x W): 13" x 10"

(330mm x 254mm)

STUDIO 2

55IW

(H x W): 14-1/8" x 6-13/32"

(359mm x 163mm)

3.0" (76mm) (H x W): 15-1/8" x 7-13/32"

(384mm x 188mm)

Dimensions are subject to change without notice.

For complete performance speciﬁcations, please go to the JBL Web site:

www.jbl.com.

LIMITED WARRANTY

In the USA, this product is covered by a limited 5-year warranty. Other

countries may have different product warranty periods, which are

governed by local regulations. For more information about product

warranty please visit www.jbl.com or contact your dealer.

HARMAN International Industries, Incorporated

8500 Balboa Blvd., Northridge, CA 91329

JBL is a trademark of HARMAN International Industries, Incorporated, registered in

the United States and/or other countries.

Features, speciﬁcations and appearance are subject to change without notice.

For questions, assistance or additional information concerning any of our products,

call us at: (800) 336-4525.

For technical support, submit your detailed inquiry to:[email protected].

www.jbl.com

TR01811_B

Incredible sound. Invisible proﬁle. Inspired aesthetic.

The JBL Studio 2 architectural series premium loudspeakers represent best in class

architectural audio. A PolyPlas®woofer cone, CMMD@ lite tweeter and advanced crossover

network ensure low distortion and accurate sound reproduction, and the pivoting, adjustable-

level tweeter can compensate for any acoustical room conditions. The proprietary JBL High

Deﬁnition Imaging (HDI) waveguide ensures that the loudspeaker ﬁlls the room with cinema-

quality sound from any location – even high elevations or off-axis listening locations. The

JBL Studio 2 architectural series features a nearly invisible, paintable, zero-bezel proﬁle that

blends into any environment. The sturdy, reliable design features the XL-2 bracket, suitable

for installation in any wall or ceiling up to 2" thick. The series is engineered to match the

award-winning JBL Studio 2 component loudspeakers, and is perfect for a complete custom

home theater or whole-house audio applications.

Features

Sound Inspired by JBL’s legendary M2

Master Reference Monitor

Paintable, nearly invisible zero-bezel

magnetic grille

Superior XL-2 installation bracket

Pivoting Tweeters

Tweeter Audio Level Adjustment

STUDIO 2 SERIES

Premium Architectural Loudspeakers

Features and Beneﬁts

Sound Inspired by JBL’s legendary M2 Master Reference Monitor

High Deﬁnition Imaging (HDI) waveguide technology takes its cues from the legendary JBL M2 Master Reference Monitor. Computer-optimized driver positioning and

network integration result in ideal performance and lifelike soundstage imaging throughout the entire room, regardless of positioning. Proven acoustic superiority

through rigorous testing and real-world evaluation.

Paintable, nearly invisible zero-bezel magnetic grille

Speakers are nearly invisible, seamlessly blending into wall or ceiling architecture. Equally pleasing to audiophiles and interior designers as full-dispersion speakers can

be fully painted and integrated into any conﬁguration or setup. Engineered for the custom installer with a whole-room, seamless audio and visual design in mind.

Superior XL-2 installation bracket

Sturdy, reliable design ﬁt for easy installation in walls up to a full 2" thick. Specialty mechanical grip designed to minimize vibration regardless of installation format.

Handles custom installation better than typical 1-1/2" bracket designs.

Pivoting Tweeters

Pivoting tweeters let you target audio directly to your desired listening location. Install anywhere it suits you – even in high walls or ceilings – and adjust as needed.

The apex of intelligent sound design and imaging.

Tweeter Audio Level Adjustment

Fine-tune high-frequency highs and lows up to 3dB to suit room conditions and personal taste. Take full room audio immersion one step further by perfecting the

details. Compensate for any acoustical conﬁguration.

What’s in the box:

Main Unit •Magnetic Grille •Owner’s Manual •Printed Mounting Template •Warranty Card

Feature Studio 2 6IC Studio 2 6ICDT Studio 2 8IC Studio 2 6IW Studio 2 8IW Studio 2 55IW Studio 2 88IW

Impedance: 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms

Recommended

Amplier Power: 80W 80W 100W 80W 100W 120W 150W

Frequency Response: 38Hz - 20kHz 38Hz - 20kHz 30Hz - 20kHz 38Hz - 20kHz 30Hz - 20kHz 40Hz - 20kHz 30Hz - 20kHz

Crossover Frequency: 2.5kHz 3.7kHz 2.1kHz 3.0kHz 2.8kHz 2.7kHz 2.8kHz

Loudspeaker

Sensitivity: 86dB 2.83V @ 1m 86dB 2.83V @ 1m 88dB 2.83V @ 1m 86dB 2.83V @ 1m 88dB 2.83V @ 1m 88dB 2.83V @ 1m 88dB 2.83V @ 1m

Low Frequency Driver

Size and Material

6-1/2" (165mm)

Polyplas®Woofer

6-1/2" (165mm)

Polyplas®Woofer

8" (203mm) Polyplas®

Woofer

6-1/2" (165mm)

Polyplas®Woofer

8" (203mm) Polyplas®

Woofer

Dual 5-1/4" (133mm)

Polyplas®Woofer

8" (203mm) Polyplas®

Woofer

High Frequency

Driver Size and

Material

1" (25mm) Pivoting

CMMD®Lite Tweeter

2 x 3/4" (19mm)

Pivoting CMMD®

Lite Tweeter

1" (25mm) Pivoting

CMMD®Lite Tweeter

1" (25mm) Pivoting

CMMD®Lite Tweeter

1" (25mm) Pivoting

CMMD®Lite Tweeter

1" (25mm) Pivoting

CMMD®Lite Tweeter

1" (25mm) Pivoting

CMMD®Lite Tweeter

High Frequency Control

+/- 3dB +/- 3dB +/- 3dB +/- 3dB +/- 3dB +/- 3dB +/- 3dB

Cutout Dimensions: (D) 8" (203mm) (D) 8" (203mm) (D) 9-5/8" (244mm)

(H x W) 9-13/16" x

7-9/32"

(249mm x 185mm)

(H x W) 11-15/16" x

8-15/16"

(303mm x 227mm)

(H x W) 14-1/8" x

6-13/32"

(359mm x 163mm)

(H x W) 20-1/16" x 9"

(510mm x 227mm)

Grille Finished

Dimensions: (D) 9-3/32" (231mm) (D) 9-3/32" (231mm) (D) 10-11/16"

(272mm)

(H x W) 10-7/8"

x 8-11/32"

(276mm x 212mm)

(H x W) 13" x 10"

(330mm x 254mm)

(H x W) 15-1/8" x

7-13/32"

(384mm x 188mm)

(H x W) 21-3/16" x 10"

(538mm x 254mm)

Mounting Depth: 4-11/16" (119mm) 4-11/16" (119mm) 5-13/64" (132mm) 3-19/32" (91mm) 3-13/16" (97mm) 3.0" (76mm) 3-13/16" (96mm)

Compatible Wall

Material Thickness:

0.5" – 2.0"

(12mm – 51mm)

0.5" – 2.0"

(12mm – 51mm)

0.5" – 2.0"

(12mm – 51mm)

0.5" – 2.0"

(12mm – 51mm)

0.5" – 2.0"

(12mm – 51mm)

0.5" – 2.0"

(12mm – 51mm)

0.5" – 2.0"

(12mm – 51mm)

Shipping Units of

Measure: Each Each Each Each Each Each Each

Warranty: 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years

Pre-Construction

Bracket Part number PCK6C PCK6C PCK8C PCK6 PCK8 PCK55 -

Back Box Part

Number FBB6C FBB6C FBB8C FBB6 FBB8 FBB55 -

HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

Features, speciﬁcations and appearance are subject to change without notice.

HARMAN International Industries, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

Premium Architectural Loudspeakers

STUDIO 2 SERIES

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Harman Intervenants

Harman

Harman JBL PRX600 Series Manuel utilisateur

Harman

Harman JBL 7 Series Manuel utilisateur

Harman

Harman JBL BOOMBOX3 Manuel utilisateur

Harman

Harman AXYS TUNNEL Intellivox ADC-V90 Manuel utilisateur

Harman

Harman JBL Moto Mods SOUNDBOOST Manuel utilisateur

Harman

Harman JBL PROFESSIONAL PD Series Manuel utilisateur

Harman

Harman JBL WIND Manuel utilisateur

Harman

Harman JBL PARTYBOX 710 Manuel utilisateur

Harman

Harman JBL CINEMA SB110 Manuel utilisateur

Harman

Harman JBL Link Portable Manuel utilisateur

Harman

Harman JBL Partybox 310 Manuel utilisateur

Harman

Harman JBL Club 34F Manuel utilisateur

Harman

Harman JBL PULSE Manuel utilisateur

Harman

Harman kardon Citation 200 Manuel utilisateur

Harman

Harman JBL Charge 3 Manuel utilisateur

Harman

Harman SB400OM Manuel utilisateur

Harman

Harman Infinity REF-075tx Manuel utilisateur

Harman

Harman JBL PARTYBOX 100 Manuel utilisateur

Harman

Harman JBL PARTYBOX310 Manuel utilisateur

Harman

Harman JBL STAGE 402 Manuel utilisateur

Harman

Harman JBL CLIP3 Manuel utilisateur

Harman

Harman Axys ABF-260/100W PA6 V0 Low Profile Manuel utilisateur

Harman

Harman JBL CINEMA SB160 Manuel utilisateur

Harman

Harman JBL QUANTUM ONE Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
