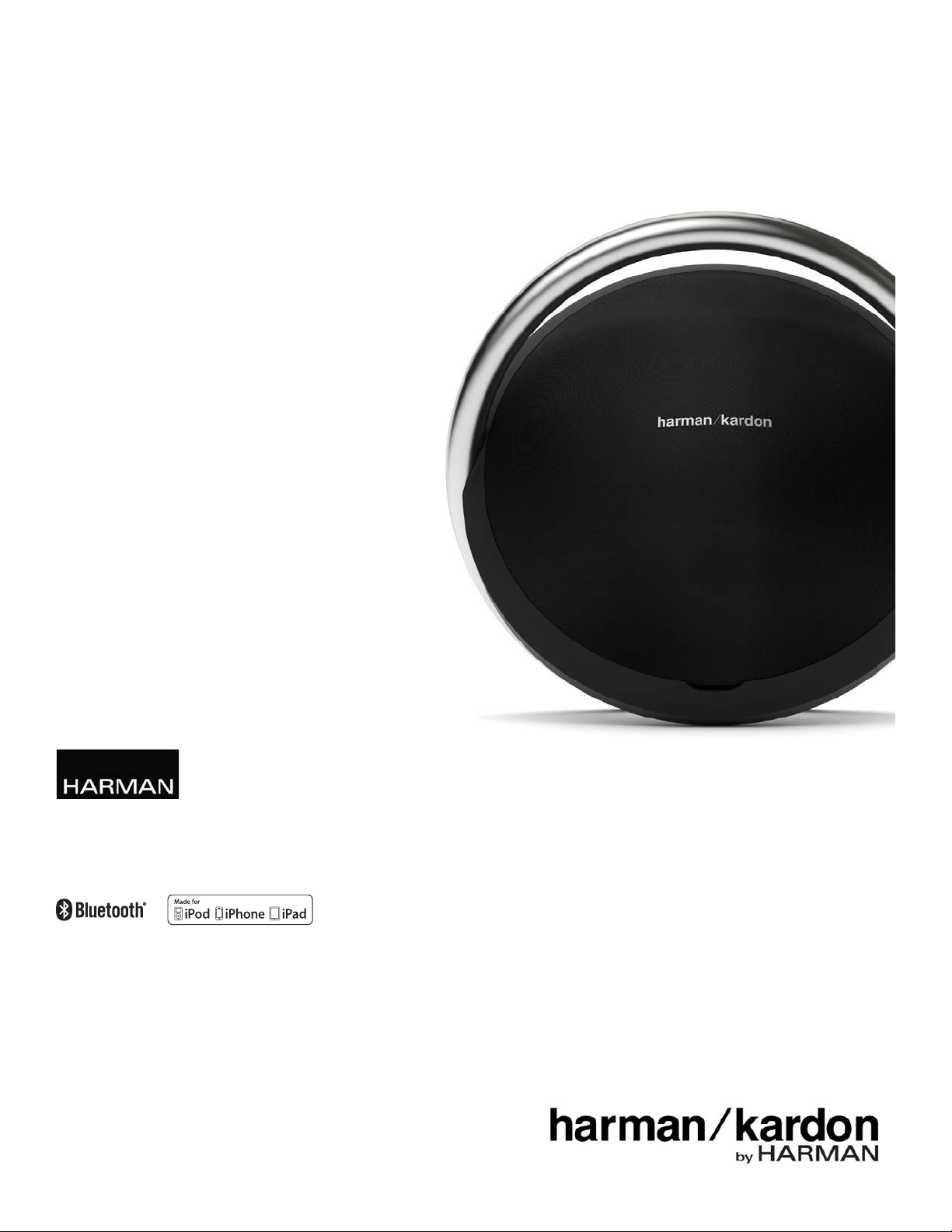

Onyx

Wireless Speaker System with Rechargeable Battery

Owner’s Manual

Table of Contents

Onyx

INTRODUCTION 3

DESCRIPTION AND FEATURES 3

DESIGN AND PERFORMANCE 3

WIRELESS CONNECTION 3

INCLUDED ITEMS 3

CONTROLS AND CONNECTIONS 3

ONYX TOP PANEL CONTROLS 3

ONYX REAR PANEL CONNE CTIONS AND CONTROLS 4

SPEAKER PLACEMENT 4

CONNECTIONS 4

POWER CONNECTIONS 4

SOURCE OPTIONS 4

WIFI CONNECTION 4

BLUETOOTH CONNECTION 4

WPS CONNECTION 5

IOS WIRELESS WIFI SHARING 5

IOS WIFI SHARING WITH CABLE 5

ADHOC MODE 6

OPERATION 6

SWITCHING ON AND OFF 6

ADJUSTING VOLUME 6

PLAYING MUSIC THROUGH BLUETOOTH 6

PLAYING MUSIC THROUGH WIFI 7

PLAYING MUSIC THROUGH AIRPLAY® 7

PLAYING MUSIC THROUGH AN AUXILIARY DEVICE 7

CONNECTING THROUGH DLNA 7

H/K REMOTE 7

LED INDICATIONS 7

TROUBLESHOOTING 8

SPECIFICATIONS 9

Introduction

Onyx

Introduction

Thank you for purchasing the Harman Kardon Onyx. HK Onyx is a premium wireless

speaker with an iconic design and comes with a rechargeable inbuilt battery that allows

you to stream music from any smart phone, tablet or other wireless devices through

Bluetooth®, AUX,Wi-Fi, AirPlay® and DLNA®.

HK Onyx is a 4-speaker, advanced acoustic platform and its dual passive radiators

deliver a truly fantastic sound experience with a balanced soundstage and powerful

bass response.The Harman Kardon Remote app simplifies the setup and lets you stream

all your audio content.With its simple setup, quality sound, and easy portability, the HK

Onyx is an essential audio component for every house.

browse www.harmankardon.com for complete details.

Description and Features

Design and Performance

• HK Onyx is designed with steel and leather.

• Dual passive radiators provide deep bass.

• The built-in rechargeable battery offers up to 6 continuous hours of

playtime.

• HK Onyx is compatible with Harman Kardon Remote app.

Wireless Connection

Wireless connectivity allows you to place the speaker in any part of the room without

having to worry over friends and family tripping over cables. The HK Onyx supports

almost every popular wireless device via Bluetooth orWi-Fi connections.

Included Items

HK Onyx speaker system complete accessories consist of:

• HK Onyx speaker

• One AC power adaptor

• Regional power cable

• Quick Start Guide

IMPORTANT: If any included accessory is missing, or if any part of your HK

Onyx system fails to operate properly, contact your dealer immediately.

Controls and Connections

This section will help you identify the controls and connections that are provided on the

Onyx top and rear panels.

Onyx Top Panel Controls

The following control buttons are available on the top panel of the HK Onyx:

• Power button

• Volume Controls

• Bluetooth

• Wi-Fi

• Battery level indicator

Power Button

This button when pressed turns the HK Onyx ON or OFF and has an LED to indicate the

power mode. The three power modes are:

• Operational mode

• Sleep mode

• OFF mode

When the system is in OFF mode (Power LED is not lit), touch the power button for more

than 2 seconds to switch on the system. The power LED turns white when the system

is turned on.

While the unit is powered on, touch the power button for at least one second to check

the battery status.The 5 volume LEDs will light up to show the battery status.

One LED lit indicates 20% battery life; two LEDs indicate 40% battery life, and so on.

When all 5 LEDs are lit, the internal battery is fully charged.

To turn the speaker off, touch the Power button for more than 2 seconds.

The speaker will go into power saving mode automatically after 10 minutes if no music

stream is detected. The power LED will turn amber and all other LEDs will be turned off.

To turn the speaker on, press the power button for more than 2 seconds.

Onyx Speaker Placement

NOTE: When the system gets into Operational mode either from the Sleep/

Standby mode or OFF mode, the last used settings will be restored –

volume, source, Wi-Fi settings.volume, source, Wi-Fi settings.

Volume Controls

These touch-sensitive buttons control the volume of the unit. These buttons are touch-

sensitive. A gentle finger touch can increase or decrease the volume.

• Press the (-) button to decrease the volume

• Press the (+) button to increase the volume

Bluetooth

This button helps you pair your system with other devices. The system enters into

Bluetooth pairing mode automatically when it is turned on for the first time. If you

want to switch to different wireless connection when you are already connected to a

source, press and hold the Bluetooth button for more than 4 seconds to put the speaker

into pairing mode again.

NOTE: The speaker’s Bluetooth device name is HK Onyx BT and password is

0000.

Wi-Fi

This button is used to connect your HK Onyx to yourWi-Fi network.The use of the button

depends on the set up method of your system.

Battery Level Indicator

This LED on HK Onyx indicates the status of the battery.

Onyx Rear Panel Connections and Controls

The connections and controls on the rear panel of the HK Onyx are:

1. USB Port ( For charging and Wi-Fi setup with iOS devices)

2. Power DC input

3. Aux input

4. WPS

USB Port (Charger)

The USB charger port can be used to charge most of the devices when the HK Onyx is

connected to the AC adapter in Operational, Sleep, or OFF modes.

Power DC Input

Connect the AC power adapter to this port to charge the inbuilt battery.

Aux Input

The speaker includes a 3.5 mm stereo mini analog auxiliary input. The system

automatically detects an audio signal from the auxiliary input.

WPS

The Wi-Fi Protected Setup (WPS) helps your device establish a secure wireless network

easily to anyWPS enabled router.

Speaker Placement

The HK Onyx being wireless and portable can be placed at a place of your choice and

convenience.

You can place it anywhere in the room for the best sound experience.

Connections

This section helps you understand how to connect your device correctly to a power

source, and different input sources.

Power Connections

To charge the inbuilt battery, connect the AC adapter to a 110/220 volt power source.

Source Options

The speaker offers the following source connection options:

• Bluetooth

• Wi-Fi using AirPlay®

• Wi-Fi using DLNA

• Aux Input

Wi-Fi Connection

You can connect your Onyx to Wi-Fi compatible devices through the following options.

• WPS – If you have a WPS-enabled router

• iOS Wireless Wi-Fi sharing – If you have an iPhone or iPad with Bluetooth

• iOS Wi-Fi sharing – If you have an iPhone or iPad and a USB to 30pin or USB

to Lightning cable

• Ad-hoc mode – If you want to set up the speaker from a computer or other

device

Bluetooth Connection

You can connect your Onyx to Bluetooth compatible devices.

• Press the Bluetooth button for more than 4 seconds to enable Bluetooth

pairing mode.

Speaker Placement

Onyx

WPS Connection

Wi-Fi Protected Setup (WPS) is a simple way of getting your speaker to connect to the

desired network.Your router may support WPS.To confirm WPS connection to be active

on your system, look for the logo or the letters‘WPS’on your router.

To activate WPS connection:

• Press the WPS button on your router .

• Press the WPS button on the Harman Kardon Onyx within 1 minute.

The speaker and router will then exchange Wi-Fi settings and connect to each other.

Check your Wi-Fi router manual for compatibility and more information.

iOS Wireless Wi-Fi Sharing

If you have an Apple device, use the following method to connect your Harman Kardon

Onyx to theWi-Fi network:

1. Connect your iPhone, iPad or iPod Touch to the speaker using Bluetooth.

2. Ensure your iPhone, iPad or iPod Touch is connected to your Wi-Fi network.

3. Press the Wi-Fi button on the Harman Kardon Onyx for less than a second.

A pop-up window will be displayed on your iPad, iPhone or iPodTouch with a

message Share Wi-Fi Settings?

4. Press Allow.

The iPhone, iPad or iPod Touch will then share Wi-Fi settings with the Harman Kardon

Onyx and Onyx will be connected to your Wi-Fi network. This takes at least 40 seconds.

Once the Harman Kardon Onyx is connected to the network, the Wi-Fi LED will light

constant white and a sound prompt will be heard.

iOS Wi-Fi Sharing with Cable

If you have an Apple device without Bluetooth connection, use the following method to

connect your Harman Kardon Onyx to the Wi-Fi network:

1. Connect your iPhone, iPad or iPod touch to the speaker using the USB to 30-

pin or USB to Lightning cable provided with your iPhone, iPad or iPod touch.

2. Ensure your iPhone, iPad or iPod touch is connected to your Wi-Fi network.

3. Press the Wi-Fi button on the Harman Kardon Onyx for less than a second.

A pop-up window will be displayed on your iPad, iPhone or iPodTouch with a

message Share Wi-Fi Settings?

4. Press Allow.

The iPhone, iPad or iPod Touch will then share Wi-Fi settings with the Harman Kardon

Onyx and Onyx will be connected to your Wi-Fi network. This takes at least 40 seconds.

Once the HK Onyx is connected to the network, the Wi-Fi LED will light constant white

and a sound prompt will be heard.

To connect using the H/K remote app:

1. Go to the Apple App store or Google Play store

and download the H/ K Remote app.

2. Click + icon on the home screen to add a new device to your net-

work and choose Harman Kardon Onyx from the list.

3. Follow the setup instructions in the app.

Allow

Onyx Operation

Ad-hoc Mode

If you have a Mac or PC computer, or other phone or tablet, use the following method

to connect to the system:

1. Put the Harman Kardon Onyx into Ad-hoc mode by touching

the Wi-Fi button for more than 5 seconds (ensure there

are no USB devices plugged into the USB port).

2. Go to the Wi-Fi Settings page on your Mac, PC or Phone and

connect to the network with the name HK_Onyx*****.

This may take around 40 seconds depending on your device.

3. Open your web browser and enter the IP address as

192.168.1.1 in the address bar of your browser.

The following page will be displayed.

4. Select the name of the Wi-Fi network you want to connect

from the drop-down menu Device Wireless SSID.

5. Enter the password for your network and click Connect.

A warning box will be displayed.

6. Ensure that you have entered the password correctly. If you are not sure,

click Cancel and enter the password again without any mistake.

The Harman Kardon Onyx will then attempt to connect to your Wi-Fi network. If the

connection is successful, the Wi-Fi LED will turn white and the connection successful

tone can be heard.

NOTE: To restore the factory default settings, long press Bluetooth and

Power button in Operational mode.

Operation

Switching ON and OFF

The power button on the top panel of the speaker allows you to set your speaker to any

of the following power modes:

• Operational mode – White constant LED illumination

• Sleep mode – Amber constant LED illumination

• OFF mode – No illumination

To change the power mode:

• Short press - Operational/Sleep mode: show battery status

• Long press - OFF mode: wake up to Operational mode, Operational/Sleep

mode: enter OFF mode

Adjusting Volume

The volume buttons on the top panel allow you to increase or decrease volume. These

buttons are touch-sensitive, allowing volume control with a gentle finger-touch of the

buttons. Adjust volume using the Volume Up (“+”) and Volume Down (“–”) buttons

located on top of the unit.

• Short press - Increase/decrease volume by 1 step

• Press and hold - Increase/ decrease volume continuously (1 step per 0.2

second)

Playing Music through Bluetooth

1. Press the Power button. The LED will illuminate white.

The HK Onyx enters pairing mode the first time it is switched on.

2. If HK Onyx has been paired with any source before, touch

and hold the Bluetooth button for at least 4 seconds.

3. Perform a new device search on your Bluetooth-capable device.

4. Select HK Onyx BT on the device’s pairing list and enter pasword as 0000.

The device will be paired to HK Onyx automatically. If pairing is successful,

the Onyx’s Status LED will change to white.

5. Control playback from your Bluetooth-capable device.

6. You can change the name of the speaker for easy

identification using the H/ K Remote app.

Operation

Onyx

LED State Indication

Power LED White, Constant Operational mode

Amber, Constant Sleep mode

Amber, Regular Flash Low battery in Operational or Sleep mode

White, Flash Twice Factory settings restored

OFF OFF mode

Wi-Fi LED White, Constant Wi-Fi connected (Including connected in Ad-hoc mode)

White, Regular Flash Wi-Fi connecting

White, Flash Twice Wi-Fi info sharing

White, Quick Flash Waiting connecting in Ad-hoc mode

Amber, Constant Wi-Fi connection failed

Amber, Quick Flash WPS PBC mode

Amber, Double Quick Flash, WPS PIN mode

Bluetooth LED White, Constant Bluetooth connected

White, Slow Flash No Bluetooth device connected

Grouped LEDs White, Constant Battery level or volume level

White, Left to Right Rolling Upgrading

White, Constant Last one, Slow Flash Charging per battery levels

OFF Charge complete or no charge.

All LEDs White, Constant for 2 seconds Power ON/OFF

White, Regular Flash Upgrade Failed

Volume +/- LED White, Constant for 5 seconds Volume change or volume slider/button is touched

Playing Music through Wi-Fi

To play music in your Onyx throughWi-Fi:

1. Press the Power button. The LED will illuminate white.

2. Connect to your Wi-Fi network by following the above procedures.

3. If Harman Kardon Onyx is on Wi-Fi network, the

Wi-Fi LED becomes constant white.

4. Control playback from your Wi-Fi enabled device.

Playing Music through AirPlay®

AirPlay®allows you to wirelessly stream audio content from your your Mac or PC,

iPhone, iPad or iPod touch to Harman Kardon Onyx.

• iPhone, iPod touch, or iPad (running iOS version 4.2 or higher)

• MAC or PC running a compatible version of iTunes

Playing Music through an Auxiliary Device

1. Connect the auxiliary device to the Aux-in jack using

a stereo 3.5mm (1/8” auxiliary cable).

2. Press the Power button on top panel of the unit.

3. Control music playback through the auxiliary device.

Connecting through DLNA

DLNA in the HK Onyx helps in sharing audio data over a home network and stream

audio.

H/K Remote

HK Onyx can be operated through the H/K Remote app available in the App Store for

Apple products or Google Play for Android products.You can use the H/K Remote app to

stream music to, and control the HK Onyx through your smart phone or tablet.

LED Indications

The LEDs present on the top panel of HK Onyx indicates the status of the speaker unit.

Refer the table below to get a fair idea on the speaker LED indications.

Onyx Troubleshooting

Problems Solutions

There is no sound coming from the HK Onyx • No power to unit. Make sure that the wall outlet or

power strip has power.

• Make sure that all switches for outlet/power strip are

ON and that all switches for the unit are ON.

• If you have not plugged it to the AC source, make sure

that the battery is charged.

Distortion (static, crackling or hissing sounds) • Audio source or source material may be the problem.

Test the HK Onyx with another source.

• Volume level may be too high from auxiliary-device

output. Check the volume of the source and turn it

down if necessary.

HK onyx emits a loud hum or buzzing noise • Input cable is not plugged in properly. Check the input

cable connection.

• Cable may have problems. Replace the cable.

• It might happen due to ground loop (an unsuitable

connection). Turn the HK Onyx OFF and connect it to

another wall outlet.

HK Onyx unit is not charging • No power to unit. Make sure that your wall outlet or

power strip has power.

• Make sure that all switches for outlet/power strip are

ON and that all switches for the unit are ON.

Troubleshooting

If your Harman Kardon Onyx is not performing the way you think it should, check if the problem is covered in this section before calling your dealer or contacting a Harman Kardon

representative.

Specifications

Onyx

Specifications

Frequency Range 2402MHz – 2480MHz

Frequency Response 60Hz – 20kHz

No of channels 4

Transducers 2 X 3 woofers, 2 X ¾ tweeters, 2 passive radiators

Bi-amplification 4 X 15W

Maximum SPL 95dB @ 1m

Power Requirement 100 – 240 V AC, 50/60 Hz

Power adaptor 19V, 3.4 A

Built-in Battery 11.1V, 2500mAh Lithium

Power consumption 54M Maximum, <1W stand by

Speaker impedance 4 ohm per speaker

Transmitter power <4dBm

Modulation GFSK/ . /4-DPQSK/8-DPSK

Wireless DLNA, Bluetooth, Airplay, 3.0A2DPV 1.3AVRCPv1.5

Dimensions (Dia x W x H) 345mm X 222mm X 325mm

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries,

Incorporated is under license. Other trademarks and trade names are those of their respective owners.

“Made for iPod,”“Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad,

respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its

compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. IPad,

iPhone, iPod, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Made for iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPad (3rd and 4th generation), iPad 2, iPad, iPad mini, and iPod touch (3rd through 5th generation).

Harman Kardon is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. The “beautiful/sound”

logo is a trademark of HARMAN International Industries, Incorporated.

Table des matières

Autres manuels Harman Système de haut-parleurs

Harman

Harman JBL BAR 5.0 MULTIBEAM Manuel utilisateur

Harman

Harman JBL LINK BAR Guide d'installation

Harman

Harman JBL BAR 800 Manuel utilisateur

Harman

Harman JBL CINEMA SB260 Manuel utilisateur

Harman

Harman AMX ACENDO VIBE ACV-2100 Manuel utilisateur

Harman

Harman JBL Horizon Manuel utilisateur

Harman

Harman JBL SCS300.5 Manuel utilisateur

Harman

Harman JBL BAR 9.1 TRUE WIRELESS SURROUND Manuel utilisateur

Harman

Harman JBL BAR 2.1 DEEP BASS MK2 Manuel utilisateur

Harman

Harman JBL BAR 9.1 Manuel utilisateur

Harman

Harman JBL BAR 9.1 Manuel utilisateur

Harman

Harman JBL PROFESSIONAL EON208P Manuel utilisateur

Harman

Harman JBL CINEMA SB261 Manuel utilisateur

Harman

Harman JBL BAR 1300X Manuel utilisateur

Harman

Harman JBL CINEMA SB400 Manuel utilisateur

Harman

Harman JBL CINEMA SB120 Manuel utilisateur

Harman

Harman JBL BAR 2.1 Manuel utilisateur

Harman

Harman JBL BAR 5.1 SURROUND Manuel utilisateur

Harman

Harman JBL BAR 2.0 ALL-IN-ONE MK2 Manuel utilisateur

Harman

Harman JBLBAR300PROBLKEP Manuel utilisateur

Harman

Harman JBL BAR 500 Manuel utilisateur

Harman

Harman JBL CINEMA SB550 Manuel utilisateur

Harman

Harman JBL BAR 500 Manuel utilisateur

Harman

Harman JBL CINEMA SB190 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
