Harken Carbo OneTouch B10HOT Manuel utilisateur

The Harken Carbo OneTouch handle ﬁts most winches; however, always

check the ﬁt in any winch brand to make sure the handle locks and

releases before using.

N15W24983 Bluemound Road • Pewaukee, WI 53072 U.S.A.

Telephone: (262) 691-3320 • Fax: (262) 701-5780

Web: www.harken.com • Email: [email protected]

INSTRUCTIONS

Carbo®OneTouch®Locking Winch Handle

Using the Carbo OneTouch

CAUTION! Before using handle with electric or hydraulic winches,

check to make sure the disconnect rod locks out the motor. To test,

insert handle, stand clear, and push power button. Handle should

NOT spin.

WARNING! Avoid using the handle body for stability or as a hiking

device. The grab bar could accidentally compress, releasing the

handle from the winch and causing injury.

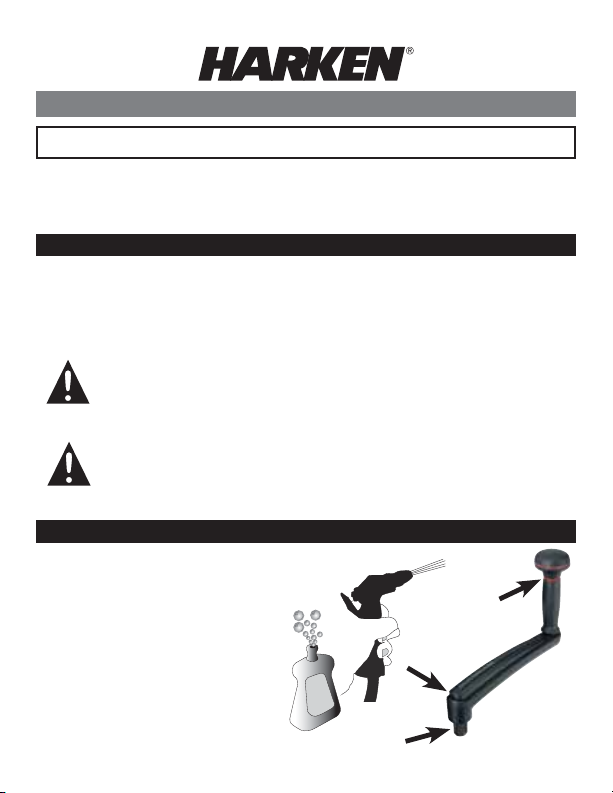

Maintenance

Keep your handle clean and free-running

by frequently ﬂushing with fresh water.

Periodically clean with mild

detergent and water solution.

Squirt into arrowed areas.

Spin grip and knob, depress

grab bar and lock pin

mechanism to distribute

soap solution evenly.

Flush with fresh water.

Warranty

Printed in USA. 5069/1-15

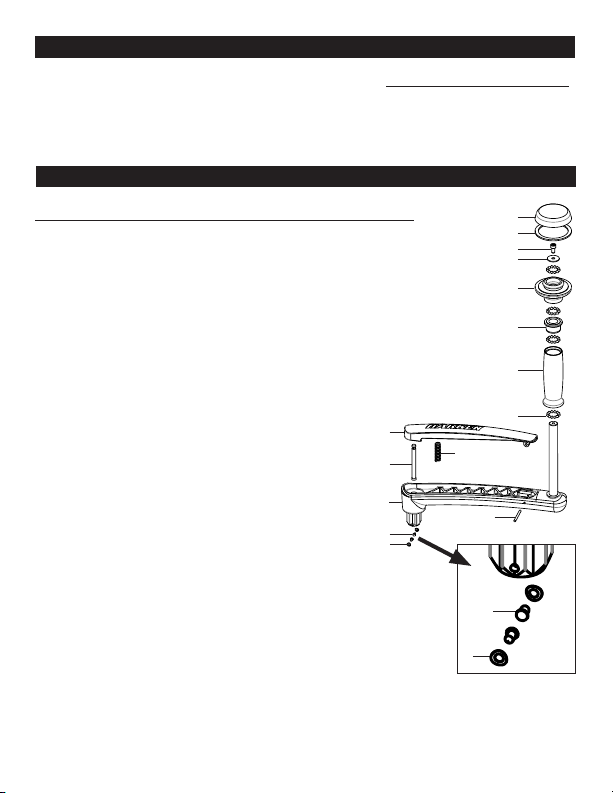

No. Qty. Part No. Description

1 1 S351240097 Top knob

2 1 S351270082 Red washer HFS334

3 1 HFS334 Screw M5x10 SHCS*

4 1 H-69104 SS washer

5 1 S351250082 Lower knob support

6 1 S351260082 Bushing

7 1 S277640082 Handle grip

8 48 MP-121 Ball 3/16" Delrin®bearings (48)

9 1 H-67986 Grab bar

10 1 H-67991 Spring

11 1 H-67974 Plunger pin

12 1 H-67969 Body assembly

13 1 HFS683 Roll pin — 1/8x 1 1/4"

14 2 H-67975 Lock pin (2)

15 2 H-67985 Curved spring washer (2)

*Assemble with one drop blue Loctite® adhesive.

B10HOT

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Delrin is a registered trademark of E. I. du Pont de Nemours

and Company or its afﬁliates.

Loctite is a registered trademark of Henkel AG & Company KGaA. 14

15

For safety, maintenance, and warranty information: www.harken.com/manuals

or the Harken catalog.
