Harbor Freight Tools 90360 Manuel utilisateur

4” MILLING SWIVEL

MACHINE VISE

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

this manual or any artwork contained herein may be reproduced in any shape

or form without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

90360

Page 2SKU 90360

Specifications

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice with this

manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to

reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Don’t expose to rain. Keep work area well lighted.

3. Keep children away. Children must never be allowed in the work area. Do not let

them handle or play with the Vise.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attachment to

do the work of a larger industrial tool. There are certain applications for which this tool

was designed. It will do the job better and more safely at the rate for which it was

intended. Do not modify this tool and do not use this tool for a purpose for which it

was not intended.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically non-conductive clothes and non-skid footwear

are recommended when working. Wear restrictive hair covering to contain long hair.

7. Use eye and ear protection. Always wear ANSI approved impact safety goggles.

Wear a full face shield if you are producing metal filings or wood chips. Wear an ANSI

approved dust mask or respirator when working around metal, wood, and chemical

dusts and mists.

8. Do not overreach. Keep proper footing and balance at all times.

Overall Dimensions 16-1/2” L x 10-1/2” W x 4-3/4 H

Jaw Opening 4”

Vise Dimensions 4-1/8” W x 1-3/8” Throat Depth

Mounting Slots 2 @ 9/16” W x 7/8” Deep

Handle 7-7/8” L

Swivels 360 Degrees

Weight 44 Lbs.

Page 3SKU 90360

9. Maintain tools with care. Keep tools clean for better and safer performance. Follow

instructions for lubricating and changing accessories. The handles must be kept

clean, dry, and free from oil and grease at all times.

10. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches

are removed from the tool before working.

11. Stay alert. Watch what you are doing, use common sense. Do not operate any tool

when you are tired.

12. Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform its

intended function. Check for alignment and binding of moving parts; any broken parts

or mounting fixtures; and any other condition that may affect proper operation. Any

part that is damaged should be properly repaired or replaced by a qualified

technician.

13. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only use accessories

intended for use with this tool. Approved accessories are available from Harbor

Freight Tools.

14. Do not operate tool if under the influence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgment or reflexes are

impaired while taking drugs. If there is any doubt, do not operate the tool.

15. Maintenance. For your safety, service and maintenance should be performed

regularly by a qualified technician.

Warning: The warnings, cautions, and instructions discussed in this instruction manual

cannot cover all possible conditions and situations that may occur. It must be under-

stood by the operator that common sense and caution are factors which cannot be

built into this product, but must be supplied by the operator.

Unpacking

When unpacking, check to make sure the parts listed on page 5 are included. If any parts

are missing or broken, please call Harbor Freight Tools at the number on the cover of this

manual as soon as possible.

Page 4SKU 90360

Operation

Setting Up The Vise

1. Use the Mounting Slots (See FIGURE 1) to mount the Vice to your milling machine.

Follow the safety and assembly instructions supplied with your milling machine on the proper

mounting location and safety precautions for mounting a Vise.

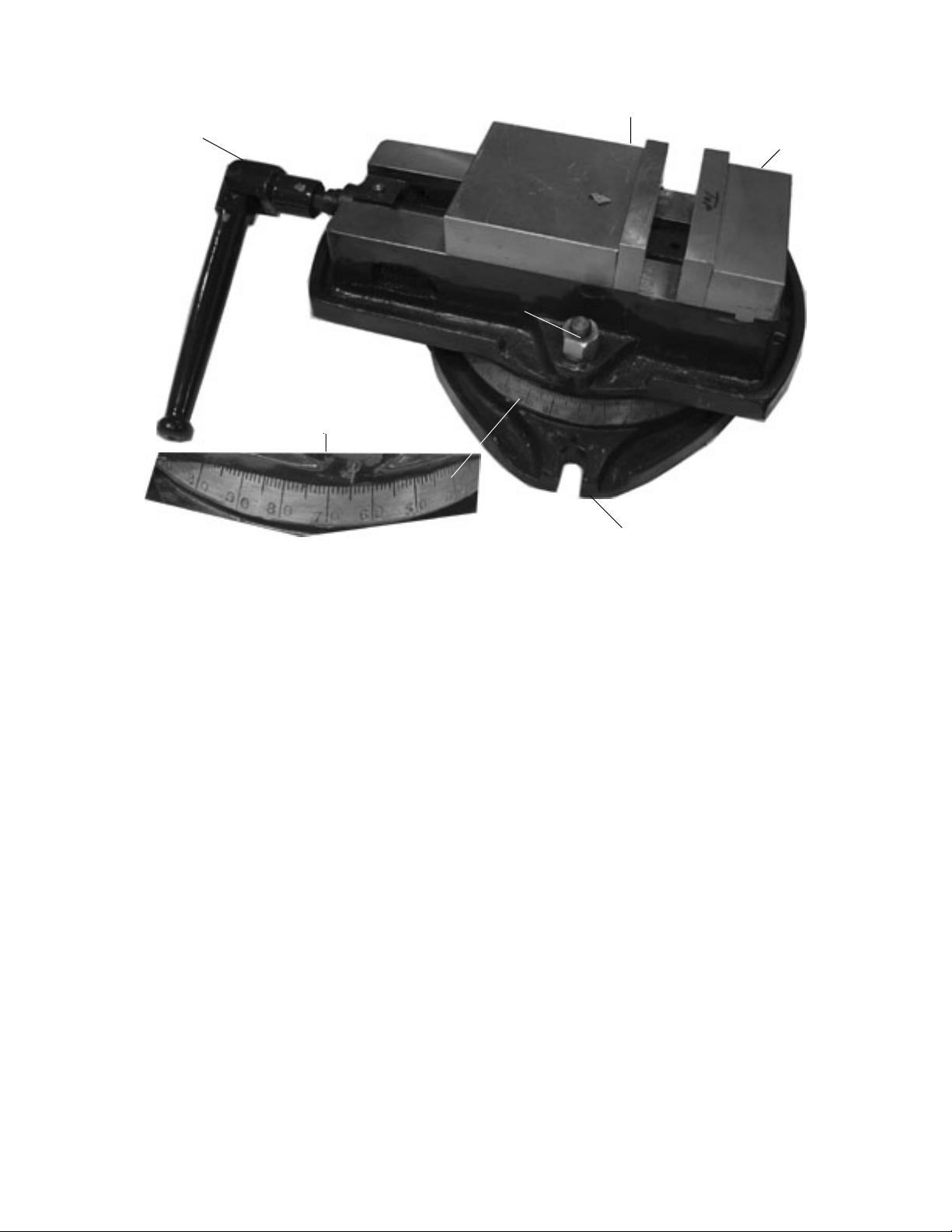

FIGURE 1

Using the Vice

Refer to FIGURE 1.

1. With a wrench (not included), turn the Locking Nuts (#15) counterclockwise to loosen the

swivel Base (#1) and swivel the Vise to the desired position. Turn the Locking Nuts (#15)

clockwise to tighten it in place. Note: The Vise has a Scale to assist when swiveling. The

Scale is set in repetitive increments of 0 to 90 degrees. 0 to 90 degrees repeats four times for

a total of 360 degrees. See FIGURE 1 and Scale Insert.

2. To open the Jaws, turn the Handle (#12) counterclockwise until the Movable Jaw (See

FIGURE 1.) opens to the desired width. Insert the workpiece.

3. Turn the Handle (#12) clockwise to tighten the Jaws around the workpiece. Do not over-

tighten the Vise on the workpiece; damage may occur to the workpiece.

4. When you are finished, turn the Handle (#12) counterclockwise to loosen the Jaws.

Do not over tighten.

Locking Nut(#15)

Scale Insert

Handle (#12) Jaw

Jaw

Mounting Slot

Maintenance

1. For better and safer perfomance keep all of the Vise parts clean and

dry at all times.

Page 5SKU 90360

NOTE: Some parts are listed and shown for illustration purposes only and are not available

individually as replacement parts.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS

MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU-

TOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE

OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS

QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER

AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS

SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE

BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER

REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING

OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Parts List

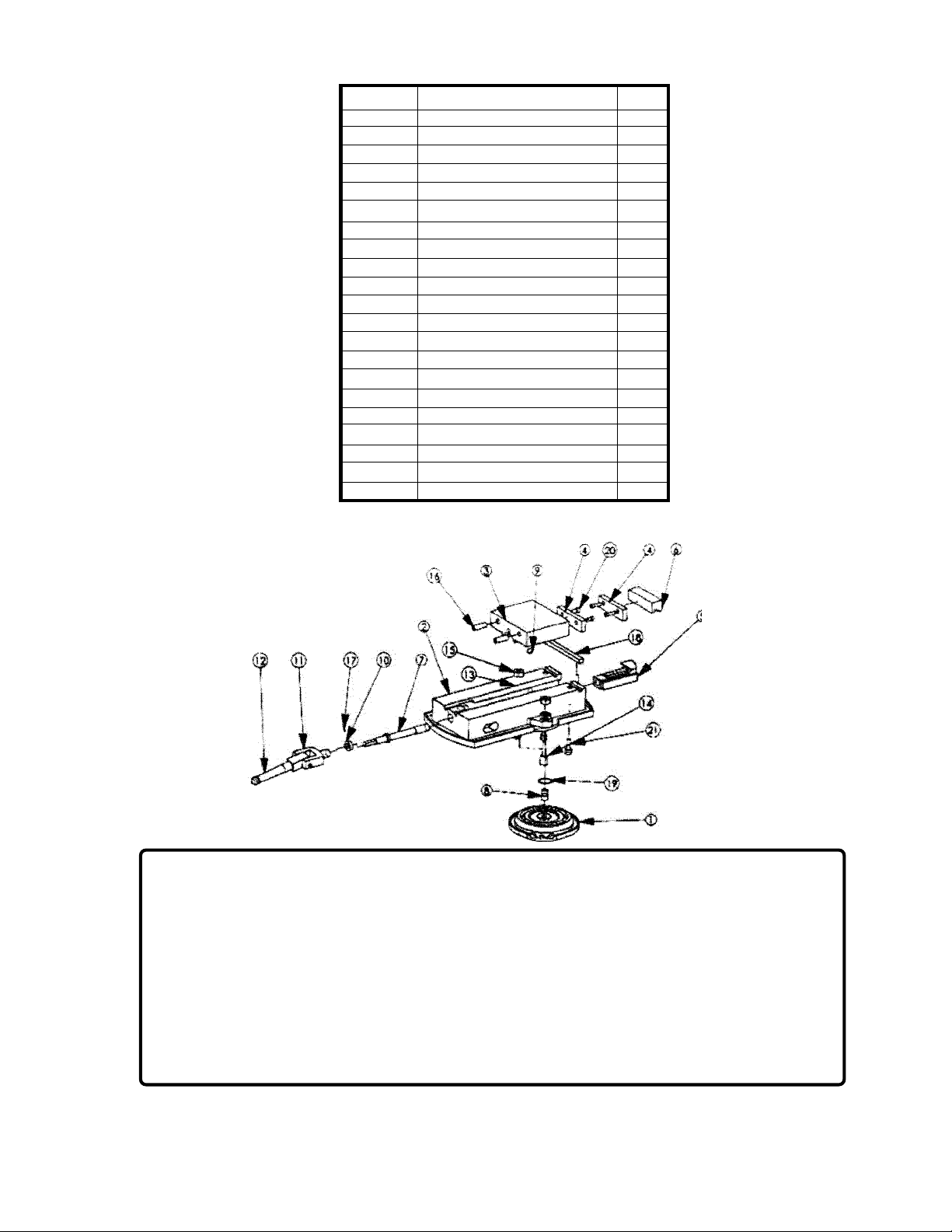

Assembly Drawing

Part No. Description Qty.

1 Base 1

2 Slide 1

3 Cover 1

4 Jaws 2

5Nut 1

6 Stopper 1

7 Spindle 1

8 Spacer 1

9 Spacer 1

10 Chuck Nut 1

11 Fitting 1

12 Handle 1

13 Washer 2

14 Base Bolt 2

15 Locking Nut 2

16 Key Screw 2

17 Pin 1

18 Key 1

19 Lock Washer 1

20 Key Bolt 4

21 Key Bolt 2
