Harbor Breeze 40101 Manuel utilisateur

Lowes.com/harborbreeze

ITEM #0451809

PACIFIC GROVE

CEILING FAN

MODEL #40101

ATTACH YOUR RECEIPT HERELISTED FOR WET LOCATION

Serial Number _________________________ Purchase Date _________________________

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5

p.m., EST, Friday.

EB13354

Español p.

Harbor Breeze® is a registered trademark

Lowes.com/harborbreeze

TABLE OF CONTENTS

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hardware Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Initial Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Closemount Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lowes.com/harborbreeze

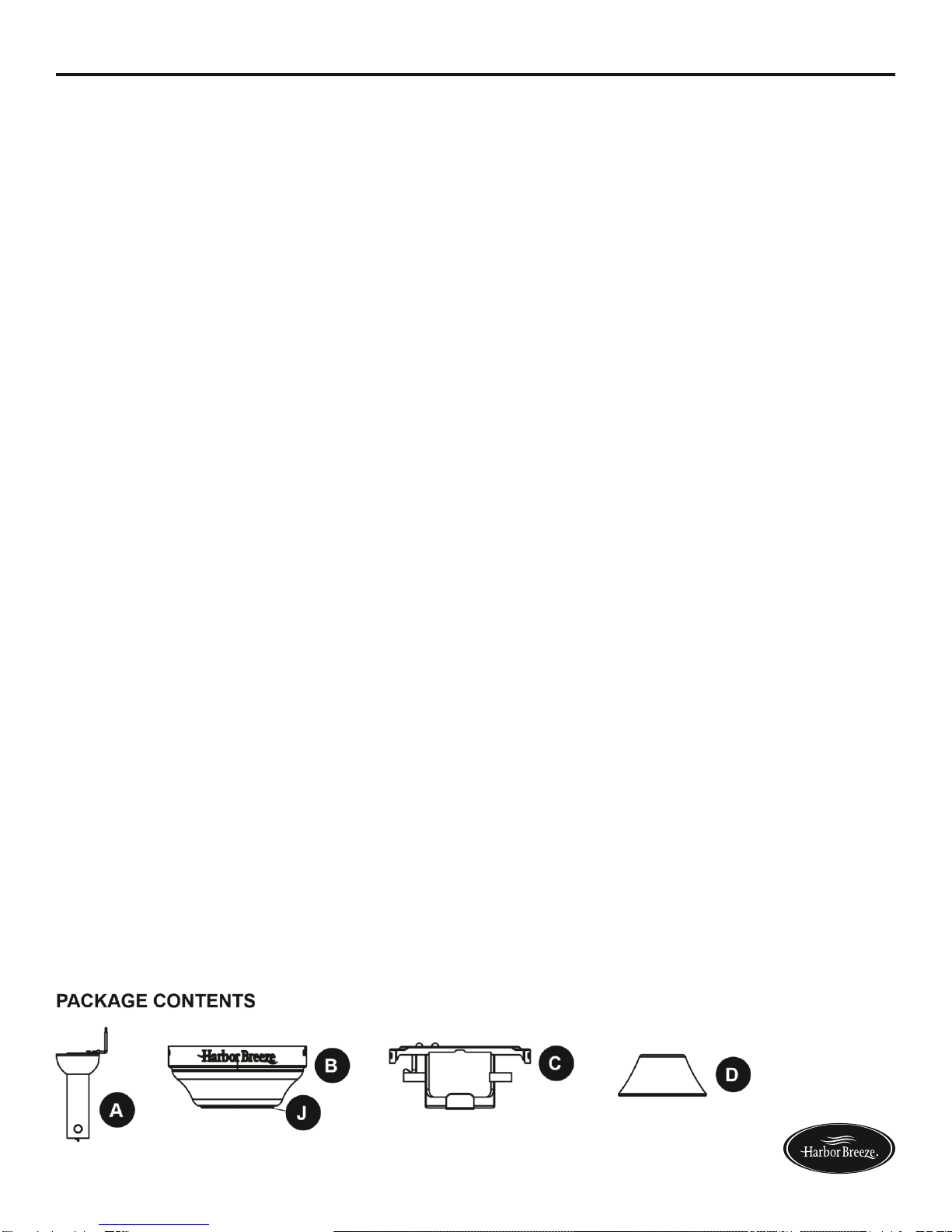

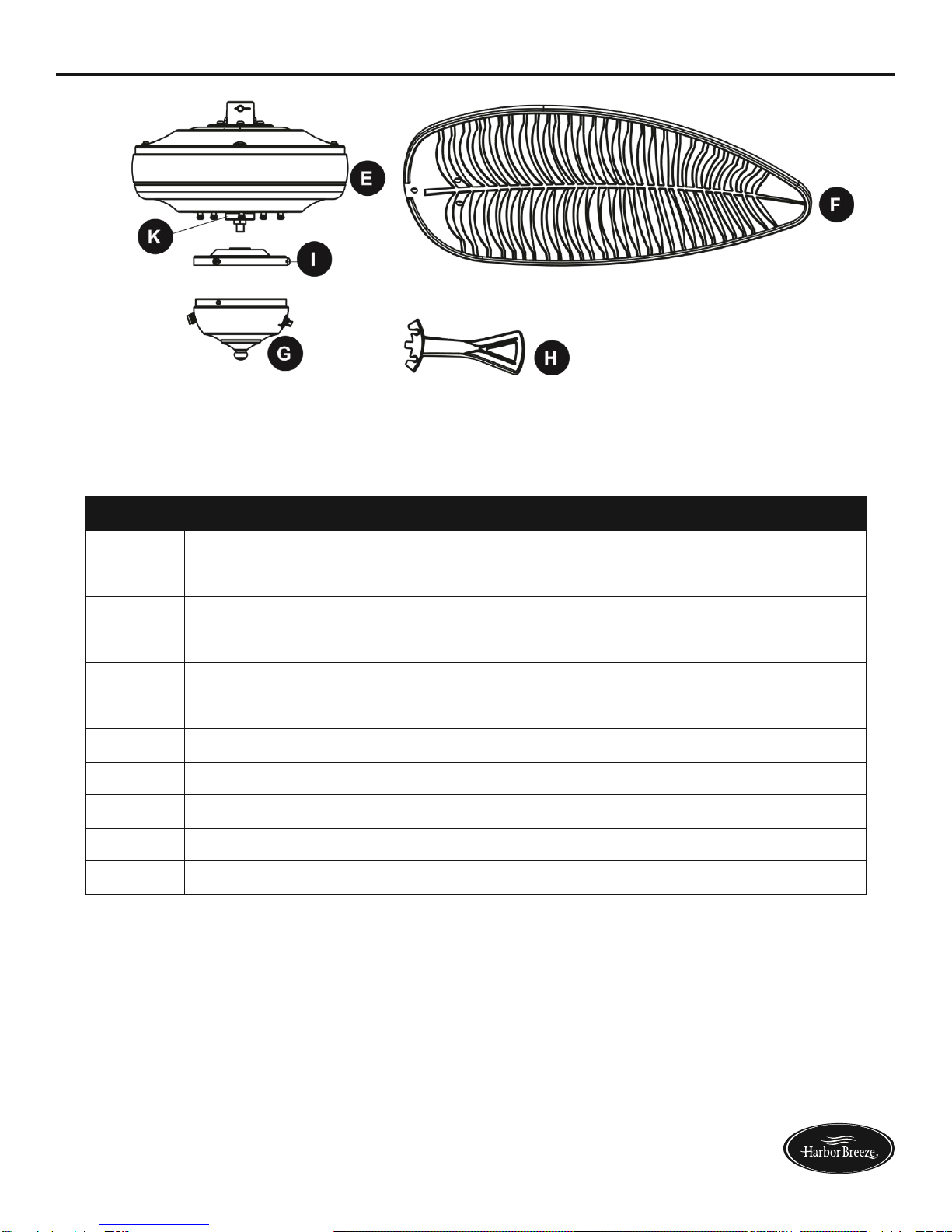

PART

DESCRIPTION

QUANTITY

Downrod

Canopy (preassembled to Mounting Bracket (C))

Mounting Bracket

Yoke Cover

Motor Assembly

Blade

Switch Housing

Blade Arm

Fitter Plate

Canopy Cover (preassembled to Canopy (B))

Switch Housing Plate (preassembled to the Motor Assembly (E))

Lowes.com/harborbreeze

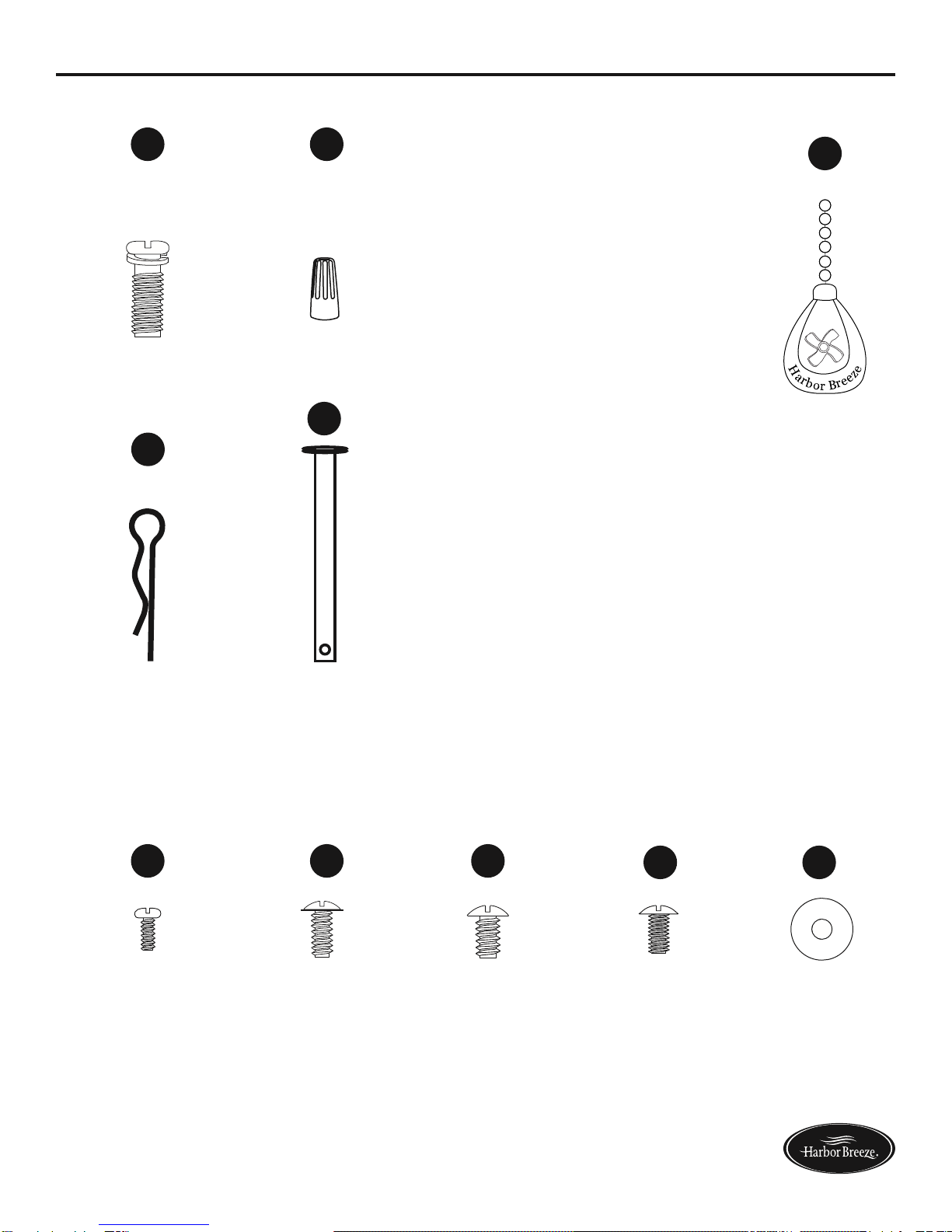

HARDWARE CONTENTS

AA BB

Motor Screw Wire Pull Chain Downrod Clip Downrod Pin

Qty. 10 Connector Extension Qty. 1 Qty. 1

(preassembled to Qty. 3 + 1 extra Qty. 1 (preassembled to (preassembled to

Motor Assembly (E)) Downrod (A)) Downrod (A))

+ 1 extra

Motor Housing Set Closemount Mounting Bracket Blade Screw Blade Washer

Screw Screw Screw Qty. 15 + 1 extra Qty. 15 + 1 extra

Qty. 2 Qty. 3 Qty. 4

(preassembled to (preassembled to (preassembled to

Lowes.com/harborbreeze

Motor Motor Mounting Bracket

Assembly (E)) Assembly (E)) (C))

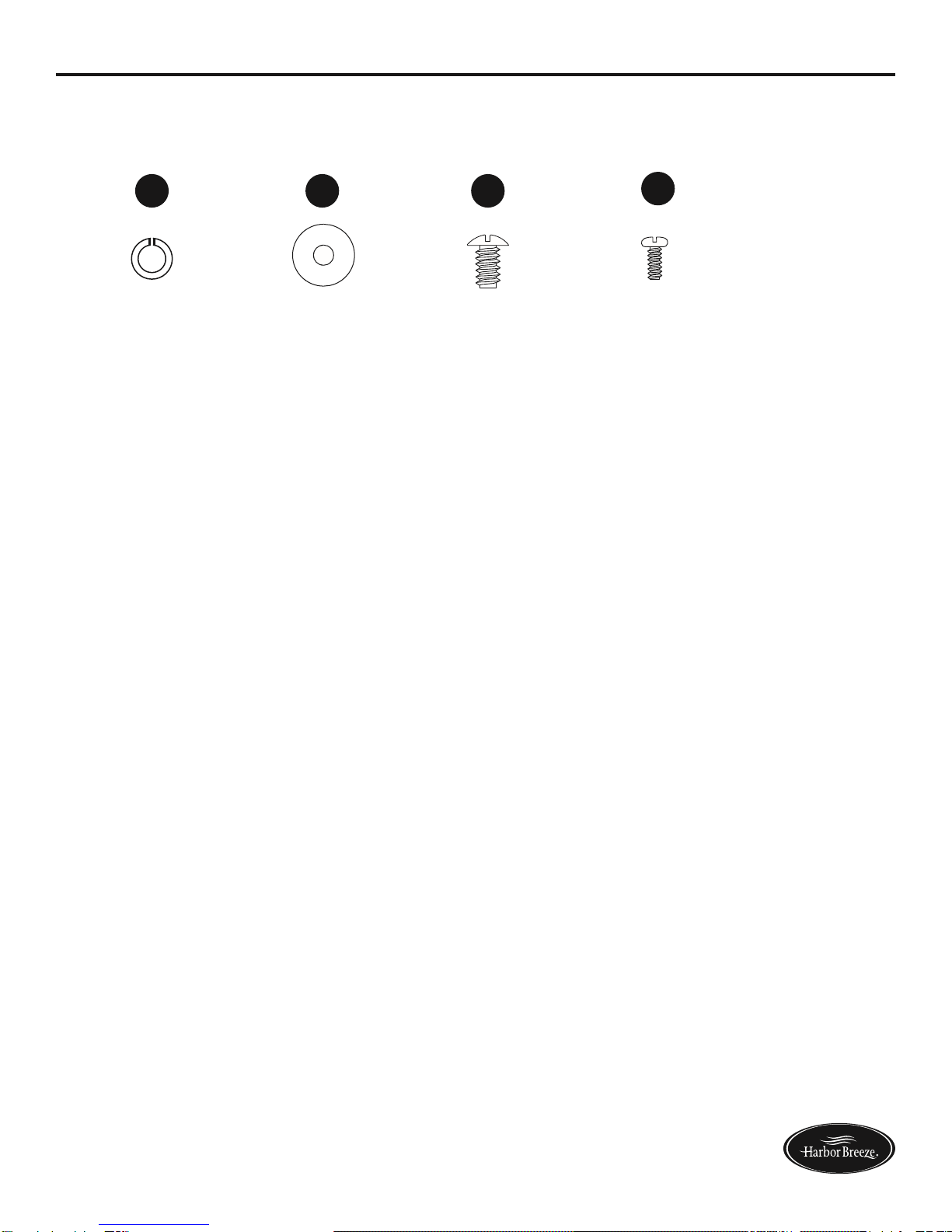

Spring Washer

Qty. 10

(preassembled to

Motor Screw (AA))

+ 1 extra

Rubber Washer

Qty. 15 + 1 extra

Switch Housing

Plate Screw

Qty. 3

(preassembled to

Switch Housing

Plate (K))

Switch Housing

Screw

Qty. 3

(preassembled to

the Fitter Plate (I))

Lowes.com/harborbreeze

Please read and understand this entire manual before attempting to assemble, operate or install the

product.

•Before you begin installing the fan, disconnect the power by removing fuses or turning off the

circuit breakers.

•Make sure that all electrical connections comply with local codes, ordinances, the National

Electrical Code, and ANSI/NFPA 70-199. Hire a qualified electrician or

consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical

wiring.

•Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to

the floor and at least 30 in. from the end of the bladesto any

obstruction.

•The net weight of this fan is: 16.23 lbs.

DANGER: When using an existing outlet box, make sure the outlet box is securely attached to

the building structure and can support the full weight of the fan. Failure to do this can result in serious

injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan

after installation is complete.

DANGER: If using the fan in a wet location, the fan must be connected to a supply circuit that is

protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical

shock or death.

WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan

parts with sharp edges.

WARNING: To reduce the risk of fire, electric shock,or

personal injury, mount the fan to an outlet box marked “ACCEPTABLE FOR

FAN SUPPORT” and use the mounting screws provided with the outlet box. Most outlet boxes

commonly used for the support of lighting fixtures are not

acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt. Secure the outlet

box directly to the building structure. The outlet box and its support must be able to support the

moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.

WARNING: To reduce the risk of fire, electrical shock,or

personal injury, wire connectors provided with this fan are designed to accept only one

12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12 gauges or

there is more than one house wire to connect to the two fan lead wires, consult an electrician for the

proper size wire connectors to use.

SAFETY INFORMATION

Lowes.com/harborbreeze

WARNING: To reduce the risk of fire or electric shock,do

not use the fan with any solid-state speed-control device or control the fan

speed with a full-range dimmer switch.

WARNING: To reduce the risk of fire, electric shock,or

personal injury, do not bend the blade arms when installing them, balancing

the blades, or cleaning the fan. Do not insert objects between the rotating fan blades.

WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use

of parts OTHER than those provided with this fan will void the warranty.

CAUTION: Read all instructions and safety information before installing your new fan. Review the

accompanying assembly diagrams.

CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is

present.

CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure that they

are secured.

PREPARATION

Before beginning the assembly of this product, ensure all parts are present. Compare all parts with

the package contents list and hardware contents list. If any part is missing or damaged, do not

attempt to assemble the product.

After opening the top of the carton, remove the mounting hardware package from the foam inserts,

then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid

damage to the finish.

Estimated Assembly Time: 120 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Step Ladder and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters

INITIAL INSTALLATION

SAFETY INFORMATION

Lowes.com/harborbreeze

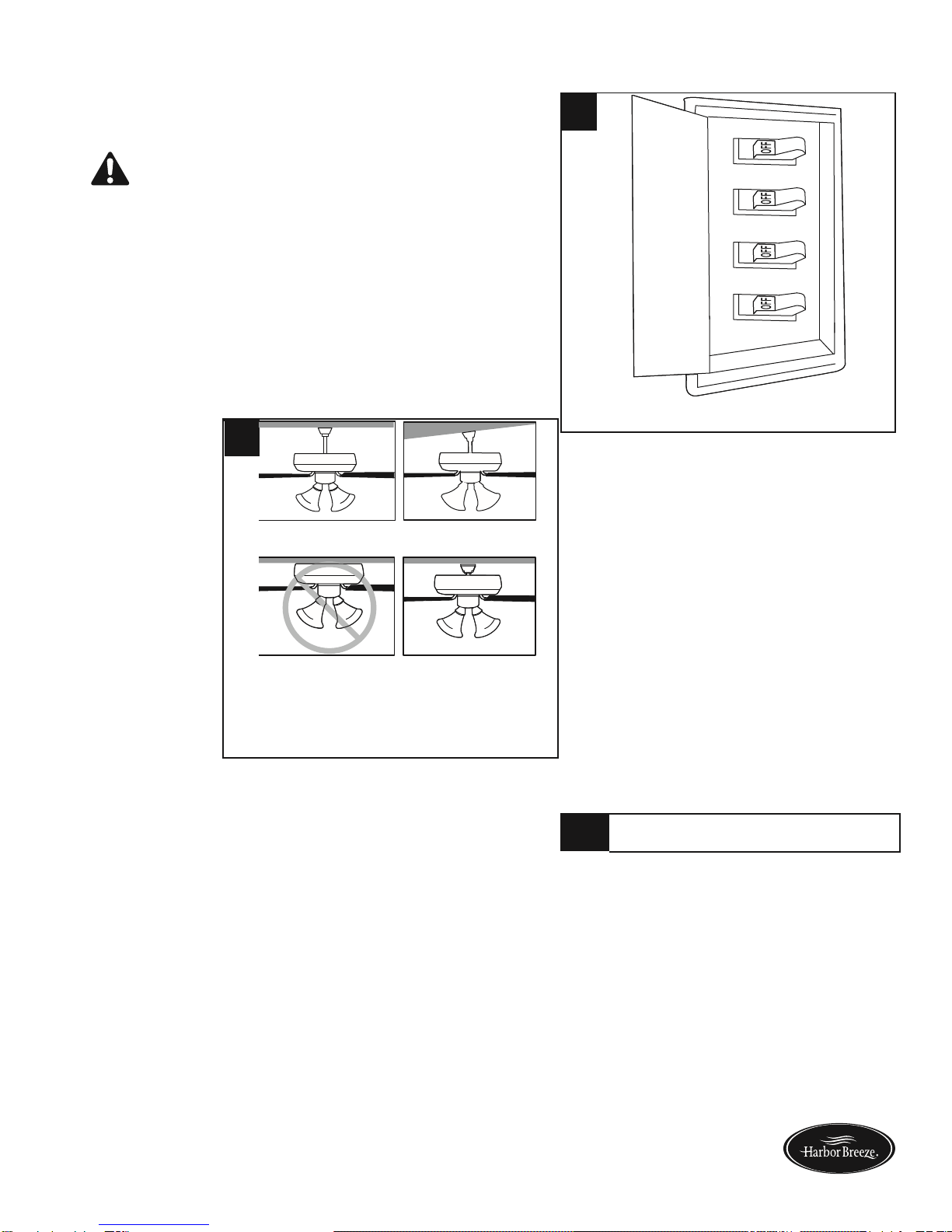

1. Turn off the circuit breakers and the wall switch to the

fan supply line leads.

DANGER: Failure to disconnect the power supply

prior to installation may result in serious injury or death.

2. Determine the

mounting method to use.

Note: Flushmount installation is not

available for this item.

Important: If using the angle mount, check to

ensure the ceiling angle is not

steeper than 23°.

Downrod Mounting

Flushmount

Closemount

Angle Mounting

Lowes.com/harborbreeze

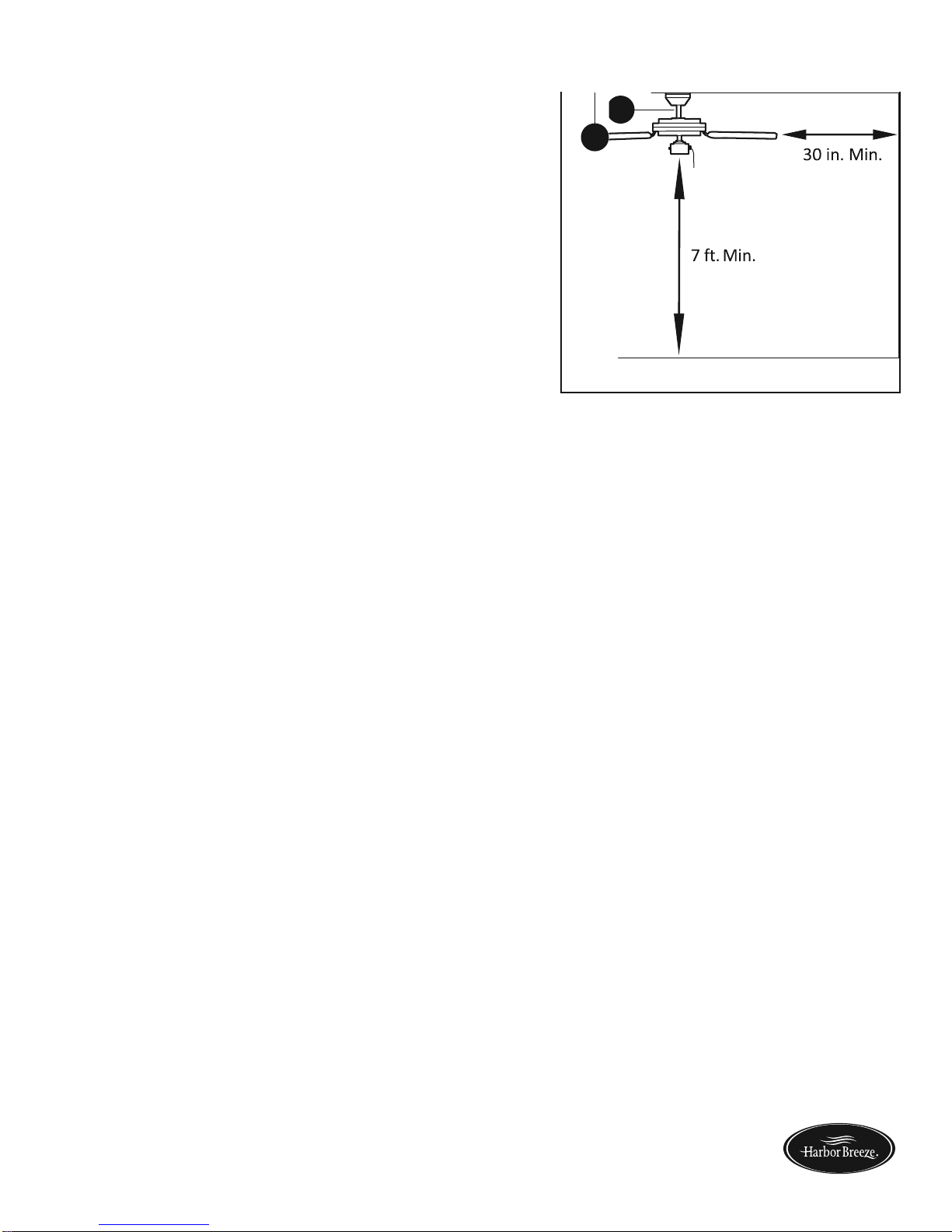

3. Ensure the blades (F) will be at least 30 in. from any

obstructions. Also check the downrod (A) length to

ensure the blades (F) will be at least 7 ft. above the

floor.

Lowes.com/harborbreeze

INITIAL INSTALLATION

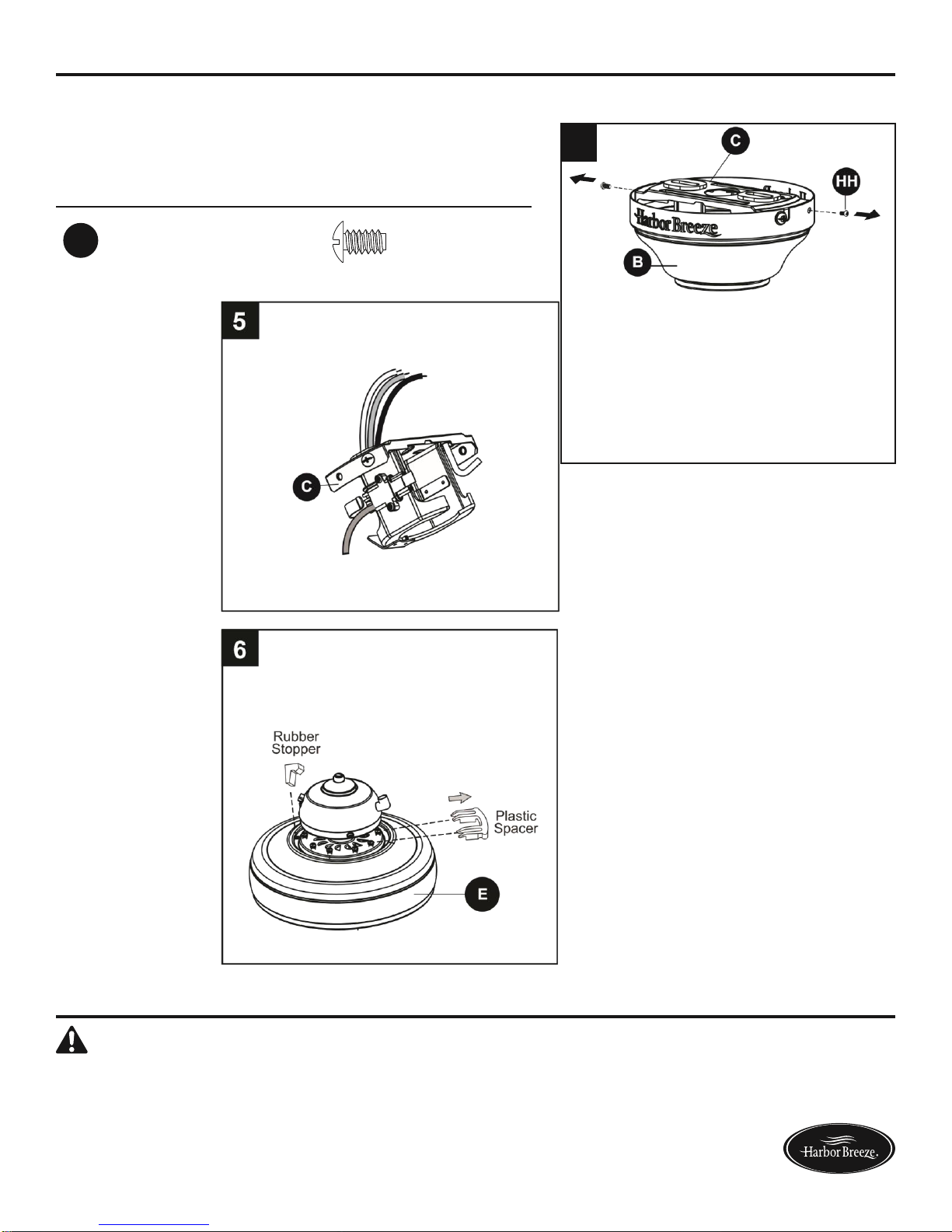

4. Remove the two mounting bracket screws (HH) from the

round holes of canopy (B). Set aside for later use.

Detach mounting bracket (C) from canopy (B).

Hardware Used

5. Feed black,

blue and white wires from the plug on the

mounting bracket (C) up through the hole in the

top.

6. Remove and discard the three rubber stoppers and

the five plasticspacers from the

underside of the motor assembly

(E).

For Standard or Angle Mounting Instructions, continue to page 9. For Closemount

Instructions, proceed to page 12.

WARNING: To reduce the risk of fire, electrical shock,or

personal injury, wire connectors provided with this fan are designed to accept only

one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12

Mounting

Bracket Screw

x 2
