Harbor Breeze TEX52MBK5C1L Manuel utilisateur

Harbor Breeze® is a registered trademark

E192641

LISTED

MODEL #TEX52MBK5C1L

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -

5 p.m., EST, Friday.

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

EB15437

1Lowes.com/harborbreeze

Español p. 22

ITEM #0747609

THOROUGHBRED

CEILING FAN

READ AND SAVE THESE INSTRUCTIONS

Safety Information .............................................................................................................. 2

Package Contents .............................................................................................................. 4

Hardware Contents ............................................................................................................ 5

Preparation ........................................................................................................................ 5

Initial Installation ................................................................................................................ 5

Fan Mounting ..................................................................................................................... 7

Wiring ................................................................................................................................. 9

Final Installation ................................................................................................................ 11

Installing Fan With Light Kit ............................................................................................... 13

Installing Fan Without Light Kit .......................................................................................... 14

Operating Instructions ...................................................................................................... 16

Care and Maintenance ...................................................................................................... 18

Troubleshooting ................................................................................................................ 19

Limited Lifetime Warranty .................................................................................................. 20

Replacement Parts List ..................................................................................................... 21

TABLE OF CONTENTS

Lowes.com/harborbreeze

SAFETY INFORMATION

• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for

repairs, it must be shipped in its original packaging to ensure proper protection against damage that

might exceed the initial cause for return.

• Make sure all electrical connections comply with local codes, ordinances, the National Electrical

Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring

handbook if you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to

the floor and at least 30 in. from the end of the blades to any obstruction.

• After you install the fan, make sure all connections are secure to prevent the fan from falling.

• The net weight of this fan including the light kit is: 22 lbs.

SAFETY INFORMATION

WARNING

3Lowes.com/harborbreeze

WARNING

To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box

marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use

mounting screws provided with the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a

plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its

support must be able to support the moving weight of the fan (at least 35 lbs.).

To avoid personal injury, the use of gloves may be necessary while handling fan parts with

sharp edges.

To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan

are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your

house wire is larger than 12-gauge or there is more than one house wire to connect to the

corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.

To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control

device or control fan speed with a full range dimmer switch.

To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when

installing them, balancing the blades or cleaning the fan. Do not insert objects between the

rotating fan blades.

To reduce the risk of personal injury, use only parts provided with this fan. The use of parts

OTHER than those provided with this fan will void the warranty.

Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid

electrical shock.

WARNING

Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.

Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to

ensure they are secure.

CAUTION

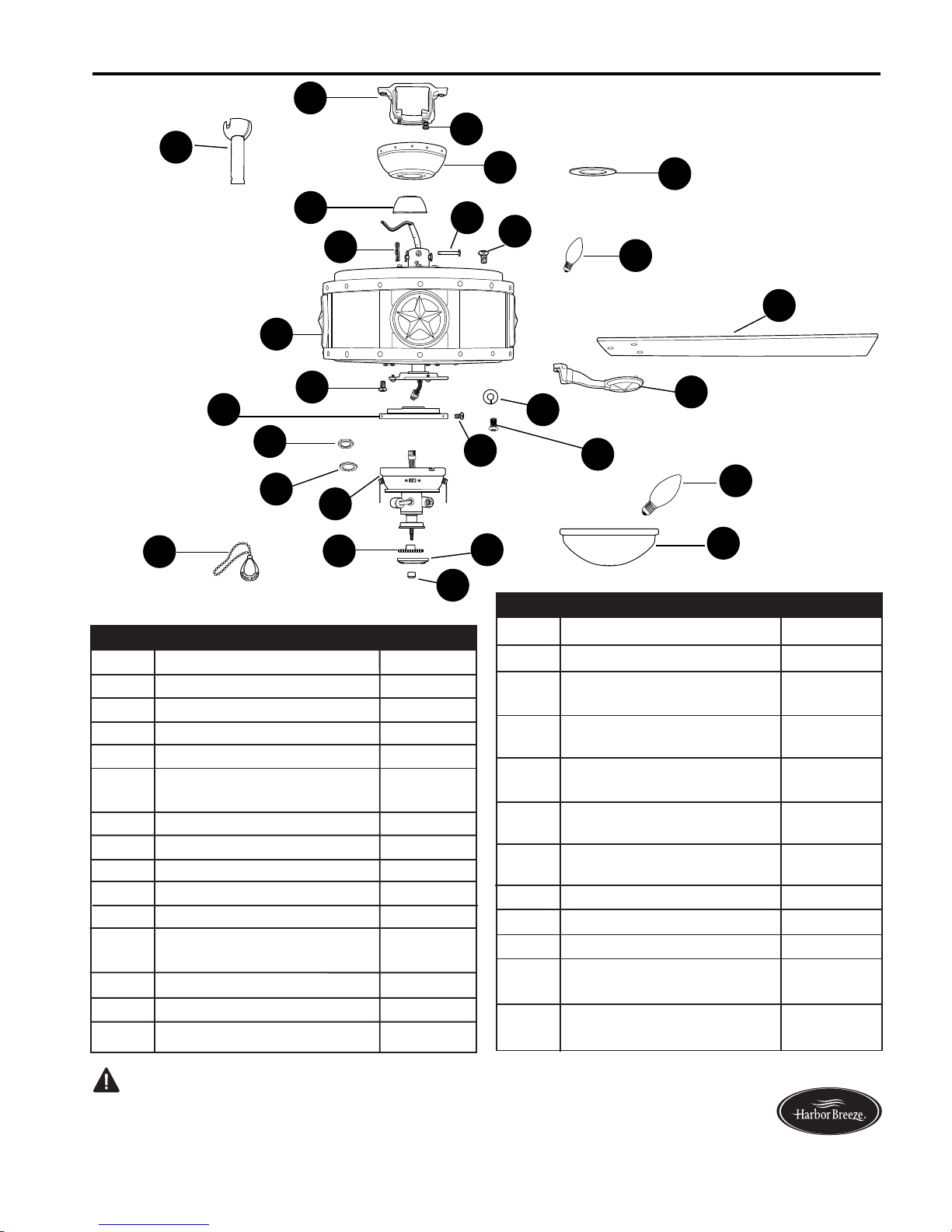

PACKAGE CONTENTS

IMPORTANT REMINDER: You must use the

parts provided with this fan for proper installation

and safety.

4Lowes.com/harborbreeze

Downrod 1

Mounting Bracket

Canopy

D Canopy Cover 1

Yoke Cover

15-watt

Bulb 4

(preassembled)

Motor Housing 1

Switch Housing Plate

Light Kit Fitter

Glass Shade

K Finial Plate

(preassembled) 1

L Threaded Washer

(preassembled)

M Finial

(preassembled) 1

Blade Arm 5

Blade 5

DESCRIPTIONPART QUANTITY

Pin (preassembled) 1

Q Clip (preassembled)

Motor Screw 10

(preassembled) + 1 extra

S Lock Washer 10

(preassembled) + 1 extra

Canopy Mounting Screw

(preassembled)

U Switch Housing Screw 3

(preassembled)

V Motor Plate Screw 3

(preassembled)

60-watt Bulb 3

Pull Chain Extension 2

Hex Nut (preassembled) 1

10 mm Lock Washer

(preassembled)

AB Access Cover Screw 8

(preassembled)

DESCRIPTION QUANTITY

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents list. If any part is missing or damaged, do not attempt to

assemble the product.

Estimated Assembly Time: 120 minutes

Tools Required forAssembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Stepladder and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and

Wire Cutters

PREPARATION

Lowes.com/harborbreeze

Blade

Washer

Qty. 15

+ 1 extra

Blade

Screw

Qty. 15

+ 1 extra

Wire

Connector

Qty. 4

AA BB CC

HARDWARE CONTENTS (shown actual size)

Cap

Qty. 1

Turn off circuit breakers and wall switch to the fan

supply line leads.

DANGER: Failure to disconnect power supply

prior to installation may result in serious injury or

death.

OFF

INITIAL INSTALLATION

Check to make sure blades (O) will be at least 30 in.

from any obstruction and at least 7 ft. above the

floor.

Lowes.com/harborbreeze

INITIAL INSTALLATION

Determine mounting method to use.

A. Standard mount

B. Angle mount

IMPORTANT: If using the angle mount, ensure the

ceiling angle is not steeper than 19°.

*Helpful Hint: Standard mounting is best suited for

ceilings 8 ft. high or higher. For taller ceilings you

may want to use a longer downrod (not included).

Angle mounting is best suited for angled or vaulted

ceilings. A longer downrod is sometimes necessary

to ensure proper blade clearance.

Open End

ANGLE MOUNTSTANDARD MOUNT

Secure mounting bracket (B) to outlet box (not

included) using screws, spring washers and flat

washers provided with the outlet box.

*NOTE: It is very important you use the proper

hardware when installing the mounting bracket (B)

as this will support the fan.

IMPORTANT: If using the angle mount, make sure

open end of mounting bracket (B) is installed facing

the higher point of the ceiling.

7 ft.

min.

30 in.

min.

19° max.

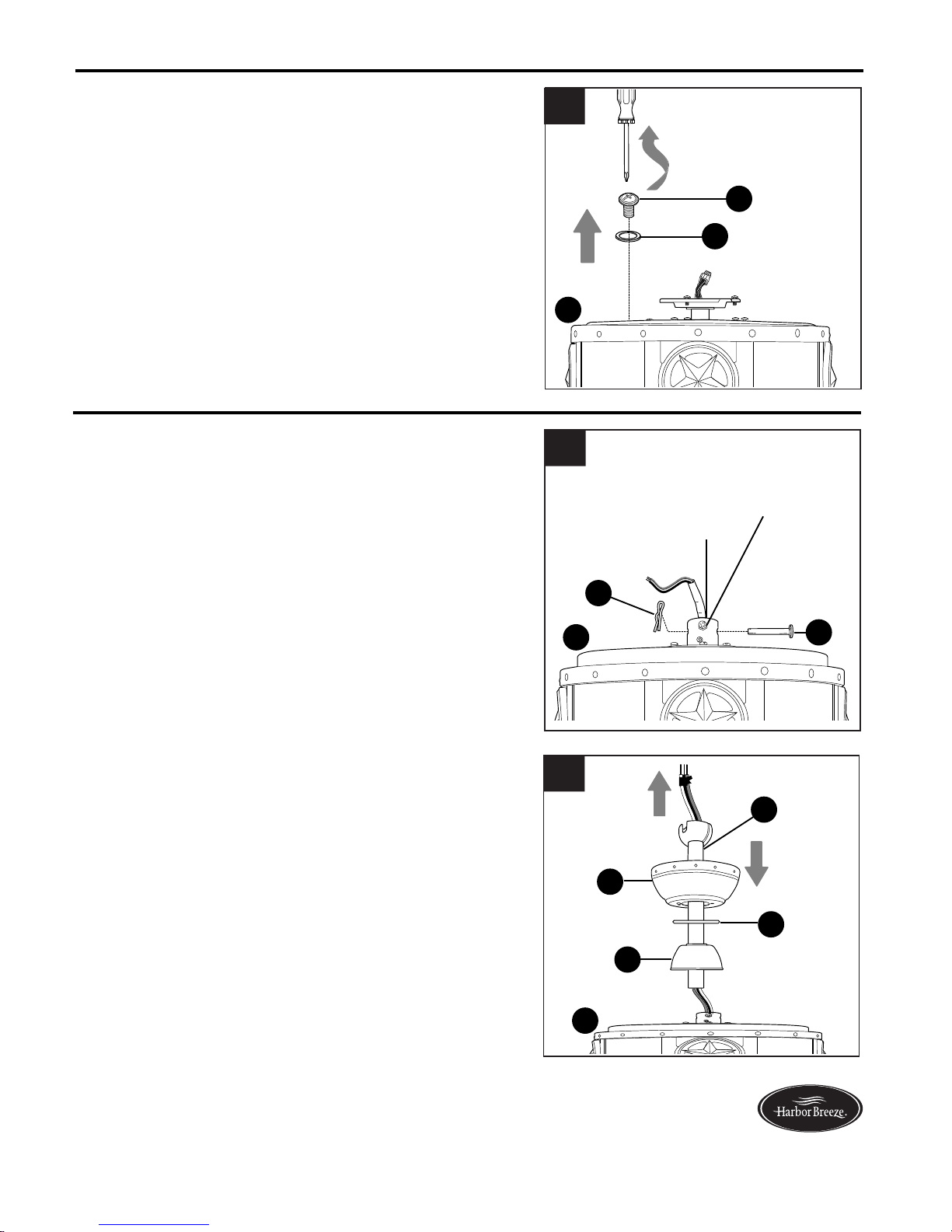

Remove pin (P) and clip (Q) from yoke at top of

motor housing (G) and partially loosen

preassembled set screws and nuts.

Remove motor screws (R) and lock washers (S)

from underside of motor housing (G) and save for

later on. Note: If there are plastic motor blocks

installed with the motor screws (R) and lock

washers (S), discard the plastic motor blocks.

INITIAL INSTALLATION

FAN MOUNTING

Lowes.com/harborbreeze

1. 1

2. Insert downrod (A) through canopy (C), canopy

cover (D) and yoke cover (E).Thread wires from

motor housing (G) up through downrod (A).

NOTE: Canopy cover (D) must be turned with the

smooth side toward the motor housing (G).

Set Screws

and Nuts

Yoke

FAN MOUNTING

Depending on the length of downrod you use, you

may need to cut the lead wires back to simplify the

wiring. If you decide to cut back the lead wires, it is

suggested you do so in the following manner:

Take the lead wires and make sure you have pulled

them all the way through the top of the downrod.

Start at the TOP of the ball on the downrod and

measure 8 in. of lead wire, and then cut the excess

wire off with wire cutters (not included).

NOTE: If you do not cut back the lead wires, Steps

4 and 5 are not necessary and you may proceed

to Step 6 instead.

3. Slip downrod (A) into yoke, align holes and

re-install pin (P) and clip (Q). Tighten set screws

and then tighten nuts on the set screws. Slide

yoke cover (E) down until it rests on top of motor

housing (G).

Lowes.com/harborbreeze

If you decided to cut back the lead wires in Step 4,

strip a 1/2 in. of insulation from end of WHITE wire.

Twist stripped ends of each strand of wire within the

insulation with pliers (not included). Repeat Step 5

for BLACK, BLUE (if applicable) and GREEN wires.

5. 5

Ball A

8 in.

Set Screws

and Nuts

Yoke

FAN MOUNTING

Lowes.com/harborbreeze

WIRING

6. 6

WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors

provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from

the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to

the two fan lead wires, consult an electrician for the proper size wire connectors to use.

CAUTION: Be sure outlet box is properly grounded and a ground (green or bare) wire is present.

WARNING: If house wires are different colors than referred to in the following steps, stop

immediately. A professional electrician is recommended to determine wiring.

1. Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c) that

fits your situation and make appropriate wiring

connections as follows: [IMPORTANT: For each wire

connection below, use one of the wire connectors

(CC), making sure to screw wire connector (CC) on in

a clockwise direction.]

1a. FAN AND LIGHT CONTROLLED BY PULL

CHAINS: Connect BLACK and BLUE wire from fan

to BLACK wire from ceiling. Connect WHITE wire

from fan to WHITE wire from ceiling. Connect all

GROUND (GREEN) wires together from fan (on

downrod (A) and mounting bracket (B)) to

BARE/GREEN wire from ceiling.

NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions

provided with the remote control before proceeding with these wiring instructions.

Hanging

Ball Slot

Tab

FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES

FAN AND LIGHT CONTROLLED BY PULL CHAINS

BLACK(POWER)

WHITE(NEUTRAL)

BLACK

GROUND/GREEN (BARE)

WHITE BLUE &

BLACK

120V POWER

FROM CEILING

GREEN

Install hanging ball of downrod (A) into opening of

mounting bracket (B). Align the slot in hanging ball

with the tab in mounting bracket (B).

DANGER: Failure to align slot in hanging ball

with the tab in mounting bracket (B) may result in

serious injury or death.

WIRING

Lowes.com/harborbreeze

Wrap electrical tape (not included) around each

individual wire connector (CC) down to the wire.

WARNING: Make sure no bare wire or wire

strands are visible after making connections. Place

GREEN and WHITE connections on opposite side of

box from the BLACK and BLUE (if applicable)

connections.

Turn spliced/taped wires upward and gently push wires

and wire connectors (CC) into outlet box.

Wire Connector x 4

Hardware Used

1c. FAN AND LIGHT CONTROLLED BY TWO

WALL SWITCHES: If you intend to control the fan

and light with separate wall switches, connect

BLACK wire from fan to BLACK wire from the

independent wall switch for the fan. Connect BLUE

wire from fan to the BLACK wire from the other

independent wall switch for the light. Connect

WHITE wire from fan to WHITE wire from ceiling.

Connect all GROUND (GREEN) wires together from

fan (on downrod (A) and mounting bracket (B)) to

BARE/GREEN wire from ceiling.

NOTE: BLACK wire is hot power for fan. BLUE wire

is hot power for light kit. WHITE wire is common for

fan and light kit. BARE/GREEN wire is ground.

1b. FAN CONTROLLED BY PULL CHAIN, LIGHT

BY WALL SWITCH: If you intend to control the fan

light with a separate wall switch, connect BLACK

wire from fan to BLACK wire from ceiling. Connect

BLUE wire from fan to the BLACK wire from the

independent wall switch for the light. Connect

WHITE wire from fan to WHITE wire from ceiling.

Connect all GROUND (GREEN) wires together

from fan (on downrod (A) and mounting bracket (B))

to BARE/GREEN wire from ceiling.

FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES

BLACK

BLUE

WHITE

BLACK (WALL SWITCH)

WHITE(NEUTRAL)

GROUND/GREEN (BARE)

GREEN

120V POWER

FROM CEILING

BLACK

(WALL SWITCH

FOR LIGHT)

GREEN

FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES

FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH

BLACK

(WALL

SWITCH)

BLUE

WHITE

BLACK(POWER)

WHITE(NEUTRAL)

GROUND/GREEN (BARE)

BLACK

120V POWER

FROM CEILING

GREEN

Table des matières

Autres manuels Harbor Breeze Ventilateur

Harbor Breeze

Harbor Breeze LP8071LBN Manuel utilisateur

Harbor Breeze

Harbor Breeze MONTCLAIR E-CM54RBZ5CRCI Manuel utilisateur

Harbor Breeze

Harbor Breeze TALAMORE TAL60MBK8LR Manuel utilisateur

Harbor Breeze

Harbor Breeze SARATOGA 00798 Manuel utilisateur

Harbor Breeze

Harbor Breeze 40956 Manuel utilisateur

Harbor Breeze

Harbor Breeze E-WCK44ABZ5LKS Manuel utilisateur

Harbor Breeze

Harbor Breeze C-TR56BNK3D1R Manuel utilisateur

Harbor Breeze

Harbor Breeze RLG52NWZ5L Manuel utilisateur

Harbor Breeze

Harbor Breeze BARNSTAPLE BAY E-RLG52NWZ5C Manuel utilisateur

Harbor Breeze

Harbor Breeze BDB52BNK5L Manuel utilisateur

Harbor Breeze

Harbor Breeze 0228113 Manuel utilisateur

Harbor Breeze

Harbor Breeze BRADBURY BRD48BNK6LRS Manuel utilisateur

Harbor Breeze

Harbor Breeze Crosswinds II 40821 Manuel utilisateur

Harbor Breeze

Harbor Breeze 00881 Manuel utilisateur

Harbor Breeze

Harbor Breeze PACIFIC GROVE 40101 Manuel utilisateur

Harbor Breeze

Harbor Breeze 40107 Manuel utilisateur

Harbor Breeze

Harbor Breeze C-TMH44CH5D1R Manuel utilisateur

Harbor Breeze

Harbor Breeze BOD52MW3 Manuel utilisateur

Harbor Breeze

Harbor Breeze FW60AGV3LR Manuel utilisateur

Harbor Breeze

Harbor Breeze AERO 00980 Manuel utilisateur

Harbor Breeze

Harbor Breeze 40093 Manuel utilisateur

Harbor Breeze

Harbor Breeze EUK60MBK10LR Manuel utilisateur

Harbor Breeze

Harbor Breeze LARALYN LRN32 Manuel utilisateur

Harbor Breeze

Harbor Breeze ARMORY 40087 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
