Harbor Breeze 35061 Manuel utilisateur

ITEM #0428801

MODEL #35061

CEILING FAN

Français p. 14

Questions, problems, missing parts? Before returning to your retailer, call our

customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday,

8 a.m. - 5 p.m., EST, Friday.

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

PACKAGE CONTENTS

2Lowes.com/harborbreeze

PACKAGE CONTENTS

3Lowes.com/harborbreeze

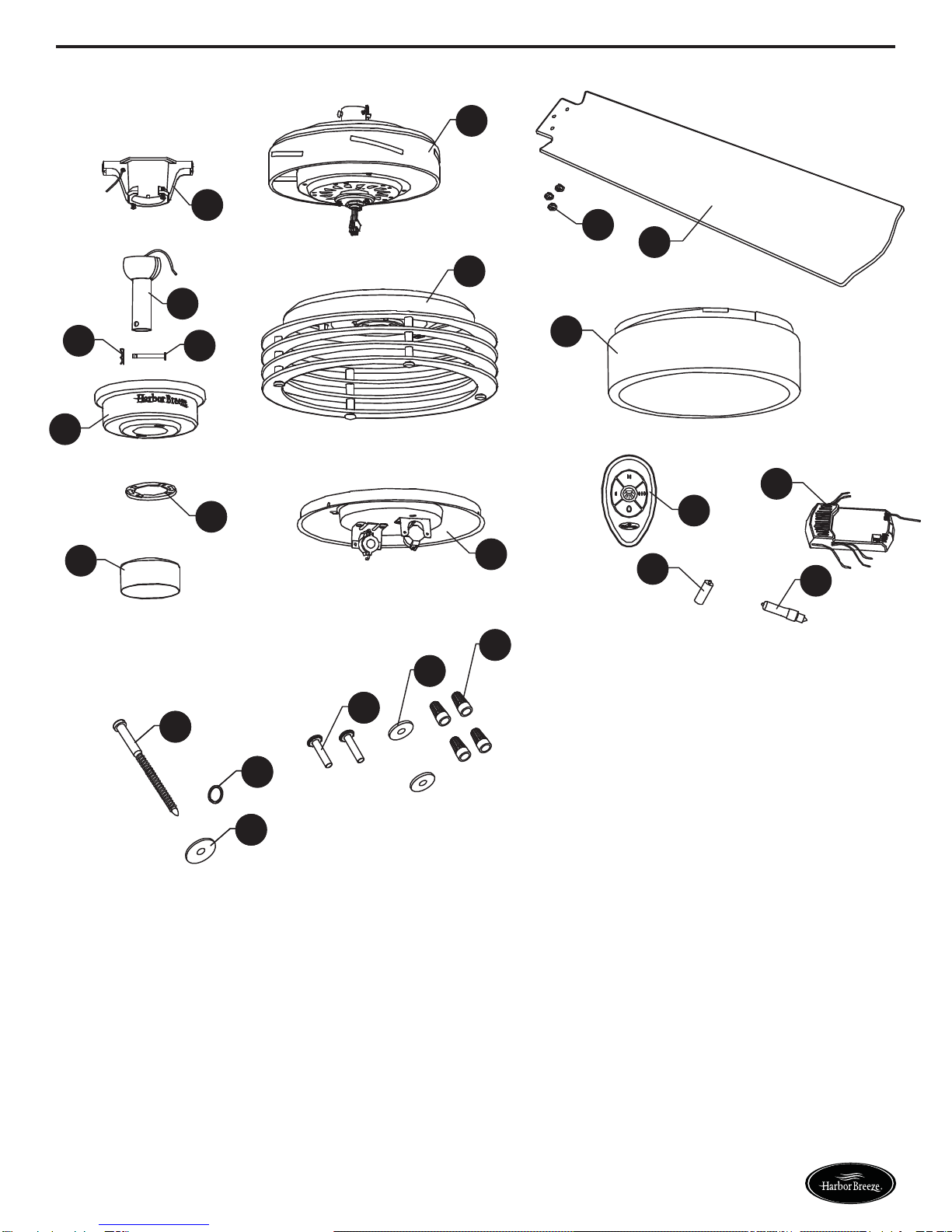

PART DESCRIPTION QUANTITY

BHanging Bracket 1

Hair Pin 1

Clevis Pin 1

Down Rod 1

Canopy 1

Canopy Hole Cover 1

Motor Coupling Cover 1

Motor Assembly 1

Shade Housing 1

Light Housing 1

Blade Screws 15

Blade 5

Shade 1

Remote 1

Receiver 1

23A-Battery 1

Bulb 2

Lag Screw 1

Lag Screw Washer 1

Hanging Bracket Screw 2

Hanging Bracket Washer 2

Wire Connector 4

Spring Washer 1

Please read and understand this entire manual before attempting to assemble, operate or install the

product. If you have any questions regarding the product, please call customer service at

1-800-643-0067, 8 a.m. - 4:30 p.m., EST.

WARNING:

• Important: When using an existing outlet box, be sure the box is securely attached to the building

structure and can support the full weight of the fan. Failure to do so can result in serious injury or

death.

• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to

disconnect power supply prior to installation may result in serious injury or death.

• Do not install fan on a ceiling with a pitch greater than 20°.

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all

applicable codes and standards (ANSI/NFPA 70-1999). If you are unfamiliar with the wiring

codes, contact a qualified electrician.

• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.

• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of

the blades

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.

Contact customer service for replacement parts.

Estimated assembly time: 30 minutes to 1 hour.

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,

electrical tape, ladder, safety glasses, silicone caulk, caulking gun.

SAFETY INFORMATION

ASSEMBLY INSTRUCTIONS

• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked

“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the

outlet box and/or support directly from building structure. Most outlet boxes commonly used for

the support of luminaries are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

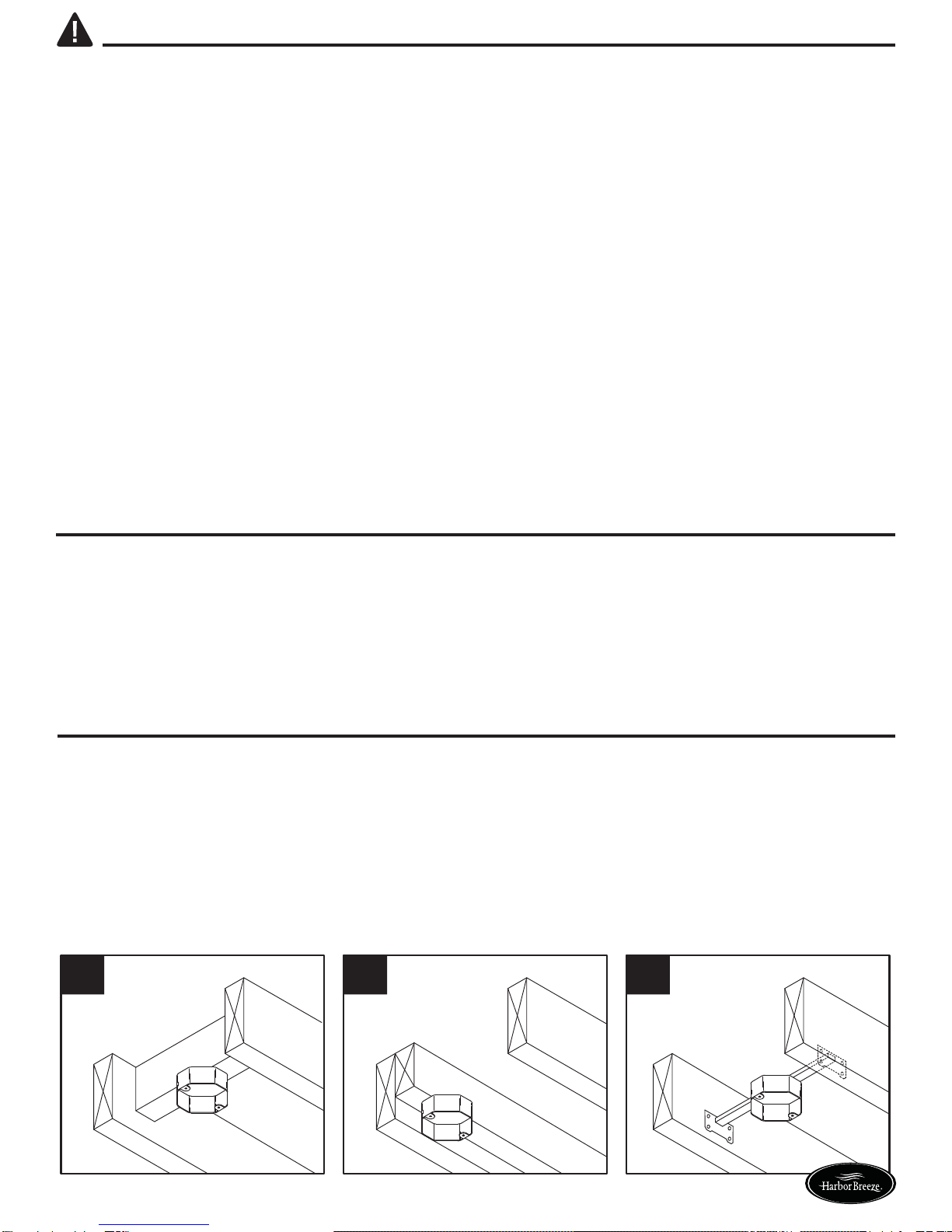

• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly

supported from a structural framing member of a building and (see examples in figures A & B) or

may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg

(35 lbs) (see example in figure C).

Lowes.com/harborbreeze

A B C

ASSEMBLY INSTRUCTIONS

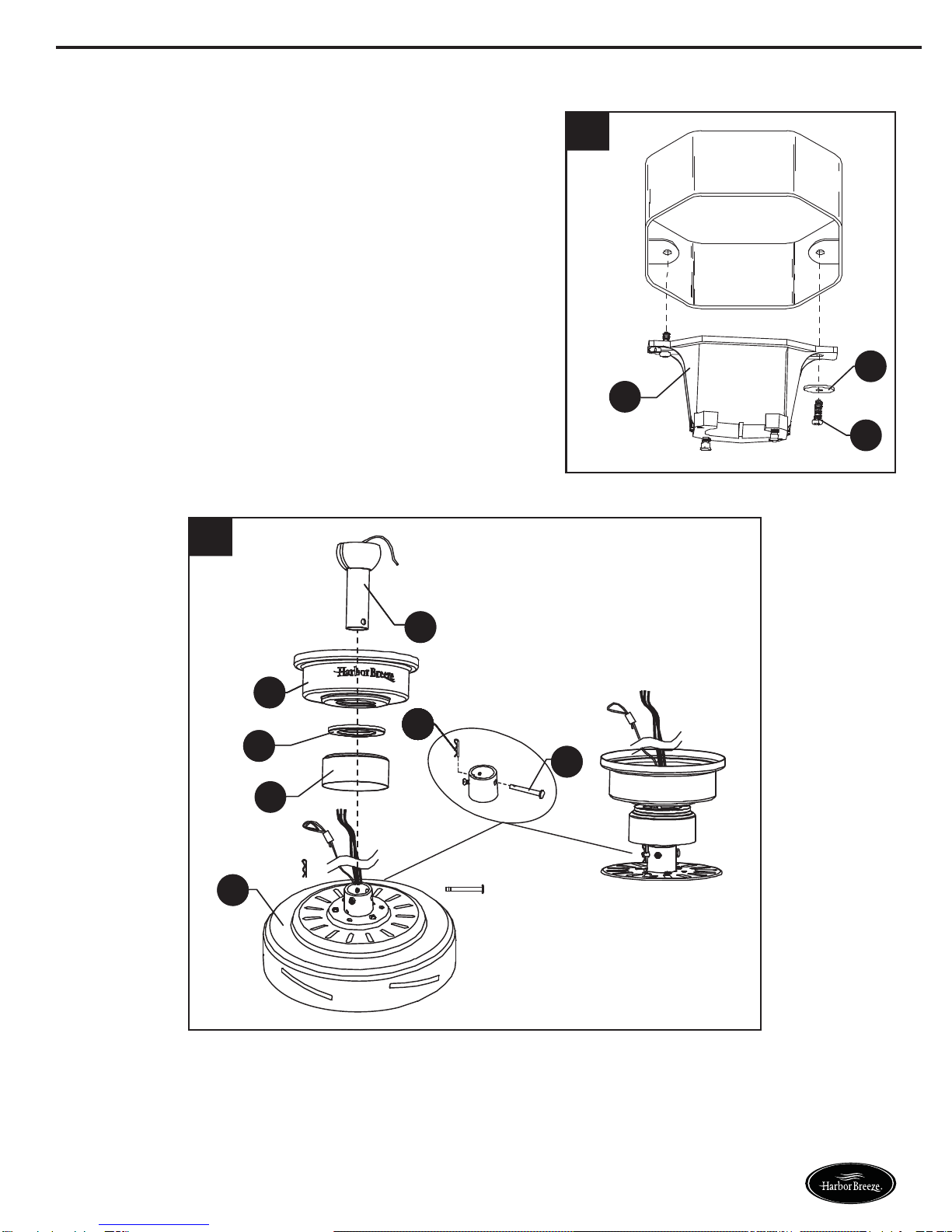

1. Secure the hanger bracket (A) to the ceiling outlet

box using screws (T) and washers (U) provided with

the outlet box. Important: If attaching the fan to a

sloped ceiling, make sure open end of mounting

bracket is installed facing the roof. Do not install fan

on a ceiling with a pitch greater than 20°.

2. Remove the hairpin (B) clip and clevis pin (C) from the downrod support of the motor assembly

(H) and loosen the two set screws. Slide the downrod (D) through the canopy (E), canopy hole

cover (F) and motor coupling cover (G). Feed the black, white and blue wires with safety cable

from fan through the downrod (D). Insert the downrod into motor assembly (H) Secure clevis pin

Lowes.com/harborbreeze

EEEEEEEB

ASSEMBLY INSTRUCTIONS

EEEUEEEA

EEEUEEED

3. Loosen the two shoulder screws without fully

removing from the hanging bracket (A). Carefully lift

the fan and seat the downrod (D)/hanger ball

assembly on the hanger bracket (A) that was just

attached to the outlet box. Be sure the groove in the

ball is lined up with the tab on the hanger bracket

(A).

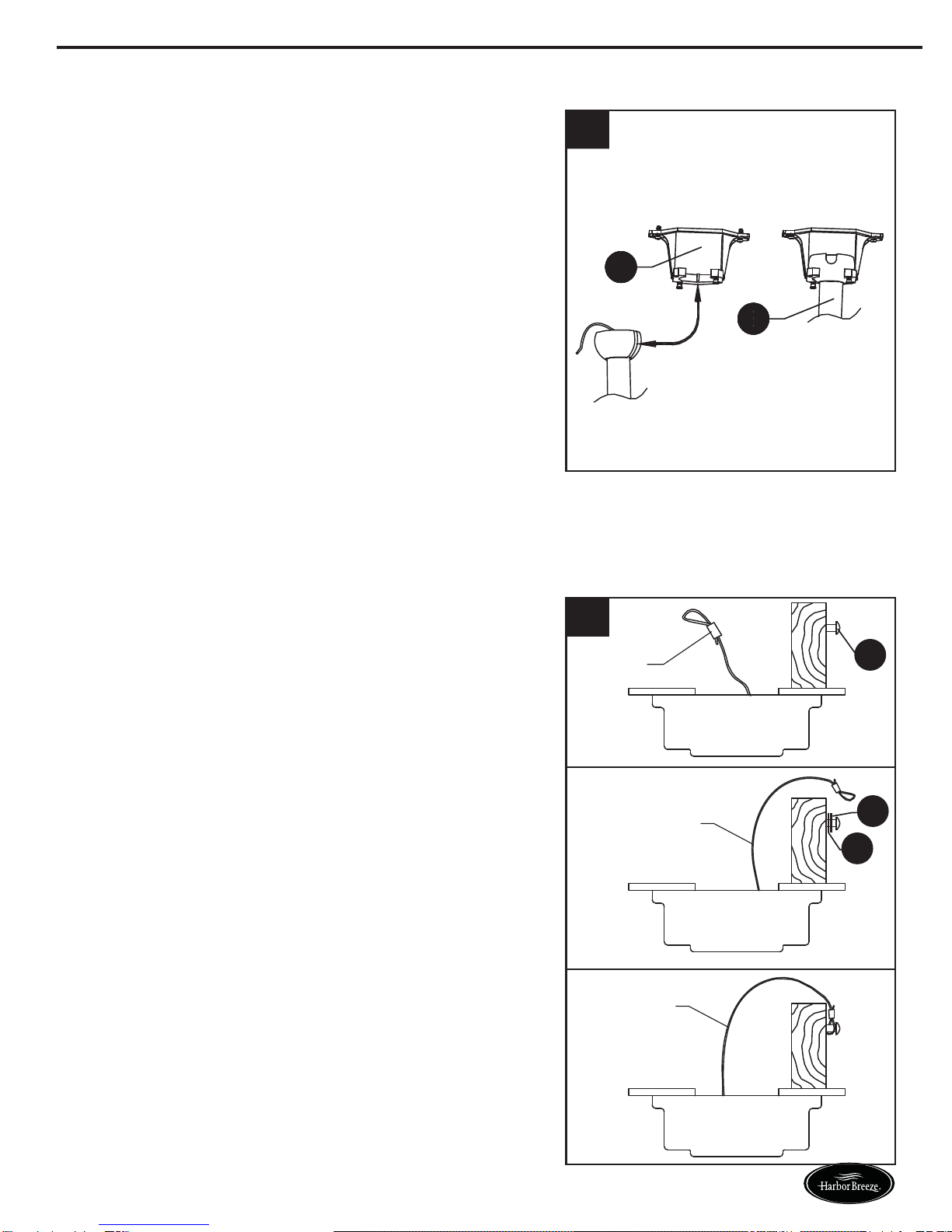

4. For Canadian installation and for USA fans over 35

lbs, the safety cable must be installed into the house

structure beams using a 3” lag screw (R). Make

sure that when the safety cable is fully extended the

leadwires are longer than the cable and no stress is

placed on the lead.

Lowes.com/harborbreeze

Safety

Cable

Safety

Cable

Safety

Cable

ASSEMBLY INSTRUCTIONS

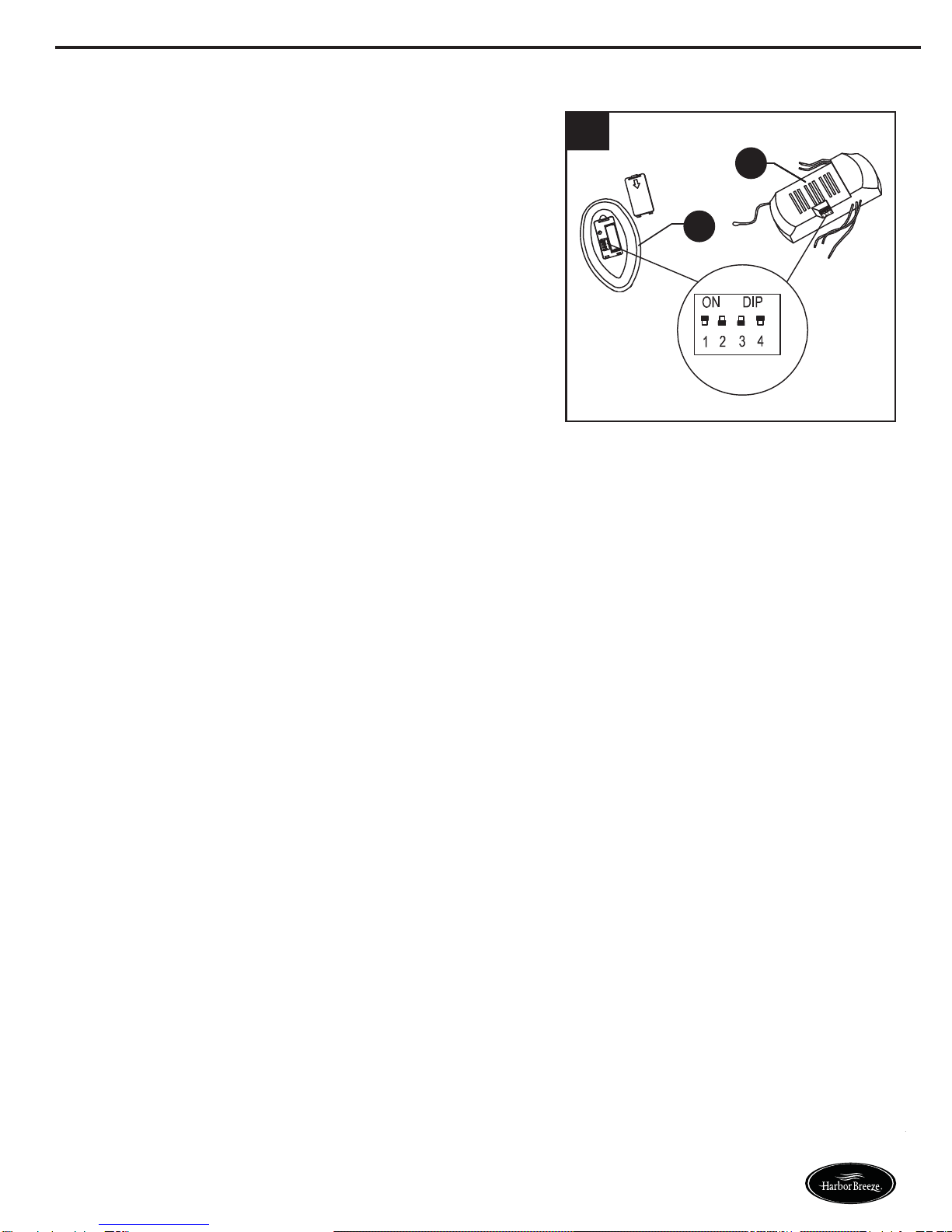

5. The frequency switches on your receiver and

transmitter have been preset at the factory. Remove

the transmitter battery cover and make sure the

switches are set to the same position. This must be

done so that your fan will communicate properly. If

you are using more than one fan in the same area

and want to control them separately, change one

fan’s dip switch settings in the transmitter and

remote to a new pattern.

NOTE: If not using for long periods of time, remove

battery to prevent damage to transmitter. Store the

remote away from excessive heat or humidly.

Lowes.com/harborbreeze

ASSEMBLY INSTRUCTIONS

Red

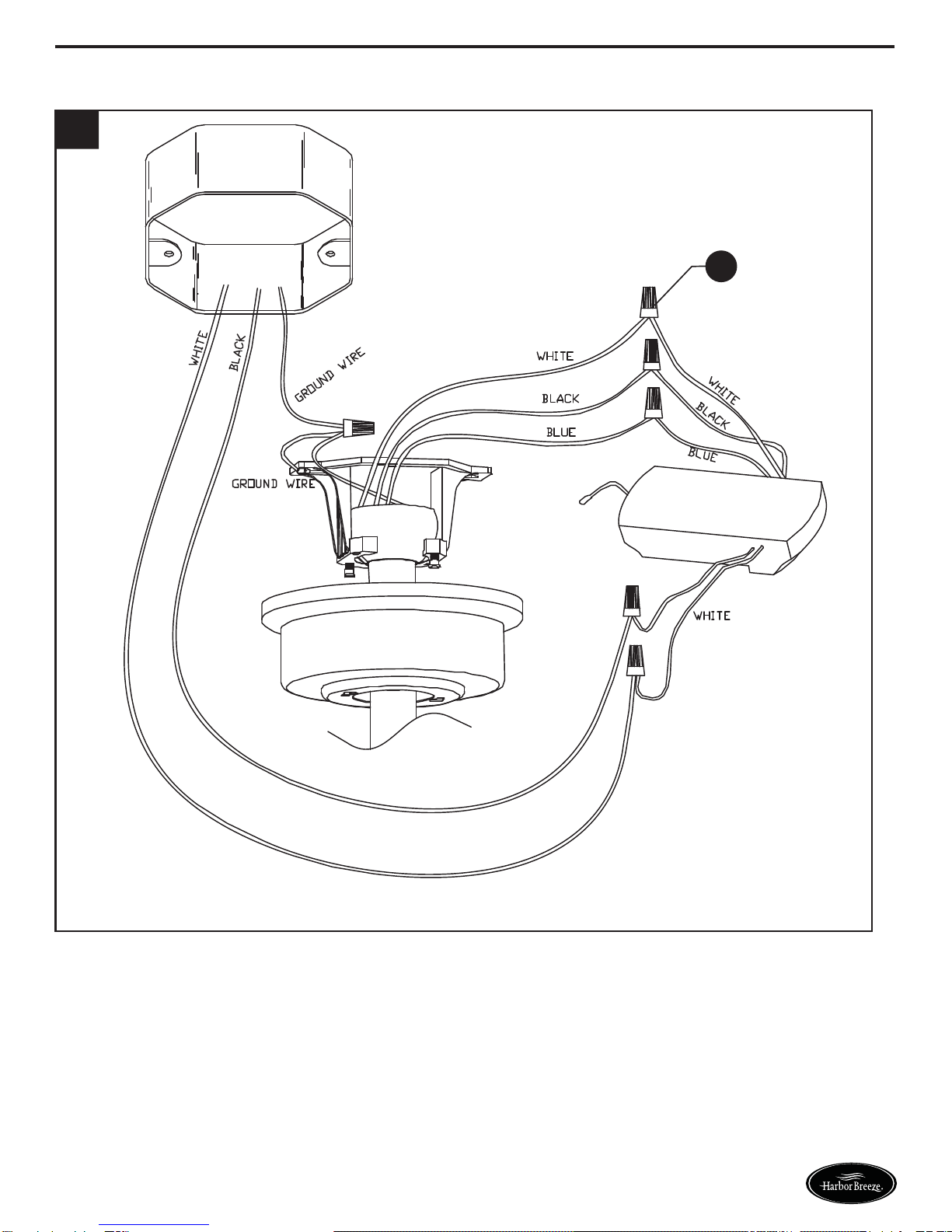

6. Wring the fan per wiring diagram and Securely connect wires with wire connectors (V):

• Connect WHITE fan motor wire to WHITE receiver unit wire marked TO MOTOR N.

• Connect BLUE fan motor wire to BLUE receiver unit wire marked FOR LIGHT.

• Connect BLACK fan motor wire to BLACK receiver unit wire marked TO MOTOR L.

• Connect BLACK supply wire to RED receiver unit wire marked AC IN L.

• Connect WHITE supply wire to WHITE receiver unit wire marked AC IN N.

• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN

or BARE COPPER) from house.

Lowes.com/harborbreeze

ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS

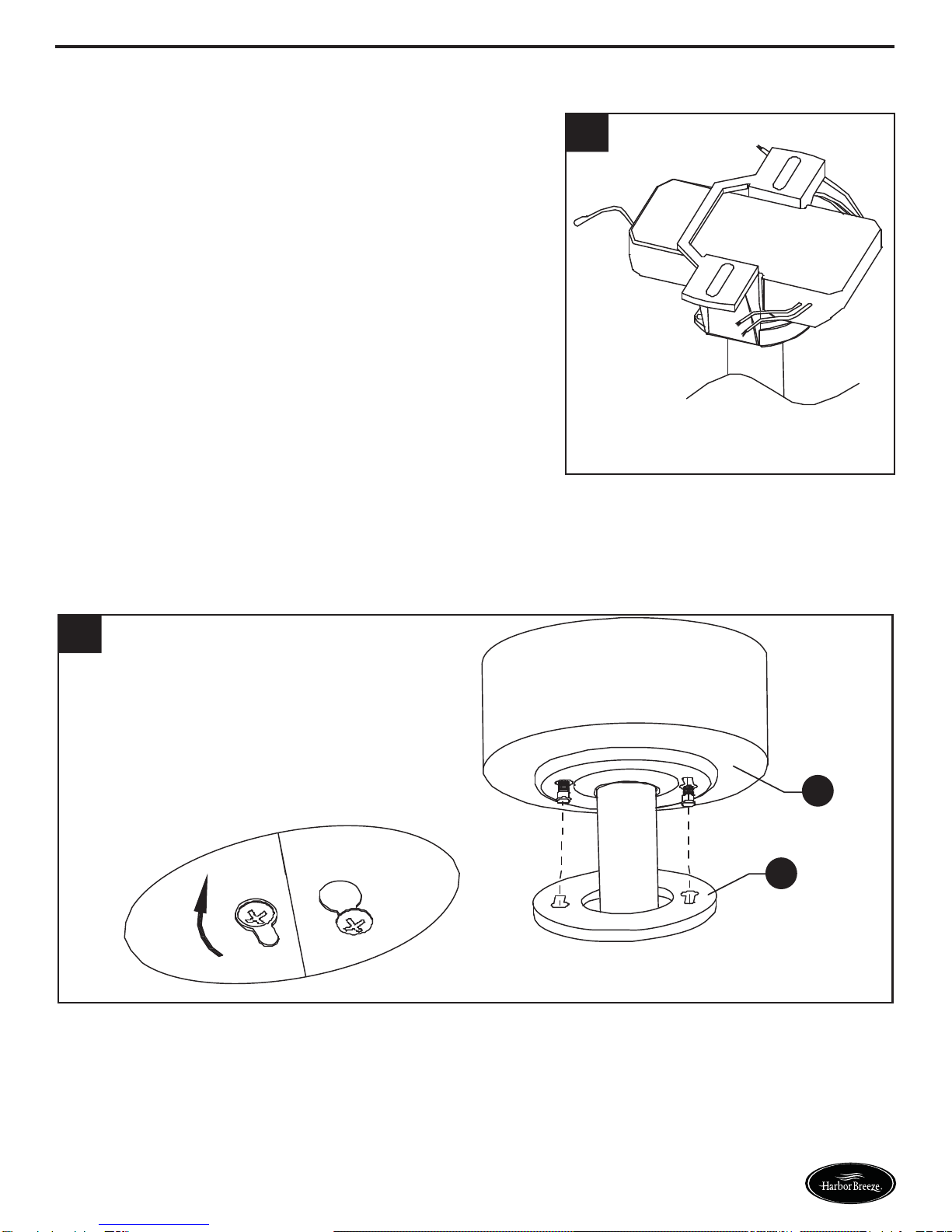

7. Once wiring step has been completed, slide the

wired remote receiver in between the bracket and

the top of the downrod ball, with the flat side of the

receiver facing the ceiling. Turn lead wires upward

and carefully push them into the outlet box, with the

white and green wires to one side of the box and the

black wire toward the other side.

8. Loosen the two shoulder screws without fully removing the hanger bracket (A). Assemble canopy

(E) by rotating keyhole slot in canopy over shoulder screws in hanger bracket (A). Tighten

shoulder screws. Securely attach and tighten the canopy hole cover (F) over the shoulder screws

in the hanger bracket (A) utilizing the keyhole slot twist-lock feature.

Lowes.com/harborbreeze

ASSEMBLY INSTRUCTIONS

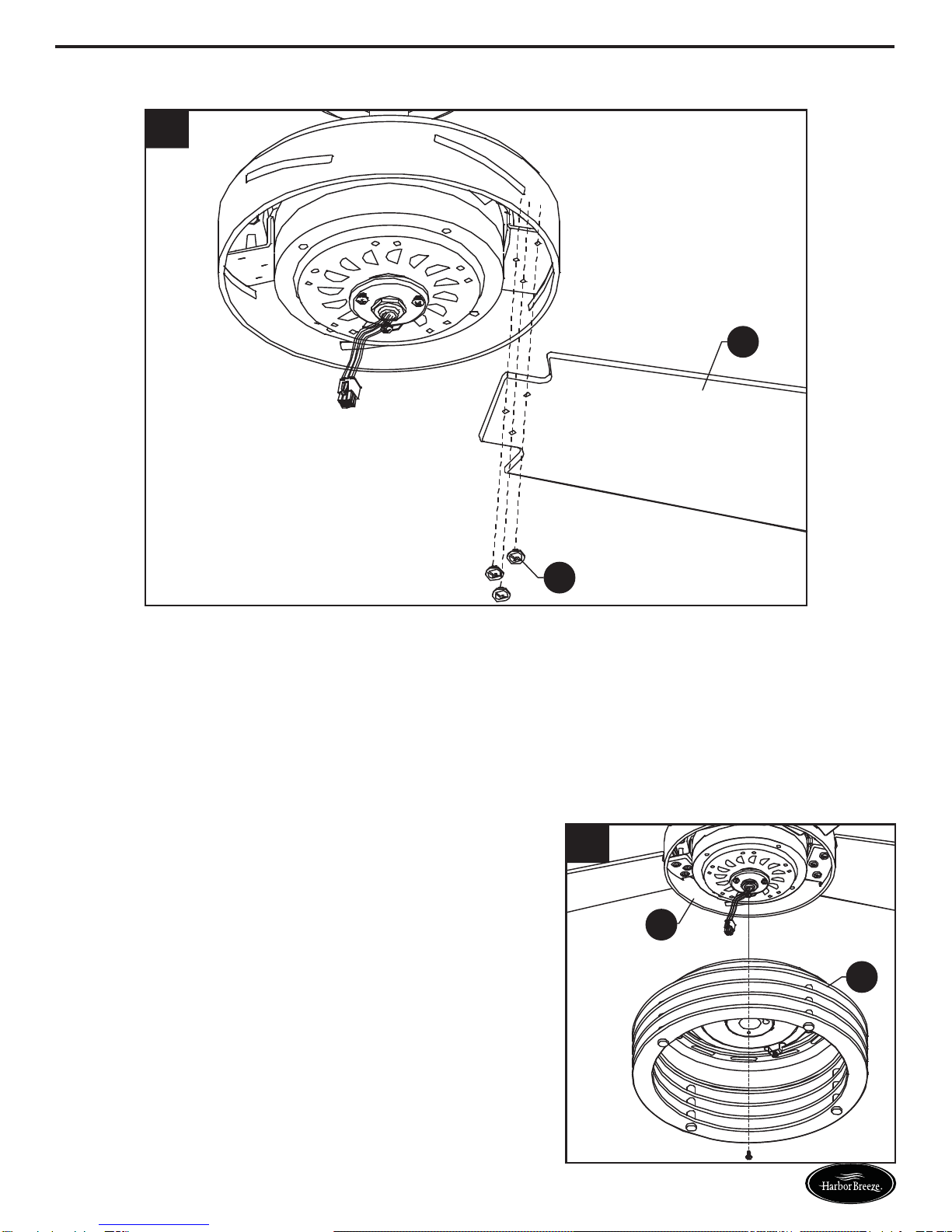

9. Assembling the blades: Insert end of each blade (L) into the slots on the blade iron ring. Align the

holes on the blade with the holes on the blade iron ring and secure using blade screws (K). Do

not tighten screws until all blades (L) have been attached.

10.Installing the shade housing: Remove one of the

three screw on the mounting plate and loosen the

other two. Feed the 9-pin connector and safety cable

through the center opening of the shade housing

(I).Align the keyhole slots in the housing with the

assembly screw, turn the shade housing (I)

counterclockwise until the assembly screws are

firmly situated in the narrow ends of the keyhole

slots. Replace the third screw and securely tighten

all three screws.

Lowes.com/harborbreeze
