Harbor Breeze 317058 Manuel utilisateur

E124404

Questions, problems, missing parts? Before returning to your retailer, call or contact our

customer service department at 1-800-527-1292, 8:30 a.m. - 5:00 p.m., CST, Monday - Friday.

Harbor Breeze® is a registered trademark of

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

ITEM #0317058

0317059

0317060

MODEL #CSD42AB5C3

CSD42BB5C3

CSD42LW5C3

CHESHIRE II CEILING FAN

Español p. 20

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, install or operate the

product. If you have any questions regarding the product, please call customer service at

1-800-527-1292, 8:30 a.m.- 5:00 p.m., CST, Monday - Friday.

• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for

repairs, it must be shipped in its original packaging to ensure proper protection against damage that

might exceed the initial cause for return.

• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical

Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook,

available at Lowe's, if you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to

the floor and at least 30 in. from the end of the blades to any obstruction.

• After you install the fan, make sure that all connections are secure to prevent the fan from falling.

• The net weight of this fan including the light kit is: 13.45 lbs. (6,1 kg).

TABLE OF CONTENTS

Safety Information .....................................………………………………………………...…

….....

2 - 3

Product Overview ...........................................................................................................................4

Package Contents .....……………………………………………………………..….

….

.........

......

Hardware Contents ...................................................................................................................

......

Preparation ...............….…………………..……………………….…………….……………….......6

Initial Installation ............….……………..……………………….……….

…..….

.............................7 - 8

Wiring .................................……………………........................................………….............9 - 10

Final Installation ….…………….……………………….…………….……..........

....

….......

11 - 14

Using Fan Without Light Kit (Optional) .................................................................................14 - 15

Operation Instructions ............................................................……………………

……

….

...........

15 - 16

Care and Maintenance …

….…

…………………………………………………..….......

.....

.......

Troubleshooting .............………...………………………….……………..………....

….......

17 - 18

Warranty ……………………………….…………………………………………..…

….

.........

........

Replacement Parts List ...............................................................................................................

SAFETY INFORMATION

To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box

marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9 KG) OR LESS" and use

mounting screws provided with the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet

box directly to the building structure. The outlet box and its support must be able to support the

moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.

To avoid personal injury, the use of gloves may be necessary while handling fan parts with

sharp edges.

To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this

fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your

house wire is larger than 12-gauge or there is more than one house wire to connect to the two fan

lead wires, consult an electrician for the proper size wire connectors to use.

To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed

control device or control fan speed with a full range dimmer switch.

To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when

installing them, balancing the blades, or cleaning the fan. Do not insert objects between the

rotating fan blades.

To reduce the risk of personal injury, use only parts provided with this fan. The use of parts

OTHER than those provided with this fan will void the warranty.

WARNINGS

CAUTIONS

Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid

electrical shock.

Read all instructions and safety information before installing your new fan. Review the

accompanying assembly diagrams.

Congratulations on your purchase of this Harbor Breeze®

Ceiling Fan! This product has been specifically designed to

give you all the performance you’ll ever need. Harbor Breeze®

is the perfect fusion of smart innovation and beautiful style.

Designed for more than just air movement, our products are

built to function flawlessly... day after day. Expect showroom

quality at an exceptional price with Harbor Breeze® - available

exclusively at Lowe’s.

Determining how you want your ceiling fan to look and operate is an important step prior to

installation. You can save installation time by deciding which options are best suited for your needs

before beginning the steps outlined in this manual.

Your fan can be installed on a normal ceiling only. Two points to remember before you hang your

ceiling fan:

• Fan is best suited for ceilings 7 ft. (2.13 m) high or higher.

• It is necessary for blades to have at least 30 in. from obstructions to ensure proper blade

clearance.

Your fan also has multiple wiring options available, including:

• Fan and light controlled by pull chain.

• Fan controlled by pull chain, light controlled by wall switch.

• Fan and light controlled by two separate wall switches.

Harbor Breeze® is a registered trademark

PRODUCT OVERVIEW

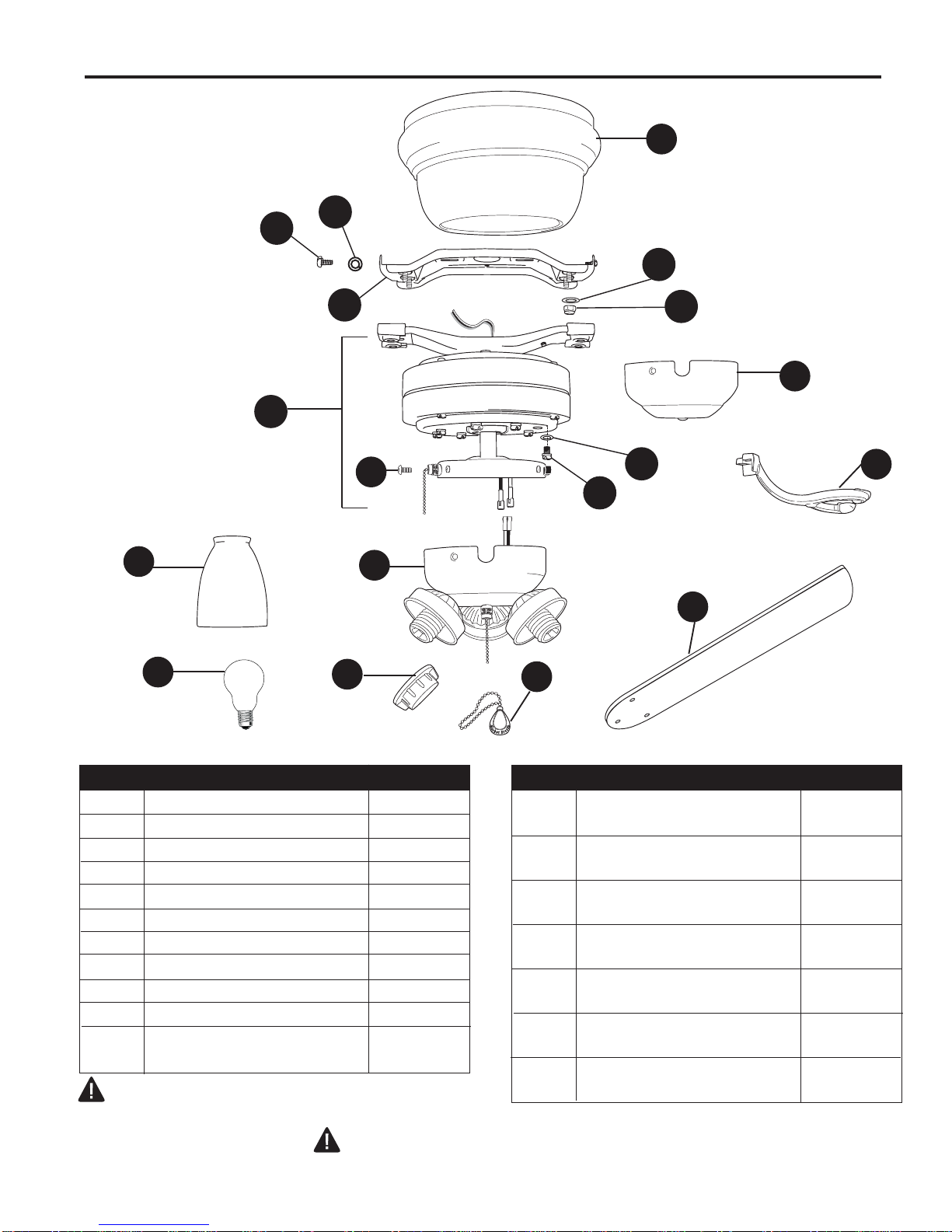

PACKAGE CONTENTS

IMPORTANT REMINDER: You must

use the parts provided with this fan for

proper installation and safety.

I L

PART DESCRIPTION QUANTITY

A Motor Housing 1

B Mounting Bracket 1

C Extra Switch Housing 1

D Motor Assembly 1

E Light Kit Fitter 1

F Glass Shade 3

G Blade Arm 5

H Blade 5

I Candelabra Base Bulb 3

J Pull Chain Extension 2

K Mounting Bracket Nut 4

(preassembled)

PART DESCRIPTION QUANTITY

L Socket Ring 3

(preassembled)

M Motor Screw 10

(preassembled)

N Lock Washer 10

(preassembled)

O Motor Housing Mounting 4

Screw (preassembled)

P Mounting Bracket Flat 4

Washer (preassembled)

Q Motor Housing Lock 4

Washer (preassembled)

R Switch Housing Plate 3

Screw (preassembled)

HARDWARE CONTENTS (shown actual size)

Blade

Screw

Qty. 15

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents above. If any part is missing or damaged, do not attempt to

assemble the product. Contact customer service for replacement parts.

Estimated Assembly Time: 120 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Stepladder and Wire Strippers

Helpful Tools (not included):AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook

(available at Lowe’s) and Wire Cutters

Bulbs Required (included): 3 candelabra-base 60-watt max. bulbs

DANGER: When using an existing outlet box, make sure the outlet box is securely attached to

the building structure and can support the full weight of the fan. Failure to do this can result in serious

injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan

after installation is complete.

CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is

present.

After opening top of carton, remove mounting hardware package from foam inserts. Remove motor

from packing and place on carpet or on foam to avoid damage to ﬁnish.

CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they

are secured.

PREPARATION

E3 Wire

Connector

Qty. 4

Fiber

Blade

Washer

Qty. 15

INITIAL INSTALLATION

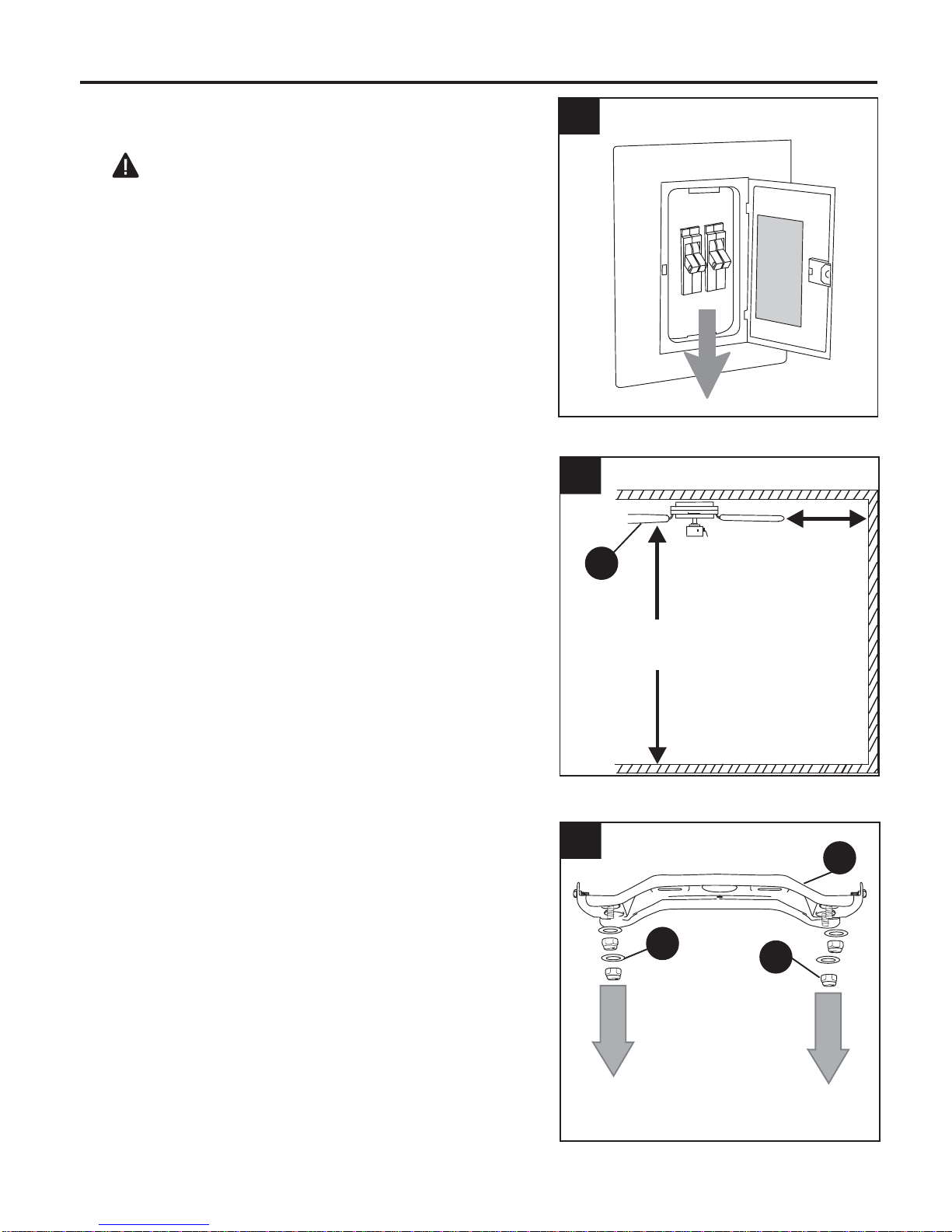

Turn off circuit breakers and wall switch to the fan

supply line leads. (Fig. 1)

DANGER: Failure to disconnect power supply

prior to installation may result in serious injury or

death.

OFF

7 ft.

min.

30 in.

min.

Remove all mounting bracket nuts (K) and

mounting bracket flat washers (P) from mounting

bracket (B). (Fig. 3)

Check to make sure blades (H) will be at least

30 in. from any obstruction and at least 7 ft.

above the floor. (Fig. 2)

INITIAL INSTALLATION

4. 4

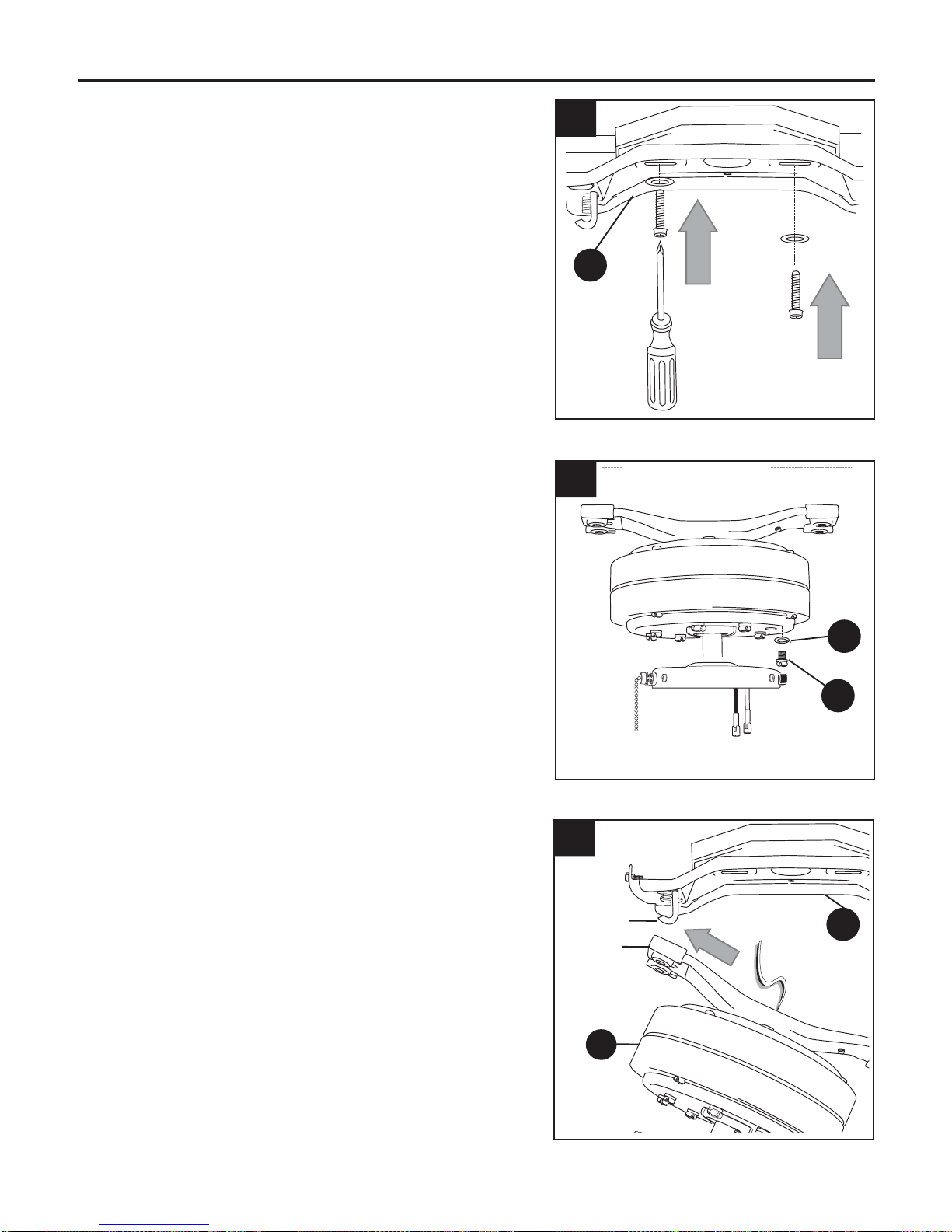

Secure mounting bracket (B) to outlet box using

screws, spring washers, and flat washers

provided with the outlet box. (Fig. 4)

*Note: It is very important that you use the

proper hardware when installing the mounting

bracket (B) as this will support the fan.

"J" Hook

Bar

Slide the slot in the bar at the top of the motor

assembly (D) onto the "J" hook on the mounting

bracket (B) to support the fan during wiring. (Fig. 6)

Important: Do not use the end of the bar on the

motor assembly (D) with the small round hole to

hang the motor assembly (D) on the mounting

bracket (B).

Remove motor screws (M) and lock washers (N)

from underside of motor and save for blade arm (G)

attachment later on. [If there are plastic motor blocks

installed with the motor screws (M) and lock washers

(N), discard the plastic motor blocks.] (Fig. 5)

WIRING

WARNING: To reduce the risk of fire, electrical

shock, or personal injury, wire connectors provided

with this fan are designed to accept only one

12-gauge house wire and two lead wires from the

fan. If your house wire is larger than 12-gauge or

there is more than one house wire to connect to the

two fan lead wires, consult an electrician for the

proper size wire connectors to use.

CAUTION: Be sure outlet box is properly grounded

and that a ground (green or bare) wire is present.

WARNING: If house wires are different colors

than referred to in the following steps, stop

immediately. A professional electrician is

recommended to determine wiring.

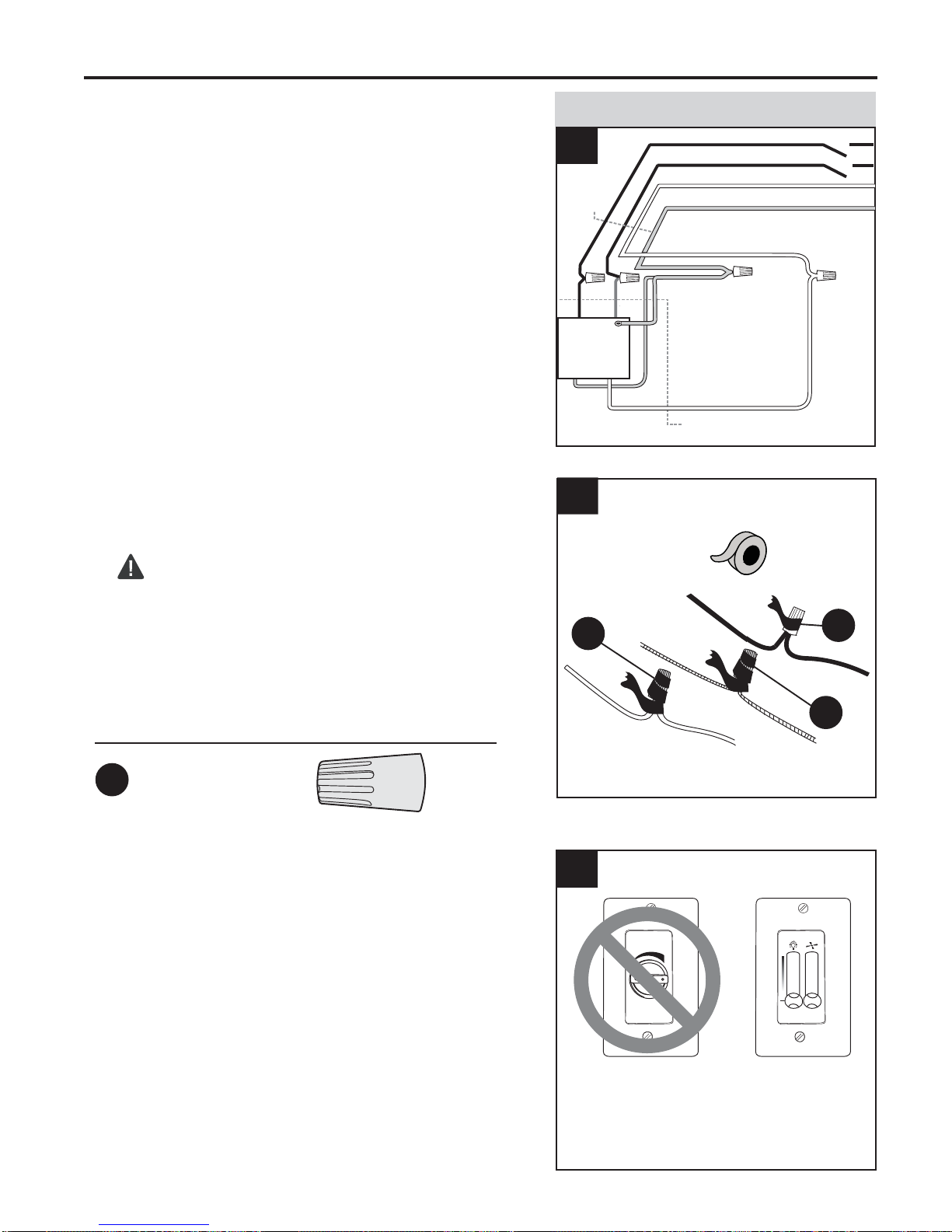

FAN AND LIGHT CONTROLLED BY PULL CHAINS

BLACK

WHITE

GROUND/GREEN (BARE)

WHITE

BLUE

WHITE

FROM FAN

120 V Power

FROM

CEILING

FAN

GREEN

BLACK

GREEN

Choose wiring diagram (Fig. 1A, Fig. 1B or Fig. 1C)

that fits your situation and make appropriate wiring

connections as follows: [NOTE: For each wire

connection below, use one of the wire connectors

(CC) provided, making sure to screw wire

connector (CC) on in a clockwise direction.]

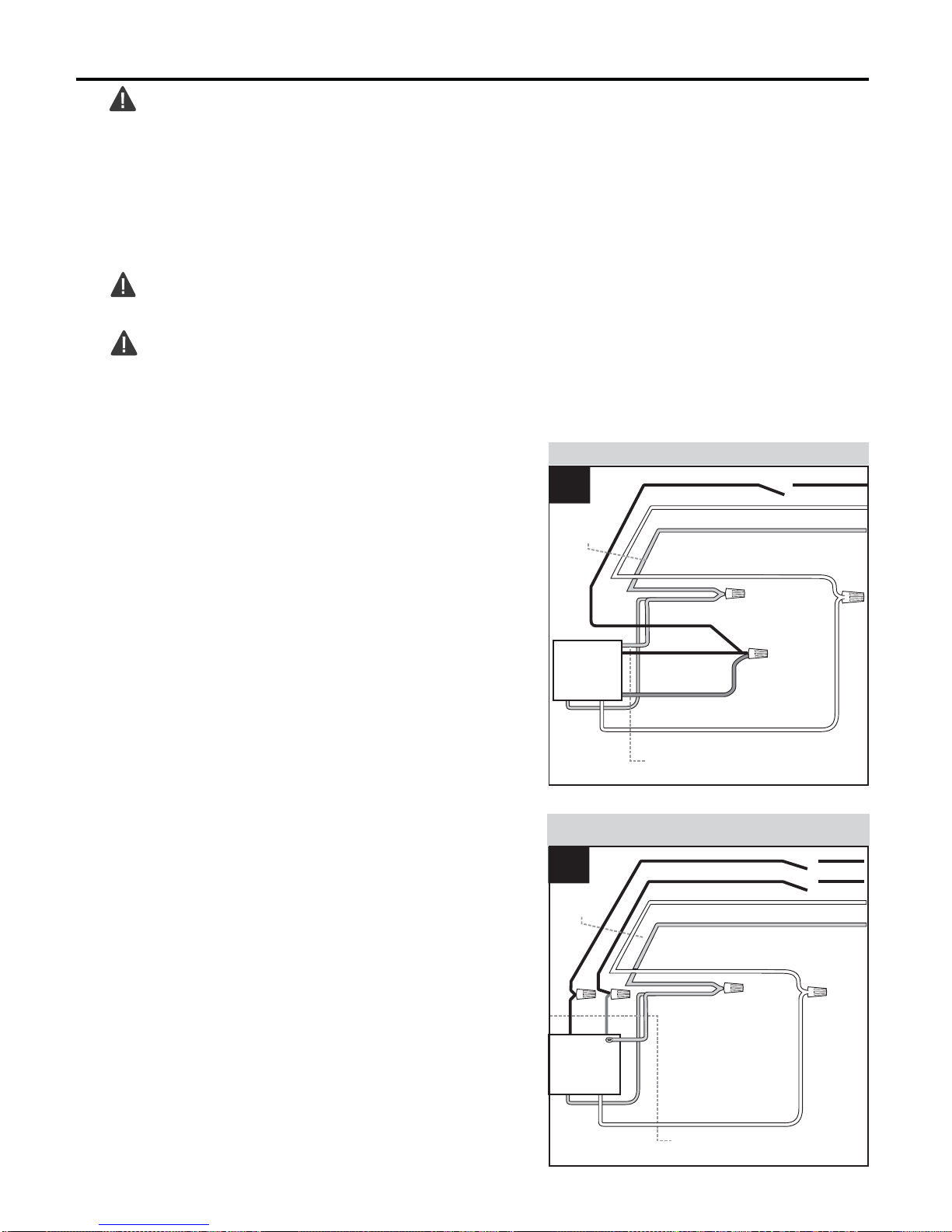

1A. FAN AND LIGHT CONTROLLED BY PULL

CHAINS: Connect BLACK and BLUE wire from

fan to BLACK wire from ceiling. Connect WHITE

wire from fan to WHITE wire from ceiling.

Connect all GROUND (GREEN) wires together

from fan (on motor assembly (D) and mounting

bracket (B)) to BARE/GREEN wire from ceiling.

(Fig. 1A)

WHITE

BLACK

BLACK (WALL SWITCH)

GROUND/GREEN (BARE)

BLACK

BLUE

WHITE

FROM FAN

FAN

120 V Power

FROM

CEILING

GREEN

WHITE

GREEN

FAN CONTROLLED BY PULL CHAIN, LIGHT BY

WALL SWITCH

1B. FAN CONTROLLED BY PULL CHAIN,

LIGHT BY WALL SWITCH: If you intend to

control the fan light with a separate wall switch,

connect BLACK wire from fan to BLACK wire

from ceiling. Connect BLUE wire from fan to the

BLACK wire from the independent wall switch

for the light. Connect WHITE wire from fan to

WHITE wire from ceiling. Connect all GROUND

(GREEN) wires together from fan (on motor

assembly (D) and mounting bracket (B)) to

BARE/GREEN wire from ceiling. (Fig. 1B)

NOTE: Black wire is hot power for fan. Blue wire

is hot power for light kit. White wire is common

for fan and light kit. Green or bare wire is ground.

Wrap electrical tape (not included) around each

individual wire connector (CC) down to the wire as

shown in Fig. 2.

WARNING: Make sure no bare wire or wire

strands are visible after making connections. Place

green and white connections on opposite side of box

from the black and blue (if applicable) connections.

Turn spliced/taped wires upward and gently push

wires and wire connectors (CC) into outlet box.

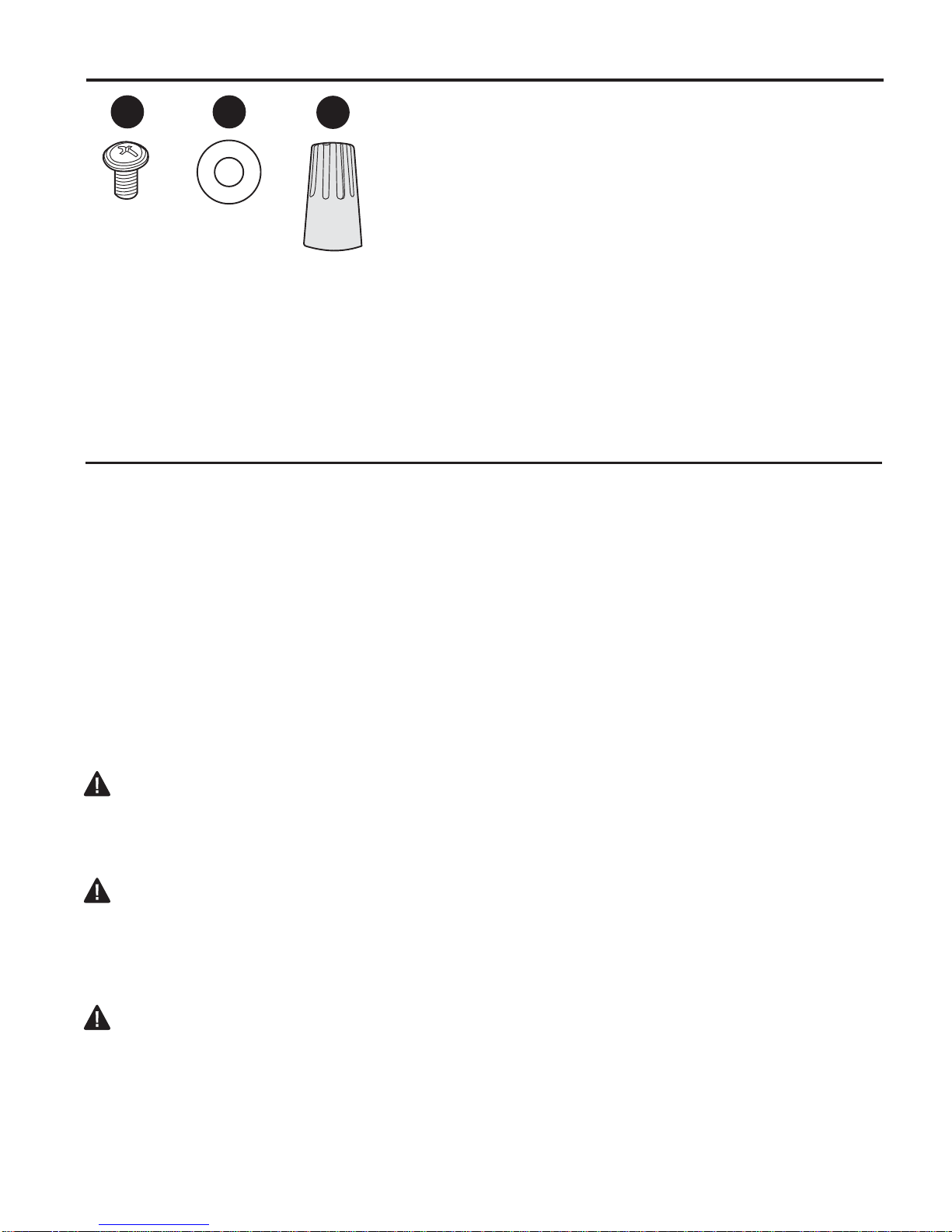

E3 Wire Connector x4

Hardware Used

Dimmer

Switch Speed

Switch

For illustrative purposes only--not

intended to cover all types of controls

IMPORTANT: Using a full range dimmer switch

(not included) to control fan speed will cause a

loud humming noise from fan. To reduce the risk

of fire or electrical shock, do NOT use a full range

dimmer switch to control fan speed. (Fig. 3)

FAN AND LIGHT CONTROLLED BY TWO WALL

SWITCHES

WHITE

BLACK (WALL SWITCH)

BLACK (WALL SWITCH FOR LIGHT)

GROUND/GREEN (BARE)

BLACK

BLUE

WHITE

FROM FAN

FAN

120 V Power

FROM

CEILING

GREEN

WHITE

GREEN

WIRING

1C. FAN AND LIGHT CONTROLLED BY TWO

WALL SWITCHES: If you intend to control the

fan and light with separate wall switches,

connect BLACK wire from fan to BLACK wire

from the independent wall switch for the fan.

Connect BLUE wire from fan to the BLACK

wire from the other independent wall switch for

the light. Connect WHITE wire from fan to

WHITE wire from ceiling. Connect all GROUND

(GREEN) wires together from fan (on motor

assembly (D) and mounting bracket (B)) to

BARE/GREEN wire from ceiling. (Fig. 1C)

CC CC

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Harbor Breeze Ventilateur

Harbor Breeze

Harbor Breeze 00728 Manuel utilisateur

Harbor Breeze

Harbor Breeze LARALYN LRN32 Manuel utilisateur

Harbor Breeze

Harbor Breeze MZ44WW3LR Manuel utilisateur

Harbor Breeze

Harbor Breeze 00878 Manuel utilisateur

Harbor Breeze

Harbor Breeze 35086 Manuel utilisateur

Harbor Breeze

Harbor Breeze Bath Ventilator with Light Manuel utilisateur

Harbor Breeze

Harbor Breeze 00883 Manuel utilisateur

Harbor Breeze

Harbor Breeze CHESHIRE II CSD52BB5C4 Manuel utilisateur

Harbor Breeze

Harbor Breeze OCEANSIDE Manuel utilisateur

Harbor Breeze

Harbor Breeze ANIVA BAY Manuel utilisateur

Harbor Breeze

Harbor Breeze 40956 Manuel utilisateur

Harbor Breeze

Harbor Breeze BATTLER E-LUK52HBB5LEDR Manuel utilisateur

Harbor Breeze

Harbor Breeze MERRIMACK II 41125 Manuel utilisateur

Harbor Breeze

Harbor Breeze C-TR56BNK3D1R Manuel utilisateur

Harbor Breeze

Harbor Breeze CALERA CLRO52-II Manuel utilisateur

Harbor Breeze

Harbor Breeze CLASSIC STYLE BDB52LW5N Manuel utilisateur

Harbor Breeze

Harbor Breeze 0883783 Manuel utilisateur

Harbor Breeze

Harbor Breeze TEX52MBK5C1L Manuel utilisateur

Harbor Breeze

Harbor Breeze ARMITAGE CC52WW5C1 Manuel utilisateur

Harbor Breeze

Harbor Breeze E-WCK44ABZ5LKS Manuel utilisateur

Harbor Breeze

Harbor Breeze Bath Ventilator with Light Manuel utilisateur

Harbor Breeze

Harbor Breeze E-BDB52LABZ5BC4N Manuel utilisateur

Harbor Breeze

Harbor Breeze E-BDB52ABZC5BC4N Manuel utilisateur

Harbor Breeze

Harbor Breeze L1901 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
