Hanwha Techwin Wisenet SNO-6085R Manuel utilisateur

SNO-6085R

NETWORK CAMERA

Quick Guide

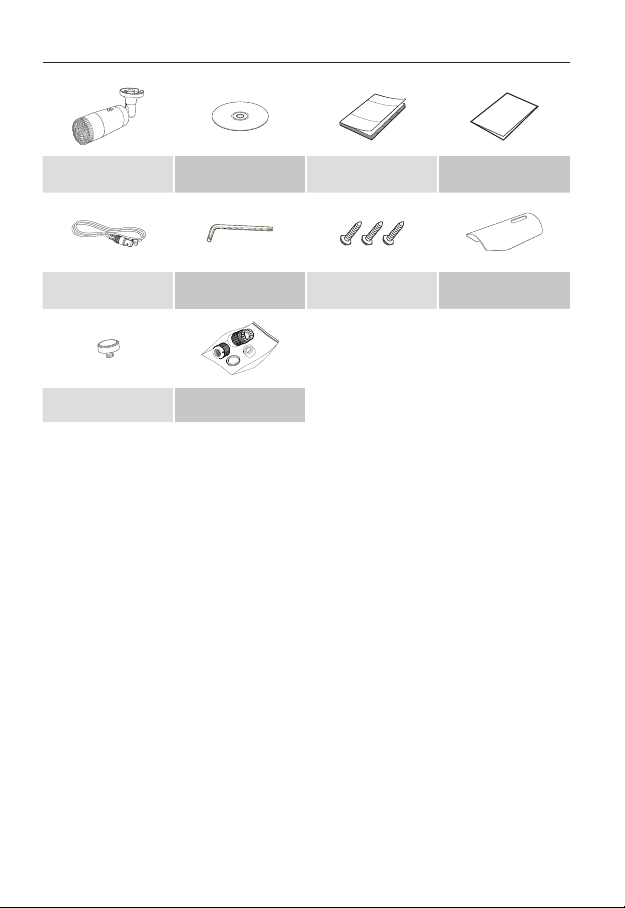

WHAT’S INCLUDED

Camera CD Quick Guide (Optional) Warranty card

(Optional)

Cable for the testing

monitor L Wrench

Tapping Screw

Sunshield

Sunshield Hold

RJ45 waterproof accessory

2_ English

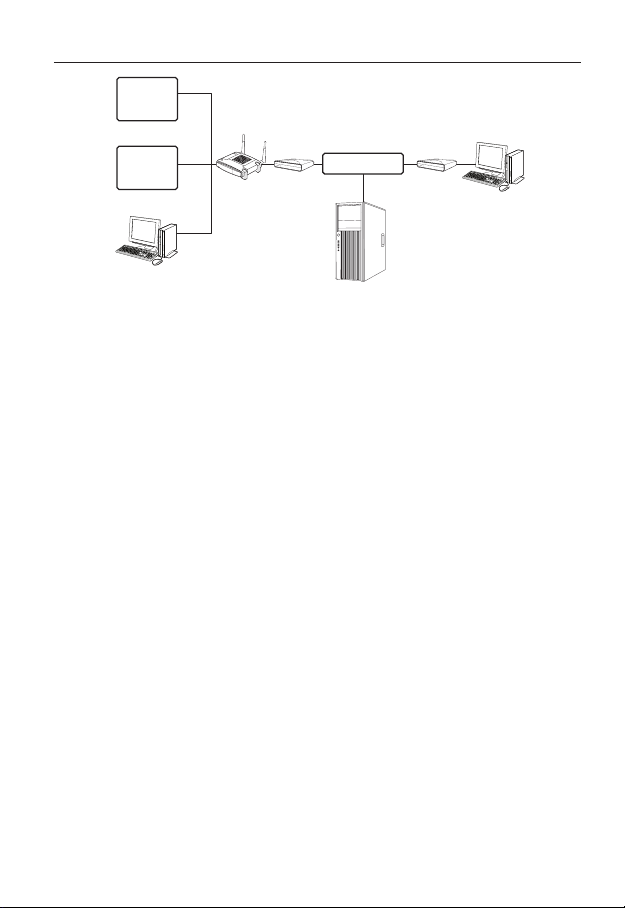

NETWORK WIRING DIAGRAM

Camera

Local PC

Broadband

Router

PPPoE or

Cable Modem

PPPoE or

Cable Modem External Remote PC

DDNS Server

(Data Center, KOREA)

INTERNET

English _3

MANUAL NETWORK SETUP

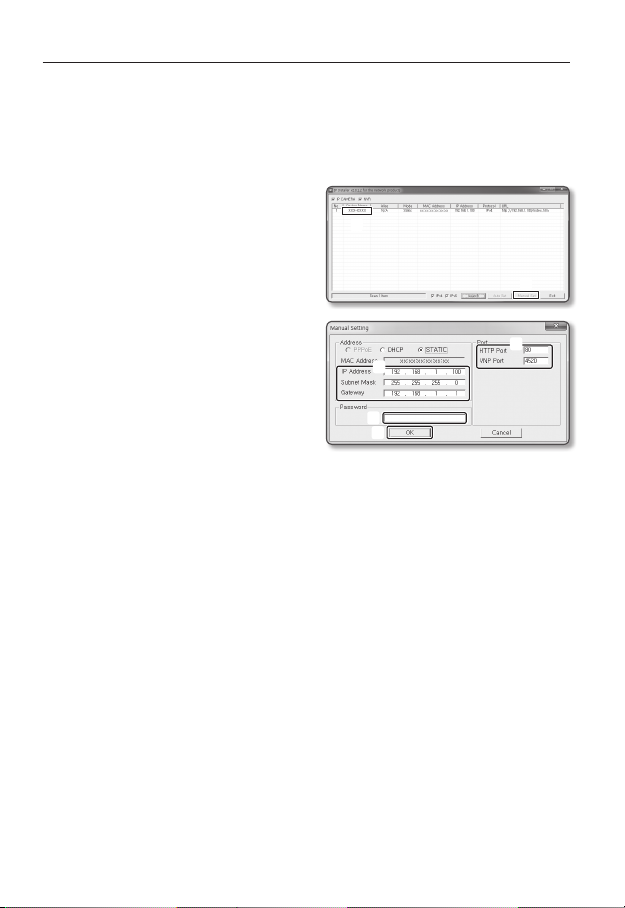

Run <IP Installer_v2.XX.exe> to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

`For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not

support this function.

aSelect a camera in the search list.

bClick [Manual Set].

The Manual Setting dialog appears.

cIn the <Address> pane, provide the

necessary information.

dIn the <Port> pane, provide necessary

information.

•HTTP Port : Used to access the

camera using the Internet browser,

defaulted to 80.

•VNP Port : Used to control the video

signal transfer, defaulted to 4520.

eEnter the password.

The default password is “4321”.

`In the IP installer, you can use the initial password, “4321” to set IP Address, Subnet Mask,

Gateway, HTTP Port, VNP Port, IP type. After changing the network interface, for better security,

access the web viewer and change the password.

If you want to set the password, refer to “Password setting”. (page 5)

fClick [OK].

Manual network setup will be completed.

4_ English

CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC

1. Run the IP Installer.

It will scan for connected cameras and display them as a list.

2. Double-click a camera to access.

The Internet browser starts and connects to the camera.

`Access to the camera can also be gained by typing the camera’s IP address in the address bar of

the Internet browser.

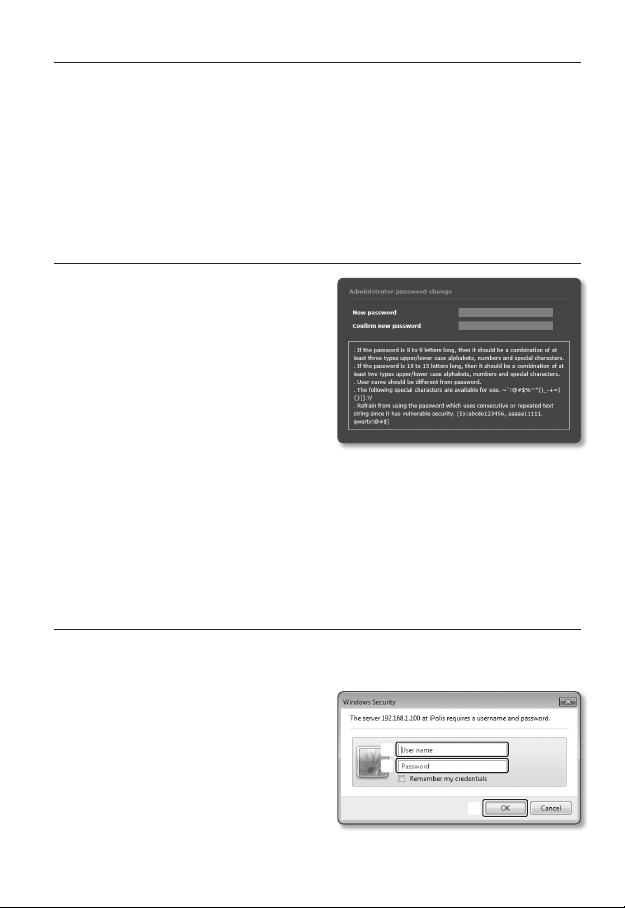

PASSWORD SETTING

When you access the product for the first time,

you must register the login password.

When the “Password change” window appears,

enter the new password.

`For a new password with 8 to 9 digits,

you must use at least 3 of the following:

uppercase/lowercase letters, numbers

and special characters. For a password

with 10 to 15 digits, you must use at least

2 types of those mentioned.

-Special characters that are allowed. : ~`!@#$%^*()_-+=|{}[].?/

`For higher security, you are not recommended to repeat the same characters or consecutive

keyboard inputs for your passwords.

`If you lost your password, you can press the [RESET] button to initialize the product. So, don’t lose

your password by using a memo pad or memorizing it.

Whenever you access the camera, the login window appears.

Enter the User ID and password to access the camera.

aEnter “admin” in the <User Name>

input box.

bEnter the password in the <Password>

input field.

cClick [OK].

English _5

INSTALLING WebViewer PLUGIN

If connecting to a camera for the first time, you will see the installation message. Then, install the

required WebViewer Plugin to access the camera and control the video from it in real time.

`If the plug-in installation file download status is suspended at 99% in the Internet Explorer

browser, retry it after selecting “Release SmartScreen filter” in “Tool SmartScreen filter”.

`In your internet explorer, if you need to move to the installation screen after installing the

webviewer plugin, check whether webviewer_activexplugin_lib.control in the “Tool Additional

Function Management” menu is “Activated”. If not, and if there is a persisting problem, then select

“Tools Internet Options General” and delete all the search records.

CONNECTING TO THE CAMERA FROM A REMOTE PC VIA

THE INTERNET

Since using the IP Installer on a remote computer that is not in the Broadband Router’s network

cluster is not allowed, users can access cameras within a Broadband Router’s network by using

the camera’s DDNS URL.

Port Range Forward (Port Mapping) Setup

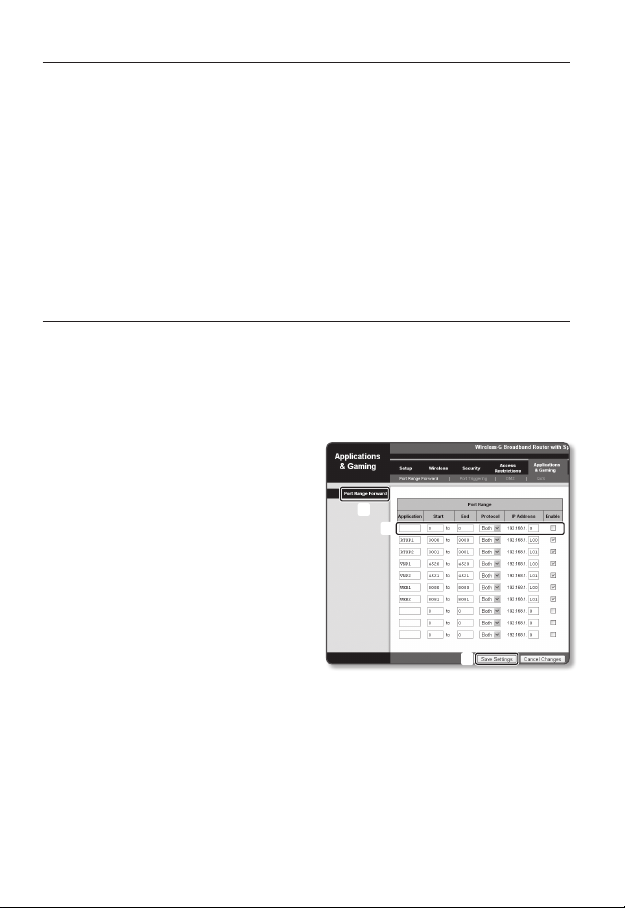

aFrom the Setup menu of the Broadband

Router, select <Applications &

Gaming> - <Port Range Forward>.

bSelect <TCP> and <UDP Port>

for each connected camera to the

Broadband Router.

Each port number for the Broadband

Router should match that specified in

<Setup> - <Basic> - <IP & Port> from

the camera’s web viewer menu.

cWhen done, click [Save Settings].

Your settings will be saved.

`Above sample instructions are based on the CISCO’s Broadband Router.

`The settings may differ depending on the connected Broadband Router model.

For more information, refer to the user manual of the applicable router.

`Port forwarding can be done without additional router setup if the router supports the UPnP

(Universal Plug and Play) function.

After connecting the network camera, set <Quick connect> of <Samsung DDNS> to <On> in

the “Setup Network DDNS” menu.

6_ English

Registering with DDNS

Visit the iPOLiS web site (www.samsungipolis.com) and sign in with a registered account.

2. From the top menu bar, select <DDNS SERVICE> - <MY DDNS>.

3. Click [PRODUCT REGISTRATION].

4. Please enter the product ID and fill in the items displayed.

5. Click [REGISTRATION].

Connecting the camera to Samsung DDNS

1. On the Live screen of the camera, click [Setup ( )].

2. Select <Network ( )>.

3. Click <DDNS>.

4. From the DDNS setup page, set <DDNS> to <Samsung DDNS>.

5. Provide the <Product ID> that you registered product ID with the DDNS site.

6. Click [Apply ( )].

When the connection is successfully made, you will see the message of <(Success)>

on the screen.
