SNB-6004F

NETWORK CAMERA

Quick Guide

WHAT’S INCLUDED

Camera CD Quick Guide Warranty card

Cable for the testing

monitor 5-position Terminal Block

`SFP module and Optical transmission converter are separately purchasable items.

Please select either 100 Base-FX or 1000 Base-X SFP/Optical transmission converter according

to the optical transmission speed.

HOW TO CONNECT SFP MODULE

1. Select the optical transmission speed

(100/1000) using the optical transmission

speed control switch on the back of the

camera.

When it is shipped from the factory, the

optical communication speed switch is set to

1000.

2. Insert the appropriate SFP module for the speed.

2_ English

3. Connect an LC-type optical cable (AB) to the SFP

module.

4. Connect the opposite side (BA) of the optical cable

to an optical converter that makes a pair with the

SFP module.

SFP module, optical cable, and Optical transmission

converter are separately purchasable items.

It is recommended to use SFP modules from

manufacturers as follows.

-Comnet, IFS, Skylane, AVAGO, CISCO

Cross-connect the SFP module and an optical converter (AB/BA) with optical cables.

The SFP module should only be connected or disconnected when the power to the camera is off.

The change in the optical transmission speed is only applied after the camera is rebooted.

Please do not connect or disconnect the SPF module while the camera is operating.

If an optical cable is bent, the communication may not be connected.

Please, do not look at an optical cable directly as this may damage your vision.

ETHERNET CONNECTION

Please connect with an optical transmission cable through SFP module (LC type) and connect to

a local network or the Internet.

English _3

External network

Switch

Optical transmission

converter (100/1000)

LC-type optical cable

(Single / Multi)

SFP module (100/1000)

NETWORK WIRING DIAGRAM

MANUAL NETWORK SETUP

Run <IP Installer_v2.XX.exe> to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

`For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not

support this function.

aSelect a camera in the search list.

bClick [Manual Set].

The Manual Setting dialog appears.

cIn the <Address> pane, provide the

necessary information.

dIn the <Port> pane, provide necessary

information.

•HTTP Port : Used to access the

camera using the Internet browser,

defaulted to 80.

•VNP Port : Used to control the video

signal transfer, defaulted to 4520.

eEnter the password.

The default password is “4321”.

`In the IP installer, you can use the initial password, “4321” to set IP Address, Subnet Mask,

Gateway, HTTP Port, VNP Port, IP type. After changing the network interface, for better security,

access the web viewer and change the password.

If you want to set the password, refer to “Password setting”. (page 5)

fClick [OK].

Manual network setup will be completed.

Camera

Local PC

Broadband

Router

PPPoE or

Cable Modem

PPPoE or

Cable Modem External Remote PC

DDNS Server

(Data Center, KOREA)

INTERNET

Optical transmission

converter

Optical transmission

converter

4_ English

CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC

1. Run the IP Installer.

It will scan for connected cameras and display them as a list.

2. Double-click a camera to access.

The Internet browser starts and connects to the camera.

`Access to the camera can also be gained by typing the camera’s IP address in the address bar of

the Internet browser.

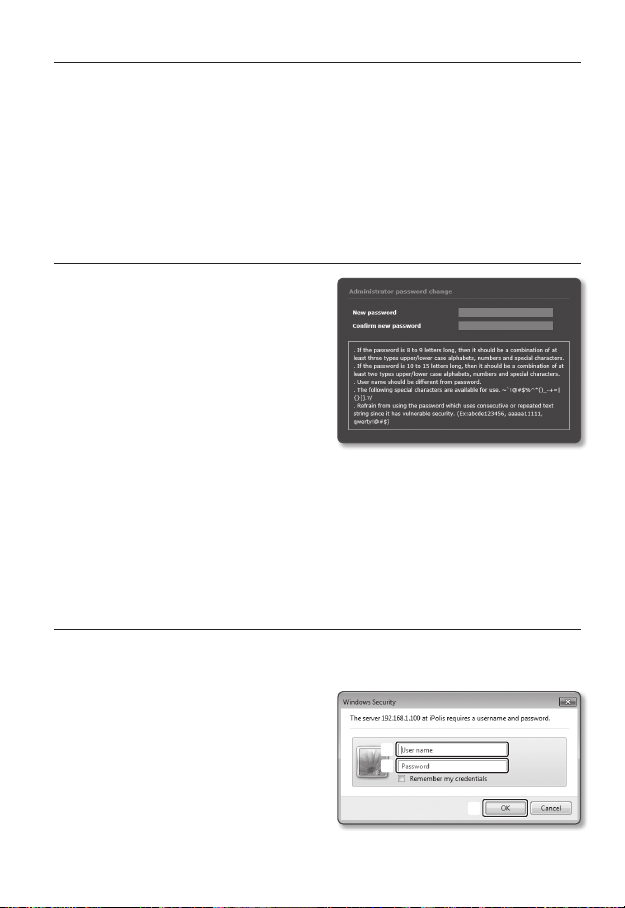

PASSWORD SETTING

When you access the product for the first time,

you must register the login password.

When the “Password change” window appears,

enter the new password.

`For a new password with 8 to 9 digits,

you must use at least 3 of the following:

uppercase/lowercase letters, numbers

and special characters. For a password

with 10 to 15 digits, you must use at least

2 types of those mentioned.

-Special characters that are allowed. : ~`!@#$%^*()_-+=|{}[].?/

`For higher security, you are not recommended to repeat the same characters or consecutive

keyboard inputs for your passwords.

`If you lost your password, you can press the [RESET] button to initialize the product. So, don’t lose

your password by using a memo pad or memorizing it.

Whenever you access the camera, the login window appears.

Enter the User ID and password to access the camera.

aEnter “admin” in the <User Name>

input box.

bEnter the password in the <Password>

input field.

cClick [OK].

English _5

INSTALLING WebViewer PLUGIN

If connecting to a camera for the first time, you will see the installation message. Then, install the

required WebViewer Plugin to access the camera and control the video from it in real time.

`If the plug-in installation file download status is suspended at 99% in the Internet Explorer

browser, retry it after selecting “Release SmartScreen filter” in “Tool SmartScreen filter”.

`In your internet explorer, if you need to move to the installation screen after installing the

webviewer plugin, check whether webviewer_activexplugin_lib.control in the “Tool Additional

Function Management” menu is “Activated”. If not, and if there is a persisting problem, then select

“Tools Internet Options General” and delete all the search records.

CONNECTING TO THE CAMERA FROM A REMOTE PC VIA

THE INTERNET

Since using the IP Installer on a remote computer that is not in the Broadband Router’s network

cluster is not allowed, users can access cameras within a Broadband Router’s network by using

the camera’s DDNS URL.

Port Range Forward (Port Mapping) Setup

aFrom the Setup menu of the Broadband

Router, select <Applications &

Gaming> - <Port Range Forward>.

bSelect <TCP> and <UDP Port>

for each connected camera to the

Broadband Router.

Each port number for the Broadband

Router should match that specified in

<Setup> - <Basic> - <IP & Port> from

the camera’s web viewer menu.

cWhen done, click [Save Settings].

Your settings will be saved.

`Above sample instructions are based on the CISCO’s Broadband Router.

`The settings may differ depending on the connected Broadband Router model.

For more information, refer to the user manual of the applicable router.

`Port forwarding can be done without additional router setup if the router supports the UPnP

(Universal Plug and Play) function.

After connecting the network camera, set <Quick connect> of <Wisenet DDNS> to <On> in

the “Setup Network DDNS” menu.

6_ English

Registering with DDNS

Visit the Wisenet DDNS web site (http://ddns.hanwha-security.com) and sign in with a

registered account.

2. From the top menu bar, select <DDNS SERVICE> - <MY DDNS>.

3. Click [PRODUCT REGISTRATION].

4. Please enter the product ID and fill in the items displayed.

5. Click [REGISTRATION].

Connecting the camera to Wisenet DDNS

1. On the Live screen of the camera, click [Setup ( )].

2. Select <Network ( )>.

3. Click <DDNS>.

4. From the DDNS setup page, set <DDNS> to <Wisenet DDNS>.

5. Provide the <Product ID> that you registered product ID with the DDNS site.

6. Click [Apply ( )].

When the connection is successfully made, you will see the message of <(Success)>

on the screen.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other

household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains

mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these

substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them

through your local, free battery return system.

Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to

provide customers with more environmentally friendly products.

The Eco mark represents Hanwha Techwin’s devotion to creating environmentally friendly products, and

indicates that the product satisfies the EU RoHS Directive.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories

(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of

their working life. To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate these items from other types of waste and recycle them responsibly to promote the

sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local

government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

English _7

Head Oce

6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si,

Gyeonggi-do, 463-400 Rep. of KOREA

Tel : +82.70.7147.8753 Fax : +82.31.8018.3740

www.hanwha-security.com

Hanwha Techwin America

500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666

Toll Free +1.877.213.1222 Direct +1.201.325.6920

Fax +1.201.373.0124

www.hanwhasecurity.com

Hanwha Techwin Europe

Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom

Tel +44.1932.57.8100 Fax +44.1932.57.8101

www.hanwha-security.eu

Hanwha Techwin(Tianjin) Co.Ltd

No.11, Weiliu Rd., Micro-Electronic Industrial Park, Jingang Road Tianjin 300385, China

Tel : +86.22.2388.7788

www.hanwha-security.cn

Hanwha Techwin Middle East FZE

JAFZA View 18, 20th oor, oce 2001, 2002, 2003, Downtown Jebel Ali,

Dubai, United Arab Emirates

http://hanwha-security.com
