QUICK REFERENCE GUIDE

1PRE-INSTALLATION

CONFIGURING

YOUR CAMERA

INSTALLING AND

POSITIONING CAMERA

Plate HT-777-WS

Model HT230C

Type SUV

Brand HTV

Color RED

INSTALLATION

WORKSHEET

CONTENTS

1PRE-INSTALLATION

1.1 Choosing aLocation

CONFIGURING YOUR CAMERA

1. Field of View

2. Configure Initial Camera Settings

3. Simple Focus on Plate Read Area

4. To measure pixel width of license/number plate

5. Observing Proper Installation

6. Examples of Improper Install

INSTALLING AND

POSITIONING CAMERA

1. Camera Installation

2. Adjust for Plate “Rotation”Angle

3. LPR /MMCR Specification

INSTALLATION WORKSHEET

1PRE-INSTALLATION

1.1 Choosing aLocation

The LPR (License Plate Recognition), also known as ANPR (Automatic Number Plate Recognition) Technology running on

this camera will provide you with the best results when following the recommended installation constraints below.

Please use the worksheet on page 24 to record your site survey or installation measurements.

30º Maximum Vertical Angle

Minimum Forward Distance

Maximum Forward Distance

30º

26 ft

52 ft

14 ft

Recommended

30 degrees Maximum Vertical Angle @ up to 25MPH

25 degrees Maximum Vertical Angle @ up to 45MPH

15 degrees Maximum Vertical Angle @ up to 75MPH*

Maximum Forward Distance depends on lens zoom,

however should not exceed 52 ft considering

effective IR range (for PNO and PNV models).

*Please consider using PNB model with external IR for

ranges above 52 ft or up to 75MPH.

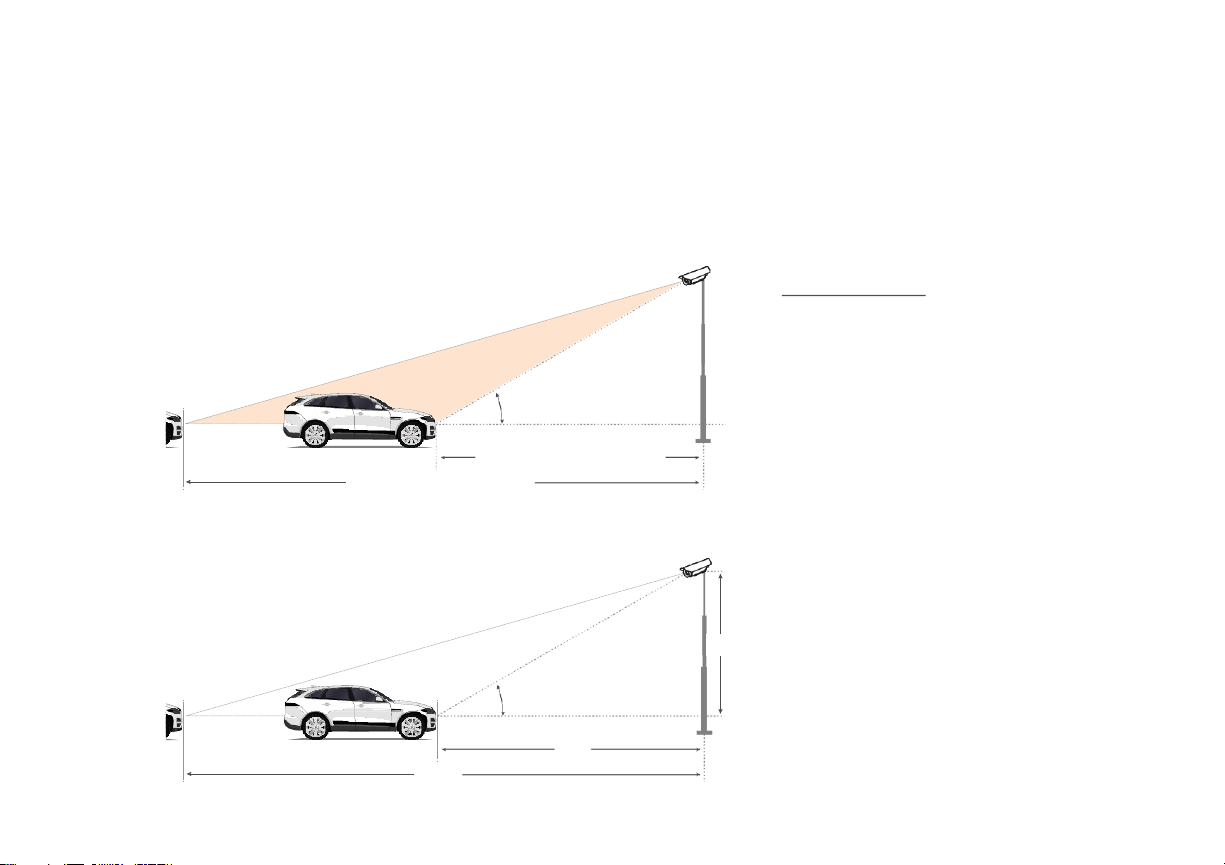

Fig. 1

Camera shown from side

Fig. 2

Example of installation at a height of 14ft

3 | LPR Camera Quick Reference Guide

1.1 (Continued)

FORWARD DISTANCE TABLES

The tables below are recommended installation

measurements based on camera mounting lane offset

and maximum vehicle speed of up to 25MPH / 45MPH.

[PNO-A9081RLP /PNV-A9081RLP]

*Day and night conditions with built-in IR

*PNB-A9001LP parameters depends on lens &external IR.

4 | LPR Camera Quick Reference Guide

1.1 (Continued)

All license platesthat are meeting the pixel criteria as below will be

recognized in the selected area.

•130-250 pixels for US / Canada / Mexico plates

Recommended

30 degrees Maximum Horizontal Angle for recognition up to 25MPH.

25 degrees Maximum Horizontal Angle for recognition up to 45MPH.

15 degrees Maximum Horizontal Angle for recognition up to 75MPH*

(*PNB model only)

Recommended

30 degrees Maximum Horizontal Angle

Fig. 3

Camera shown from top

30ºMaximum Horizontal Angle

Minimum Forward Distance

Maximum Forward Distance

Fig. 4

The camera runs in 4K mode to cover up to 2

road lanes. In certain situations, FullHD mode

can be used to increase the plate size on screen.

MMCR accuracy will decrease in FullHD mode.

Please refer to KB article for more information.

Normally, setting recognition zone (see orange frame

below) in lower half of camera view is sufficient and

favors app performance.

Best results are achieved when single row number

plate width has fit the criteria. Greater width may affect

performance.

5 | LPR Camera Quick Reference Guide

2INSTALLING AND POSITIONING CAMERA

2.1 Camera Installation

NOTE: Refer to PNO-A9081RLP, PNV-A9081RLP or PNB-A9001LP installation guide and follow the installation instructions.

2.2 Adjust for Plate“Rotation”Angle

For best results, check the angle of your plate compared to the horizontal angle and rotate

the camera to less than 5° as shown below (Recommended Angle(s).

Recommended Angle(s)

>5°

5°max

6 | LPR Camera Quick Reference Guide

2.3 LPR /MMCR Specification

Solution Community Traffic Observation /Parking Application CityTraffic Observation Secondary Roads

Speed Description Moderate Speed Low speed Regular Speed Moderate Speed

Lane Coverage 2 lanes @Color (18ft Wide)

1 lane @Black & White with built-in IR

2 lanes @Color (24ft Wide)

1 lane @Black & White with built-in IR

Up to 2 lanes (18ft Wide) Up to 2 lanes (18ft Wide)

Speed limit Up to 45mph (70kph)Up to 25mph (40mph)Up to 65mph (100mph)Up to 75mph (140kph)

Min. Forward Distance 38ft (12m)10m (33ft) 52ft (16m)90ft (27m)

Max. Forward Distance Color: 52ft (15.8m)

Black & White w/ IR: 45ft (13.7m)

Color: 52ft (15.8m)

Black & White w/ IR: 45ft (13.7m)

Color: 120ft (36.5m)

Black & White: 120ft with external IR

Color: 120ft (36.5m)

Black & White: 120ft with external IR

Max. Horizontal Angle 25°30°25°15°

Max. Vertical Angle 25°30°25°15°

Horizontal Offset Up to 18ft (5.4m)Up to 24ft (7m)Up to 24ft (7m)Up to 12ft (3.6m)

Camera Height Up to 18ft (5.4m)Up to 24ft (7m)Up to 24ft (7m)Up to 12ft (3.6m)

Vehicle Recognition

70+Makes

600+ models

10 colors

70+ Makes

600+ models

10 colors

70+ Makes

600+ models

10 colors

70+ Makes

600+ models

10 colors

LPR CAMERAS PNV-A9081RLP PNO-A9081RLP PNB-VA9001LP-50MM*

7 | LPR Camera Quick Reference Guide

*Model number pending

**Specifications may vary based on installationconditions

3CONFIGURING YOUR CAMERA

NOTE:There is no default user name and password to access the camera.

1) You must set the admin password when you first access the camera .

2)Make sure to set correct date and time for the camera before going in to any additional setting to ensure accurate time stamps for

plate reads. It is recommended to sync the camera to a Network Time Protocol (NTP) server.

1. 1Field of View

The below steps you will perform in the Wisenet camera configuration webpage

1Configure camera so left and right are correct, not mirrored.

2Set camera zoom to capture license plate

3Adjust camera view angle so plate passes through the middle of the image.

2. 2Configure Initial Camera Settings

For proper operations, please, check and set properly:

•Camera Date Time(+page9)

•IP settings (+page 10)

•SD card storage (+page 13)

•Camera exposure and focus (+pages 14~15)

SSDR,WDR,DIS,Defog,AGCandanti-flickeringfeaturesaregoodforhumaneyebutaffectcomputer

vision performance and therefore setting these to the least possible setting or turning off is strongly advised.

8 | LPR Camera Quick Reference Guide

3.2 (Continued)

[Date and Time]

Choose ATimezone and set Use daylight

saving time as appropriate.

Set Bdate and time or opt to synchronize

with your PC or NTP server.

NOTE: Wisenet Road AI app relies on these

settings and if these are not set properly you

may not see events in Wisenet Road AI app and

events delivered to the outer systems may not

contain proper timestamps.

Date & Time

9 | LPR Camera Quick Reference Guide

3.2 (Continued)

[IP, DNS, Ports]

Proper IP, DNS and ports setting are

important for:

•NVR /VMS or other integrations

•outside LAN access if required

NOTE: Reboot the camera whenever the IP

address gets changed.

IP &Port

10 |LPR Camera Quick Reference Guide
