Handicare Sedeo Lite Manuel utilisateur

USER MANUAL

1011651D

SEDEO LITE / PRO

Sedeo Lite .......................................................................................4

Sedeo Pro.......................................................................................31

The information provided herein may not be reproduced and/or published in any form, by print,

photoprint, microﬁlm or any other means whatsoever (electronically or mechanically) without the prior

written authorization of Handicare.

The information provided is based on general data concerning the construction known at the time of

the publication of this manual. Handicare executes a policy of continuous improvement and reserves

the right to changes and modiﬁcations.

The information provided is valid for the product in its standard version. Handicare can therefore not

be held liable for any damage resulting from speciﬁcations of the product deviating from the standard

conﬁguration. Illustrations contained in the manual may deviate from the conﬁguration of your product.

The information made available has been prepared with all possible diligence, but Handicare cannot

be held liable for any errors contained in the information or the consequences thereof.

Handicare accepts no liability for loss resulting from work executed by third parties.

Names, trade names, trademarks etc. used by Handicare may not, as per the legislation concerning

the protection of trade names, be considered as being available.

2011-01

Sedeo Lite

1 Introduction 6

1.1 This manual 6

1.2 Symbols used in this manual 6

2 Safety 7

2.1 Temperature 7

2.2 Indications on the seating system 7

3 General description 8

3.1 Description of Sedeo Lite 8

4 Use 9

4.1 Adjustment of the seating system (by the user/attendant) 9

4.2 Getting into and out of the wheelchair (forward transfer) 10

4.3 Getting into and out of the wheelchair (sideways transfer) 10

4.4 Options / accessories 11

4.5 Reducing the seating system

in size for transportation

purposes 12

4.6 Setting up the seating system following transportation 14

5 Seating system adjustments (to be carried out by a professional) 17

5.1 Seat depth 17

5.2 Seat width 17

5.3 Backrest angle 18

5.4 Standard legrest 18

5.5 Armrest assembly 19

5.6 Adjusting the centre of gravity 21

5.7 Headrest 21

5.8 Fixed / swing away controller bracket 23

5.9 Attaching the lap strap 24

6 Maintenance 25

6.1 Cleaning the upholstery 25

7 Troubleshooting 26

8 Speciﬁcations 27

8.1 CE declaration of conformity 27

8.2 Technical information 27

9. Provisions of warranty 29

6 | Introduction

1 Introduction

1.1 This manual

This user manual will help you to use and

maintain your seating system safely This user

manual is a supplement to Handicare’s general

wheelchair user manual.

Where necessary this user manual refers to

other manuals as shown below:

Wheelchair: Refers to the general

wheelchair user manual.

Controller: Refers to the user

manual for the controller (only

applicable for power wheelchairs).

Read this user manual and the other user

manuals referred to carefully before using

the product. If one of the user manuals was

not included with your wheelchair, please

contact your dealer immediately.

In addition to this user manual, there is also a

service manual for qualiﬁed specialists.

CONTACT HANDICARE IF YOU HAVE A

VISUAL IMPAIRMENT.

1.2 Symbols used in this manual

Note!

Pointing out possible problems to the user.

Caution!

Advice for the user to prevent damage to the

product.

Warning!

Warnings for the user to prevent personal in

jury.

Not following these instructions may result

in physical injury, damage to the product or

damage to the environment!

Safety | 7

2 Safety

Warning!

Always follow the instructions given next to

the warning symbols! Failure to follow these

instructions may result in physical injury,

damage to the wheelchair or damage to the

environment. Where possible the warning

symbols have been placed in the applicable

paragraphs.

Be carefull when swing away/ﬂip up parts.

Contact with moving parts should be avoided.

Caution!

Parts of the wheelchair that are intended, for

service or repair, to be removed without the

use of tools (e.g. armrest, legrest) can have

an adverse effect on the support of the user if

they are missing or not placed back in the right

position.

2.1 Temperature

Warning!

Avoid exposing the wheelchair to direct sunlight

for extended periods of time. Some parts of the

wheelchair, such as the seat, the backrest and

the armrests assembly, complete, can become

hot if exposed to the sun for too long. This may

cause burns or skin irritation.

2.2 Indications on the seating

system

The wheelchair must not be lifted

up by the armrests assembly,

complete and/or legrests.

The stability of the wheelchair is

inﬂuenced by the adjustment of the

seating system's centre of gravity.

Such adjustments should be made

by professionals only.

8 | General description

3 General description

3.1 Description of Sedeo Lite

The wheelchair is ﬁtted with a Sedeo Lite

seating system. The Sedeo Lite seating system

provides good support for the head, torso,

arms and legs. Optimal body support ensures

maximum independence for the wheelchair

user.

The wheelchair must be adjusted by a qualiﬁed

specialist. Incorrect settings may have negative

consequences for seating posture.

A number of Sedeo Pro options are also

available for use with the Sedeo Lite. Ask your

dealer for more information or consult our

website at www.handicare.com.

Caution!

Please study this manual carefully before using

the seating system.

Key to symbols

Loosen by one turn with wing-nut

Tighten by one turn with wing-nut

Loosen by one turn with torx

Tighten by one turn with torx

Step 1, 2 etc.

An arrow, as part of an illustration, indicates

that the component in question moves or needs

to be moved in the direction indicated.

Notes on "Key to symbols"

Each illustration includes icons and numbering

to indicate what needs to be done and in which

order.

Use | 9

Sedeo g 36-B

Sedeo g 50-A

Sedeo g 35-B

4 Use

4.1 Adjustment of the seating system

(by the user/attendant)

Manually elevating legrest knee angle

Note!

Legrests can be adjusted individually.

1. Pull (A) towards you.

2. (B) moves upwards. Alternatively, push (B)

downwards.

Note!

Keep (A) pressed.

Moving the controller bracket inwards

1. Push (A) inwards until hearing a click.

Swing away the controller bracket

1. Push (A) outwards until hearing a click.

Note!

Swinging back the controller bracket will allow you to

pull up close to a table. Full operation of the controller

remains possible.

10 | Use

Sedeo g 37-A

Sedeo g 39-A

B 2

Sedeo g 38-A

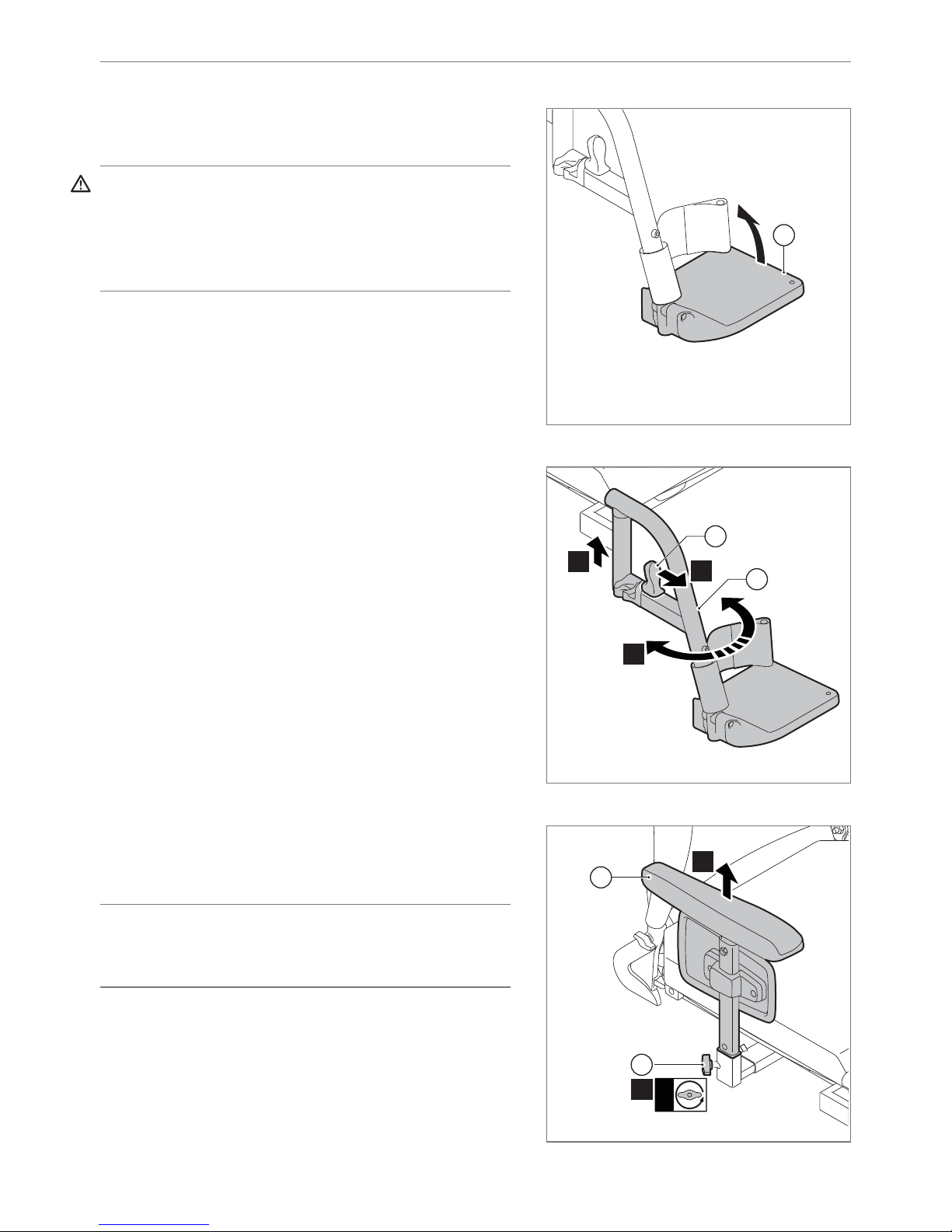

4.2 Getting into and out of the

wheelchair (forward transfer)

Warning!

Do not stand on the footplates. Putting your full weight

on the footplates may lead to wheelchair damage and

to hazardous situations, including the wheelchair tipping

up.

Flip up the footplate.

1. Flip up (A).

Swinging back and/or removing the standard

legrest

1. Push (A) forwards and keep (A) pressed.

2. Swing (B) to the side.

3. Remove (B).

4.3 Getting into and out of the

wheelchair (sideways transfer)

Note!

Some versions of the controller will need to be swung

aside.

Removing the armrest assembly

1. Loosen (A) by two turns.

2. Remove (B).
