Handicare Cirrus 4 Manuel utilisateur

Cirrus 4

MB3170-GB

User Manual

www.handicare.com

MB3170-GB

Congratulations on your choice of new wheelchair.

Quality and functionality are the key concepts for all the wheelchairs in the

Handicare range.

For your own safety, and in order for you to get the best possible benefit from the

features of your new wheelchair, we recommend that you read this user manual

carefully before you start to use the wheelchair.

Cirrus 4 in brief

Cirrus 4 was developed with special consideration for the fact that users have

different needs and wishes, whether the chair is to be used simply as a comfort

wheelchair or will be driven by the user. As the seat height is adjustable, it is also

very suitable for people who use one or both legs to propel the chair forward.

The wheelchair can be dismantled, and features removable leg supports and a

collapsible backrest which make it easy to transport. Good rolling characteristics

are combined with a safe and reliable chair. The design is anatomically correct,

so that it is comfortable to sit in. The chair is virtually maintenance-free.

Introduction

This user manual is for Cirrus 4

with serial number: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The wheelchair was inspected and approved

on:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

by:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MB3170-GB

Contents

Introduction...................................................................................2

Contents........................................................................................3

Wheelchair parts...........................................................................4

Assembly.......................................................................................6

Using the wheelchair....................................................................8

Adjusting the wheelchair...........................................................17

Positioning belt...........................................................................24

Safety...........................................................................................25

Safety in cars ..............................................................................27

Maintenance................................................................................30

Technical specifications ............................................................33

Labelling......................................................................................35

Accessories ................................................................................36

Guarantee....................................................................................38

4MB3170-GB

Wheelchair parts

In order to be able to properly understand this manual, it is important that you

are aware of the commonest terms used to describe the various parts of the

wheelchair. Examine the drawings below and on the following page, and note the

relevant parts on your wheelchair.

The equipment on your wheelchair may vary slightly from that shown in Figures

1 and 2. If Cirrus 4 has been set up as a helper-guided chair, it is equipped with

different wheel sizes, as well as a brake lever for the assistant on the pushing

handle.

Head and neck support

Backrest cushion

Armrest

Seat cushion

Leg support

Footplate

Front castor wheel fork

Front castor wheel

Brake

Adjustment handle

for sliding seat

Figure 1

MB3170-GB

Figure 2

Pushing handle

Handle for

backrest angle

Tilt handle

Backrest shell

Driving wheel

Hand rim

Anti-tip stabiliser

Wheelchair parts

MB3170-GB

Assembly

Figure 3

Figure 4

Figure 5

Assembly

As standard the wheelchair is supplied

fully assembled.

The only things you need to do are:

• Raise the backrest

• Fit the armrests

• Fit the leg supports

Raise the backrest Figures 3, 4 and 5

• Pull out the bolt (3A)

• Locate the wires between the brackets

as shown in Figure 4. Place the bar

for the adjustment mechanism into the

bracket and replace the bolt

• Pull out the bolt (4A). Place the bar for

the pneumatic spring into the bracket

and replace the bolt, as shown in

Figure 5

• You can now raise the backrest to the

desired position. See page 9 for details

of how to adjust the sitting position by

changing the backrest angle and tilt

MB3170-GB

Figure 6

Fitting the armrests

• Fit the armrest as shown in Figure

6. If the locking pin (6A) does not

lock properly, move the back armrest

ﬁxing (6B) inwards or outwards until

the locking pin goes into the locked

position.

• Push down the locking handle (6C)

Assembly

MB3170-GB

Using the wheelchair

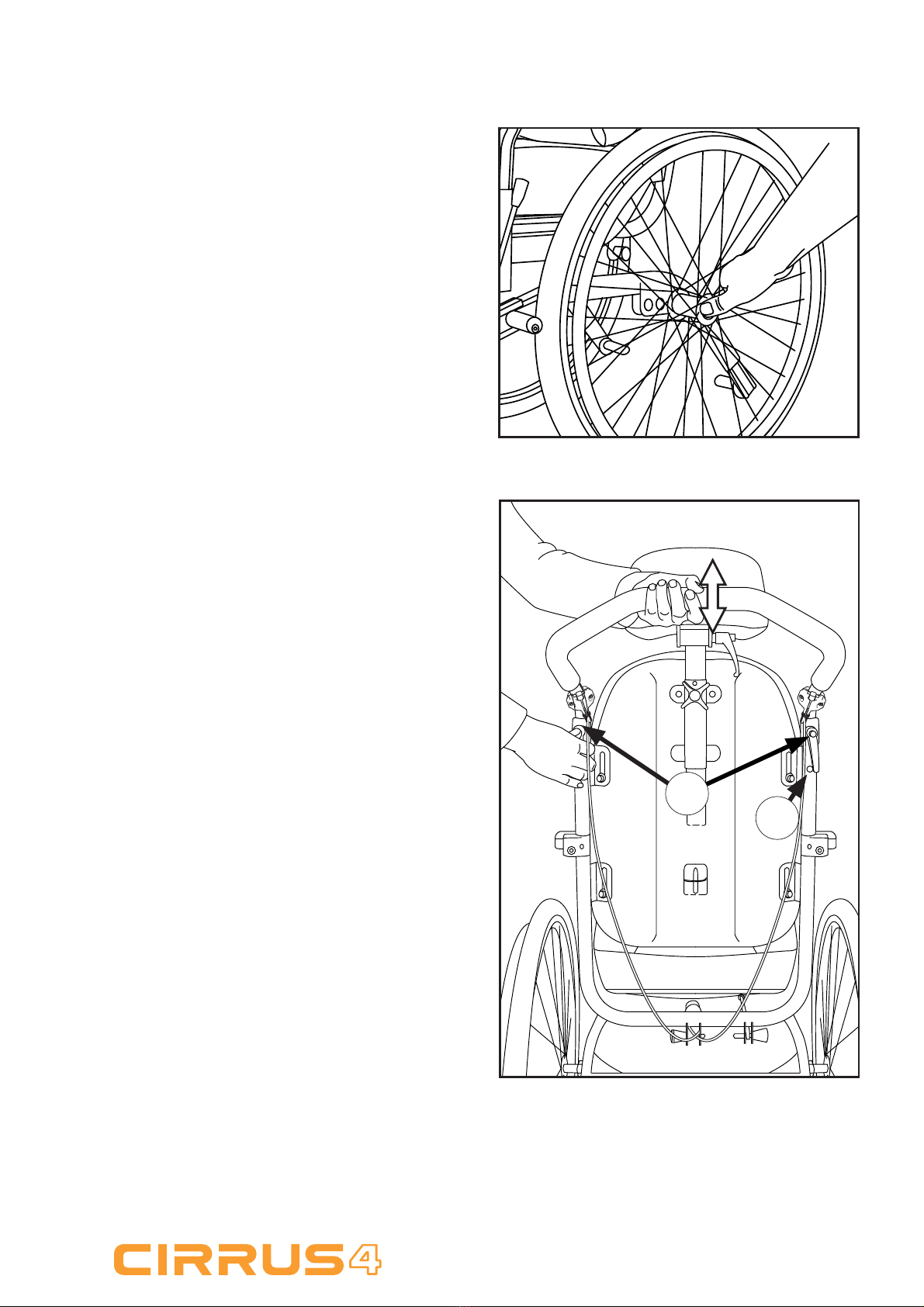

Figure 7

Figure 8

Quick-release hub Figure 7

The wheelchair has quick-release hubs on

the driving wheels. Press the button in the

middle of the driving wheel to remove or

locate the driving wheel.

NB!

Check that the wheel is properly fastened.

You can do this by making sure that the

button pops out about 5 mm when the

wheel bolt is completely in the casing.

Height-adjustable pushing

handle Figure 8

The pushing handle can be adjusted by

loosening the locking handles (8A) at the

same time as pulling the pushing handle

upwards or pushing it downwards to the

desired height. Re-tighten the locking

handle.

For extra safety, the pushing handle is

equipped with a snap lock in the topmost

position. To remove the pushing handle,

pull the pushing handle to the highest

position then squeeze in the snap lock

(8B).

MB3170-GB

Figure 9

Figure 10 Figure 11

Changing the sitting position by

adjusting the backrest and seat

angle Figures 9, 10 and 11

• Adjust the backrest angle with the left

adjustment lever (9A) (see Figure 10)

• Tilt the chair with the right adjustment

lever (9B) (see Figure 11)

For safe adjustment of the sitting position

the assistant should grip firmly on the

pushing handle with one hand, and

operate the adjustment levers with the

other hand.

An extra adjustment lever for user-

operated adjustment of the backrest angle

is available as an accessory.

The chair might be unstable when

the backrest and the seat are angled

in the backmost position.

The anti-tip stabiliser should be

used when the sitting position is

leaning backwards. Danger! Ensure that hands

and other body parts are not

squashed when tilting the

chair

Using the wheelchair

MB3170-GB

Figure 12

Figure 13

Sliding seat Figure 12

Use the sliding seat function to adjust the

seat depth and to move the seat further

forward when transferring the user.

• Put the seat in a horizontal position

• Push the handle (12A) backwards at the

same time as taking hold of the strap

(12B) and pushing or pulling the seat to

the desired position

Pull the sliding seat to the fully-forward

position when transferring into and out of

the chair.

Armrests, remove and replace

Figure 13

• Squeeze in the snap lock (13A) to

loosen the back edge of the armrest

• Push up the release handle (13B)

• Lift up the armrest

See page 7 for how to fit the armrests.

Using the wheelchair
