Quick Check 890 Verifier
The Quick Check®890 Verifier System (QC890) is a professional quality control
system for verifying the readability and standards compliance of printed linear
barcode symbols. This verification system implements an integrated approach
that consists of the Quick Check 890 Verifier unit and the Quick Check®
ImageData (QCID) software.
Quick Check ImageData
The Quick Check ImageData (QCID) program was designed for use in
conjunction with the QC890 Verifier. QCID installation software is included on
the CD-ROM that accompanies your verifier.
The QCID is the graphical interface to the Quick Check 890 Verifier. It allows
you to save verification results for later reference. For additional information
about QCID, refer to the User’s Guide or help file.
Unpacking the QC890 Verifier
After you open the shipping carton containing the product, take the following
steps:
• Check to make sure everything you ordered is present.
• Save the shipping container for later storage or shipping
• Check for damage during shipment. Report damage immediately to the
delivery carrier.
Charging the Battery
We recommend that you charge the battery for at least 2 hours prior to use. You
may use the unit while charging the battery.
1. Plug the power supply into the port on the back of the unit.
2. Plug in the power supply to the AC main source.
Installation of Quick Check ImageData
To install Quick Check ImageData, insert the CD and follow the instructions that
appear.
EN-2
Physical Connections
A DC power barrel on the back of the unit connects to a power supply for external
power and battery charging.
The DB9 port on the unit connects to the pen wand, mouse wand, or 3800V
imager. If you are using any of these devices, refer to the QC890 User’s Guide
for additional information.
The RJ45 ten pin connector provides the RS-232 serial or USB interface to the
host. Refer to "USB Communication Interface" on page EN-2 and "RS-232
Serial Communication Interface" on page EN-4 for details on connecting your
unit.
LED Indicators
Communication Interfaces
The QC890 Verifier system supports the following interfaces: USB, RS-232, and
Bluetooth®.
USB Communication Interface
Before connecting the QC890 Verifier, you must load Quick Check ImageData
software from the CD that was included in your kit. Install Quick Check
ImageData software from the CD to your host system.
LED Indication Cause
Green Solid Charging
Green Flash Good read
Red Flashing Low battery
Orange Solid Battery too low for unit to operate (plug in external power supply)
EN-3
Connect the QC890 Verifier to the host as shown in the illustration below.
Next you must install the USB driver for the QC890.
1. After plugging the USB cable into your PC, the Windows Found New Hard-
ware Wizard opens. Do not let Windows try to install the driver automati-
cally. Click on No, not this time then click on Next.
2. Choose Install from a list or specific location (Advanced) then click on
Next.
3. Click on Don't search. I will choose the driver to install. and click on Next.
4. Scroll down to Ports (COM & LPT) and click on it to highlight it. Click on
Next.
5. A message will appear, "(Unable to find any drivers for this device)". This is
OK. Click on the Have Disk button.
6. The Install From Disk window opens. Click on Browse.
7. Browse to the location where you saved the ImageData software when you
installed it from the CD and open the drivers\USBCOMPortEmulation
folder. If you used the default location, it will be in C:\Program Files\Hand
Held Products\Quick Check ImageData\drivers\USBCOMPortEmulation.
Click on the file hhpcdc.inf and click on Open.
8. You will now be back at the Install From Disk window. Click on OK.
9. On the next screen you will see the QC890 Verifier as one of the hardware
options. Click on it and click on Next. Click on Finish to close the Found
New Hardware Wizard.
1
2
EN-4
USB COM Port Emulation
Scan the following code to program the QC890 Verifier to emulate an RS-232-
based COM Port. After connecting the QC890 Verifier and upon successful
installation of the USB driver, the driver will use the next available COM Port.
USB COM Port Emulation is the default interface for the QC890 Verifier.
Note: No additional configuration (e.g., baud rate) is necessary.
RS-232 Serial Communication Interface
An RS-232 interface requires no additional drivers. Connect the QC890 Verifier

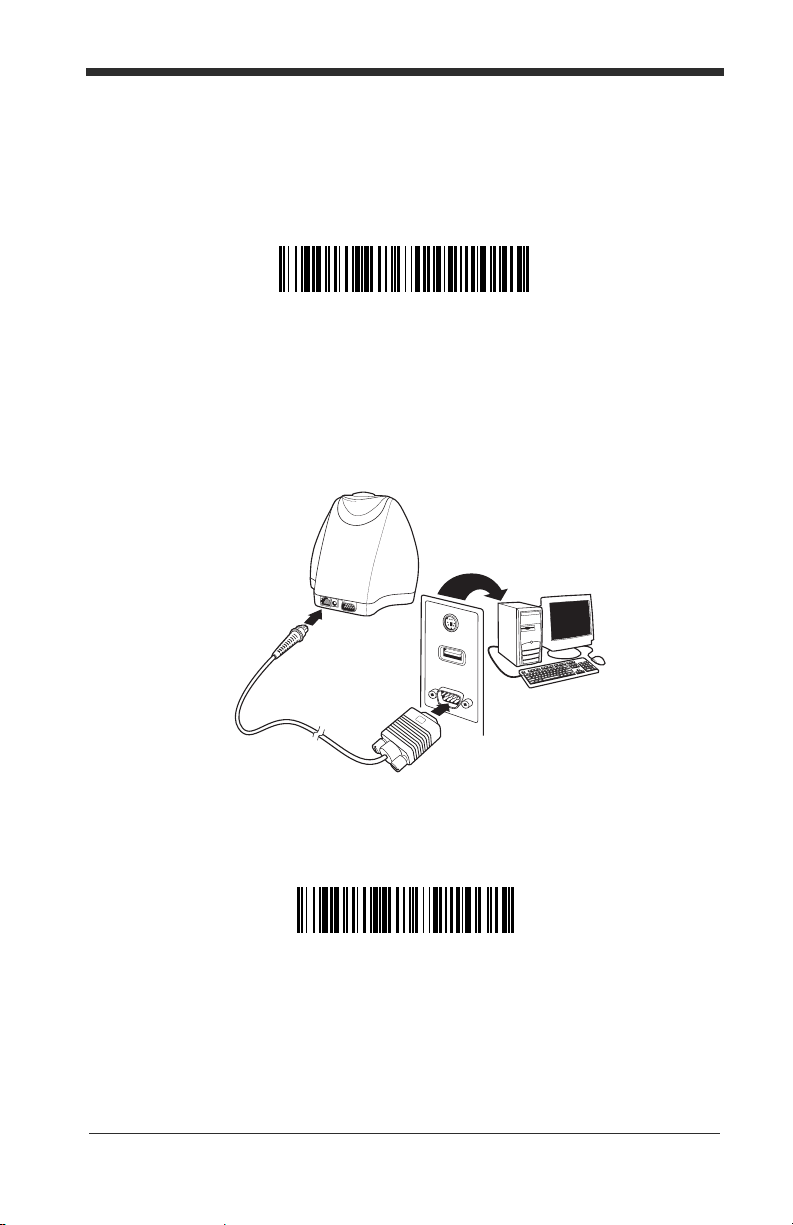

to the host as shown in the illustration below.
RS-232 Selections
Scan the following barcode to select RS-232 communications.
* USB COM Port Emulation
RS-232 Communication
EN-5
The RS-232 settings are:
Bluetooth
Bluetooth implementation uses SPP (Serial Port Profile) to connect the QC890
Verifier to the host system. The QC890 SPP is a standard Bluetooth profile
implementation. This allows the QC890 system to be compatible with most
Bluetooth devices. The QC890 unit can be used with existing Bluetooth radios
built into laptops, PCs, or PDAs.
Using the QC890 Verifier with Bluetooth Devices
Note: When using USB or RS-232 interfaces, the Bluetooth communication
interface automatically turns off.
Scan the Bluetooth barcode below to enable the Bluetooth option. Default = Off.
Once the Bluetooth option is enabled, scan the appropriate barcode that follows
to connect to a PC or laptop, or a PDA/Mobility Systems device.
To establish a Bluetooth connection to a PC or a laptop, scan the barcode below,
follow the instructions supplied with your Bluetooth device to locate the QC890
Verifier, and connect to it. If you go out of range with your QC890 Verifier, the
QC890 Verifier automatically reconnects to the Bluetooth device once you come
back in range. When Bluetooth communication is enabled, the default is PC/
Laptop.
Baud Rate: 115,200
Parity: None
Data Bits: 8
Stop Bits: 1
Flow Control: None
Bluetooth On
* Bluetooth Connection - PC/Laptop
EN-6
To establish a Bluetooth connection to a PDA or a Hand Held Products Mobility
Systems device, scan the barcode below, follow the instructions supplied with
your Bluetooth device to locate the QC890 Verifier, and connect to it. If you go
out of range with your QC890 Verifier, the QC890 Verifier will not reconnect. It
will be up to the host device to reconnect to the QC890 Verifier.
Example of Bluetooth QC890 Device Search Result
Once you initiate a search for devices, a display similar to the one below appears
on the host device. The serial number display allows you to confirm that the
correct QC890 Verifier has been found. Refer to the Quick Check 890 Verifier
User’s Guide for details on the making the Bluetooth connection.
Using Quick Check ImageData
For the PC version of Quick Check ImageData, go to Start->All Programs-
>Hand Held Products->Quick Check ImageData,or double click the Quick
Check ImageData icon on your desktop (set up during installation).
For the PDA version, start Quick Check ImageData by clicking on Start-
>Programs. Select the Quick Check ImageData icon.
Bluetooth Connection - PDA/Mobility Systems Device
EN-7
The first time you use QCID, the application asks you to select the COM Port to
which the QCID is attached. You may select the port by clicking on File->
Preferences. After you make the selection, QCID attempts to connect to the
attached QC890 Verifier. When a connection is established, the main screen of
the application, as shown below, displays.
PC Main Screen
PDA Main Screen
EN-8
Scanning a Barcode Symbol Using the QC890 Verifier
1. Place the QC890 Verifier on top of the symbol.
2. Press the scan button on top of the unit to turn on illumination. Look through
the unit’s window to align the unit with the barcode.
Note: The best verification data is gathered by aligning the center of the symbol
to the center arrows.
3. Press the scan button on top of the unit again while the illumination is on to
scan and verify the barcode.
Scanning a Barcode Symbol Using Quick Check
ImageData
1. Place the QC890 Verifier on top of the symbol.
2. If necessary, press the scan button on top of the unit to turn on illumination to
aid in alignment of the symbol.
3. For the PC version, click the Scan button on the Main Display window.
For the PDA version, select Device and then Scan from the Scan Data tab.
