INSTRUCTIONS MANUAL

Page 1

HOME DEPOT SKU# 248-523 (UPC# 046335904293)

EXTERIOR WALL LANTERN WITH

MOTION SENSOR AND SIX-HOUR TIMER

Page 2

Thank you for purchasing this Hampton Bay exterior wall lantern. This product

has been manufactured with the highest standards of safety and quality. The

finish of this lantern is weather resistant but over time will naturally weather and

fade. This fixture is equipped with motion sensor and six-hour timer features,

providing convenience and security against unwanted criminal element.

FEATURES:

Before returning to your local Home Depot, please call our Customer Service

Team at 1-877-527-0313 or visit www.homedepot.com. Please reference your

SKU (248-523) or UPC (046335904293).

QUESTIONS, PROBLEMS, MISSING PARTS:

1. Easy to install.

2. Handsome Black finish with Clear Beveled glass.

3. MOTION SENSOR FUNCTION – At dusk the motion sensor will activate and

automatically turn the light on when moving heat sources (such as people or

motor vehicles) are detected within its coverage area. The motion sensor will

remain active throughout the night and deactivate at dawn. The motion sensor

has a detection range up to 30 feet and a detection angle of 220º.

4. SIX HOUR TIMER FUNCTION – At dusk the light will automatically turn

on. After six hours the light will turn off and the motion detector will activate.

The motion sensor will remain active throughout the night and deactivate at

dawn.

5. MANUAL OVERRIDE – The user may manually turn on the light from inside

his home using its wall switch.

6. For energy savings this fixture has been engineered to safely use a Self

Ballasted Compact Fluorescent Lamp in place of an incandescent lamp.

7. ENERGY STAR®qualified

Page 3

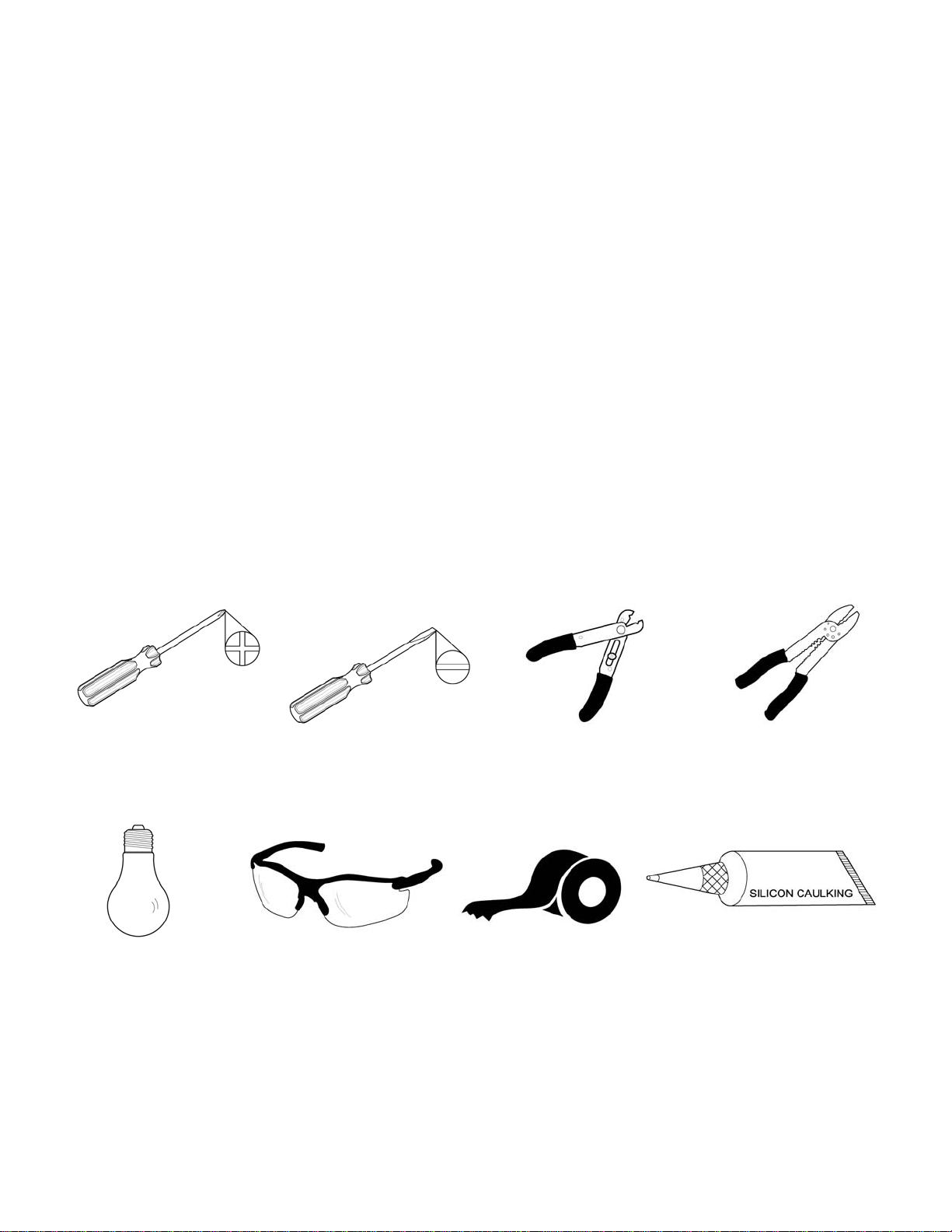

TOOLS REQUIRED FOR INSTALLATION AND ASSEMBLY

(not included):

CAUTION:

1. Before starting installation of this fixture or removal of a previous fixture, disconnect the

power by turning off the circuit breaker or by removing the fuse at the fuse box.

2. There are no serviceable parts inside the motion sensor. DO NOT try to repair or

disassemble the unit. Doing so could damage the unit and cause possible electrical shock.

Consult a qualified electrician if needed.

3. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY ELECTRICAL

QUESTIONS. If you have any non-electrical questions about this fixture, please call our

Customer Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your SKU (248-523) or UPC (046335904293).

4. KEEP your receipt and these Instructions for Proof of Purchase.

Safety

goggles

Wire

strippers

Phillips

screwdriver

Electrical

tape

Wire

cutters

Silicon Rubber

Sealant

for exterior use

Flathead

screwdriver

Light Bulb (100

watt maximum or

CFL equivalent)

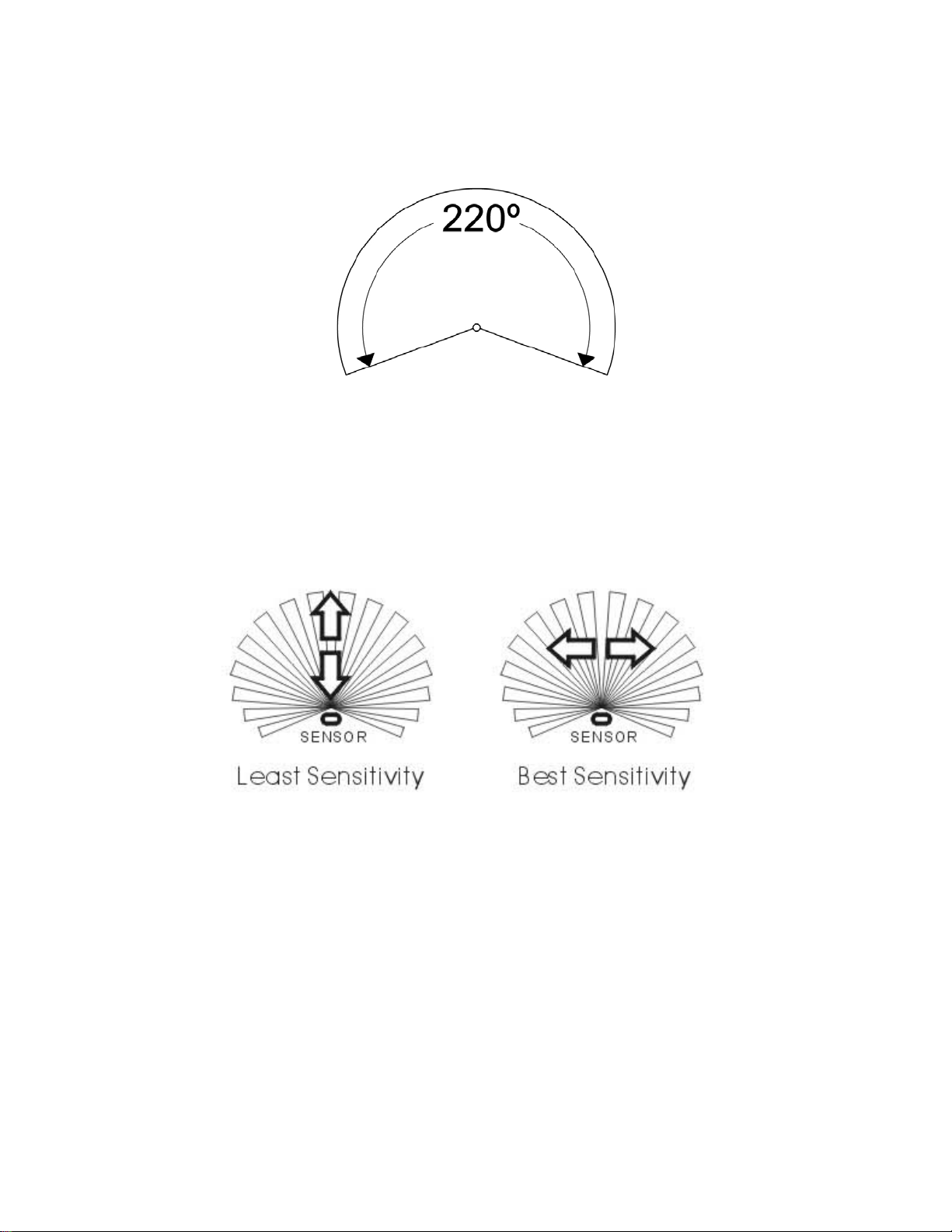

When selecting a location, be aware of the motion sensor’s maximum range of

30 ft and 220º detection angle.

SELECTING AN INSTALLATION LOCATION:

Select locations away from heat sources, such as heating vents, air

conditioners, and heated swimming pools.

When selecting a location, be aware that the motion sensor is more sensitive to

movement across its coverage area and less sensitive to movement toward or

away from the motion sensor.

Select locations away from nighttime light sources, such as street lamps or

other light fixtures. They may shine light onto photocell sensor (located at the

bottom of the back plate, between the two switches). This light might cause

the photocell sensor to “think” that it is daytime and not allow the light to turn

on during the nighttime.

Be aware that shade from a porch or an eave may not allow enough daylight to

shine onto the photocell sensor and may cause it to “think” that it is nighttime,

and subsequently cause the light to remain on during the daytime.

Page 4

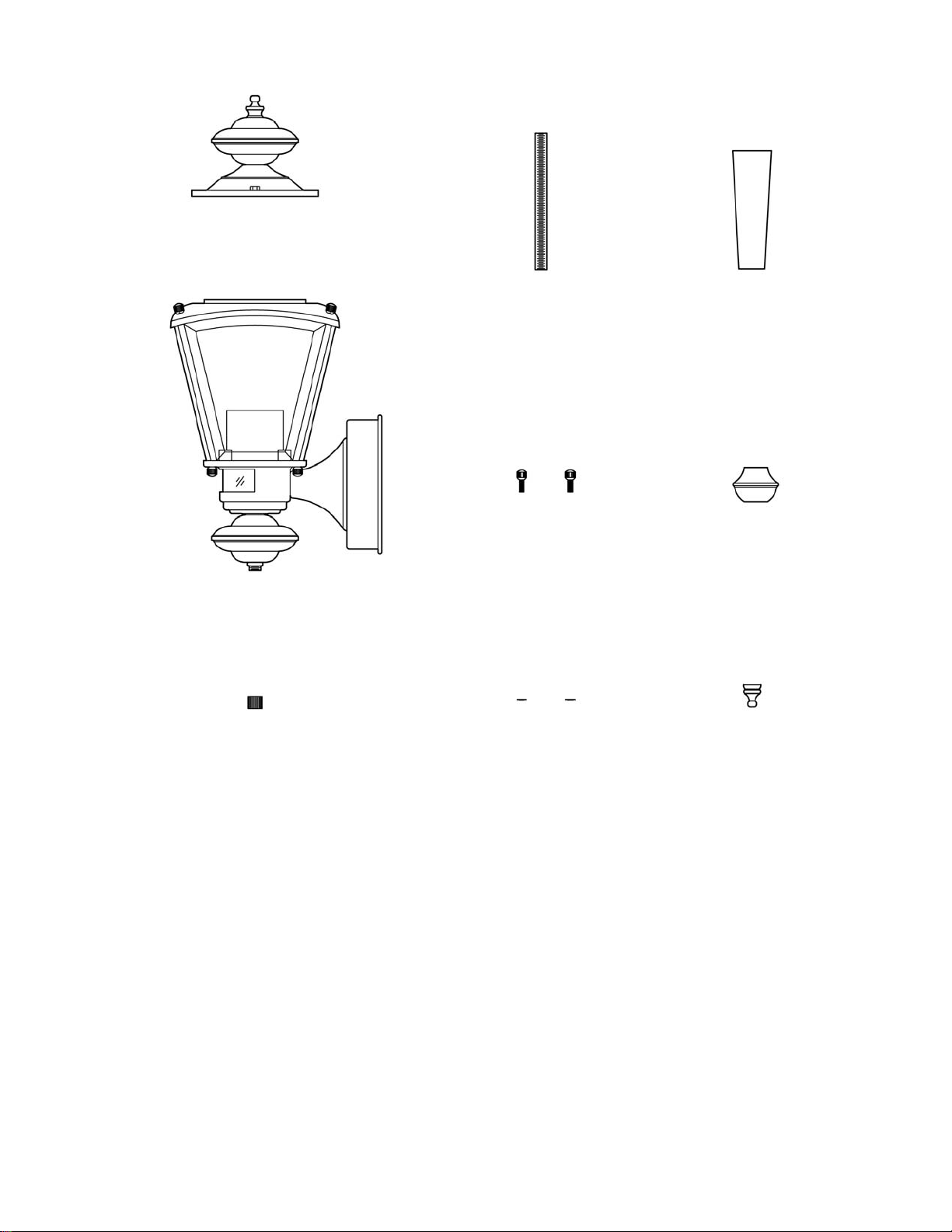

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

ASSEMBLY INSTRUCTIONS:

Page 4

2 ea Hood

Nuts (#18)

1 ea Main Fixture

Body (#1)

1 ea Hood

(#2)

1. Carefully unpack the fixture. Lay out all parts on a clean surface.

2. Install up to a 100 watt Light Bulb (#17) or a Listed SBCFL (Self-Ballasted Compact Fluorescent Lamp

[not provided]) in the socket of the Main Fixture Body (#1). Do not exceed a 100 watt incandescent

light bulb, or a 26 watt SBCFL.

3. Attach the Hood (#2) to the Main Fixture Body (#1) using the provided Hood Screws (#18) and Lock

Washers (#19).

4. Thread the Finial (#22) onto the bottom of the Main Fixture Body (#1).

4. OPTIONAL TAIL ASSEMBLY - Thread the Coupling (#23) onto the bottom of the Main Fixture

Body (#1). Thread the Nipple (#20) onto the Coupling (#23). Slide the Tail (#21) and the Fount (#24)

over the Nipple (#20) and secure them in place by threading the Finial (#22) to the bottom of the Nipple

(#20).

1 ea Tail

(Optional)

(#21)

1 ea Nipple

(Optional) (#20)

1 ea Finial (#22)2 ea Lock Washers (#19)Coupling (Optional) (#23)

1 ea Fount

(Optional)

(#24)

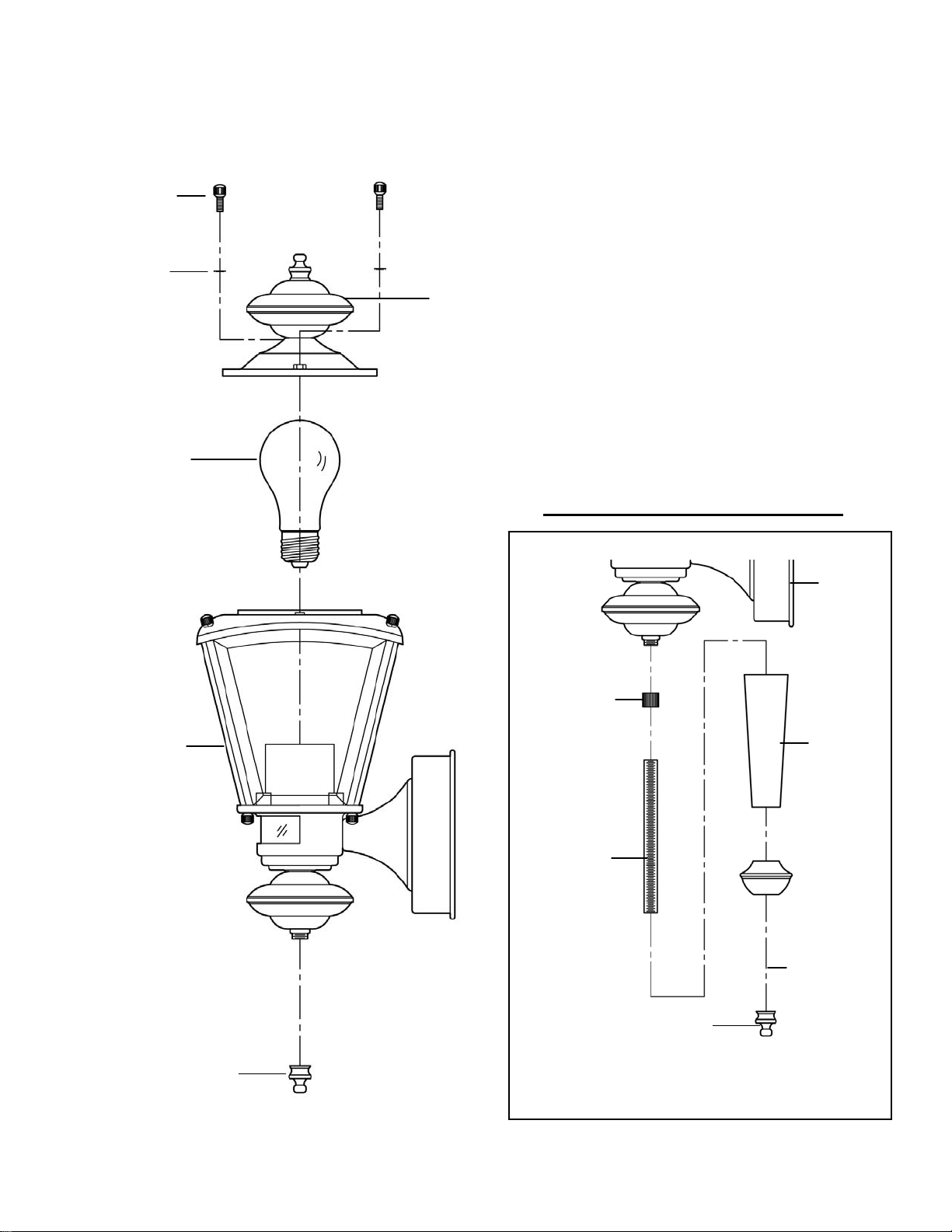

ASSEMBLY:

Page 5

17. Light Bulb

21. Tail

18. Hood Nut

2. Hood

20. Nipple

19. Lock

Washer

23. Coupling

24. Fount

22. Finial

OPTIONAL TAIL ASSEMBLY

1. Main Fixture

Body

1. Main

Fixture

Body

Page 7

INSTALLATION INSTRUCTIONS:

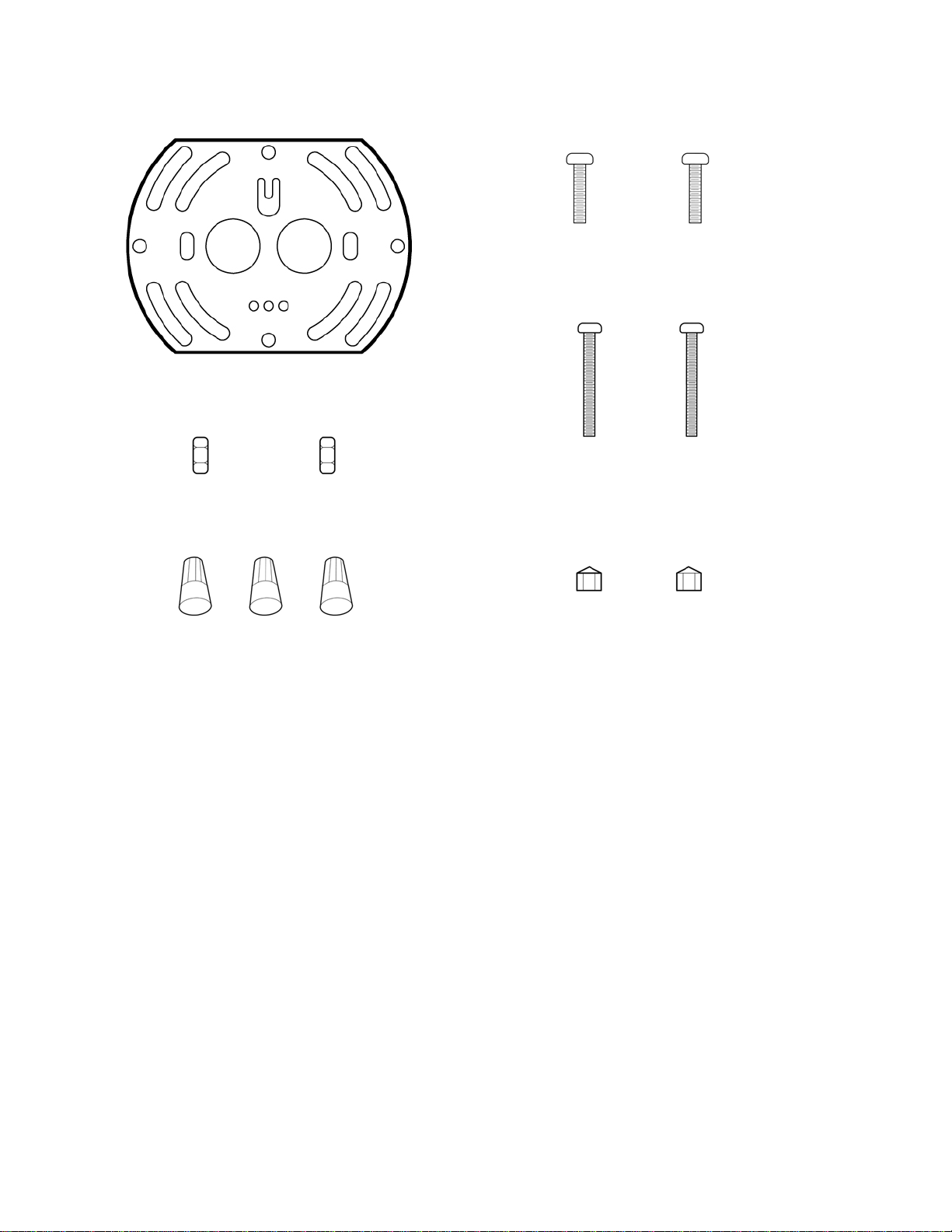

PARTS INCLUDED FOR INSTALLATION (parts are not to

scale):

3 ea Wire

Nuts (#14)

2 ea Bracket Mounting

Screws (#8)

1. Thread the Fixture Mounting Screws (#6) into the provided holes of the Mounting Bracket (#7) as shown. Thread the Hex

Nuts (#9) onto the Fixture Mounting Screws (#6), as shown. Do not tighten the Hex Nuts (#9) at this time.

2. Pull the power supply wires out from the Outlet Box (#4), and mount the Mounting Bracket (#7) to the Outlet Box (#4), using

the Bracket Mounting Screws (#8).

3. Attach the Black Supply Wire (#5) to the Black Fixture Wire (#12) and the White Supply Wire (#16) to the White Fixture Wire

(#13) using Wire Nuts (#14). Connect the Fixture Ground Wire (#11) and the Supply Ground Wire (#15) together using a

Wire Nut (#14). Wrap all wire connections with electrical tape for a more secure connection. Note: If you have electrical

questions, consult your local electrical code for approved grounding methods.

4. Place the Wall Plate (#10) over the Outlet Box (#4) and onto the Fixture Mounting Screws (#6), and adjust the Fixture

Mounting Screws (#6) until they protrude out from the Wall Plate (#10) 1/4". Remove the Wall Plate (#10) and secure the

position of the Fixture Mounting Screws (#6) by tightening the Hex Nuts (#9) against the Mounting Bracket (#7). Place the

Wall Plate (#10) back onto the Fixture Mounting Screws (#6), and secure it into place using the Lock Nuts (#3) provided.

5. After installing the fixture, caulk the upper 2/3s of the Wall Plate (#10) to mounting surface. Leave the bottom 1/3 un-caulked

for drainage of any water that might leak into the enclosure. The manufacturer recommends a non-drying exterior caulking

material. A good example is a clear silicone rubber sealant for exterior use.

6. Installation is complete. Turn on power at the circuit breaker or fuse box. Turn the light switch on to activate the fixture.

1 ea Mounting

Bracket (#7)

2 ea Fixture Mounting

Screws (#6)

2 ea Hex

Nuts (#9)

2 ea Lock

Nuts (#3)

Page 8

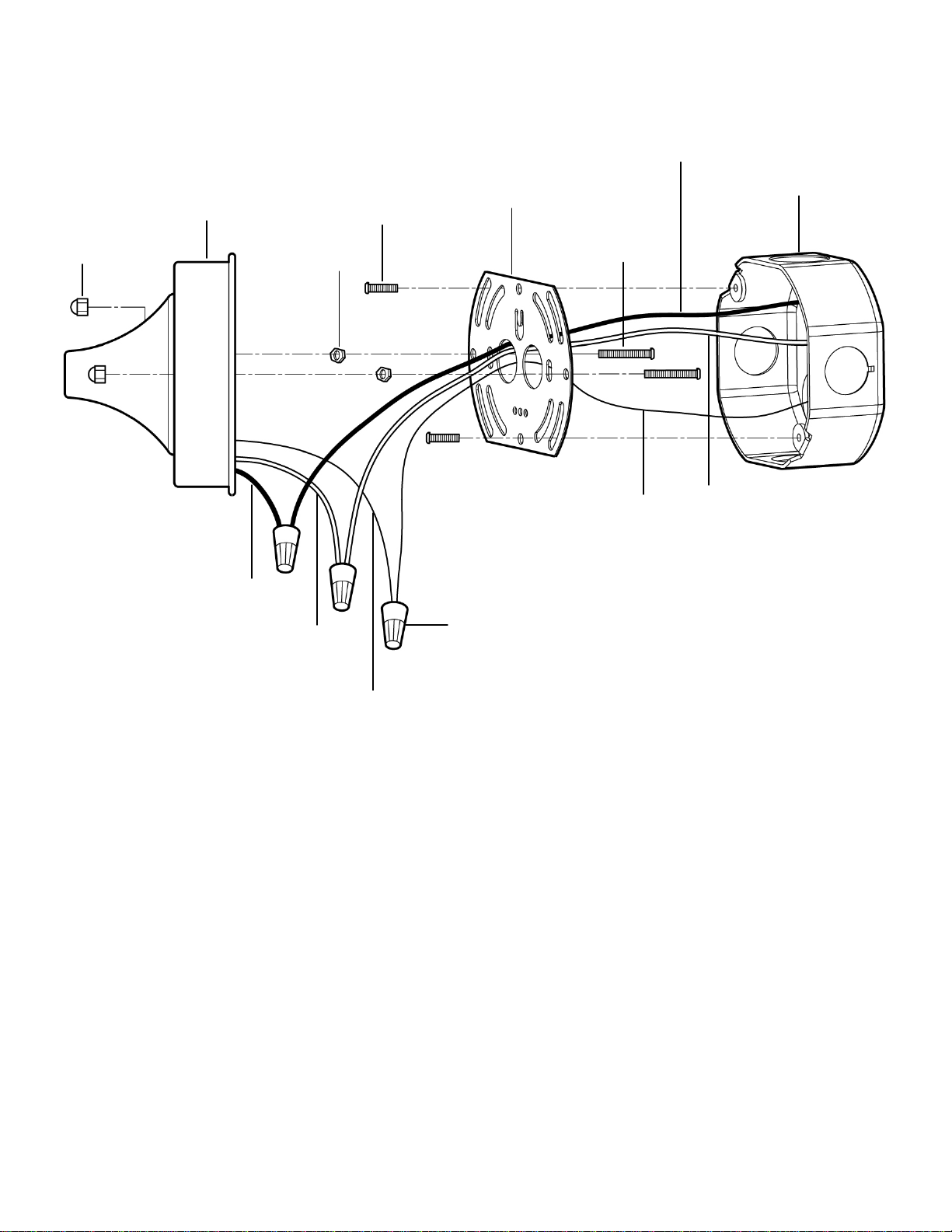

INSTALLATION:

10. Wall

Plate

3. Lock

Nut

13. White

Fixture

Wire

11. Fixture

Ground

Wire

14. Wire

Nut

16. White

Supply

Wire

5. Black Supply

Wire

15. Supply

Ground

Wire

4. Outlet

Box

7. Mounting

Bracket

8. Bracket

Mounting

Screw

9. Hex

Nut

6. Fixture

Mounting

Screw

12. Black

Fixture

Wire

OPERATION INSTRUCTIONS:

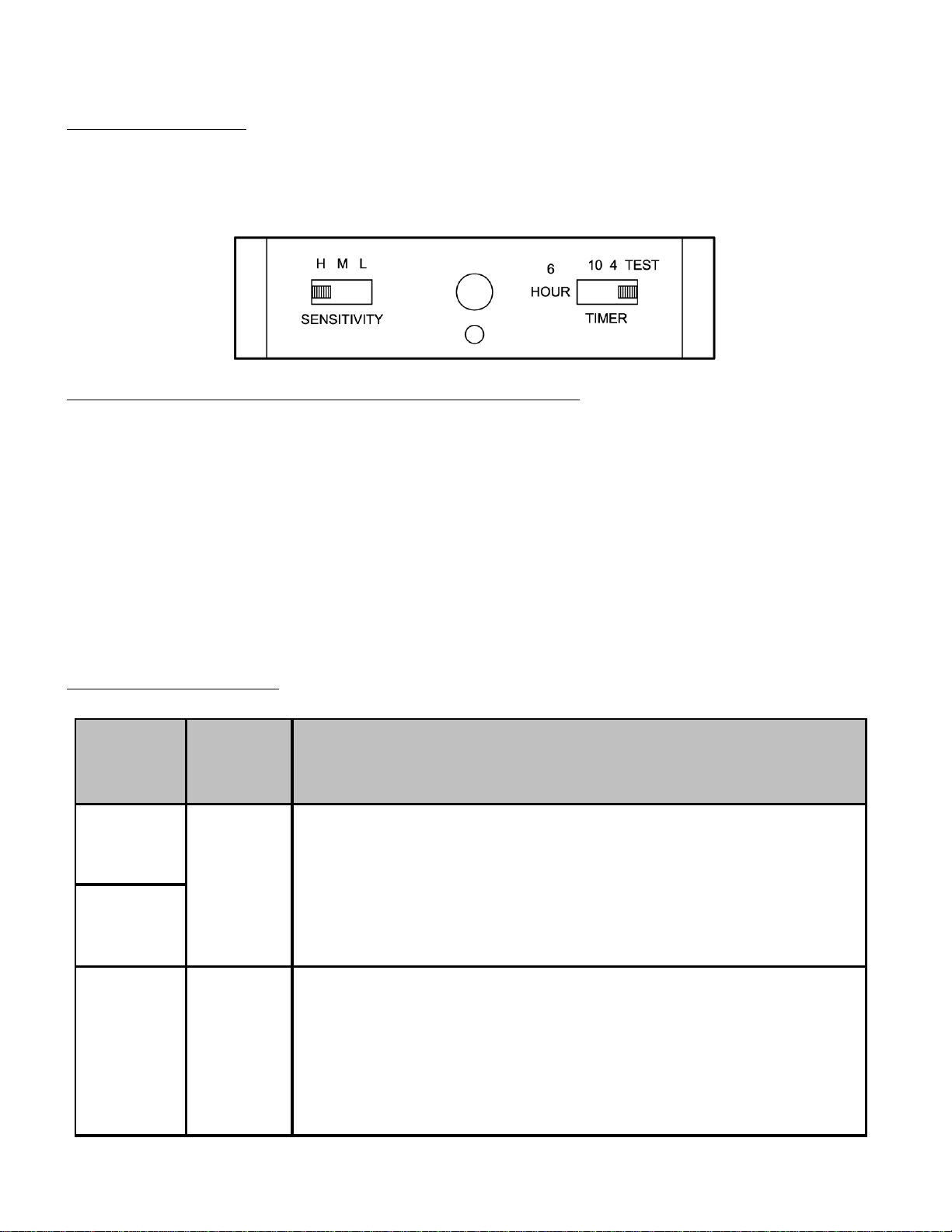

SETTING MOTION SENSOR SENSITIVITY IN TEST MODE: (Note: Sensitivity directly correlates to

the sensor’s detection range.) In TEST mode, slide the “SENSITIVITY” switch to a desired level: “L” for

low, “M” for medium, or “H” for high. From a distance, walk through the coverage area. When the sensor

detects you and the light turns on, note your distance from the fixture. Move away from the fixture and wait

4 to 5 seconds for the light to turn off. Walk through the coverage area again, this time trying a different

approach toward the fixture at different angle. Again, make note of your distance from the fixture when the

light turns on. Repeat these steps, approaching the fixtures down different pathways. Especially, walk

through pathways where you expect high traffic, such as walkways and driveways. After testing various

pathways, decide to increase or decrease the detection range, or to keep it the same. To increase the

detection range, slide the “SENSITIVITY” switch to the next highest level. To decrease the detection range,

slide the “SENSITIVITY” switch to next lowest level. Repeat the steps above. Continue to adjust the

sensitivity level until optimum results are attained.

SELECTING FUNCTION: After setting the sensitivity to the desired level, select the function by sliding to

“TIMER” switch to one of the following positions:

GETTING STARTED: After installing the fixture, slide the “TIMER” switch to “TEST”. Restore power at

the circuit breaker and turn on your wall switch (if applicable). The light will turn on and remain on for

approximately 45 seconds. Then the light will flash 3 times and then turn off. (Note: TEST mode allows you

to conveniently set the motion sensor sensitivity. In TEST mode, the motion sensor will turn on the light

when it senses movement. Four to five seconds after movement has stopped, the light will turn off.)

"TIMER"

Switch

Position Function Description

6 HOUR SixHour

Timer

At dusk, the light willturn on and remain on for6hours. At this time, the light

willturn offand the motion sensorbecomes active. Any movement within the

coverage area, will cause the light to turn on. After movement has stopped,

the light will remain on for 10 minutes, at which time the light will turn off.

The motion sensor will remain active through the rest of the night. At dawn,

the motion sensor deactivates. The motion sensor will remain deactivated

throughout the day.Movement will not cause the light to turn on.

Motion

Sensor

At dusk, the motion sensor becomes active. Any movement within the

coverage area will cause the light to turn on. After movement has stopped,

the light willremain on for the preset time limit of4or10minutes,at which time

the light will turn off. The motion sensor will remain active throughout the

night. At dawn, the motion sensor will deactivate. The motion sensor will

remain deactivated throughout the day. Movement willnot cause the light to

turn on.

Page 9

Page 10

Problem Possible Cause Corrective Action

1. Power is off. 1. Make sure wall switch and circuit

2. Faulty switch. 2. Test or replace switch.

3. Faulty wire connection. 3. Check wiring.

4. Light bulb may be dead. Test light bulb in

a working light fixture. 4. Replace light bulb

Fuse blows or circuit breaker

trips when light is turned on. 1. Crossed wires or power wire is grounding

out. 1. Check wire connections.

Too much sunlight is shiningonto photocell

sensor in the early evening. Relocate fixture away from a western

facingwall.

Too much light is shining onto photocell

sensor due to another light source, such as a

street lamp or other light fixture.

Eliminate or turn off other light

source.

Block other light source from shining

onto photocell sensor.

Relocate fixture.

In motion sensingmode, the

light stays on continuously.

False triggering cause by a heat source, such

as a heater or dryer vent, or heated

swimming pool.

Eliminate heat source.

Relocate fixture.

Street or sidewal traffic is triggeringthe

motion sensor. Lower the sensitivity.

False triggering cause by a heat source, such

as a heater or dryer vent, or heated

swimming pool.

Eliminate heat source.

Relocate fixture.

The light comes on duringthe

daytime or too early in the

evening.

The fixture may be installed in a shaded area,

such as under a porch or eave, preventing

daylight from shiningonto the photocell

sensor.

Relocate fixture.

In the SixHour Timer

function, the light comes on

too late in the evening.

Too much sunlight is shiningonto the

photcell sensor in the early evening. Relocate fixture away from a western

facingwall.

In the SixHour Timer

function, the light does not

come on at night.

Too much light is shining onto the photcell

sensor due to another light source, such as a

street lamp or other light fixture. Cover the

hotocell sensor with black electrical tape, to

verify that the light will turn on when there

is enough darkness.

Eliminate or turn off other light

source.

Block other light source from shining

onto photocell sensor.

Relocate fixture.

The light never turn on.

The light does not turn on at

night.

The light comes on for no

apparent reason.

TROUBLESHOOTING:

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels HAMPTON BAY Équipement d'éclairage

HAMPTON BAY

HAMPTON BAY 407-669 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 141-511 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Windsor 336-610 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 92370-701-2PK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 12300-18 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY HB-4132-MB Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 91932 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY ST64-12-24B Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Black Finish Manuel utilisateur

HAMPTON BAY

HAMPTON BAY HD29029 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 545433 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 717-880 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 524 505 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 200829A Manuel utilisateur

HAMPTON BAY

HAMPTON BAY HB-10521-HS Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 1000000000 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 19736-001 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 626-464 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 436-163 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 046335947689 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY HOME DEPOT SKU 21391-019 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 486-101 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY KFN1303AX-01/BR Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 536 518 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
