INSTRUCTIONS MANUAL
HOME DEPOT SKU# 237-830 (UPC# 046335840508)
Page 1
THREE-HEAD POST LANTERN
Page 2
Thank you for purchasing this Hampton Bay Three-Head Post Lantern.
This product has been manufactured with the highest standards of safety
and quality.
1. Handsome Black finish with Bent Beveled glass.
2. Solid cast aluminum resists elements.
3. For energy savings this fixture has been engineered to safely use a
Self Ballasted Compact Fluorescent Lamp in place of an incandescent
lamp.
FEATURES:
Before returning to your local Home Depot, please call our Customer
Service Team at 1-877-527-0313 or visit www.homedepot.com. Please
reference your SKU (237-830) or UPC (046335840508).
QUESTIONS, PROBLEMS, MISSING PARTS:
Page 3
TOOLS REQUIRED FOR INSTALLATION AND ASSEMBLY
(not included):
Safety
goggles
Electrical
tape
Wire
strippers
Wire
cutters
Three Light Bulbs
(100 watt maximum
or CFL equivalent)
Wrench
CAUTION:
1. Before starting installation of this fixture or removal of a previous
fixture, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box.
2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY
ELECTRICAL QUESTIONS. If you have any non-electrical
questions about this fixture, please call our Customer Service Team at
1-877-527-0313 or visit www.homedepot.com. Please reference your
SKU (237-830) or UPC (046335840508).
3. KEEP your receipt and these Instructions for Proof of Purchase.
PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):
Page 4
3 ea Hex Screws (#17)
3 ea Arm Assembly (#3)
1 ea Pole (#1)
1 ea Pole (#2)
1 ea Base (#16)
1 ea Top Cover (#12)
1 ea Hood
Finial (#26)
1 ea Hood (#25)
1 ea Hood Bracket (#24)
3 ea Acorn Nuts (#6)
1 ea Wire Housing
(#5)
1 ea Cover
Finial (#14)
3 ea Wire Nuts (#9)
1 Black Extension
Wire (#8) 1 White Extension
Wire (#7)
ASSEMBLY INSTRUCTIONS:
1. Carefully unpack the fixture. Lay out all parts on a clean surface.
2. Feed the Wires (#4) of one Arm Assembly (#3) in through one side hole of the
Wire Housing (#5) and through its top opening. Secure each Arm Assembly
(#3) to the Wire Housing (#5) using an Acorn Nut (#6), as shown. (Fig. 1)
3. Unravel the two Extension Wires (#7 & #8). Feed the two Extension Wires
(#7 & #8) into the bottom opening of the Wire Housing (#5) through to the top
opening. (Fig. 2)
4. Using the provided Wire Nuts (#9), make wire connections between the White
Extension Wire (#7) and the White Arm Assembly Wires (#10) and between
the Black Extension Wire (#8) and the Black Arm Assembly Wires (#11), as
shown. Wrap each wire connection with 2” of electrical tape. (Fig. 2)
5. Slide the Top Cover (#12) onto the Threaded Pipe (#13) and onto the Wire
Housing (#5). Thread the Cover Finial (#14) onto the Threaded Pipe (#13) to
secure the Top Cover (#12). (Fig. 2)
6. Unravel and extend the Fixture Ground Wire (#15) of the Wire Housing (#5).
(Fig. 2)
7. Attach Pole (#2) to the Base (#16) using the provided Hex Screws (#17). (Fig.
3)
8. Thread Pole (#1) onto Pole (#2). (Fig. 4)
9. Feed the Wires (#7, #8 & #15) of the Three-Head Lantern Assembly (#19)
through the entire Pole/Base Assembly (#20) to the bottom opening. Screw
the Pole/Base Assembly (#20) into the Wire Housing (#5) of the Three-Head
Lantern Assembly (#19). (Fig. 5 & 6)
Page 5
10. Wrap the Fixture Ground Wire (#15) around the Ground Screw (#21).
Tighten the Ground Screw (#21). (Fig. 6)
11. Proceed to the Installation Instructions.
12. Install an incandescent Light Bulb (#22) or a Listed SBCFL (Self-Ballasted
Compact Fluorescent Lamp [not provided]) into the socket of each Cage
(#23). Do not exceed a 100 watt incandescent light bulb, or a 26 watt
SBCFL. (Fig. 7)
13. Twist a Hood Bracket (#24) into the provided slots of each Cage (#23), as
shown. Slide a Hood (#25) onto each Hood Bracket (#24) and Cage (#23).
Secure each Hood using a Hood Finial (#26). (Fig. 8)
ASSEMBLY INSTRUCTIONS (CONT.):
Page 6
ASSEMBLY:
3. Arm Assembly
Page 7
4. Wires
5. Wire Housing
6. Acorn
Nut
7. White Extension Wire
8. Black Extension Wire
9. Wire
Nut
Fig. 1
Fig. 2
15. Fixture Ground
Wire
12. Top
Cover
14. Cover
Finial
13. Threaded
Pipe 5. Wire
Housing
ASSEMBLY (CONT.):
2. Pole
16. Base 17. Hex
Screws
2. Pole 1. Pole
Fig. 3
Fig. 4
Fig. 5
Wires
19. Three-Head
Lantern
Assembly
Page 8
20. Pole/Base Assembly
5. Wire Housing
ASSEMBLY (CONT.):
Fig. 6
16. Base
15. Fixture
Ground Wire
7. White Extension
Wire
8. Black
Extension Wire
Fig. 7
22. Light Bulb
23. Cage
24. Hood
Bracket
25. Hood
26. Hood
Finial
Fig. 8
23. Cage
21. Ground
Screw
Page 9
Page 10
PARTS INCLUDED FOR INSTALLATION (parts are not to
scale):
INSTALLATION INSTRUCTIONS:
1. Select the desired installation location. Run supply wires from the breaker
panel to the desired location and prepare the concrete surface. (If you are
unfamiliar with proper electrical practices, obtain services of a qualified
electrician.) When preparing the concrete surface, be sure that the Wire
Conduit (#27), protecting the supply wires, extends 1/2” above the Concrete
Surface (#28) to prevent any runoff from entering. Using the provided
Template (#29), mark the locations for the mounting holes. At the marked
locations, drill ½” diameter Holes (#30) approximately 3” deep. Do not
exceed a 3” depth. (Fig. 9)
2. Insert the Anchors (#31) into the Holes (#30). (Fig. 10)
3. Using the provided Wire Nuts (#9), make the following wire connections (Fig.
11):
White Extension Wire (#7) to White (Neutral) Supply Wire (#33)
Black Extension Wire (#8) to Black (Hot) Supply Wire (#34)
Fixture Ground Wire (#15) to Supply Ground Wire (#35)
3 ea Wire Nuts (#9)
3 ea Anchors (#31)
3 ea Flat Washers (#36)
3 ea Lock Washers (#37)
3 ea Hex Nuts (#38)
1 ea Template (#29)
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels HAMPTON BAY Lanterne
HAMPTON BAY
HAMPTON BAY 1000 020 918 Manuel utilisateur
HAMPTON BAY
HAMPTON BAY 253-425 Manuel utilisateur
HAMPTON BAY
HAMPTON BAY 4420-1BK-LED Manuel utilisateur
HAMPTON BAY
HAMPTON BAY SKU 414-713 Manuel utilisateur
HAMPTON BAY
HAMPTON BAY FFB1612A-3 Manuel utilisateur
HAMPTON BAY
HAMPTON BAY HARBOR EXTERIOR MEDIUM WALL LANTERN HDP11969 Manuel utilisateur
HAMPTON BAY
HAMPTON BAY 32300-008-4pk Manuel utilisateur
HAMPTON BAY
HAMPTON BAY DWSW20030LBKC Manuel utilisateur
HAMPTON BAY
HAMPTON BAY HB7058-304 Manuel utilisateur
HAMPTON BAY
HAMPTON BAY Covington 99114 Manuel utilisateur
HAMPTON BAY
HAMPTON BAY HRR1691L Manuel utilisateur
HAMPTON BAY
HAMPTON BAY HDP11970 Manuel utilisateur
HAMPTON BAY
HAMPTON BAY 920-017 Manuel utilisateur
HAMPTON BAY

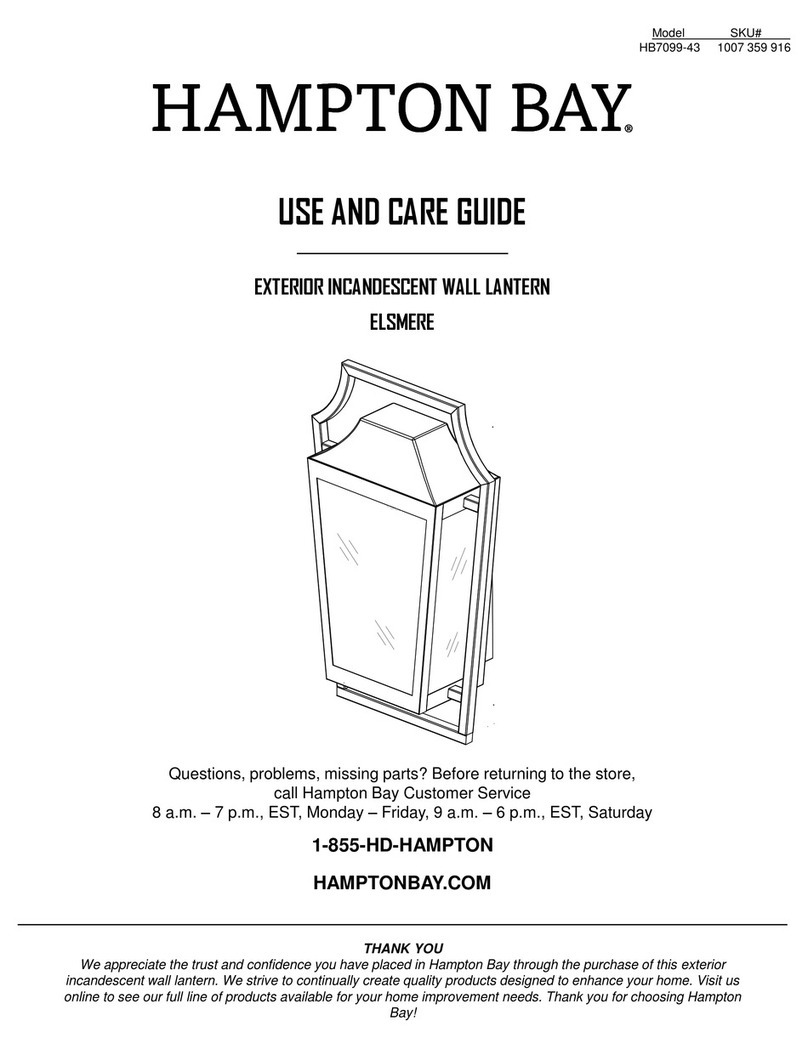

HAMPTON BAY ELSMERE Manuel utilisateur
