HAMPTON BAY YG204-BN-D Manuel utilisateur

Item #752-762

USE AND CARE GUIDE

Questions, problems, missing parts? Before returning to the store call

Hampton Bay Customer Service

8 a.m. - 6 p.m., EST, Monday-Friday

1-877-527-0313

HAMPTONBAY.COM

HAWKINS 44 INCH CEILING FAN

Model #YG204-BN-D

THANK YOU

Item# 161-646

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Speciﬁcations ..........................................................................

Tools Required ..........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Hanging the Fan .......................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Operation ......................................................................

Pull Chain Operating Instructions ..........................................

Reverse Switch Operating Instructions ..................................

Care and Cleaning .......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

Table of Contents

Safety Information

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs. Use only CUL Listed outlet boxes marked “FOR FAN

SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft. clearance

from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades or cleaning the

fan. Do not insert foreign objects in-between rotating fan

blades.

WARNING: To reduce the risk of ﬁre, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

NOTICE: Canada's ofﬁce of energy efﬁciency requires this fan to be

equipped with a 190 watt limiting device. If lamping exceeds 190

watts, the ceiling fan's light kit will shut off automatically.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

3 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

Warranty

Pre-Installation

44 in.

Low

Medium

High

120

0.19

0.3

0.4

9.6

25.4

47.8

138

182

1585

2790

3773

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

7.4 kgs

(16.2 lbs.)

8.3 kgs

(18.3 lbs.) 1.70 cuft

N.W.

G.W.

C.F.

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

TOOLS REQUIRED

Phillips

screwdriver

Electrical

Tape

Wire

stripper

Adjustable

wrench

Flat blade

screwdriver

Step

ladder

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.com.

Pre-Installation (continued)

HARDWARE INCLUDED

Blade attachment hardware

Mounting hardware

Plastic wire nut

Balance kit (not to scale)

Nuts (preassembled to the mounting bracket)

Washers (preassembled to the mounting bracket)

Blade arm screws (preassembled)

Light kit mounting screws (preassembled)

Metal nut

Glass cap

Decorative nut

Pull chains and Fobs (not to scale)

Extra switch housing cover (not to scale)

Part

Description

Quantity

NOTE: Hardware shown to actual size.

5 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

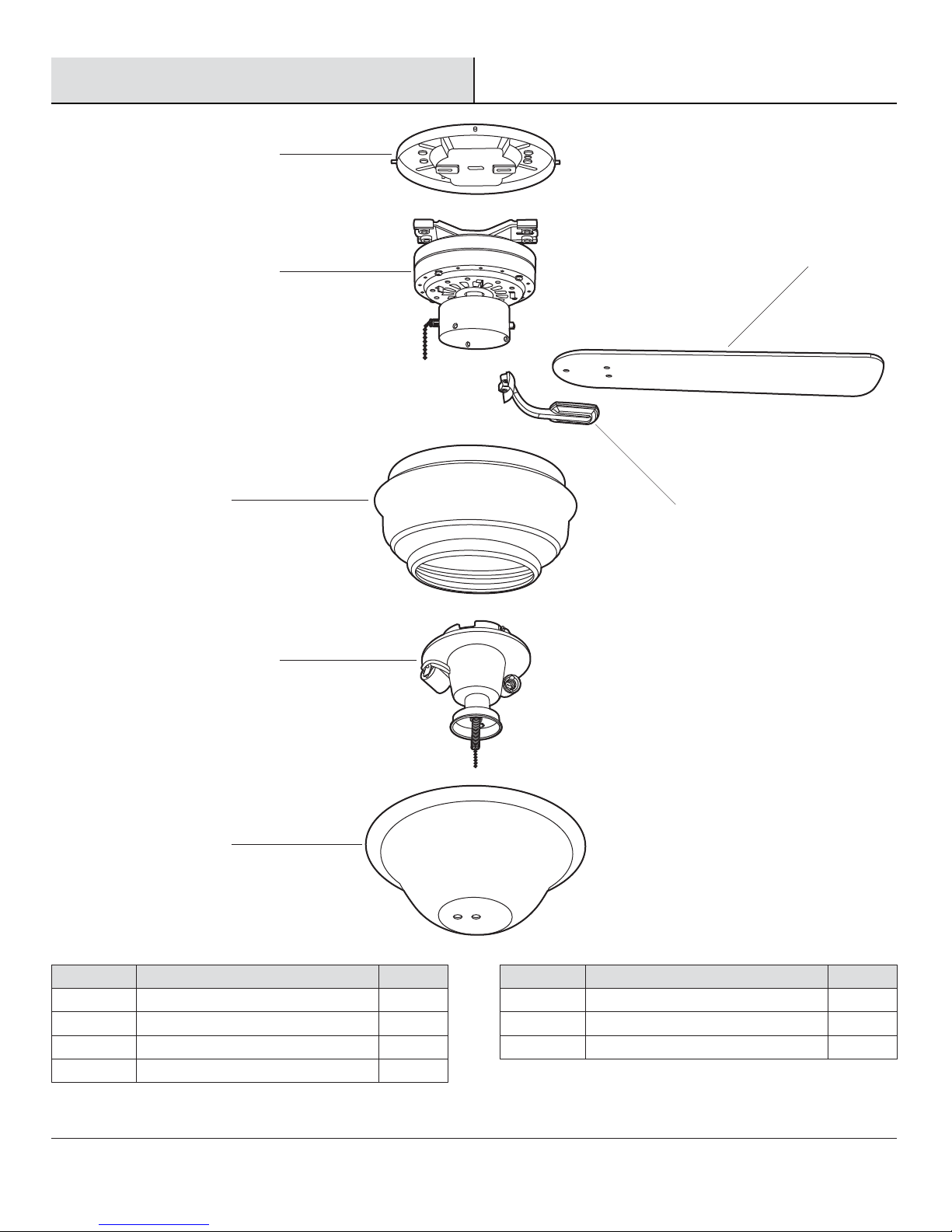

PACKAGE CONTENTS

Part

Description

Motor housing

Light kit

Glass shade

Pre-Installation (continued)

Part

Quantity

Description

Mounting bracket

Fan motor assembly

Blades

Blade arms

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (OO) (not included)

as shown above.

If your ceiling fan does not have an existing CUL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (NN) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show two different ways to mount the

outlet box (NN) (not included).

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

Installation

MOUNTING OPTIONS

7 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

Assembly — Hanging the Fan

1Installing the mounting bracket

to the electrical box

Hanging the fan to the

mounting bracket

□Attach the mounting bracket (A) to the outlet box (NN)

(not included) with two screws and washers provided

with the outlet box (NN). Ensure the mounting bracket

(A) is tight and secured.

WARNING: To reduce the risk of ﬁre, electric shock or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

□Lift the fan into position by hanging the fan motor

assembly (B) onto the hook from the ceiling mounting

bracket (A) allowing it to hang freely.

3Installing the safety cable

□Secure the safety cable (PP) to the building structure

using a wood screw (not included).

4Making the electrical

connections

WARNING: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts (except for the ground wire).

WARNING: Electrical diagrams are for reference only.

Optional use of any light kit shall be CUL listed and marked

suitable for use with this fan.

WARNING: To reduce the risk of ﬁre or electric shock, do

not use this fan with any solid-state speed control device.

WARNING: To avoid possible electrical shock, be sure

electricity is turned off at the main fuse box before wiring.

QQ SS

Assembly — Hanging the Fan (continued)

If you feel you do not have enough electrical wiring

knowledge or experience, have your fan installed by a

licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the plastic wire nuts (CC) with your

fan. Secure the wire nuts with electrical tape. Make sure

there are no loose strands or connections.

□Connect the ground conductor (SS) of the 120V

supply (this may be a bare wire or a wire with green

colored insulation) to the green ground lead(s) (VV) of

the fan.

□Connect the fan motor white wire (UU) to the supply

white (neutral) wire (RR) using a wire nut (CC).

□Connect the fan motor black wire (TT) and the blue

wire (WW) to the supply black (hot) wire (QQ) using a

wire nut (CC).

□Turn the wire nut connections upward, spreading

them apart so the green (ground) will be on one side

of the outlet box (NN) and the white (UU), black (TT)

and blue (WW) wires will be on the other side, and

push carefully up into the outlet box (NN).

9 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

Assembly — Hanging the Fan (continued)

5Finishing the fan

installation

□Move the fan motor assembly (B) into position over

the four mounting bracket (A) studs and secure with

the provided washers (FF) and nuts (EE).

6Attaching the motor housing

to the mounting bracket

□Raise the motor housing (E) up against the mounting

bracket (A). The four supports inside the motor

housing (E) should be placed against the four studs

on the mounting bracket (A). Twist the motor housing

(E) clockwise until snug.

Table des matières

Langues :

Autres manuels HAMPTON BAY Ventilateur

HAMPTON BAY

HAMPTON BAY Algiers 672 099 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY PANACHE 92407 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY xxx-xxx AL958-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AERATRON Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Winthrop Manuel utilisateur

HAMPTON BAY

HAMPTON BAY BELVOY AK330-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY ALTURA 52356 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY DEVRON 57231 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Glendale 52 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY CF556A-H26 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AM217-BK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 55370 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Gazebo II YG187-WH Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Brookhurst 549-742 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY GAZEBO III Manuel utilisateur

HAMPTON BAY

HAMPTON BAY YG098B-NM Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Burgess 176015 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 803-548 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 91126 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Cassaro Manuel utilisateur

HAMPTON BAY

HAMPTON BAY PALMARIA EF200S(X)-52 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 180-471 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY COSTA MESA Manuel utilisateur

HAMPTON BAY

HAMPTON BAY FB50-16H Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
