HAMPTON BAY Brookhurst 549-742 Manuel utilisateur

Brookhurst

Ventilador de Techo de 1,32 m

Manual del Propietario

549 742

Brookhurst

52 in Ceiling Fan

Owner’s Manual

549-742

11289

792145353409

Date Purchased

Store Purchased

Model Number

Serial No.

Vendor No.

UPC

15-Year Motor Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a period of 15-Year after the date of purchase

by the original purchaser. The retailer also warrants that all other fan parts, excluding any

glass or acrylic blades, to be free from defects in workmanship and material at the time of

shipment from the factory for a period of one year after the date of purchase by the original

purchaser. We agree to correct such defects without charge or at our option replace with a

comparable or superior model if the product is returned to the retailer. To obtain warranty

service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident

or misuse or improper installation or by affixing any accessories, is not covered by this

warranty. Because of varying climatic conditions this warranty does not cover any changes

in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of

this type give their longest useful life when protected from varying weather conditions. A

certain amount of wobble is normal and should not be considered a defect. Servicing

performed by unauthorized persons shall render the warranty invalid. There is no other

express warranty. The retailer hereby disclaims any and all warranties, including but not

limited to. Those of merchantability and fitness for a particular purpose to the extent

permitted by law. The duration of any implied warranty which cannot be disclaimed is

limited to the time period as specified in the express warranty. Some states do not allow

limitation on how long an implied warranty lasts, so the above limitation may not apply to

you. The retailer shall not be liable for incidental, consequential, or special damages arising

out of or in connection with product use or performance except as may otherwise be

accorded by law. Some states do not allow the exclusion of incidental or consequential

damages, so the above exclusion or limitation may not apply to you. This warranty gives

specific legal rights, and you may also have other rights which vary from state to state. This

warranty supersedes all prior warranties. Shipping costs for any return of product as part of a

claim on the warranty must be paid by the customer.

Safety Rules.....................................................................................................................................................................

Unpacking Your Fan ........................................................................................................................................................

Installing Your Fan ..........................................................................................................................................................

Installing the Light Kit.....................................................................................................................................................

........................................................................................................................................................

Care of Your Fan ............................................................................................................................................................

Troubleshooting ............................................................................................................................................................

Specifications ...............................................................................................................................................................

Operating Your Fan

10.

11.

12.

13.

Table of Contents

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code

and local electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not

use this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of personal injury, use only the two

steel screws (and lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes commonly used for

the support of lighting fixtures are not acceptable for fan support

and may need to be replaced, consult a qualified electrician if in

doubt.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan blades.

A dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After making electrical connections, all wired connecting nuts

should be turned upward and pushed carefully up into the outlet

box. The wires should be spread apart so that the green and white

wires are on one side of the outlet box and the black and blue wires

are on the other side.

12. Electrical diagrams are for reference only. Light kits that are not

packed with the fan must be UL Listed and marked suitable for use

with the model fan you are installing. Switches must be UL

General Use Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 pounds. Use only

UL Listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance from

the trailing edge of the blades to the floor.

7. Do not operate the reverse switch while the fan blades are in

motion. The fan must be turned off and the blades stopped before

reversing the blades direction.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

NOTE

READ AND SAVE ALL INSTRUCTIONS!

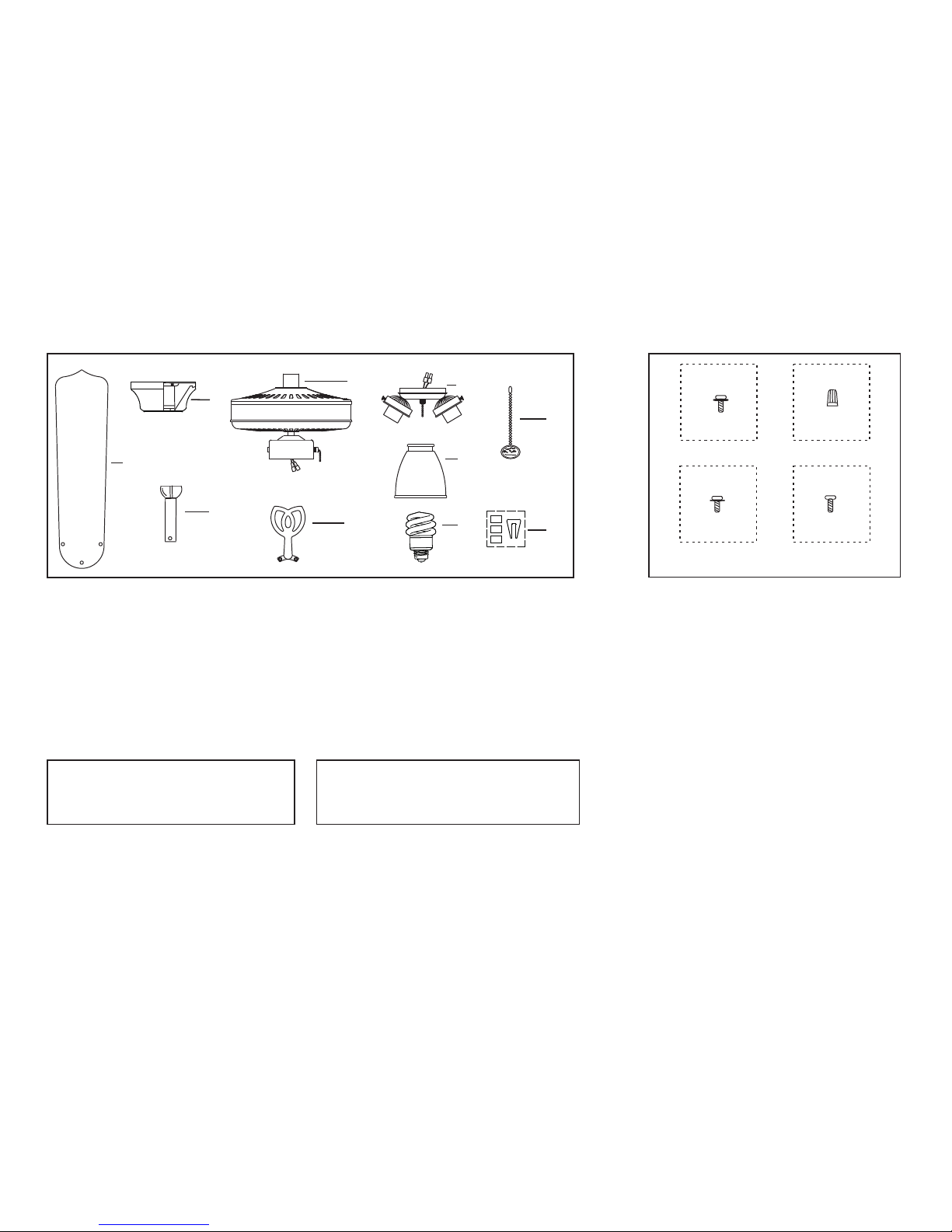

Unpack your fan and check the contents. You should have the following items;

1. Fan blades (5)

2. Canopy assembly

4. Fan motor assembly

5. Blade arms (5)

Ball/downrod assembly

6. Light kit

7. Glass shades

8. 13 Watt compact fluorescent bulbs (3)

10. Balancing kit

(3)

Pull chain and fobs (2)

810

11. Loose parts bag containing:

a. Blade attachment hardware

(16 screws with )

b. Electrical hardware

(3 plastic wire connecting nuts)

c. Blade arm hardware

(11 screws with lock washers)

d. Light kit hardware

(1 screw)

fiber washers

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-902-5588.

Unpacking Your Fan 2.

c d

NOTE

FOR NON-LIGHT USE PURPOSE, THE SWITCH

BOX COVER IS AVAILABLE BY CALLING THE

TOLL FREE NUMBER 1-877-902-5588.

Tools Required

P h i l l i p s s c r e w d r i v e r, s t r a i g h t s l o t

screwdriver, step ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the

b u i l d i ng st r uc t u r e. U s e a p p r o p r ia t e

fasteners and building materials. The outlet

box and its support must be able to fully

support the moving weight of the fan (at

least 50 lbs). Do not use plastic outlet

boxes.

Figures 1,2 and 3 are examples of different

ways to mount the outlet box.

Note: You may need a longer downrod to

mainta i n proper bla d e clearan c e when

installing on a steep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar.(Fig.4) (available at

any Home Depot store).

Outlet box

Figure 1

Figure 2

Figure 4

3. Installing Your Fan

Provide strong support

Recessed

outlet box

Mounting bracket

opening must be

toward the top

Figure 3

Angled ceiling

maximum

18 angle

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This ceiling fan is supplied with two

types of hanging assemblies; the standard

ceiling installation using the downrod with

b a l l a n d s o c k e t m o u n t i n g a n d t h e

"flushmount" installation. The "flushmount"

installation is recommended in rooms with

less than 8-foot ceilings or in areas where

additional space is desired from the floor to

the fan blades. When using the standard 4

1/2" downrod, the distance from the ceiling

to the bottom of the fan blades will be

approximately 12 1/2 inches. Once you have

selected which mounting system you will

use, proceed with the following instructions.

Wher e necess a ry, eac h sectio n of the

i n s t r u c t i o n s w i l l n o t e t h e d i f f e r e n t

procedures to follow for the two types of

mounting.

outlet box with the screws and washers

provided with your outlet box.

3. Pass the 120-volt supply wires through the

center hole in the ceiling hanger bracket

as shown in Fig. 6.

4. Remove the hanger pin, lock pin and set

sc re ws fr om th e t o p of th e mo t o r

assembly.

5. Route the wires through the canopy and then

through the ball/downrod assembly. (Fig. 6A)

6. Align the holes at the bottom of the downrod

with the holes in the collar on top of the motor

housing (Fig.6A). Carefully insert the hanger

pin through the holes In the collar and

downrod be careful not to Jam the pin against

the wiring inside the downrod. Insert the

locking pin through the hole in locked

position. (Fig. 6A)

Secure the hanger bracket to the ceiling 7.

motor collar firmly and evenly. (Fig. 6A)

8. Place the downrod ball into the hanger

bracket socket. Rotate the downrod ball

until the groove of the downrod ball lines

up with the hook of the hanger bracket.

(This will help balance the fan.)

Tighten two set screws at top of the fan

Figure 5

Ceiling

hanger

bracket

Ceiling

canopy

Screws

STANDARD CEILING

INSTALLATION

1. Remove t he hanger bracket from t he

canopy b y loos ening the four scre ws on

the top of the cano py. Remove the two

n o n - s l o t t e d s c r e w s a n d l o o s e n t h e

slotted screws. This will enable you to

remove the hanger br acket. (Fig. 5 )

WARNING

FAILURE TO PROPERLY INSTALL

LOCKING PIN AS NOTED IN STEP 7

COULD RESULT IN FAN LOOSENING

AND POSSIBLY FALLING.

Figure 6

Figure 6A

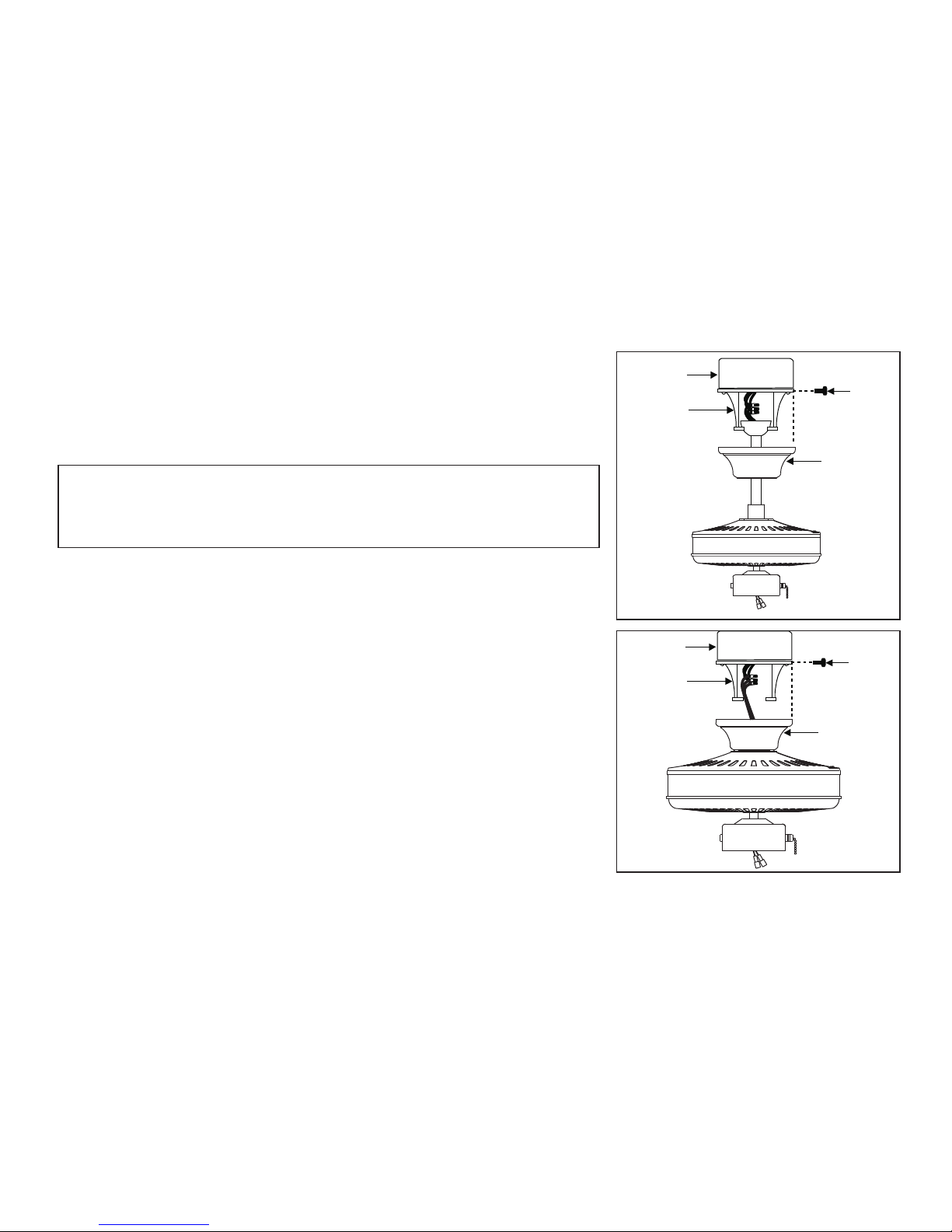

8. Hang the fan on the hook of the hanger

bracket. Be certain that the canopy is

fully locked into tab. (Fig. 8) This will

allow you to ma k e th e electric a l

connections.

Hook

Figure 7A

Screw and

Lockwasher

(3 of 6 places)

Ceiling

Canopy

Figure 7

Collar

FLUSHMOUNT INSTALLATION

1. Remove the hanger bracket from the canopy by

loosening the four screws on the top of the

canopy. Remove the two non-slotted screws and

loosen the slotted screws. This will enable you

to remove the hanger bracket. (Fig. 5)

(Fig. 7A)

3. Secure the hanger bracket to the ceiling outlet

box with the screws and washers provided

with your outlet box.

4. Pass the 120-volt supply wires through the

center hole in the ceiling hanger bracket as

shown in Fig. 6.

5. Remove three of the six screws and lock washers

(every other one) from the collar of top motor.

(Fig. 7)

6. Place the ceiling canopy over the collar at the top

of the motor. Align the mounting holes with the

holes in the motor and fasten using the screws

and lock washers provided (Fig. 7).

7. Tighten the mounting screws securely. (Fig. 7)

Remove the decorative canopy bottom cover

from the canopy by turning the canopy

bottom cover counterclockwise.

Canopy

Canopy cover

Motor wires

Ball/downrod

assembly

Hanger pin Locking

Downrod

Canopy

Set screws

Figure 8

Mounting

screws

(supplied with

electrical box)

Hanger

bracket

UL Listed

electrical

box

120V wires

Hook

WARNING

FAILURE TO COMPLETELY TIGHTEN

THE THREE SCREWS IN STEP 7 COULD RESULT

IN FAN LOOSENING AND POSSIBLY FALLING

Making the Electrical Connections

Remember to disconnect the power.

Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts

supplied with your fan. Secure the connectors with electrical tape. Make sure there are no loose

strands or connections.

Step 1 Connect the fan supply (black) wire and light supply (blue) wire to the black household

supply wire as shown in Figure 9.

Step 2. Connect the neutral fan (white) wire to the white neutral household wire.

Step 3 Connect the fan ground wire (green) to the household ground wire.

Step 4 After connecting the wires, spread them apart so that the green and white wires are on one

side of the outlet box and the black and the blue wires are on the other side.

Step 5 Turn the connecting nuts upward and push the wiring into the outlet box.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL INJURY. MOUNT FAN

ONLY ON AN OUTLET BOX OR SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE THIS FAN WITH ANY SOLID-

STATE SPEED CONTROL DEVICE.

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

BLUE

GREEN

Figure 9

Finishing the Installation

STANDARD CEILING INSTALLATION

Slide canopy up to the ceiling as shown in Figure 10. Make sure you place the wires safely

into the outlet box. Secure the canopy to the hanger bracket with the four screws with your

fan.

FLUSHMOUNT INSTALLATION

Remove the fan from the hook on the hanger bracket. Secure the canopy to the hanger

bracket with four screws included with your fan. (Fig. 11)

Figure 10

Figure 11

WARNING

Make sure the notch on the hanging bracket properly sits in the groove in the

hanger ball before attaching the canopy to the bracket by turning the housing

until it drops into place.

Outlet box

Hanger

bracket

Canopy

Screws

Outlet box

Hanger

bracket

Canopy

Screws

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HAMPTON BAY Ventilateur

HAMPTON BAY

HAMPTON BAY WELLSTON 51360 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Florentine Manuel utilisateur

HAMPTON BAY

HAMPTON BAY GLENDALE III AK338-MBK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY STONERIDGE EF600K-52 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY PENDLETON Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Gazebo II Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Preston Manuel utilisateur

HAMPTON BAY

HAMPTON BAY TIPTON II 52 INCH Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Florentine Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Bercello Estates II Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 52-LASO Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Veranda II Manuel utilisateur

HAMPTON BAY

HAMPTON BAY MADISON AK30A-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY HAWKINS YG204I-BN-D Manuel utilisateur

HAMPTON BAY

HAMPTON BAY ROTHLEY 51563 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY FALLSBURG AK389-GA Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 286-780 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY GLENDALE AG524-FB Manuel utilisateur

HAMPTON BAY

HAMPTON BAY MORESCO 14411 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY RIVERWALK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Lyndhurst Manuel utilisateur

HAMPTON BAY

HAMPTON BAY WELLTON 60 AM588A-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Winthrop Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AC386LED-WB Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
