Rapallo

52 in Ceiling Fan

Owner’s Manual

Rapallo

Ventilador de Techo de 1,32 m

Manual del Propietario

110 083

52” Rapallo

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . .8

Operating Your Fan . . . . . . . . . . . . . . . 9

Care of Your Fan . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . 12

110-083

792145352822

11289

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds, Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT.”

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

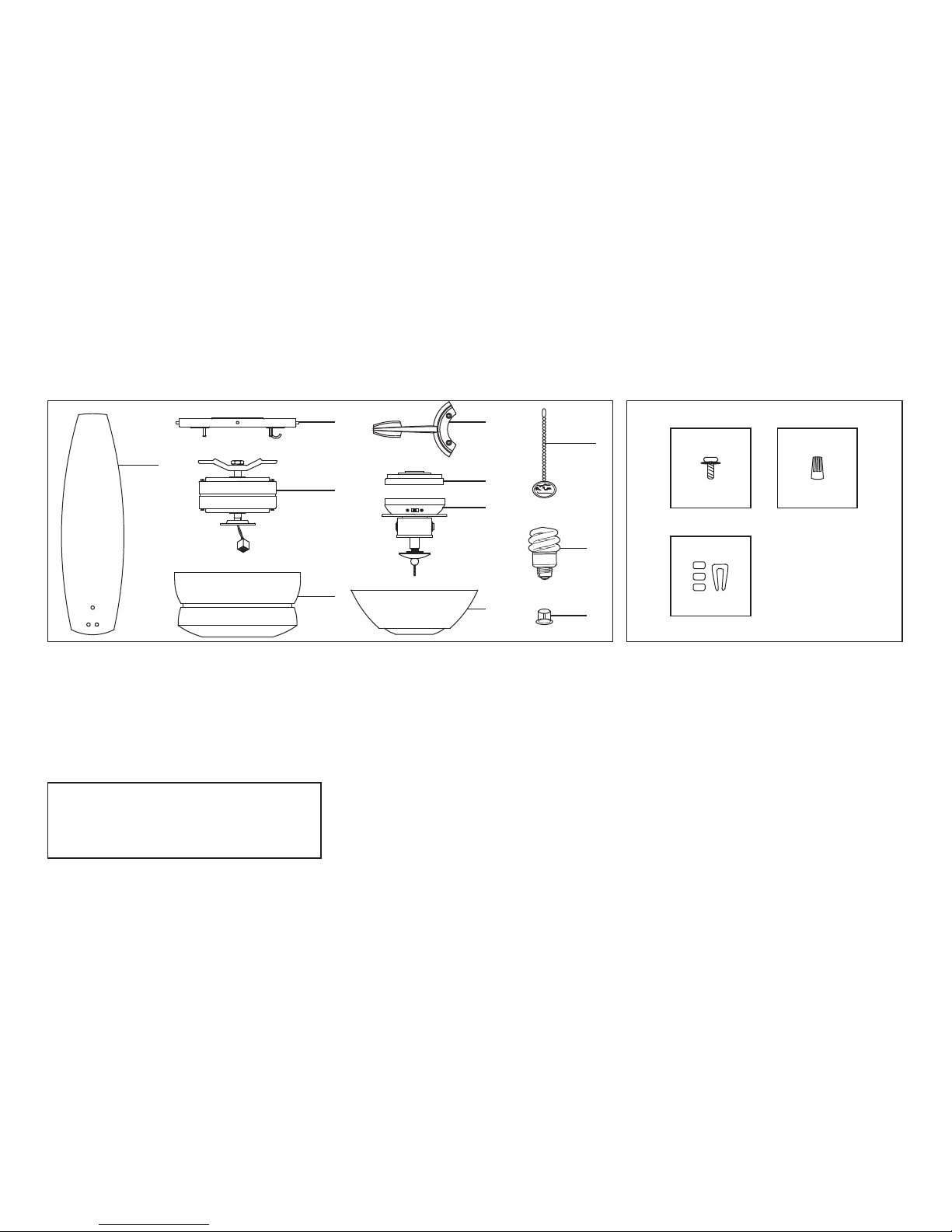

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

2 5

Set of blades (3)

Mounting bracket

Fan motor assembly

Motor housing

Blade arms (3)

Mounting plate

Light kit assembly

Glass shade

Pull chain and fobs (2)

13 Watt compact fluorescent bulbs (2)

Extra plastic plug

10.

11.

Blade Attachment Hardware

(10 Screws with Fiber Washers)

Electrical Hardware

(3 Plastic Wire Nuts)

Balance Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-898-1881.

Figure 2

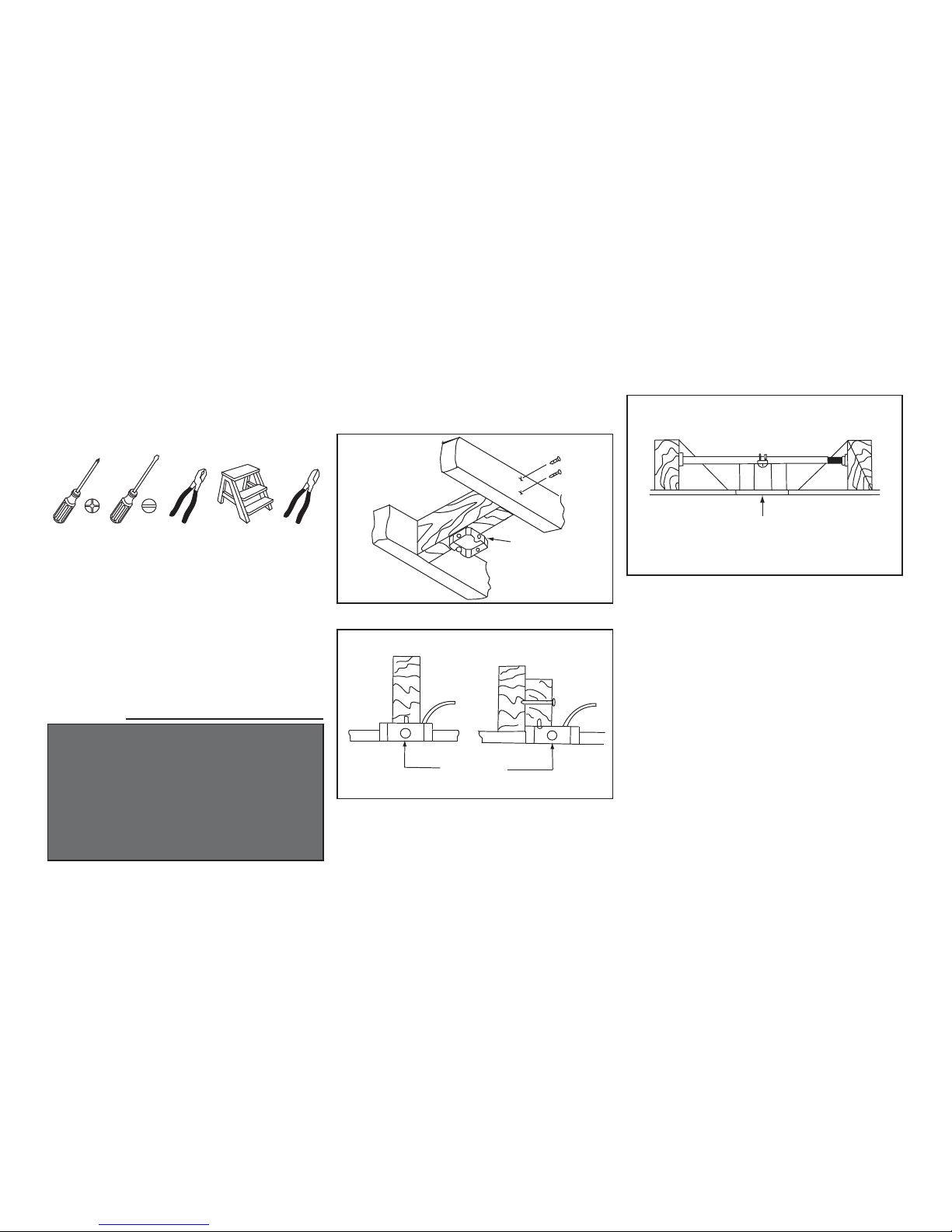

Figures 1 and 2 are examples of different ways to

mount the outlet box.

Outlet Box

Figure 1

Outlet Box

Installing Your Fan

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 3 (available at any

Home Depot retailer).

Figure 3

Outlet Box

Phillips screwdriver, straight slot screwdriver,

adjustable wrench, step ladder, and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan

Making the Electrical

Connections

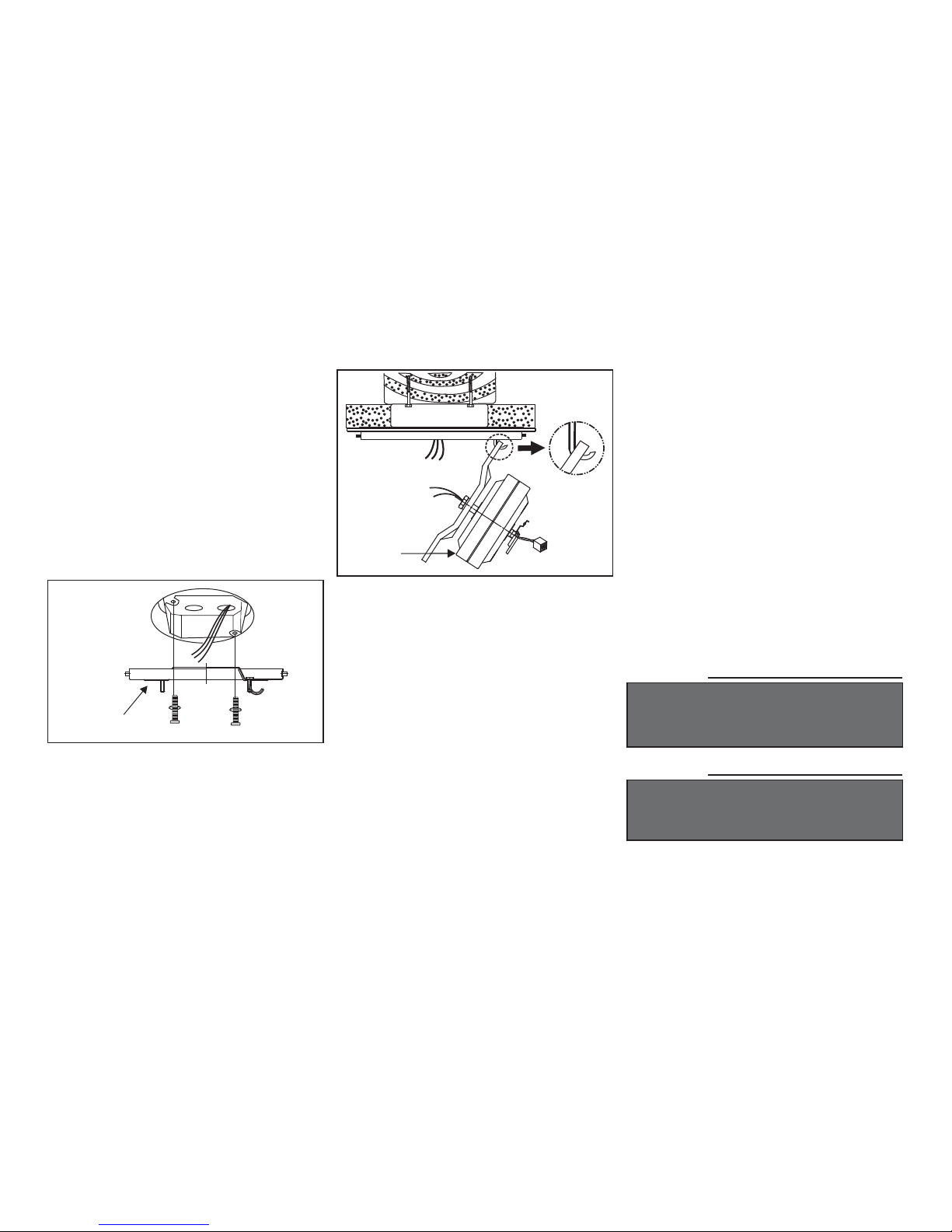

Attach the mounting bracket to the outlet box

with two screws and washers provided with the

outlet box. Make sure the bracket is tight and

secured (Fig. 4).

Lift fan into position by hanging the motor

assembly onto the hook from the ceiling

mounting bracket allowing it to hang freely

(Fig. 5).

Figure 5

Motor

Figure 4

Outlet Box

Mounting Bracket

Connect the ground conductor of the 120V

supply (this may be a bare wire or a wire with

green colored insulation) to the green ground

lead(s) of the fan (Figure 6).

Connect the fan motor white wire to the supply

white (neutral) wire using a wire nut. (Figure

Connect the fan motor black wire to the supply

black (hot) wire using a wire nut (Figure 6).

Connect the blue wire for light kit to the black

household supply wire.

Turn wire nut connections upward, spreading

them apart so the green (ground) will be on one

side of the outlet box and the white, black and

blue wire will be on the other side, and push

carefully up into the outlet box.

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

WARNING

ELECTRICAL DIAGRAMS ARE FOR REFER-

ENCE ONLY. OPTIONAL USE OF ANY LIGHT

KIT SHELL BE UL LISTED AND MARKED

SUITABLE FOR USE WITH THIS FAN.

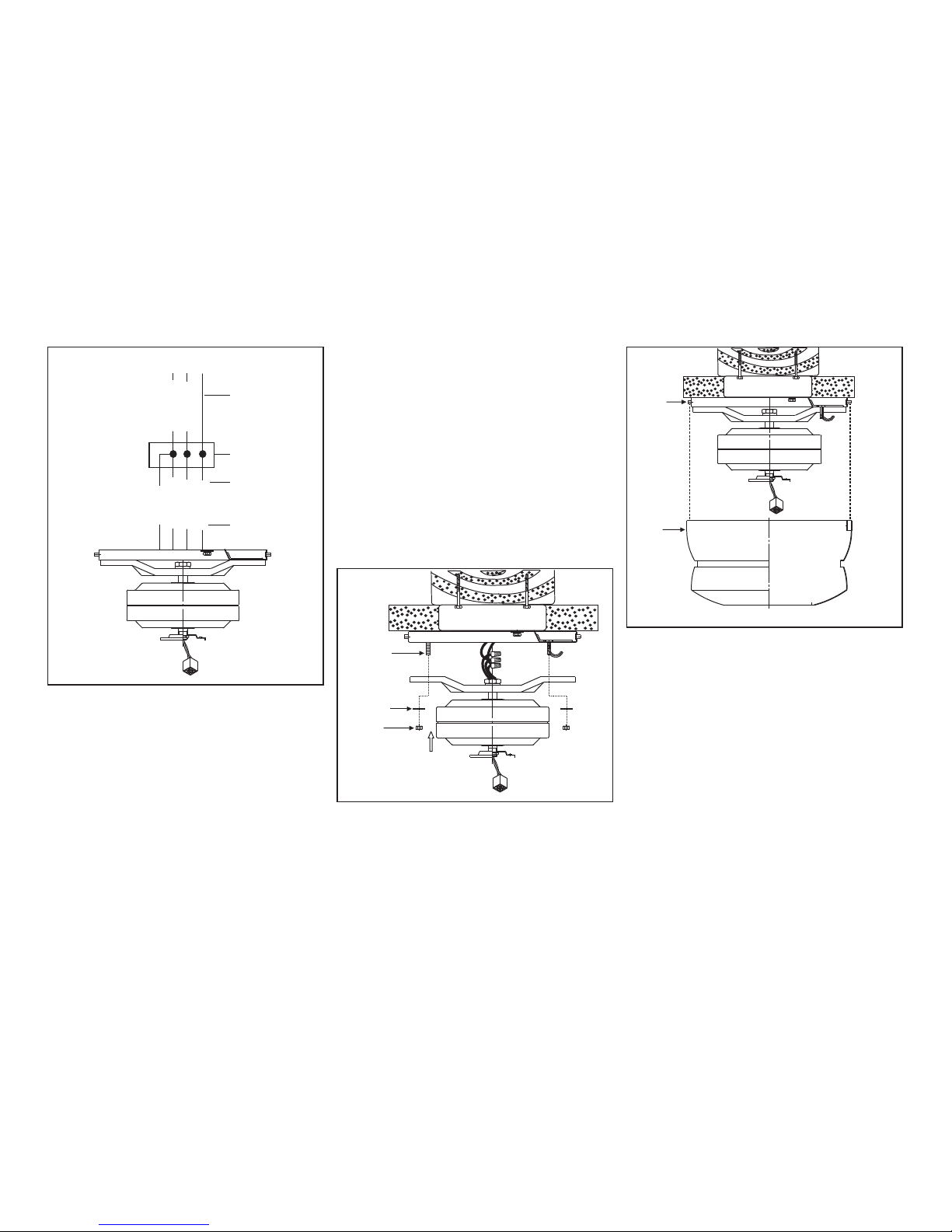

Figure 6

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green Ground

Lead

Ground to

Fan

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 7

Figure 8

Move fan into position over the four mounting

studs and secure with the provided washers and

nuts (Fig. 7).

Raise the motor housing up against the

mounting bracket, the four supports inside the

housing should be placed against the four studs

on mounting bracket, twist the housing

clockwise until snug (Fig. 8).

Finishing the Fan

Installation

Washers

Nuts

Mounting

Studs

Motor

Housing

Studs

Attaching the Fan Blades

Attach blades to blade arms using three screws

with fiber washers. (Fig. 9) Start a screw into

the blade arm, do not tighten. Repeat for the 2

remaining screws and washers.

Tighten each screw securely starting with the

center screw. Make sure the blade is straight.

Repeat steps for the remaining blades.

Fasten the blade assemblies to the motor

housing by lining up the slots of the blade arms

with the tabs on the motor housing, then

tighten the two screws and washers already

installed in the blade arms. (Fig. 10)

3. Figure 9

Blades

Blade Arms

Screws with

Fiber Washers

Figure 10

Motor

Blade arm

Slot

Tab

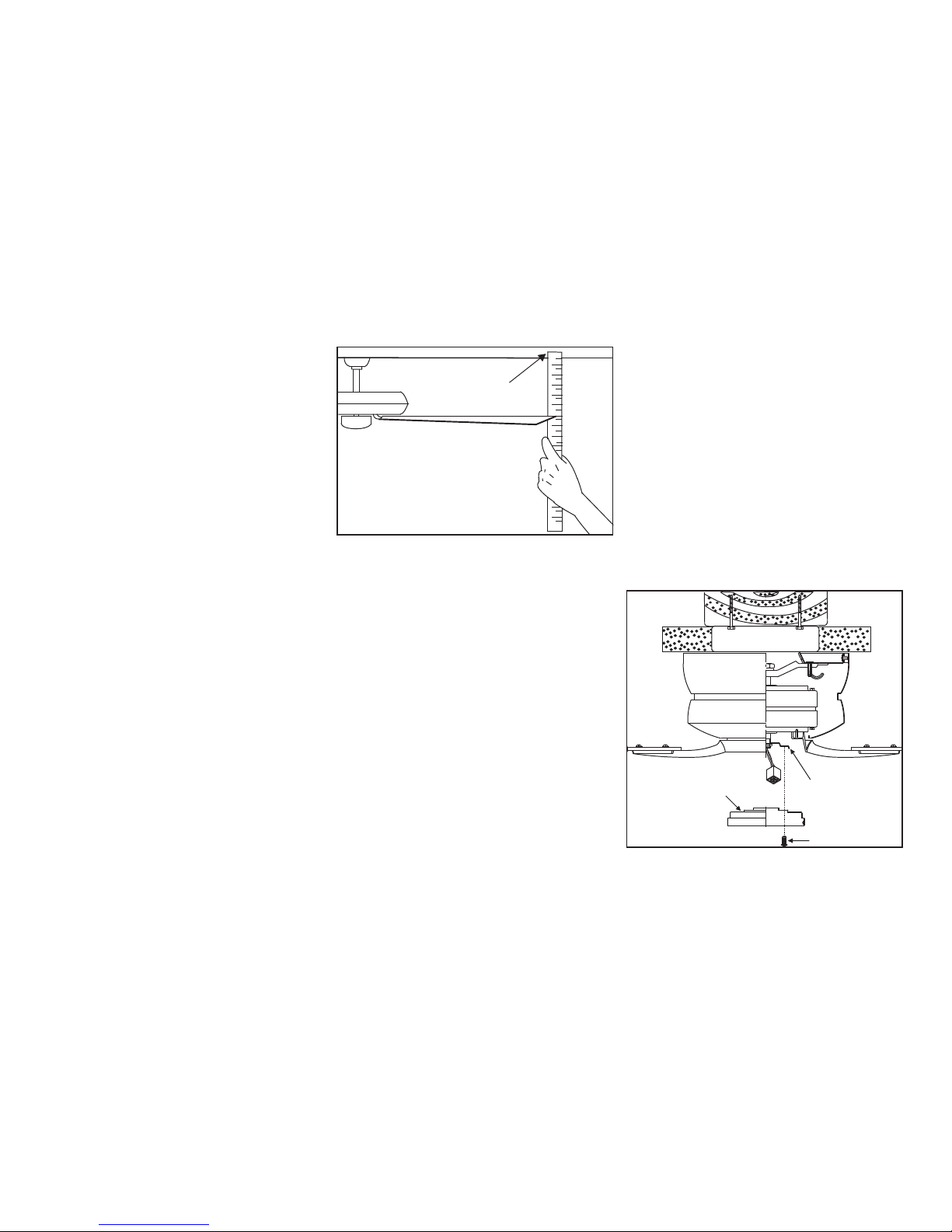

Blade Balancing

Check that all blade and blade bracket screws

are secure.

Most fan wobble problems are caused when

blade levels are unequal. Check this level by

selecting a point on the ceiling above the tip of

one of the blades. Measure from a point on the

center of each blade to the point on the ceiling.

Measure this distance as shown in Figure 11.

Rotate the fan until the next blade is positioned

for measurement. Repeat for each blade.

Measurements deviation should be within 1/8˝.

Run the fan for 10 Minutes.

Use the enclsed Blade Balancing Kit if the

blade wobble is still noticeable.

The following procedure should correct most fan

wobble. Check after each step.

Figure 11

Touching Ceiling

Attaching the Mounting

Plate

Remove the 1 of 3 screws from the mounting

ring and loosen the other 2 screws. (Do not

remove)

Place the key holes on the mounting plate over

the 2 screws previously loosened from the

mounting ring, turn mounting plate until it

locks in place at the narrow section of the key

holes. Secure by tightening the 2 screws

previously loosened and the one previously

removed (Fig. 12).

Figure 12

Mounting Plate Mounting Ring

Screws

Fan without Light Kit

(Optional)

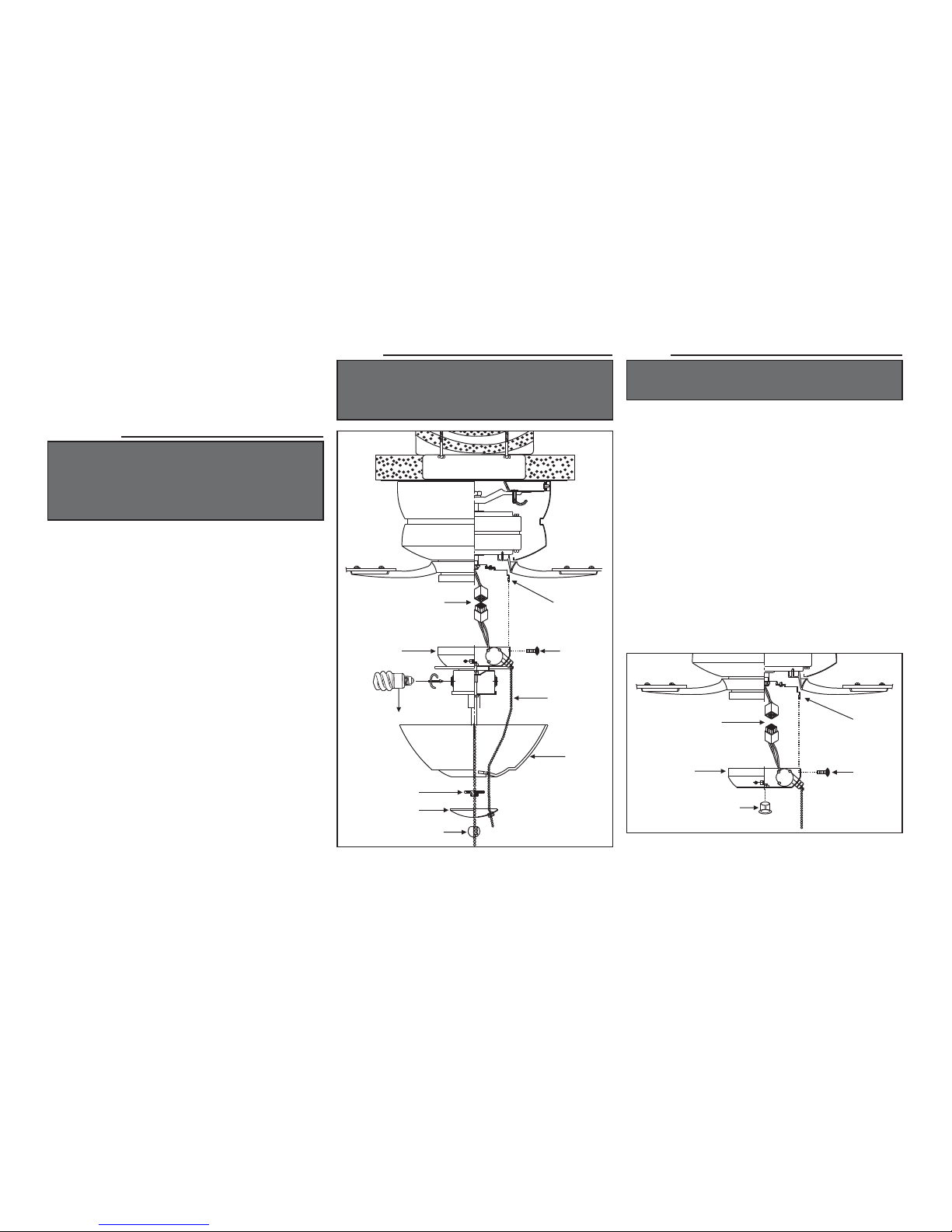

Disassemble the switch housing from the light

kit, you can keep the light kit for future use.

Attach the plastic plug to the switch housing.

(Fig. 14)

Holding the switch housing under your fan,

snap the wire connection plugs together .

Install the switch housing to the mounting

plate with screws provided. (Fig. 14)

While holding the light kit assembly under

your fan, snap the wire connection plugs

together (Fig. 13).

Carefully push all wires back into the switch

housing, then install the light kit assembly onto

the mounting plate with 3 screws provided. Be

sure to tighten all screws. (Fig. 13)

Install 2 x 13 watts compact fluorescent bulbs

(included) into the light kit sockets. NOTE:

CFL bulbs are NOT dimmable.

Remove the metal nut, glass cap and decorative

nut from the light kit. Place glass shade over

the light kit stem, secure with the metal nut

(rubber side on the top), glass cap and decora-

tive nut. Do not overtighten (Fig. 13).

Insert the 2 pull chain through the eyelet in the

shade and cap. Secure the glass cap and

decorative nut provided (Fig. 13).

Restore power and your light kit is ready for

operation.

Figure 13

Figure 14

NOTE

LIGHT BULBS HAVE NO WARRANTY; CAN BE

PURCHASED AT ANY HOME DEPOT STORE.

NOTE

MAKE SURE TO LEAVE ENOUGH SPACE

BETWEEN THE FAN PULL CHAIN AND THE

BULBS SO THE CHAIN DOESN'T RUB AGAINST

ANY OF THE BULBS.

CAUTION

BEFORE STARTING INSTALLATION, DISCONNECT

THE POWER BY TURNING OFF THE CIRCUIT

BREAKER OR REMOVING THE FUSE AT FUSE

BOX. TURNING POWER OFF USING THE FAN

SWITCH IS NOT SUFFICIENT TO PREVENT

ELECTRIC SHOCK.

Screws

Pull Chain

Glass

Shade

Bulbs

Light Kit

Assembly

Glass Cap

Metal Nut

Decorative Nut

Mounting Plate

Wire Connection

Plugs

Screws

Switch

Housing

Mounting Plate

Wire Connection

Plugs

Plastic Plug

Installing the

Light Kit

Table des matières

Autres manuels HAMPTON BAY Ventilateur

HAMPTON BAY

HAMPTON BAY BPT12-13E Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AG524I-ORB Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Florentine Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 285-962 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Chamblee Manuel utilisateur

HAMPTON BAY

HAMPTON BAY ESALA AK395-CB Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Devereaux II Manuel utilisateur

HAMPTON BAY

HAMPTON BAY CEVA AK363HA-BN Manuel utilisateur

HAMPTON BAY

HAMPTON BAY SOUTHWIND 52371 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Clarkston Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Trusseau 324-617 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 597-730 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY SEAPORT AL634-NI Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Gazebo II Plus Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Beverley II 325-475 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY CHASTAIN II Manuel utilisateur

HAMPTON BAY

HAMPTON BAY TUDOR Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 48" Roanoke Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 1002 275 335 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 32711 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY METARIE II YG922B-MBK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AG524PR-FB Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Bercello Estates II Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 1005 228 113 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
