The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by the

original purchaser. The retailer also warrants that all other fan parts, excluding any glass or

plexiglass parts, to be free from defects in workmanship and material at the time of shipment

from the factory for a period of one year after the date of purchase by the original purchaser.

We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned to the retailer. To obtain warranty service, you must

present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the

product are your responsibility. Damage to any part such as by accident or misuse or improper

installation or by affixing any accessories, is not covered by this warranty. Because of varying

climatic conditions in the United States this warranty does not cover any changes in brass

finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type

give their longest useful life when protected from varying weather conditions. A certain

amount of wobble is normal and should not be considered a defect. Servicing performed by

unauthorized persons shall render the warranty invalid. There is no other express warranty.

The retailer hereby disclaims any and all warranties, including but not limited to. Those of

merchantability and fitness for a particular purpose to the extent permitted by law. The

duration of any implied warranty which cannot be disclaimed is limited to the time period as

specified in the express warranty. Some states do not allow limitation on how long an implied

warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable

for incidental, consequential, or special damages arising out of or in connection with product

use or performance except as may otherwise be accorded by law. Some states do not allow the

exclusion of incidental or consequential damages, so the above exclusion or limitation may

not apply to you. This warranty gives specific legal rights, and you may also have other rights

which vary from state to state. This warranty supersedes all prior warranties.

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

656-414

14826

792145353065

Lifetime Motor Warranty

Table of Contents

Safety Rules..................................................................................................................................................................................

Unpacking Your Fan ...................................................................................................................................................................

Installing Your Fan ......................................................................................................................................................................

Installing the Light Kit.................................................................................................................................................................

Operating Your Transmitter.........................................................................................................................................................

Care of Your Fan.......................................................................................................................................................................

Troubleshooting .........................................................................................................................................................................

Specifications .............................................................................................................................................................................

10.

11.

12.

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been turned

off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code and

local electrical codes. Electrical installation should be performed by a

qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not use

this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of personal injury, use only the two

steel screws (and lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may

need to be replaced, consult a qualified electrician if in doubt.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE

FOR FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 pounds. Use only CUL

Listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

7. Do not operate the reverse switch while the fan blades are in motion. The

fan must be turned off and the blades stopped before reversing the blades

direction.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan blades. A

dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The wires

should be spread apart with the grounded conductor and the equipment-

grounding conductor on one side of the outlet box.

12. Electrical diagrams are for reference only. Light kits that are not packed

with the fan must be CUL Listed and marked suitable for use with the

model fan you are installing. Switches must be CUL General Use

Switches. Refer to the Instructions packaged with the light kits and

switches for proper assembly.

NOTE

READ AND SAVE ALL INSTRUCTIONS!

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

Unpack your fan and check the contents. You should have the following items:

Unpacking Your Fan 2.

8. Glass shade

9. Receiver with 6 wire nuts

10. Transmitter+holder+2 mounting screws

+ 2 plastic plugs

11. 100W halogen bulb

12. Balancing kit

1.. Fan blades (4)

2. Canopy assembly

3. Ball/downrod assembly

4. Coupling cover

5. Fan motor assembly

6. Mounting plate

7. Light kit

13. Loose parts bag containing:

a. Electrical hardware

Screws (2 PCs.)

Lock washers (2 PCs.)

Metal washers (2 PCs.)

3 plastic wire connecting nuts (3 PCs.)

b. Blade attachment hardware

(13 screws, 13 fiber washers)

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-902-5588.

Rev.

OFF

Tools Required

Phillips screwdriver, straight slot screwdriver,

step ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must

be able to fully support the moving weight of the

fan (at least 50 lbs). Do not use plastic outlet

boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

3. Installing Your Fan

Outlet box

Figure 1

Figure 2

Outlet box

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at your Hampton Bay Retailer).

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling.

Figure 4

Figure 3

Angled ceiling

maximum

18° angle

Provide strong

support

Recessed

outlet box Hanger

opening must

be facing up-side

Attaching the Fan Blades

NOTE: Before installing the fan, you need to attach the blades onto the motor.

1. There are 6 screws holding the top fan housing on the motor. Remove these 6 screws and

push the top fan housing upward. (fig. 5)

2. Insert the blade through the slot on the motor housing. Align holes and fasten the blade to the

motor with provided screws. (fig. 6)

3. Repeat this procedure for remaining blades.

WARNING: Make sure all screws are tightened securely.

4. After all the blades are securely fastened to the motor, push the top housing down on the

motor and fasten the top fan housing with 6 screws. (fig. 6)

Figure 5

Figure 6

Top housing

Screws

Top housing

Motor housing

Screws

Blade

Slot

Washers

Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counter clockwise.(Fig. 7)

Step 2. Remove the hanger bracket from the

canopy by loosening the two screws on the

bottom of the hanging bracket a half turn from

the screw head and turning the canopy counter

clockwise.(Fig. 7)

Step 3. Secure the hanger bracket to the ceiling

outlet box with the screws and washers provided

with your outlet box.

Step 4. Pass the 120-volt supply wires through

the center hole in the ceiling hanger bracket.

(Fig. 8)

Step 5. Remove the hanger pin, lock pin and set

screws from the top of the motor assembly.

NOTE: If a longer downrod is needed, take out

the screw located in the hanger ball, lower the

hanger ball and remove the pin, remove all 3

pieces from the downrod and assemble them

onto the new longer downrod before proceeding

step 7. (The longer downrod is available at any

Home Depot store)

Step 6. Route wires exiting from the top of the

fan motor through the collar cover, canopy

cover, canopy and then through the ball /

downrod. (Fig. 9)

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top of the

motor housing (Fig. 9). Carefully insert the hanger

pin through the holes in the collar and downrod.

Be careful not to jam the pin against the wiring

inside the downrod. Insert the locking pin through

the hole near the end of the hanger pin until it

snaps into its locked position, as noted in the

circle inset of Fig. 9.

Step 8. Tighten two set screws on top of the fan

motor firmly (Fig. 9)

Step 9. Place the downrod ball into the hanger

bracket socket. Rotate the downrod ball until the

groove of the downrod ball lines up with the hook

of the hanger bracket. (This will help balance the

fan.)

Figure 8

Figure 9

Figure 7

WARNING

FAILURE TO PROPERLY INSTALL

LOCKING PIN AS NOTED IN STEP 7

COULD RESULT IN FAN LOOSENING

AND POSSIBLY FALLING.

Hanger

bracket

Ceiling

canopy

Canopy

cover

Screws

Tab

Mounting screws

(supplied with

electrical box)

CUL Listed

electrical box

Hanger

bracket

120V Wires

Washers

Ball/downrod

assembly

Canopy

Downrod

Motor wires

Locking

Canopy cover

Hanger pin

Collar cover

Set screws

Installation of Safety

Support

An additional safety support is provided to

prevent the fan from falling. Secure the safety

cable to the ceiling joist with screw and washer.

(Fig. 10)

Safety Cable

Figure 10

Hanger

bracket

Outlet box

Make the Electrical

Connections

WARNING: To avoid possible electrical shock,

be sure electricity is turned off at the main fuse

box before wiring.

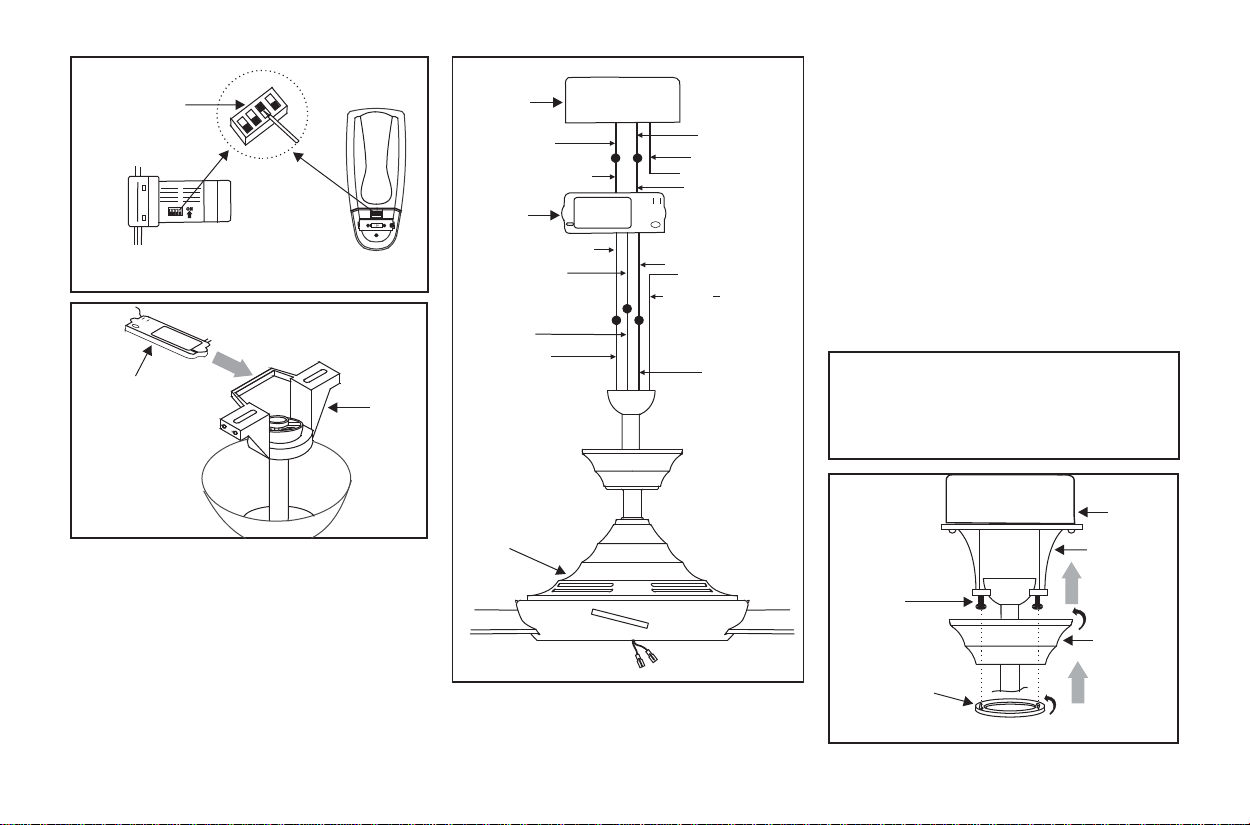

NOTE: This remote control unit is equipped

with 16 code combinations to prevent possible

interference from or to other remote units. The

frequency switches on your receiver and

transmitter have been preset at the factory.

Please recheck to make sure the switches on the

transmitter and the receiver are set to the same

position, any combination of settings will

operate the fan as long as the transmitter and

receiver are set to the same position.(Fig. 11)

Step 1. (Fig. 12) Insert the receiver into the

mounting bracket with the flat side of the

receiver facing the ceiling.

Step 2. (Fig. 13) Motor to Receiver Electrical

Connections: Connect the black wire from the

fan to black wire marked "TO MOTOR L".

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" from the

receiver. Connect the blue wire from the fan to

the blue wire marked "For Light" from the

receiver. Secure the wire connections with the

plastic wire nuts provided.

Step 3. (Fig. 13) Receiver to House Supply

Wires Electrical Connections: Connect the

black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver.

Connect the white(neutral) wire from the

ceiling to the white wire marked "AC in N"

from the Receiver. Secure the wire connections

with the plastic wire nuts provided.

Step 4. (Fig. 13) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise connect the hanging

bracket ground wire to the mounting bracket.

Secure the wire connection with a plastic nut

provided.

After connecting the wires spread them apart

so that the green and white wires are on one

side of the outlet box and black and blue wires

are on the other side. Carefully tuck the wire

connections up into the outlet box.

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit for

proper signal transmission between the

transmitting unit and the fan's receiving unit.

Figure 12

Receiver

Hanger

bracket

Figure 11

Frequency

switch

Figure 13

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green) (Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Blue ("for light")

Blue (light)

Black (motor)

Fan

WARNING

Make sure the notch on the hanging bracket

properly sits in the groove in the hanger ball

before attaching the canopy to the bracket by

turning the housing until it drops into place.

Outlet box

Canopy

cover

Canopy

Hanger

bracket

Figure 14

Screws

Finishing the Installation

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to ceiling and over

the 2 screws on the hanger bracket. Rotate

canopy clockwise. Next, while holding the

canopy with one hand, slide the canopy cover

over the screws and rotate clockwise until tight.

Note: adjust the canopy screws as necessary

until the canopy and canopy cover are snug.

(Fig. 14)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HAMPTON BAY Ventilateur

HAMPTON BAY

HAMPTON BAY Chamblee Manuel utilisateur

HAMPTON BAY

HAMPTON BAY HALPERT 52169 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 51750 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Vasner 529-751 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY DEVRON 57231 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY EDELWEISS Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Malone Manuel utilisateur

HAMPTON BAY

HAMPTON BAY HAWKINS YG204I-BN-D Manuel utilisateur

HAMPTON BAY

HAMPTON BAY PALM BEACH III 48-PBH Manuel utilisateur

HAMPTON BAY

HAMPTON BAY LOOMIS YG990-MBK Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 567-472 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 705 114 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY SIDLOW 52151 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Carlsbad Manuel utilisateur

HAMPTON BAY

HAMPTON BAY DEVRON 57231 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY STONERIDGE 51973 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Savona Tiffany Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 1005 819 968 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY FANELEE Manuel utilisateur

HAMPTON BAY

HAMPTON BAY AM212-ORB Manuel utilisateur

HAMPTON BAY

HAMPTON BAY YG529-WH Manuel utilisateur

HAMPTON BAY

HAMPTON BAY 24816-021 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY Bentley II 328 478 Manuel utilisateur

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-BN Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
