Hamilton Beach HBFRF301-B Manuel utilisateur
Catalog
Product introduction Safety and Important Safeguards..............
Part names.................................................
Installation instructions...............................
Operating instructions Temperature selection................................
Leveling instructions...................................
Door reversal instructions...........................
Care & Maintenance Cleaning......................................................
Power failure................................................
Defrosting....................................................
Vacation......................................................
Moving........................................................
Disposal......................................................
Troubeshooting Troubleshooting..........................................
Product specifications
Warranty card Product specifications...............................
Warranty Card............................................
1
2
3
4
5
5
6
7
7
7
7
8
8
8
9
10
IMPORTANT SAFEGUARDS
Product Introduction
Danger: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.
This is the safety alert symbol.
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock,
and/or injury to persons, including the following:
Danger You will be killed or seriously injured if you don’t follow instructions.
Your safety and the safety of others is very important.
This symbol alerts you to hazards that can kill or hurt you and others, All safety messages will be preceded by the
safety alert symbol and the word “Danger” or “Warning” These words mean:
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
Grounding Instructions
This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the
electrical current.
This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that
is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet.
The serial rating plate indicates the voltage and frequency the appliance is designed for.
Warning: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service
agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly
grounded.
Do not connect your appliance to extension cords or together with another appliance in the same wall outlet.
Do not splice the power cord.
Do not under any circumstances cut or remove the third ground prong from the power cord.
Do not use extension cords or ungrounded (two prongs) adapters.
This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be
different or reduced,or who lack experience or knowledge, unless such persons receive supervision or training to operate
the appliance by a person responsible for their safety.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Do not use mechanical devices to defrost refrigerator.
Consult repair manual or owner’s guide before attempting to service this product. All safety precautions must be followed.
Disposal of this unit should be in accordance with federal and local regulations.
Follow handling instructions carefully.
2
■
■
■
■
■
■
■
■
■
Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
Warning: Do not damage the refrigerant circuit.
Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
Close supervision is necessary when any appliance is used by or near children. Cleaning and user maintenance shall not
be made by children unless they are supervised. Children should be supervised to ensure that they do not play with the
appliance.
Danger: Risk of child entrapment. Before throwing away an old appliance:
Remove the door or lid.
Leave shelves in place so that children may not easily climb inside.
This appliance is intended to be used in household and similar applications such as:
■Staff kitchen areas in shops, offices and other working environments;
■Farm houses and by clients in hotels, motels and other residential type environments;
■Bed and breakfast type environments;
■Catering and similar non-retail applications.
Warning You will be killed or seriously injured if you don’t follow instructions.
Read all instructions before using appliance.
Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped
or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent,
or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on
examination, repair, or adjustment.
SAVE THESE INSTRUCTIONS
Product Introduction
Part names
The below picture is for your reference. There maybe some differences from
your appliance.
1 - Thermostat
2 - Door
3 - Freezer Shelves
3
Two people should assist when moving the appliance.
Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft,
dry cloth and the inside with a luke warm wet cloth.
Place the appliance on a floor that is strong enough to support it when it is fully loaded.
Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this
can increase electrical consumption.
Do not use the appliance near water, for example in a wet basement or near a sink.
This appliance is intended for household use only. It is not designed for outside installation, including
anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This
will reduce the possibility of a malfunction in the cooling system from handling during transportation.
This appliance is 52.6 cm (20.7 inches) wide by 83.3 cm (32.8 inches) high by 57.1 cm (22.48 inches)
deep. Make sure that you leave the minimum amount of space between the appliance and all surrounding
walls and vents.
Allow 12.7 cm (5 inches) of space between the back of the appliance and the wall. Allow 5 cm (2 inches)
between the sides and top of the appliance and any walls or counter tops.
This appliance is intended for free-standing installation only and is not intended to be built into a cabinet
or counter. Building in this appliance can cause it to malfunction.
Location
Installation Instructions
.
4
4
■
■
■
■
■
■
■
■
■
■

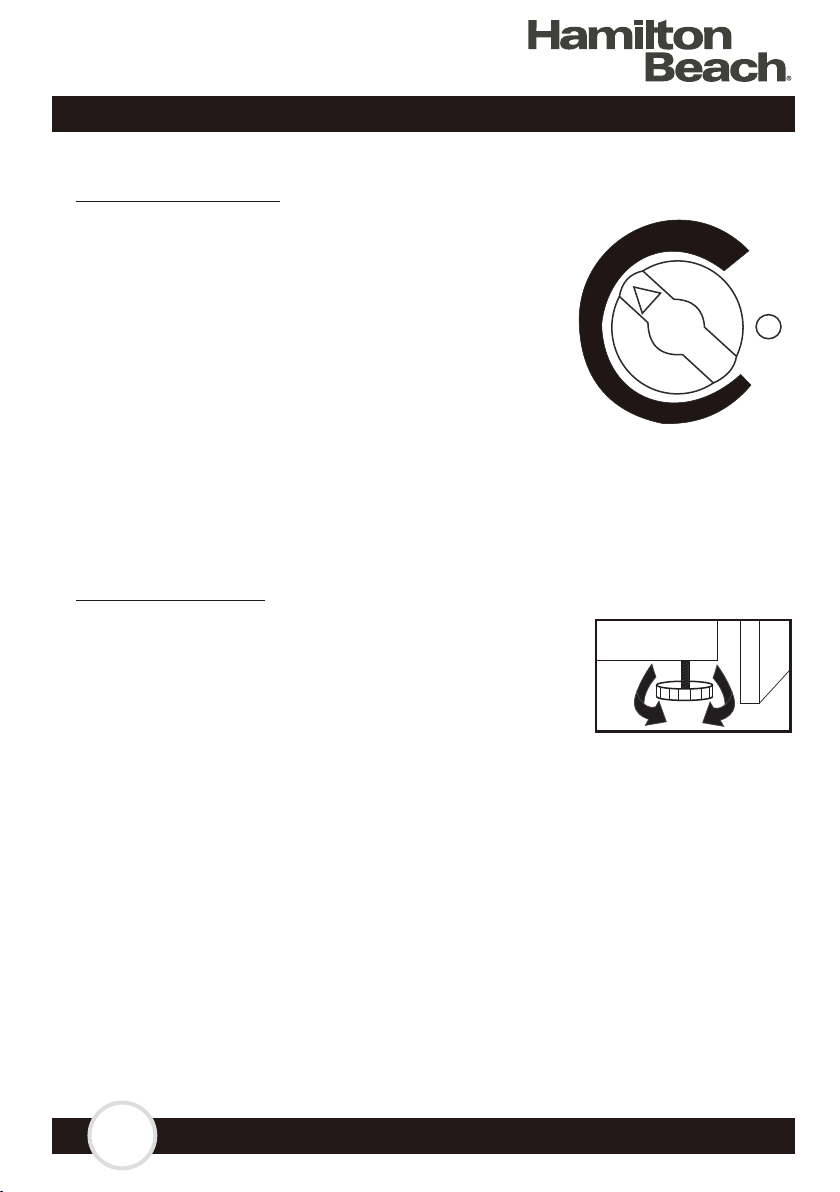

The temperature of the appliance can be adjusted by turning the
thermostat dial on the exterior back wall of the appliance.
The lighter, thinner line on the thermostat dial
indicates warmer temperatures.
The thicker, darker line on the thermostat dial
indicates colder temperatures.
To stop the cooling function, turn the control
knob to the “0” position.
If the temperature control knob adjusts to the maximum setting,the
compressor may run continuously. It is the coldest mode. Please do not
adjust to the maximum setting frequently.
Internal temperature of the appliance can vary based on ambient
temperature, the quantity of items stored and how frequently the door is
opened.
There is an adjustable foot on the bottom of the appliance that can be
turned up or down to ensure that the appliance is level.
1. Turn the leveling foot counter-clockwise until the top of the foot is
touching the bottom of the cabinet.
2. Slowly turn the leveling foot clockwise until the appliance is level.
Temperature selection
Leveling instructions
Operating Instructions
4
5
■■■
4
6
Door reversal instructions
If the appliance is placed on its back or side for any
length of time during this process, it must be allowed
to remain upright for 6 hours before plugging it in to
avoid damage to the internal components.
Remove the screw securing the hinge cover and
remove the hinge cover. Remove the two screws
securing the upper hinge and remove the upper
hinge. Remove the hinge hole covers from the top
left side of the cabinet.Remove the door from the
cabinet. See figure A.
Remove the hinge hole cover from the top left
side of the door and place it in the hinge hole on
the top right side of the door. See figure B.
Remove the solid foot from the bottom left side
of the cabinet and remove the adjustable foot and
lower hinge from the bottom right side of the
cabinet. Install the lower hinge and adjustable foot
on the bottom left side of the cabinet and install
the solid foot on the bottom right side of the
C. See figure C.
Place the door on the cabinet and install the upper
hinge on the top left side of the cabinet. Before
tightening the screws in the upper hinge,ensure
that the top of the door is level with the top of the
cabinet and that the rubber gasket is making a
good seal with the cabinet all the way around.
Install the hinge cover over the hinge and install
the hinge hole covers in the screw holes on the
top right side of the cabinet. See figure D.
Operating Instructions
■■■■
Care & Maintenance
Cleaning
Ensure the appliance is unplugged before cleaning.
Defrosting
This appliance should be defrosted approximately twice a year or when a 6 mm (1/4 inch) layer of frost has
formed on the shelves.
1. Turn the thermostat dial to the “0” position and unplug the power cord.
2. Remove all contents and leave the door open.
3. Check the appliance frequently while defrosting to ensure that water does not leak and cause damage to
fl ooring.
4. When all frost has melted, wipe the interior of the appliance with a towel or sponge to ensure it is
completely dry before resuming operation.
5. Plug the appliance in, turn the thermostat dial to the desired setting and replace all contents once the
appliance has reached the desired temperature.
Important: Do not use pointed or sharp objects to remove frost as this can damage the refrigerant lines. If
these lines are accidentally pierced it will render the freezer inoperable and will void the manufactuer’s
warranty.
Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can
damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects
on any part of the appliance.
To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to
one quart of water or a mild soap solution or some mild detergent.
Clean the outside with a soft, damp cloth and some mild detergent.
It is important to keep the area clean where the door seals against the cabinet. Clean this area with a
soapy cloth. Rinse with a damp cloth and let dry.
4
7
■■■Power failure
Vacation
Most power failures are corrected within a few hours and should not affect the temperature of your appliance
if you minimize the number of times the door is opened. If the power is going to be off for a longer period of
time, take the proper steps to protect your contents.
Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.
Short vacations: Leave the appliance operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off the
appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door
open slightly, blocking it open if necessary.
•
•
Troubleshooting
4
8
Problem Possible cause
A fuse may be blown or the circuit breaker
tripped.
Plug not fully inserted into the wall outlet.
Temperature setting is too cold.
Door not shut properly or opened
excessively.
Recently added a large quantity of warm
food to the cabinet.
Close proximity to heat source or direct
sunlight.
Ambient temperature or humidity is very
high.
No power.
Appliance runs continuously.
Internal temperature not cold enough. Temperature setting is too warm.
Door is not shut properly or opened
excessively.
Recently added a large quantity of warm
food to the cabinet.
Close proximity to heat source or direct
sunlight.
Ambient temperature or humidity is very
high.
Moving
Disposal
This appliance may not be treated as regular household waste, it should be taken to the appropriate waste
collection point for recycling of electrical components. For information on local waste collection points, contact
your local waste removal agency or government offi ce. Disposal of this appliance should be in accordance
with federal and local regulations.
• Remove all items.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of
the appliance with a blanket or similar item.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to
remain in its operating position for 6 hours to avoid damage to internal components.
Care & Maintenance
4
9
Product Specifications
MODEL NO. HBFRF301-B
3.2 CU. FT.
FREEZER SHELVES
MECHANICAL
19.88
22.48
19.88
41.63
32.80
32.36
22.48
32.80
20.70
10.4 ~-11.2℉/-12 ~-24℃
CAPACITY OF FRIDGE IN CU. FT.
SHELF MATERIAL
TEMPERATURE CONTROL TYPE
TEMPERATURE RANGE IN FAHRENHEIT AND CELSIUS
DEPTH(EXCLUDING HANDLES) (IN):
DEPTH(INCLUDING HANDLES) (IN):
DEPTH(LESS DOOR) (IN):
DEPTH WITH DOOR OPEN 90 DEGREES (IN):
HEIGHT TO TOP OF DOOR HINGE (IN):
HEIGHT TO TOP OF REFRIGERATOR (IN):
PRODUCT DEPTH (IN):
PRODUCT HEIGHT (IN):
PRODUCT WIDTH (IN):
Table des matières
Langues :
Autres manuels Hamilton Beach Congélateur
Hamilton Beach
Hamilton Beach HBMIS4515 Manuel utilisateur
Hamilton Beach
Hamilton Beach HBFRF510 Manuel utilisateur
Hamilton Beach
Hamilton Beach Thermos 840112800 Manuel utilisateur
Hamilton Beach
Hamilton Beach HBFRF513-B Manuel utilisateur
Hamilton Beach
Hamilton Beach HBFRF355 Manuel utilisateur
Hamilton Beach
Hamilton Beach HBFRF301-C Manuel utilisateur
Hamilton Beach
Hamilton Beach HBFRF1100 Manuel utilisateur
