Halo Max Manuel utilisateur
1
HALO Max Stand Assembly Instructions
This medical stand was designed and manufactured exclusively for our HALO Max device with the outmost care in safety, mobility
and professional use. We partnered up with Pryor Products manufactures world-class, industry-leading Class I medical device
mobility products for the healthcare industry.
2
HALO Max stand arrives in box with the following weight and measurements:
68 Inches tall
20 Inches wide
9 inches deep
Weights 40 lbs.
172 Centimeters tall
50 Centimeters wide
23 Centimeters deep
Weights 18 Kilograms
Quick tip: This box is bulky, although 1 person can manage the box and assemble this stand alone, its best to
have a helping hand.
3
Main Components inside the box
•Wheelbase (6 wheels)
•Center Post with bracket (for HALO Max device)
•Handle
Quick tip: Be careful not to throw away the plastic bag with the screws and bolts. It is easily missed and
thrown away with the box as trash
4

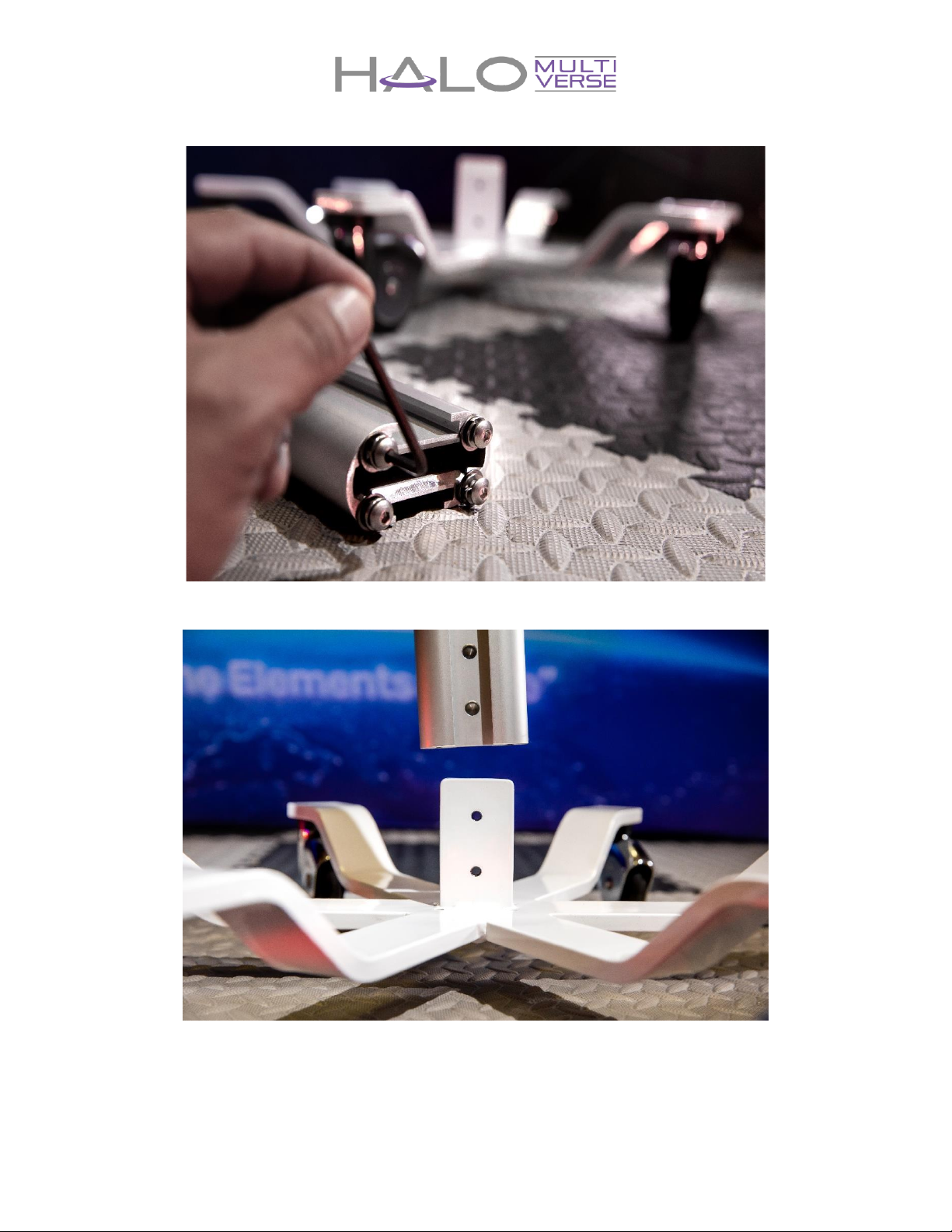

Use a hex key/allen wrench to remove 4 bolts from the bottom of the post as seen below
Drop center post into wheelbase stem and secure
5
Secure center post to wheelbase with 2 bolts included in the bag
Remove 2 bolts from back of center post
6
Attach handle to the back of the post with the same 2 bolts
Now place stand flat on the floor, exposing the bottom side of the wheelbase.
Secure with 4 bolts previously removed as shown below.
7
Your HALO Max stand should look like this and is ready for your HALO Max
8
Attach HALO Max device to bracket by way of 4 screws
2 on top
and 2 on bottom
9
You are now ready to activate your HALO Max Therapy
For more information, please contact:
Halomultiverse.com
haloinfo@halomultiverse
Customer Service 888-669-4256
