SAFETYPRECAUTIONS

Read all of the instructions before using this appliance.

When using this appliance, always exercise basic safety

precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use

and care guide.

2) This wine cooler must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

3) Never unplug your wine cooler by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks or

abrasion damage along its length, the plug or the connector end.

5) Unplug your wine cooler before cleaning or before making any repairs.

Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

6) If your old wine cooler is not being used, we recommend that you remove

the door and leave the shelves in place. This will reduce the possibility

of danger to children.

7) This wine cooler should not be recessed or built-in an enclosed cabinet. It

is designed for freestanding installation only.

8) Do not operate your wine cooler in the presence of explosive fumes.

9) Do not store foods in wine cooler as interior temperature may not be cool

enough to prevent spoilage.

HVF020/20Amanual 10/22/01 11:07 AM P_3

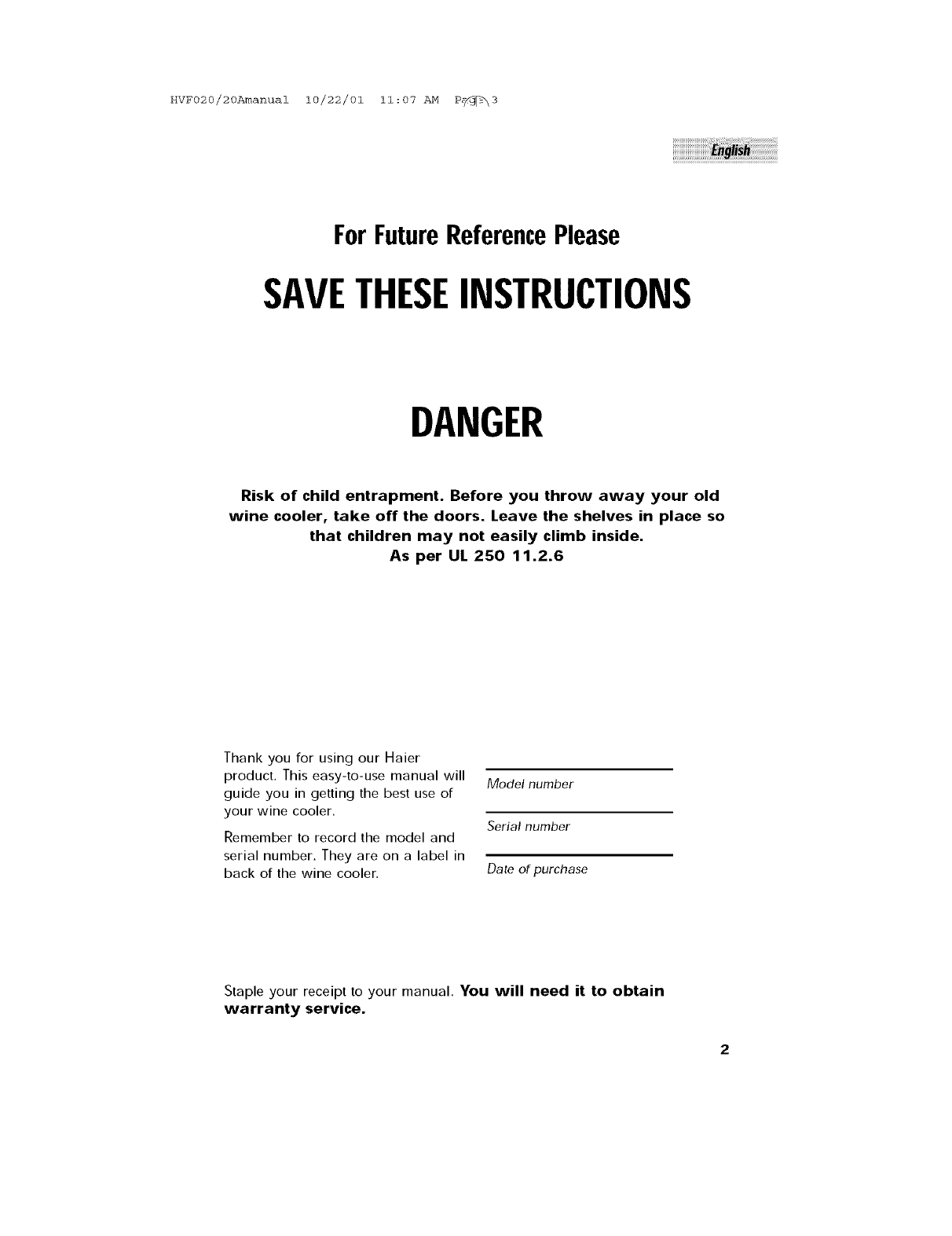

ForFutureReferencePlease

SAVETHESEINSTRUCTIONS

DANGER

Risk of child entrapment. Before you throw away your old

wine cooler, take off the doors. Leave the shelves in place so

that children may not easily climb inside.

As per UL 250 11.2.6

Thank you for using our Haler

product. This easy-to-use manual will

guide you in getting the best use of

your wine cooler.

Remember to record the model and

serial number. They are on a label in

back of the wine cooler.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

HVF020/20Amanual 10/22/01 11:07 AM P_4

PAGE

Safety Precautions .......................................................... .1

Parts And Features .................................................. 4

Installing Your Wine Cooler .......................................................... 5

Unpacking Your Wine Cooler. ................................................................ 5

Leveling Your Wine Cooler. .................................................................... ,5

Proper Air Circulation ........................................................................... ,5

Electrical Requirements. ........................................................................... 6

Wine Cooler Features And Use ......................................................... .7

Initial Set Up ......................................................................................... /7

Temperature Adjustment ......................................................................... ,7

Shelving ............................................................................................... .9

Interior Light ......................................................................................... .9

Door Lock.............................................................................................. 9

Normal Operating Sounds. .................................................................... 9

Proper Wine Cooler Care and Cleaning .................... 10

Cleaning and Maintenance ................................................................. .10

Power Interruptions .............................................................................. 11

Vacation and Moving Care ........................................ .11

Troubleshooting ............................................................................. .12

Warranty Information ..................................... 13

HVF020/20Amanual 10/22/01 11:07 AM P_5

Electronic Unit Mechanical Unit

Electronic Controlled

Unit Only

Mechanical Control

Unit Only

1. White Wine Button (-)

2. Red Wine Button (+)

3, Interior Light Button (set)

4, LED Temperature Display

5. Light On/Off Switch

6. Door Lock and Key

7, Door Handle

8, Temperature Control

9, Adjustable Leveling Legs

(not shown)

10, 1 Slide-Out Basket

11, 3 Slide-Out Shelves

12. Interior Light

HVF020/20Amanual 10/22/01 11:07 AM P_6

Unpackin 9 Your Wine ¢oo er

1, Remove all packaging material. This includes the foam base and all

adhesive tape holding the wine cooler accessories inside and outside,

Slide out and remove plastic or foam guard used to secure the

compressor from shipping damage due to vibration and shock,

2. Inspect and remove any remains of packing, tape or printed

materials before powering on the wine cooler,

[eye,in 9 Your Wine Coo ÷r

• Your wine cooler has four leveling legs which are located in the

front and rear corners of your wine cooler. After properly placing your

wine cooler in its final position, you can level your wine cooler.

• Levelin 9 legs can be adjusted by turning them clockwise to raise your

wine cooler or by turning them counterclockwise to lower

your wine cooler, The wine cooler door will close easier when the

leveling legs are extended.

Proper Air Circulation

• To assure your wine cooler works at the maximum efficiency it

was designed for, you should install it in a location where there

is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the wine cooler:

Sides ............... 2 "(50ram)

Top .................... 2" (50ram)

Back .................. 2" (50ram)

• Do not over fill your wine cooler for proper internal air circulation.

HVF020/20Amanual 10/22/01 ii :07 AM P_/qbA 7

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸

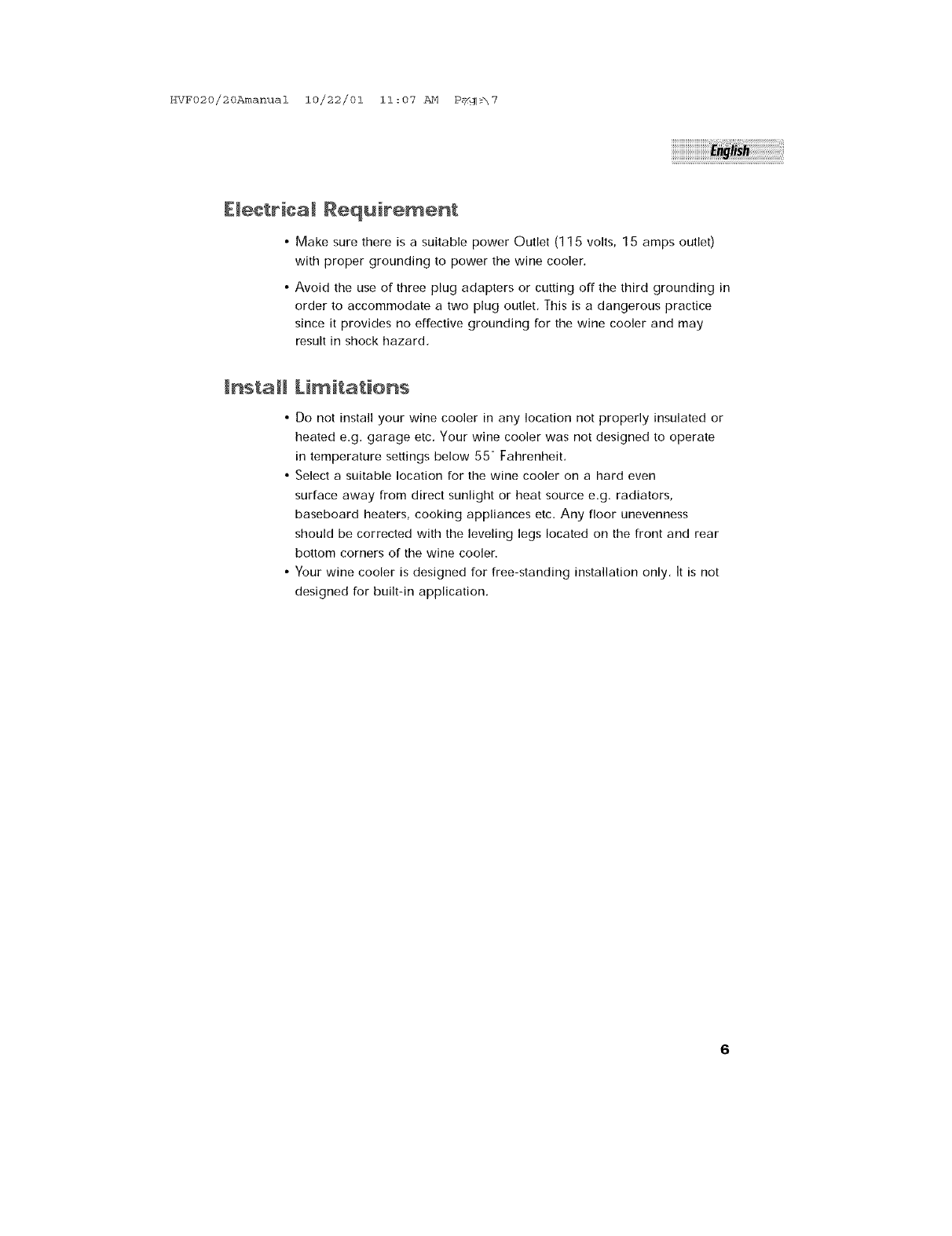

DectHca_ Requirement

Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)

with proper grounding to power the wine cooler.

Avoid the use of three plug adapters or cutting off the third grounding in

order to accommodate a two plug outlet, This is a dangerous practice

since it provides no effective grounding for the wine cooler and may

result in shock hazard,

H_itations

Do not install your wine cooler in any location not properly insulated or

heated e.g. garage etc, Your wine cooler was not designed to operate

in temperature settings below 55 ° Fahrenheit.

• Select a suitable location for the wine cooler on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc, Any floor unevenness

should be corrected with the leveling legs located on the front and rear

bottom corners of the wine cooler.

• Your wine cooler is designed for free-standing installation only, It is not

designed for built-in application,

_VF020/20hmanualI0/22/01 11:07AM P_S

ni al Setup

Electronic Controlled Units:

Once you have plugged the unit into an electrical outlet, let the unit run for

at least 30 minutes to acclimate itself before making any adjustments,

During 1his time the Red Wine light may stay on,

Mechanical Controlled Units:

The control for this is on the back of 1he unit. There are 6 settings

plus 0 (OFF), Initially set the temperature setting to 3, Let the unit run for at

least 30 minutes to acclimate itself bcfcre making any adjustments.

Temperature Adjustments:

Electronic Control Unit: See fig. # 1

• The wine cooler is preset from the factory to automatically

accommodate temperature requirements for red or white wines.

If you _tore mostly white wines, pless the "White Wine" button and the

wine cooler will maintain an average temperature between

45 ° to 50 ° F. Pushing the "Red Wine" button will yield an

average temperature between 55 ° to 60 ° E

• The wine cooler can be set to any temperature you desire to

accommodate your wine storage requirements. To set the temperature,

press both the "White Wine" and "Red Wine" buttons simultaneously

and hold for approximately 3 seconds. Now you are in temperature set

mode. Decrease the temperature by pushing the "White Wine" button

and increase the temperature by pressing the "Red Wine" button.

Pressing the appropriate button 3 times will adjust the temperature 3

degrees, press 4 times equals 4 degrees, 5 times equals 5 degrees, and

so on. Once you have selected the temperature you desire, push the

"Light/Set" button. Now the wine cooler is programmed and the LED

readout will return to current internal temperature reading.

HVF020/20Amanual 10/22/01 ii :07 AM P_ 9

fig,#1

There will be a 3 degree variance +/- between the temperature you

select and the temperature indicated on the LED readout.

This occurs because the wine cooler activates and deactivates

trying to maintain your desired temperature. There is often a

10 ° variance between the top and bottom shelves of the wine cooler.

Therefore, if you have set the wine cooler for 50 ° and have a

mix of red and white wines, you may want to put the white wine

on the bottom shelf where the temperature will be 45 ° F, and place the

red wine on the top shelf where the temperature will be 55 ° F.

Mechanical Control Unit: See fig, #2

• Your wine cooler has a temperature control knob on the back of the

unit, There are 6 settings: 1 being the warmest and 6 being the coolesL

You can set the temperature of your wine cooler at any

setting you desire.

fig,#2

HVF020/20Amanual 10/22/01 11:07 AM Ps/_J_10

• The shelves are designed for flexibility and easy cleaning.

To accommodate different sized bottles the shelves slide out

and can be moved up or down into any of the tracks molded

into the cooler cabinet, Larger bottles or Magnums can be more easily

accommodated on the cross shelves of the bottom basket of the cooler.

You will notice that the shelves are designed so the bottles do

not line-up directly over one another. This allows free air

movement and provides more space.

Interior Li@h[

• To complement the look of your wine collection, a soft light has been

built into the wine cooler. Simply push the "Light/Set" button on the

electronic controlled unit, and the light comes on, push again for off,

On the mechanical control units, the light switch is on the front for your

convenience. For maximum energy efficiency, leave light off when not

viewing your collection.

Door Lock (electronic controlled unit only)

•For safety and security, your wine cooler is equipped with a door lock.

To eliminate the risk of accidental child entrapment, the lock was

designed so that the door will not lock until the key is removed

(consistent with UL requirements).

NormaM Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of

the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Haier Refroidisseur de vin

Haier

Haier WS50GDBI Manuel utilisateur

Haier

Haier JC-160DE Manuel utilisateur

Haier

Haier JC-298GF Manuel utilisateur

Haier

Haier HWS84GA Manuel utilisateur

Haier

Haier HC-122 Manuel utilisateur

Haier

Haier JC-112G Manuel utilisateur

Haier

Haier HVB050ABH - Designer Series 50 Bottle Capacity Wine... Manuel utilisateur

Haier

Haier HVD060E-4S Manuel utilisateur

Haier

Haier HVZ040ABH5S - Dual-Zone Wine Cooler Manuel utilisateur

Haier

Haier WS**GA(E) Manuel utilisateur

Haier

Haier GWB03FAWSSC Guide de sécurité

Haier

Haier HVW18 Service Manuel utilisateur

Haier

Haier JC-110GD Manuel utilisateur

Haier

Haier HVFM102A Manuel utilisateur

Haier

Haier HVF042ABL Manuel utilisateur

Haier

Haier HVTS06 Manuel utilisateur

Haier

Haier HVF042ABL Manuel utilisateur

Haier

Haier HVF046A - 03-01 Manuel utilisateur

Haier

Haier HWS116GAE Manuel utilisateur

Haier

Haier HVA037-5S - 08-03 Manuel utilisateur

Haier

Haier HJC-163K Manuel utilisateur

Haier

Haier HVTS18 Manuel utilisateur

Haier

Haier JC-125GMEF Manuel utilisateur

Haier

Haier HW24WF10NG Manuel utilisateur

Manuels Refroidisseur de vin populaires d'autres marques

U-Line

U-Line Echelon Wine Captain 2075WC Manuel du propriétaire

Cavist

Cavist 62 Manuel utilisateur

Kenmore

Kenmore 461.99130 Manuel utilisateur

Miele

Miele KWT 6422 iG Manuel utilisateur

Danby

Danby DWC113BLSDB Manuel utilisateur

Caple

Caple Wi6128 Manuel utilisateur

Avanti

Avanti WC1001 Manuel utilisateur

Frigidaire

Frigidaire FFWC38F6LS Manuel utilisateur

Titan

Titan TT-W2454SZ Manuel d'installation

Klarstein

Klarstein Botella 166 Uno Manuel utilisateur

Costway

Costway FP10130WL Manuel utilisateur

Lemair

Lemair LWC59 Manuel utilisateur

Caple

Caple WCi46B Manuel utilisateur

Climadiff

Climadiff CLI24 Guide rapide

Viking

Viking VCWB301LSS Manuel utilisateur

Caple

Caple WC6511 Manuel utilisateur

Vinvautz

Vinvautz VZ08BHK Manuel utilisateur

AVG

AVG PRYMO PMB76SS Manuel utilisateur
