Haier Thermocool HMS1000TVE Manuel utilisateur

MODEL：HMS1000TVE

FRONT LOADING WASHING MACHINE

Service Manual

Features：

●300mm diameter porthole, door may be

open at a 180 degrees.

●Multi-gear speed controller

●Unique gasket design featuring no residual

water hidden inside

●Delay time adjustive

Haier Group

MANUAL CODE：No.1

●Washing Programs-11

●Selecting washing temperature according to

the type of fabrics

Front Load Washer HMS1000TVE

1、Contents----------------------------------------------------------------------------------------1

2、Product code illumination and series introduction-----------------------------------2

3、Features ---------------------------------------------------------------------------------------3

4、Specification ----------------------------------------------------------------------------------4

5、Safety caution --------------------------------------------------------------------------------6

6、Installation ------------------------------------------------------------------------------------9

7、Net dimention -------------------------------------------------------------------------------11

8、Names of the parts-------------------------------------------------------------------------12

9、Function --------------------------------------------------------------------------------------13

10、Functions schedule----------------------------------------------------------------------15

11、Trouble shooting--------------------------------------------------------------------------16

12、Wiring circuit ------------------------------------------------------------------------------22

13、Exploded view and list of parts-------------------------------------------------------23

Front Load Washer HMS1000TVE

Model code rule description

Model identification：

HMS 1000 T V E

A B C D E

A：Serial code

B：Max spin speed

C：Temprature adjustive

D：

E：

Spin speed adjustive

Computer control

Examples：

HMS1000TVE

It represents HK series appearance，with big window、180°opening window、800rpm spin

speed.Spin speed is adjustive from 0 to 1000rpm，temprature is also adjustive. it’s controlled .

by computer.

Front Load Washer HMS1000TVE

●300mm diameter porthole, door may be open at a 180 degrees.

Facilitate view of wash process, facilitate unloading and easy to use with large port.

●Multi-gear speed controller

According to different costuming，you can slect corresponding spin speed，from 0 to 1000 rpm.

●Unique gasket design featuring no residual water hidden inside.

By the unique gasket，washing machine can left no residual water hidden between outer drum and

board.

●Delay time adjustive.

According to different costuming，you can slect delay time，from 0.5h to 24h.

Front Load Washer HMS1000TVE

４

Proposal 2004 New Sensor

Front loaders washing machines

HMS1000TVE

Brand position center upper frame of door / chromed sticker

Model number serigraphy right top corner control panel

On white: silver / On silver : black or dark grey

1. Product identification

Description of appliance Washing machine

Type of appliance (FS = standing, BI = built-in) FS

Supplier own brand Haier

Supplier bar code EAN TBC

Mares computer code

Commercial Brand / Model

Commercial bar code EAN

2. Key-Features

Energy efficiency class A

Washing performance class C

Spin efficiency class C

Programs n° 11

Capacity Kg Max. 5

Spinspeed (max. / optional) rpm 1000-0

Noise level dB(A) 72

Energy consumption per wash circle * kWh 0.95

Water consumption* l <65

Residual dampness (spin result) % 56%

Spin speed selector switch (steps) rpm 1000/800/600/400/0

Spin speed variator (stepless) rpm

Adjustable thermostat (water temp. adjust from -

to)°C 80 - 0

Drum capacity dry laundry / water kg / l 6 / 49

Auto water level adjust (depending on volume of filled in laundry) AWL

Washing time (max.) min 124(TBC)

Washing temperatures (program-controlled) °C 40 / 60 / 90

Certification's (CE / ISO 9001 / ISO 9002) CE / ISO 9001

Approvals (VDE/GS / TÜV/GS / IMQ) TÜV/GS (Rhl.)

* EN 60456 (60°C cycle, full load without pre-wash)



COLD

3. Basics data

Unitdimensions (HxWxD) cm 86 x 48.5 x 59.5

Net weight kg 63

Voltage/frequency V/Hz 220-230V~50Hz

Input power / main fuse (intensity) W / A 1800/10

Work top / removable /

Control M= electromechanical, E= electronic,

F= fuzzy F

Drum S = stainless steel / Z = zinc coated S

Tub P = Polyprop./ S = stainless steel P

Door:

aesthetic (R= round, Y= big eye, Q=

square) R

Diameter cm 30

Outer door frame S= stainless steel / M

= metal / P= plastic P

Inner door G= glass / P=

plastic G

Detergent compartments n° 4

Removable compartment for liquid detergent -

Front Load Washer HMS1000TVE

５

Delay timer (from - to) h 0.5-24

Self cleaning suds pump

Water inlet hose cold water / hot water

Water drain hose / -support /

Adjustable feet n° 4

4. Safety systems

Auto door lock ADL

Motor overheating protection MOP

No heating without water NHW

Auto water cool-down (before drain 90°C boiled water) AWC

Water return protection WRP

Acqua Stop kit -

Child protection

5. Programs

1) Strong action /cotton cycles n°

2) Normal action / synthetics n°

3) Delicate action / wooll cycles n°

Pre-wash / wash

Quick wash / super quick wash

Rinse / soften

Delicate / hand wash

Wool / cashmere

Soak / spin

●/●

Drain

Easy ironing

Optional function keys (additional program settings)

ON/OFF button

Half load -

Fussy -

Spin exclusion -

Spin reduction rpm

High water level -

No Soak -

Rinse stop -

Delicate -

Cold wash

Delay Timer

Extre Rinse －

Load Select －

Easy Ironning －

Temperature reduction

6kg wash －

Prewash －

●

●／●

●

●／－

●／●

●／－

●

Front Load Washer HMS1000TVE

Matters Needing Attention

● Ｓａｆｅｔｙ

１．

.A separate earthed socket is required for the

power supply. The washing machine must be

positioned so that the plug is accessible.

2. Hold the plug and not the electric cable

when unplugging the washing machine.

3.Fuses in the power circuit should be rated for 15A.

If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

4. Do not touch or use the washing machine bare-

footed or when the hands or feet are wet.

5.Do not use flammable detergent or dry clean

ing agent; do not use flammable spray in

close vicinity to the washing machine; do not

remove or insert the plug in the presence of

flammable gas.

6. The door of the washing machine will become hot

during the heating process. Avoid contact with the

door during the heating process. For safety, keep

children away from the washing machine.

７．Ｋｅｅｐｃｈｉｌｄｒｅｎａｗａｙｆｒｏｍｔｈｅｐａｃｋｉｎｇｍａｔｅｒｉａｌｓａｆｔｅｒｕｎｐａｃｋｅｄ．

Front Load Washer HMS1000TVE

9.The carpet must not obstruct the ventilation

openings in the base of the washing machine.

８.The washing machine should not be install-

ed outdoors or in a damp place. In the

event of water leakage or splashes allow

the machine to dry naturally.

10.Keep away from heat sources and direct sun-

light to prevent plastic and rubber components

from aging.

11.During installation, ensure that the electric

cable is not trapped by the washing machine

and avoid damage to the electric cable.

●DuringUse

1. Before use, check the joints of the filling hose, the

tap and the drainage hose for possible problems

from water pressure fluctuations. If joints are loose

or there is leakage, turn off the tap and repair. Do

not use the washing machine until the hoses are

properly fixed.

２．Keep the door slightly open when the washing

machine is not in use to prevent formation of

odors; do not cover the washing machine with

plastic cover so that inside dampness cannot

be kept in.

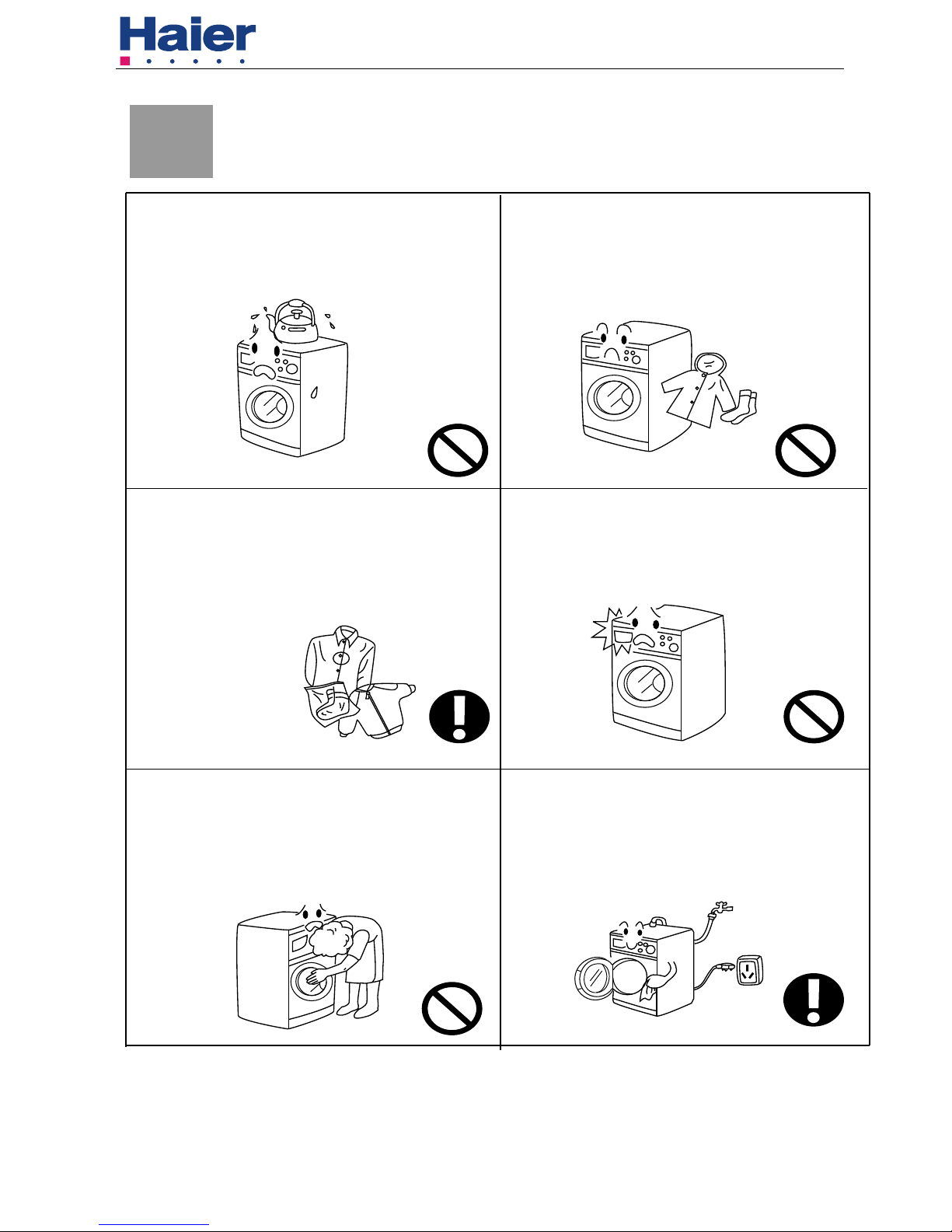

Matters Needing Attention

Front Load Washer HMS1000TVE

3. Do not place heavy, heating source or wet

articles on the top of the washing machine.

4. Do not hot wash foam rubber or sponge-like

materials.

6. Do not open the detergent distribution drawer

during the wash cycle..

7. The door is fitted with a self-lock device and will not open until

2~3 minutes after the washing machine stops. Do not force

the door open. Do not open the door if water level can reach

the porthole.

8.After each wash program, turn off the tap to

prevent leakage; and unplug the washing

machine and wipe clean the lower part of

the porthole.

Steel wires in bras will pop

out during washing; never

wash bras containing steel

wires.

5. Before washing, do up zippers, buttons and

clothes straps and put small articles, such as

socks, laces or bras, into a washing bag or a

pillow.

Matters Needing Attention

Front Load Washer HMS1000TVE

●

Ｒｅｍｏｖｅａｌｌｔｈｅｐａｃｋｉｎｇｍａｔｅｒｉａｌｓ（ｉｎｃｌｕｄｉｎｇｔｈｅｆｏａｍｂａｓｅ）

ｔｏｐｒｅｖｅｎｔｖｉｂｒａｔｉｏｎｄｕｒｉｎｇｕｓｅ，ａｓｓｈｏｗｎｉｎＦｉｇ．１．

Ｕｐｏｎｏｐｅｎｉｎｇｏｆｔｈｅｐａｃｋａｇｅ，ｗａｔｅｒｄｒｏｐｓｍａｙｂｅｓｅｅｎｏｎｔｈｅ

ｐｌａｓｔｉｃｂａｇａｎｄｔｈｅｐｏｒｔｈｏｌｅ．Ｔｈｉｓｉｓｎｏｒｍａｌｐｈｅｎｏｍｅｎｏｎ

ｒｅｓｕｌｔｉｎｇｆｒｏｍｗａｔｅｒｔｅｓｔｉｎｔｈｅｆａｃｔｏｒｙ．

Fig. 1

●

Check attachments and materials with reference to the following

●

Dismantle the packing bolts as shown in Fig. 2.

The packing bolts are designed for clamping anti-vibration components

inside of the washing machine during the transportation process.

Beforeuse:

1. Remove the back plate;

2. Remove the three packing bolts on the back plate and take out the

rubber hose;

3. Replace the back plate;

4. Fill the holes left by the packing bolts with plastic plugs.

(Attention: The packing bolts and rubber hose should be kept in a safe

place for later use)

Fig．３

●

Adjusting the washing machine

There are adjustable feet under the bottom of the washing machine.

Before use, the washing machine should be adjusted, as shown in

Fig. 3, so that it is level.

Fig.

２

Ｍｏｄｅｌ

ＨＭＳ１０００ＴＶＥ

ＱｕｔｙＮａｍｅＯｐｅｒａｔｉｏｎ

ｍａｎｕａｌ

１

１１１

３

Ｑｕａｌｉｔｙ

ｃｅｒｔｉｆｉｃａｔｅ

Ｗａｔｅｒ

ｈｏｓｅ

Ｄｒａｉｎａｇｅ

ｈｏｌｄｅｒ

Ｐｌａｓｔｉｃ

ｐｌｕｇｓ

Installation

Front Load Washer HMS1000TVE
